HOMAG BUTFERING OPTIMAT SKO213/RC
HOMAG BUTFERING OPTIMAT SKO213/RC YEAR 2011 NEVER USED!
1300MM TWIN BELT VENEER SPEC WIDE BELT SANDER £26,500+VAT

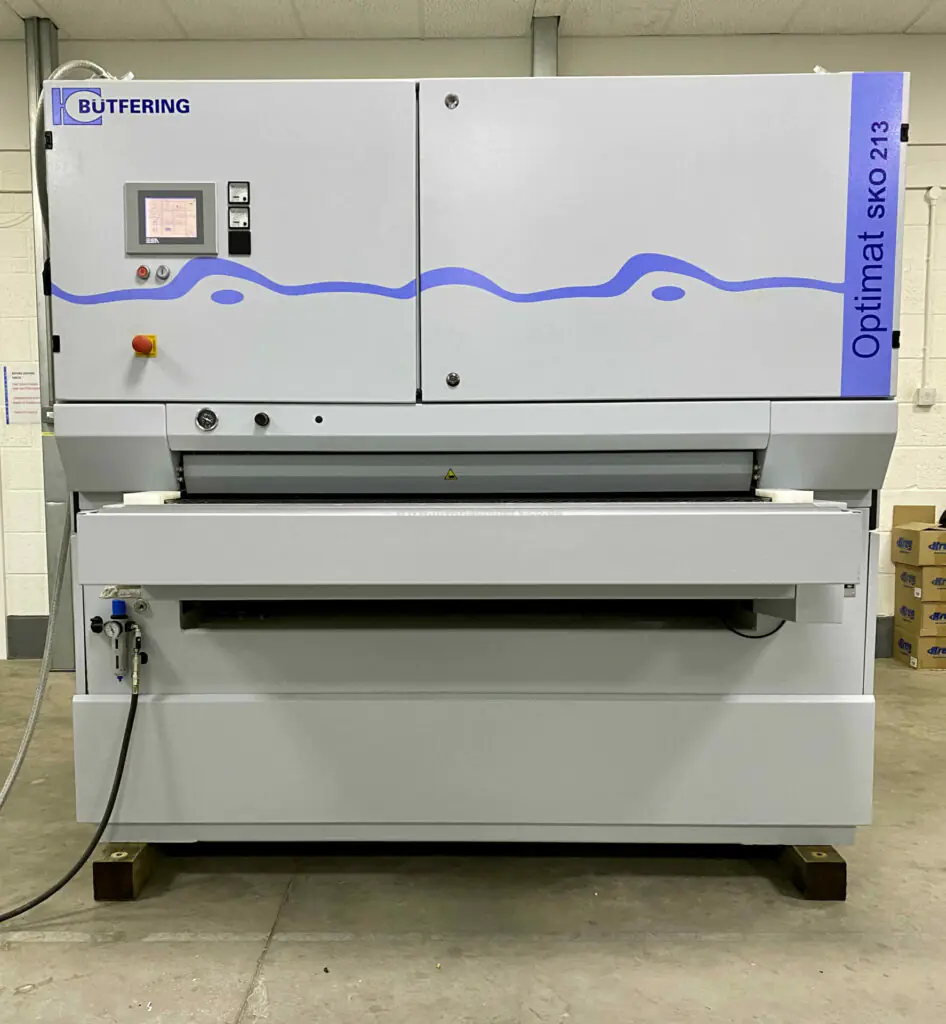

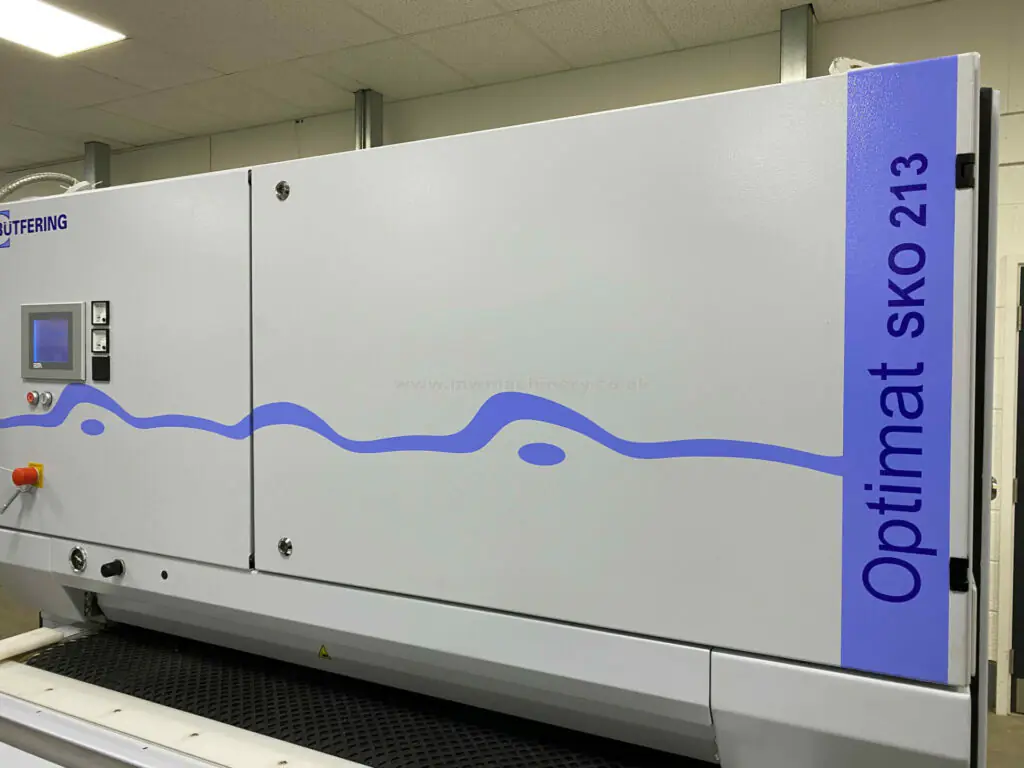

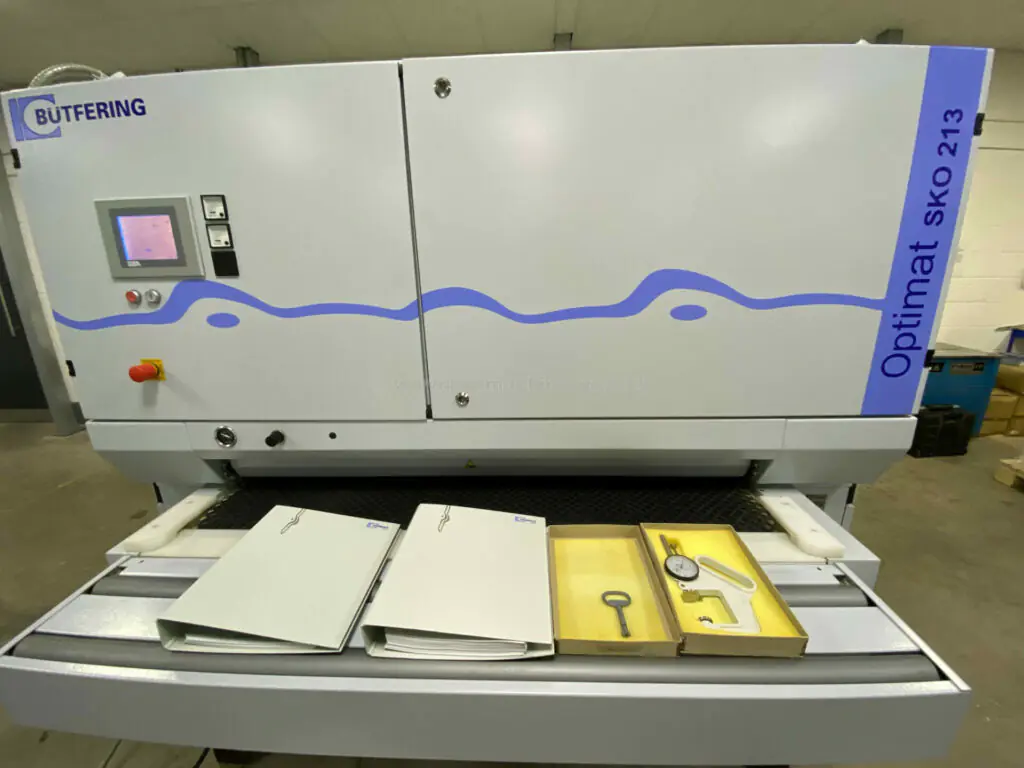

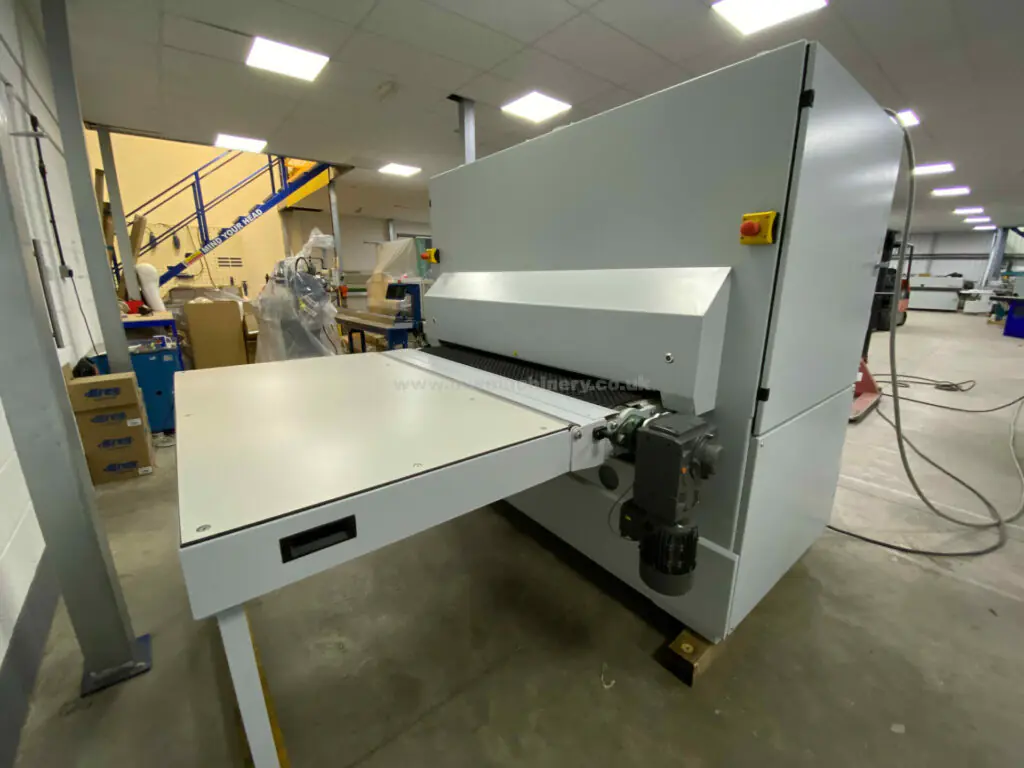

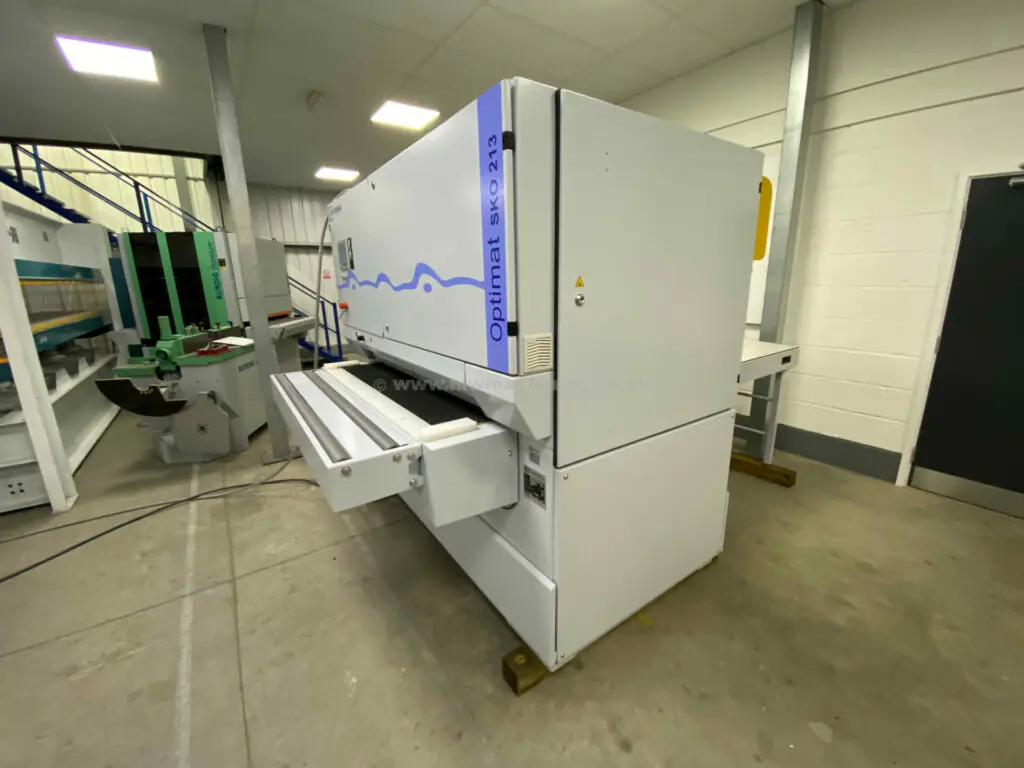

Butfering wide belt sander OPTIMAT SKO213/RC
Working width: 1350mm
Abrasive belt changing side: left
Workpiece thicknesses from 3 to 150mm

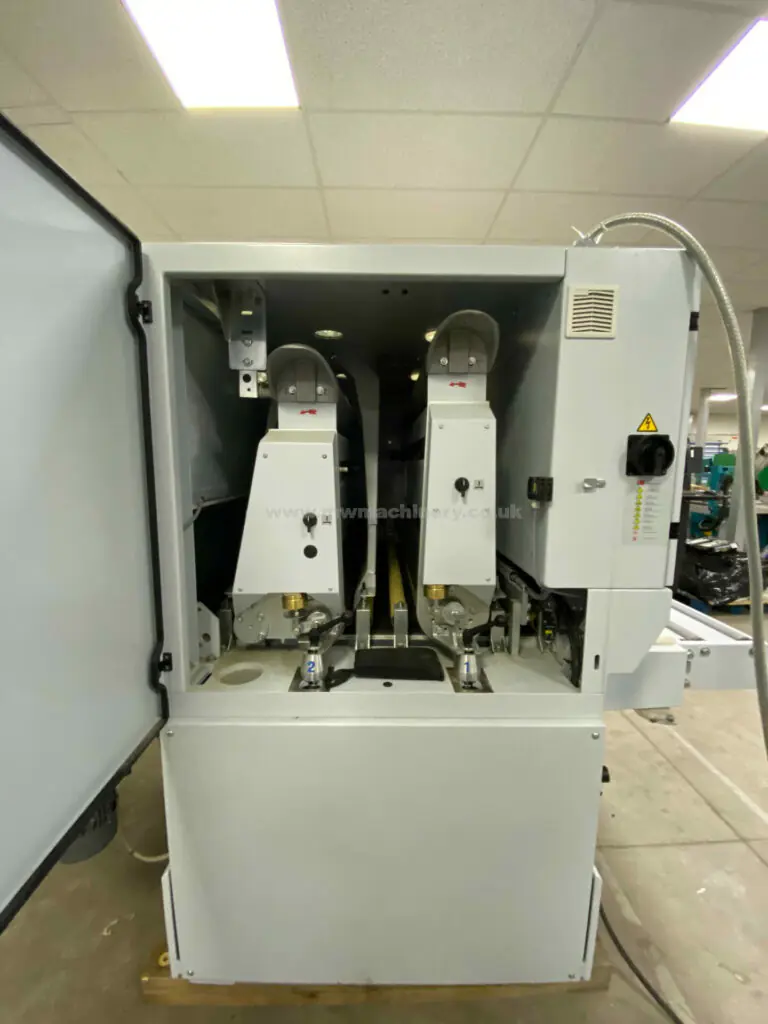

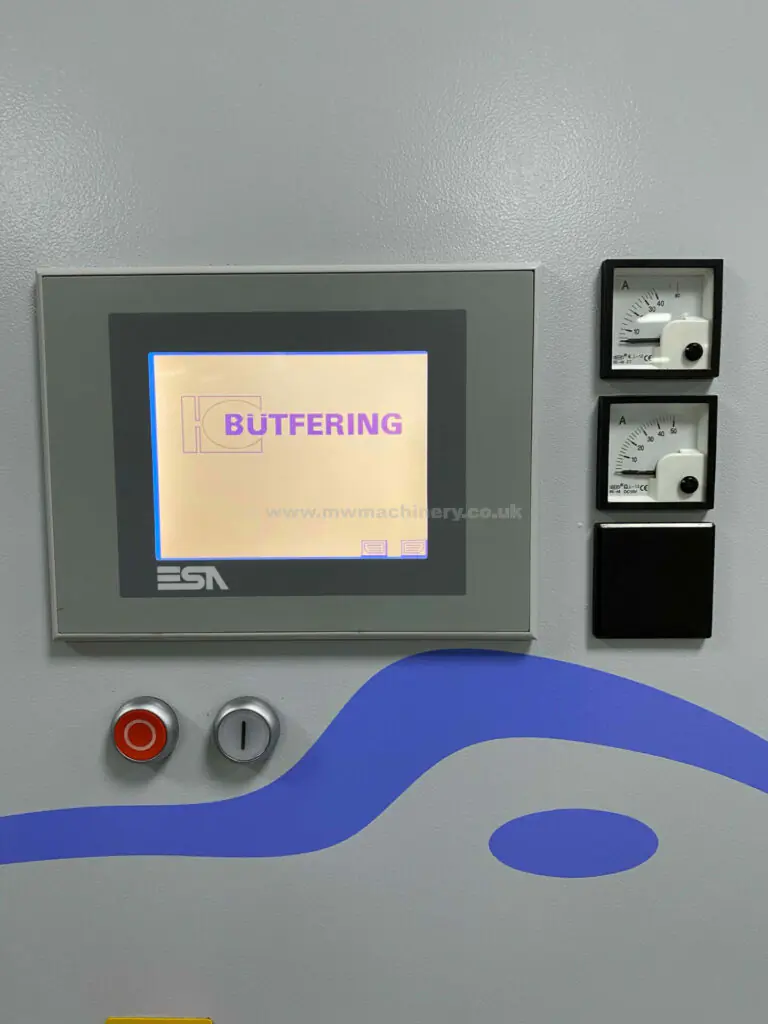

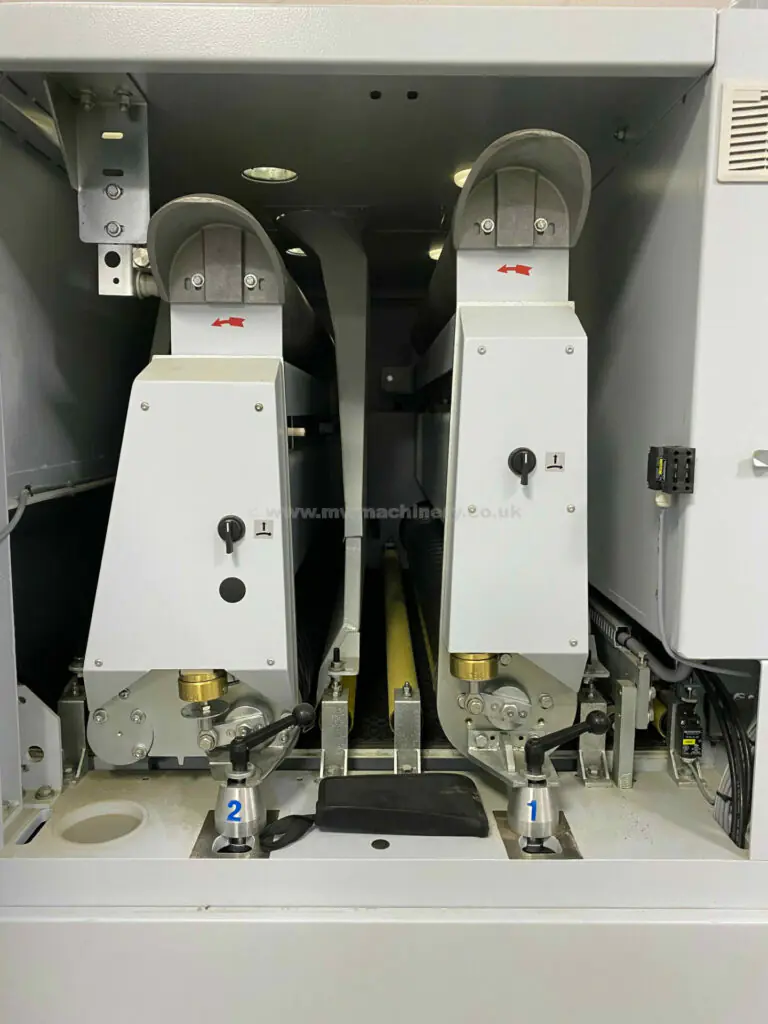

Equipment features: 1 contact roller head with: -automatic positioning profiled steel contact roller with grit size compensation for calibrating -cutting speed 18 m/s 1 combination sanding head: -variable, frequency controlled abrasive belt cutting speed 2 – 18 m/s -automatic positioning of rubberised contact roller, 85degree shore, with grit size compensation fr calibrating -electronically controlled segmented pad, 35mm segments for fine sanding -air-jet belt blower, activated by the workpiece -constant pass line (900mm) by adjustment of upper machine frame via four large diameter threaded spindles -vacuum table prepared (table and conveyor-belt) for connection to dust collector or to external fan (optional) -automatic work piece thickness setting on the machine -protected storage space for spare sanding inserts -automatic star delta starting and maintenance-free electrical main motor braking -electronic abrasive belt oscillation -pneumatic tension of abrasive belt with integrated abrasive belt edge compensation -touch screen with 125 programs for automatic machine control -safety switch-off of machine during faulty operation -clear text error message in operator terminal -conveyor feed with variable, frequency controlled feed speeds 2,5 – 13 m/min. -rotating panel cleaning brush on the outlet side of the machine -additional sanding inserts with soft felt for lacquer sanding -rubberised pressure rollers Technical data: (the following values are standard values and may change due to selected options) Abrasive belt width: 1370mm Abrasive belt length: 1900mm Voltage: 400V / 50Hz Drive motors: Head 1: 18,5kW Head 2: 15 kW Total connected load: approx.: 36 kW Dust outlets: 1 x 200mm dia (head1) 1 x 200mm dia (head 2) 1 x 100mm dia (vacuum table) 2 x 100mm dia (air-jet belt blower) 1 x 140mm dia (panel cleaning brush) Extraction volume: 7.280 m cubic meters per hour
