Technical Specifications
Motor
400V/1.0
Number of spindle speeds
16
Spindle Travel
127mm
Spindle distance to table
763mm
table size
356 x 483mm
Miter t-slot / distance
13/270mm
Dimensions
723 x 483 x 1,679mm
Spindle speed range
180 – 2,900 RPM
Spindle Fixture
MT2
Distance spindle column
215mm
spindle distance to base
max 1,194mm
table tilt
90 left / 90 right
column diameter
80mm
Weight
86 KG

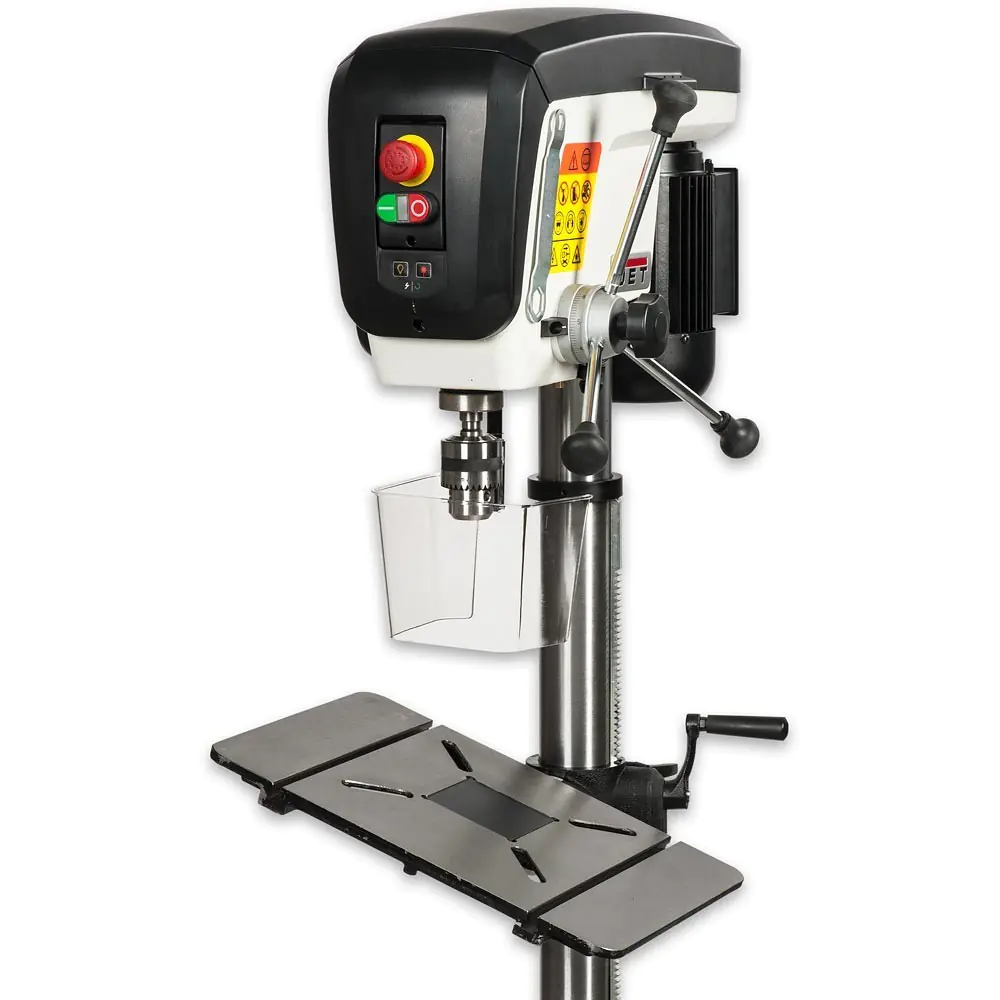

Introducing the new Jet JDP 17, 17″ Drill press. From a full 5″ of spindle travel to the sturdy cast iron head with a poly v-belt driven system, this drill is designed to perform. This drill press also features a long-lasting, built-in LED work light to provide direct lighting while reducing shadows. A large 14″ x 19″ work table provides plenty of support with an edge designed for easy clamping.
CE Certified
Features
- Integrated depth stop makes repetitive drilling quick and easy
- Large cast iron base provides stability

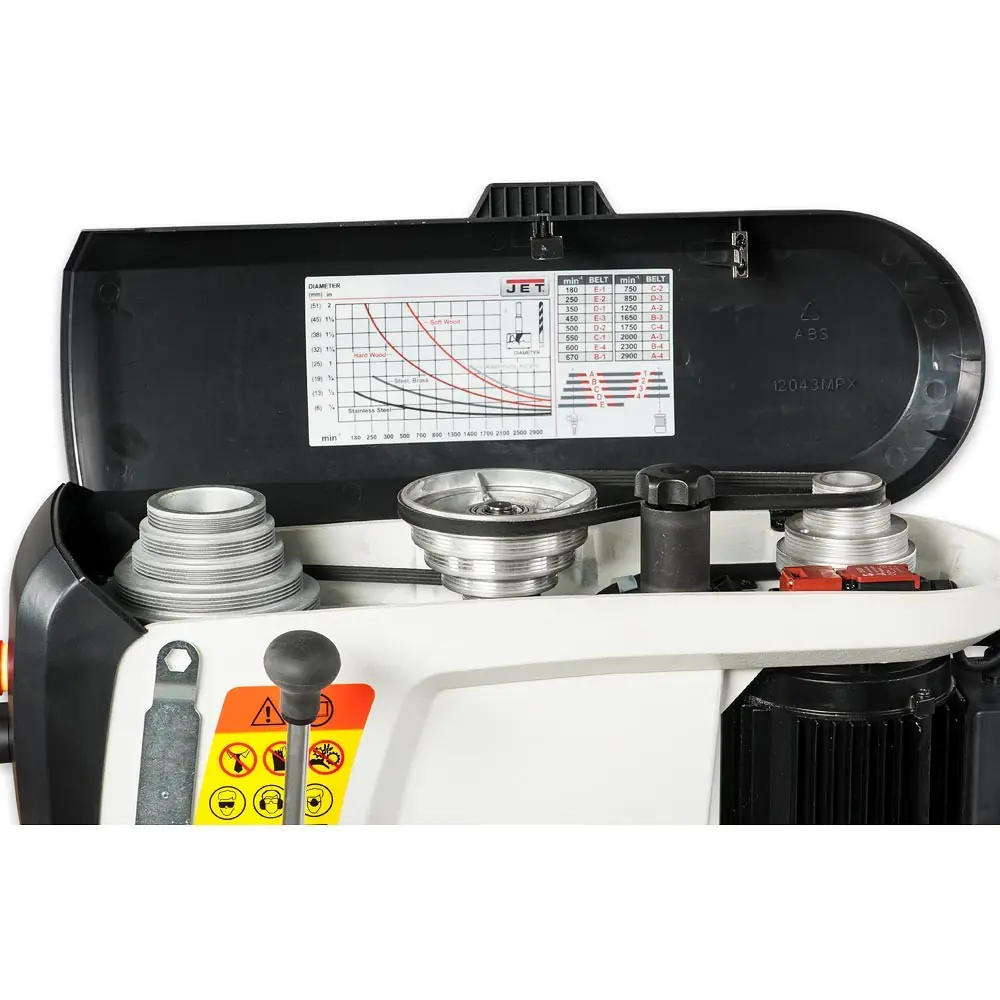

- One-handed belt tensioning allows for rapid speed changes

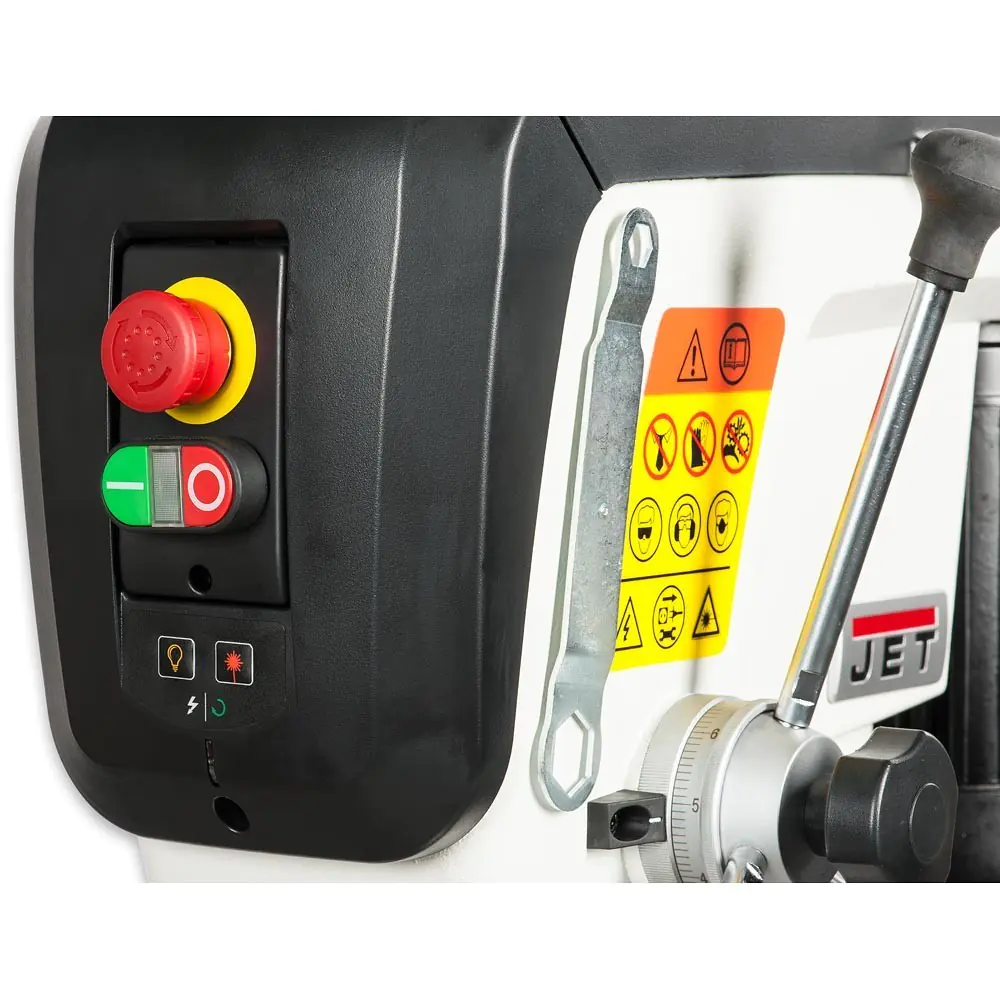

- Power switch features a safety key and large, paddle-style off button
- Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
- Replaceable MDF table insert
- Table edge lip designed to make clamping easy
- Xacta-X laser system easily identifies the drill center
Jet JDP 17
- 16 Spindle Speeds
- Floor standing model
- 1HP Motor
Recommended circuit size (Amps.): 15
