Technical Specifications
Fully pneumatic machine built to run day after day in rugged, high-production environments.
Hardened steel drill guides maximize drill bit life and minimize bit deflection. It is built to be extremely quiet for operator comfort.

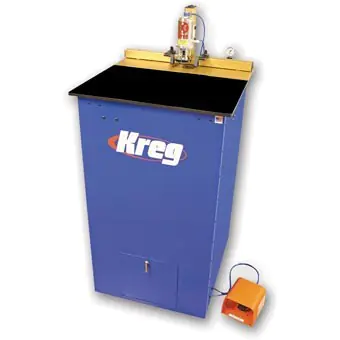

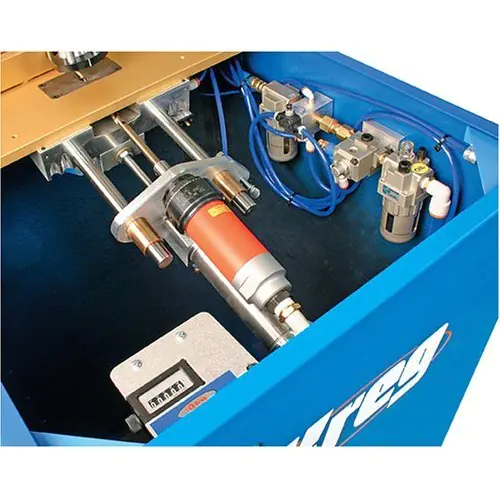

The DK1100 FP is a floor-standing, entirely pneumatic powered, fully-automatic pocket hole boring machine. 110-120 psi is recommended (the machine is 80 to 150 psi rated) to power the 1.1/4hp direct drive pneumatic motor, hold-down clamp and forward motion cylinder.
The DK1100 series features a reliable, one-step drilling operation through a hardened steel drill guide to produce the pocket hole. The hole is round sided with a flat bottom that allows a screw head to sit flushly in the bottom of the pocket and the hole to be plugged with wooden dowel.
This single-spindle machine features the ability to centre a screw in 1/2″ to 1.1/2″ thick material. Overall size 610 x 595 x 1260mm, table top height 1000mm.
