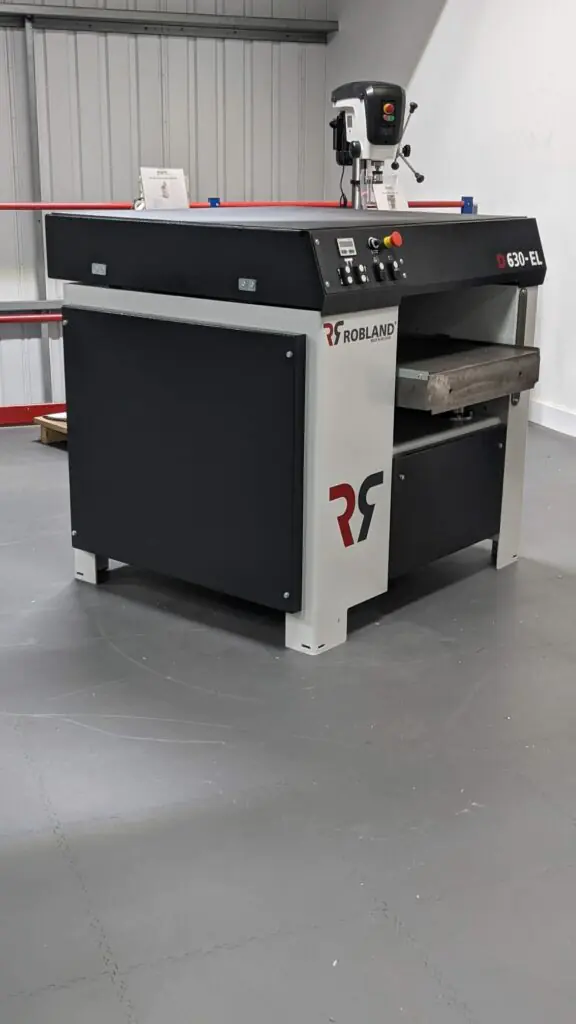

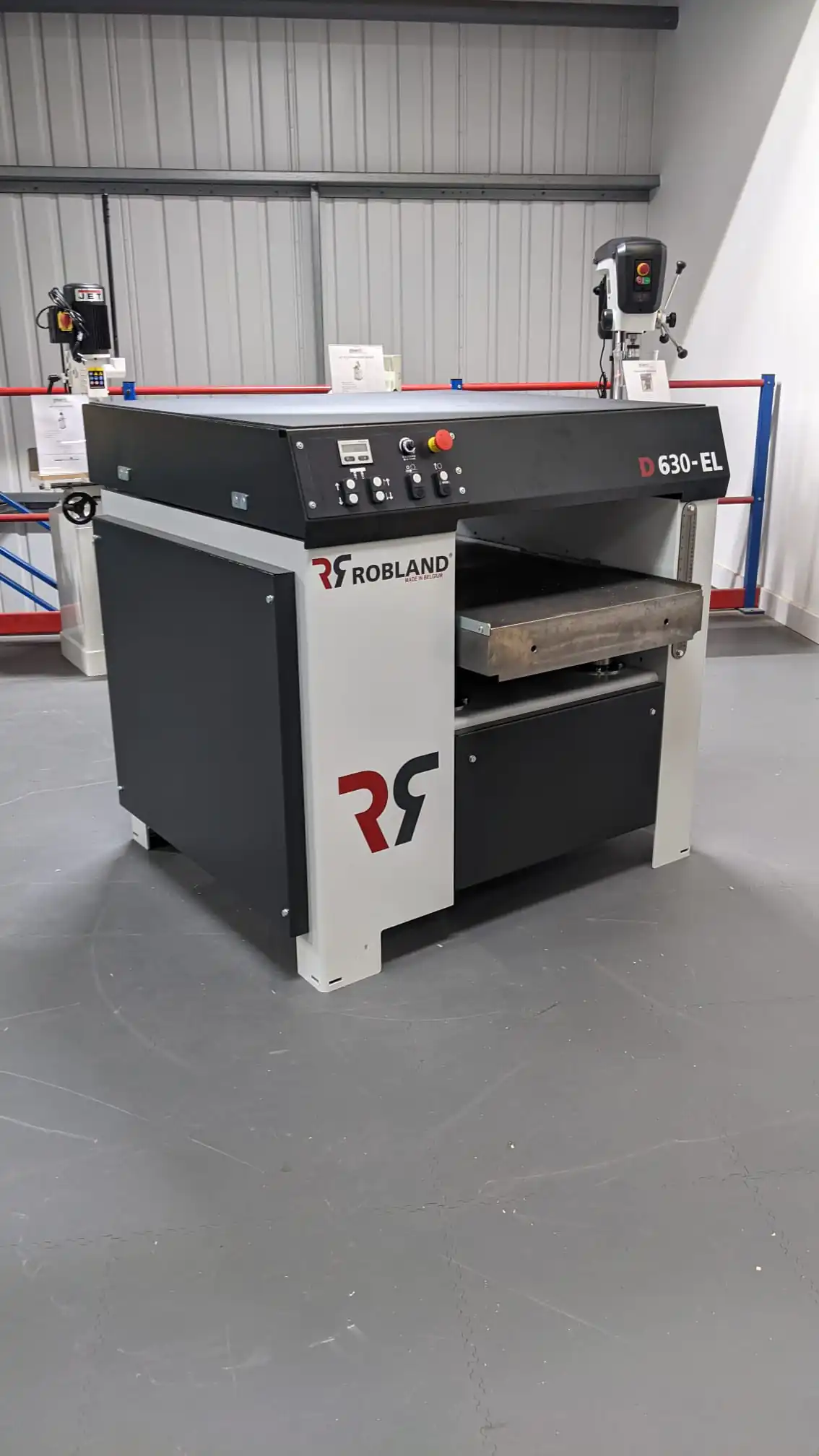

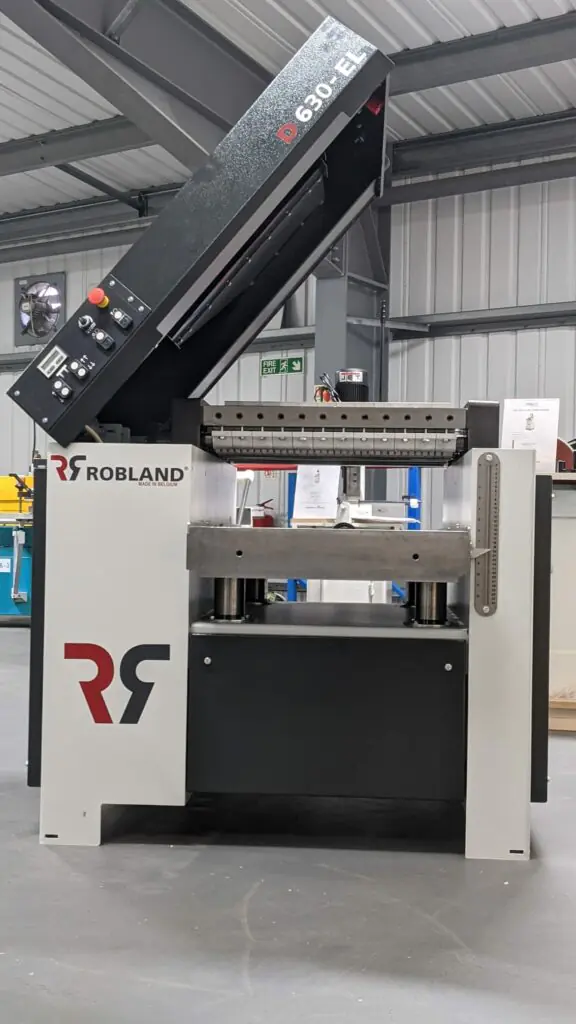

Robland D630 EL Thicknesser

From £11,995.00 + VAT

(£14,394.00 inc VAT)
  •
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Motor Power
9.2kW / 12 HP
Max thickness Height
3 – 300mm
Dimensions thickness table
1160 x 630
Dust extraction outlet
120mm
Overall dimensions
1590 x 1340 x 1235mm
Weight
950KG
Rotation speed
5,200 RPM
Variable feed speed
5 – 22 M/MIN
Max thickness width
630mm
Min workpiece length
50mm
Number of knives
4
Voltage / phase
415V / 3ph
Diameter cutter block
120mm
max depth of cut
8mm
Diameter feed rollers
70mm

The Robland D630 EL Thicknesser is mounted on 4 big columns to give stability even under very heavy loads. The 2 speed rise and fall of the table, driven by its own motor is standard on all machines, the passage of the wood is 300 mm! For wet or damp timber adjustable rollers (1 or 2) can be provided. Please note that this option must be ordered with the initial order for the machine. Planed table: The cast iron table is precision planed for smooth sliding of the workpiece. Highest quality ‘cold process machining’ is used, which ensures the table surface stays absolutely flat throughout it’s life.

4 Sturdy columns

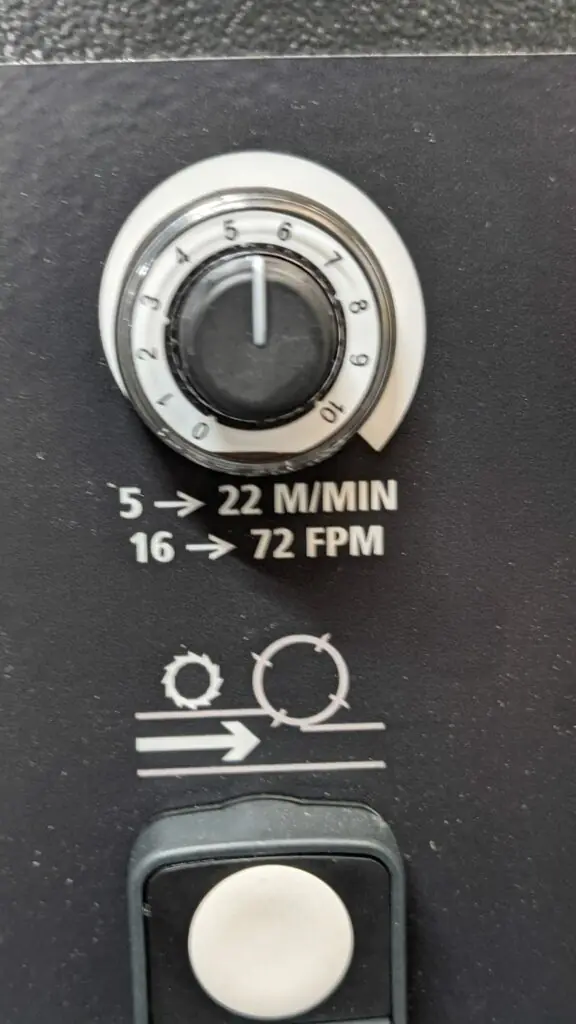

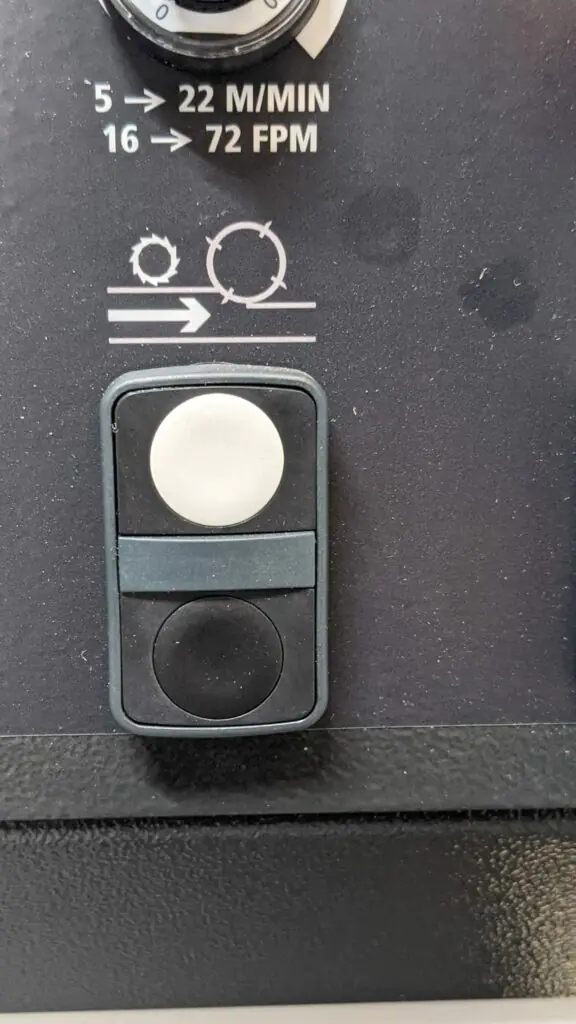

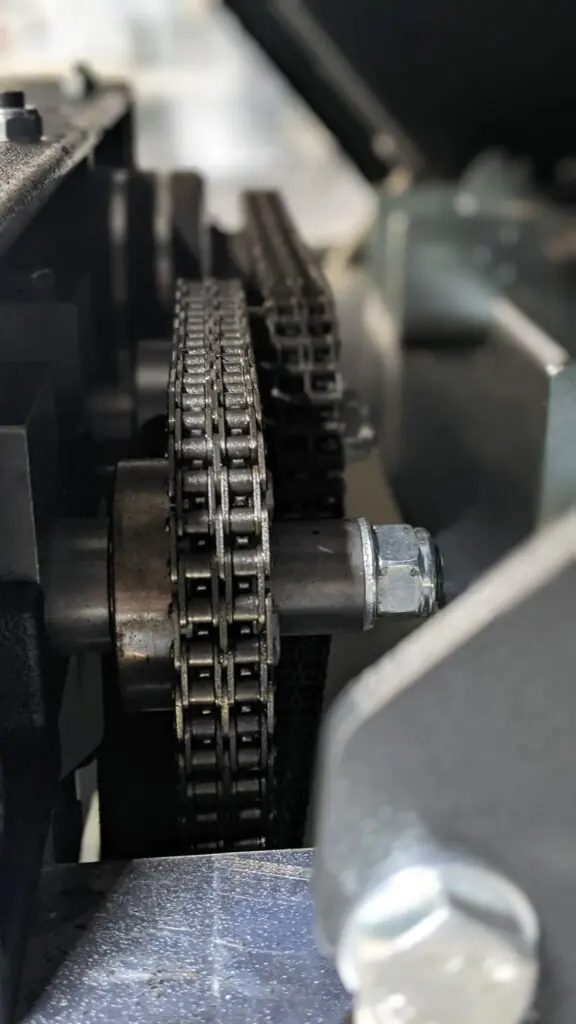

Stepless feeding


2 Table Rollers

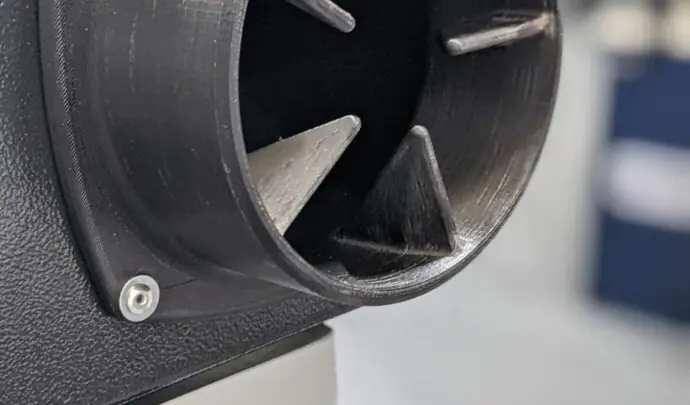

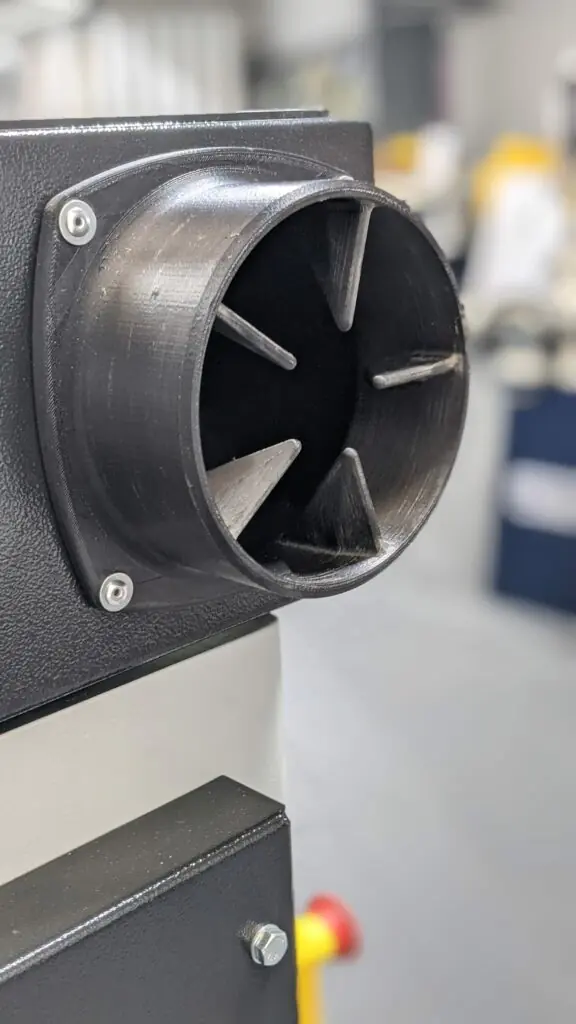

120mm Extraction outlet

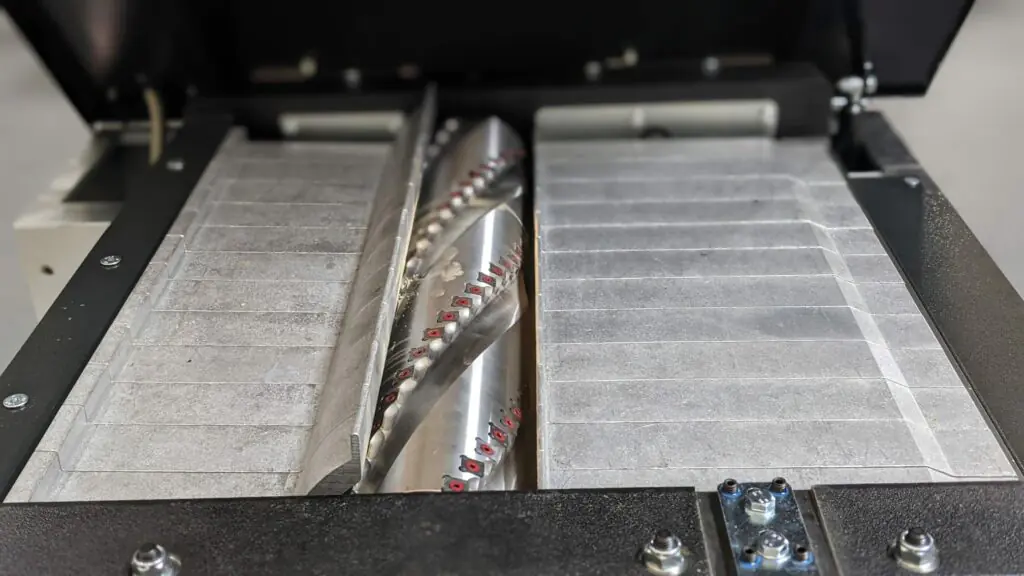

Planer Table


The cast iron table is precision planed for smooth sliding of the workpiece. Highest quality ‘cold process machining’ is used, which ensures the table surface stays absolutely flat.

Robland D630 EL Thicknesser

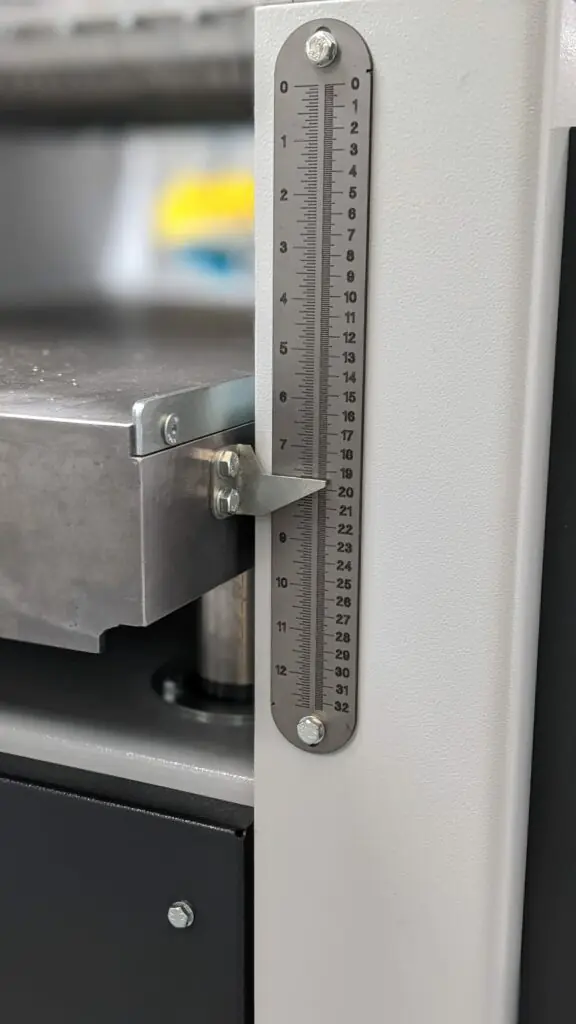

The 2 speed rise and fall of the table, driven by its own motor is standard on all machines, the passage of the wood is 300mm

For wet or damp timber adjustable rollers (1 or 2) can be provided. Please note that this option must be ordered with the initial order for the machine

Robland D630 EL Thicknesser | MW Machinery

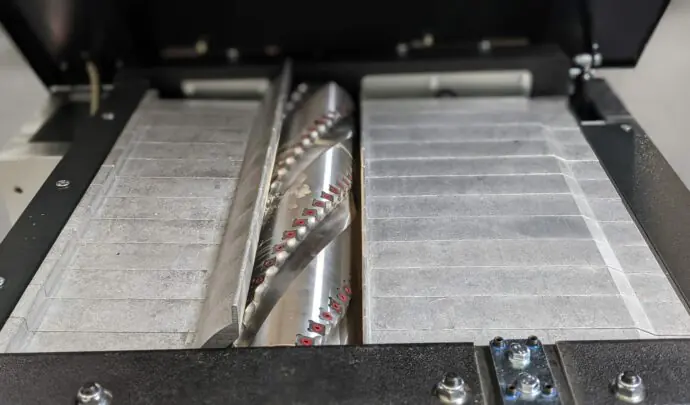

Spiral Infeed Roller


Spiral infeed roller guarantees an efficient feed motion of wood and a good quality

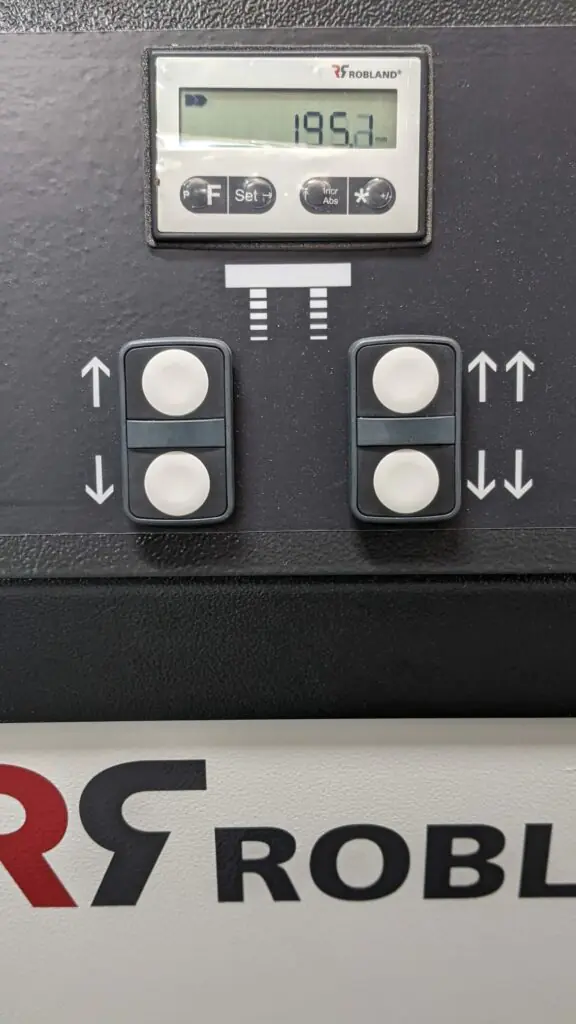

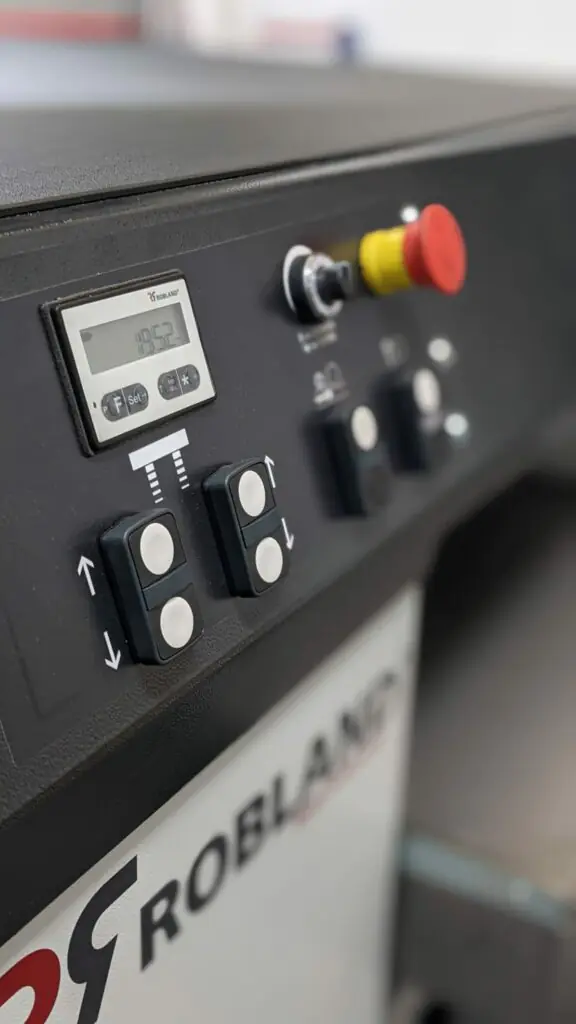

Digital Read-out


Digital read-out thicknesser

Sectional Infeed Roller


With the sectional infeed roller, it is possible to work wood with different thickness (thickness difference up to 2mm) and the feed motion of long pieces with a difference of a 2mm between beginning and end

Height adjustment Scissor table


Height-adjustment scissor table
