Technical Specifications
Scanhugger HL3/10/10 Shredder
The Scanhugger HL31010 shredder is a cost-effective shredder with an output of up to 760 kg/hour. The shredder is designed for a large range of wood waste, ranging from hard- and softwood, trim blocks, particleboard, MDF, furniture parts, paper, and cardboard. Pallets and wood packaging are an integral part of modern-day transport and warehousing operations. However, the production of euro pallets, single-use pallets, crates and wood packaging, in general, generates high volume of wood waste, both at production and as the product reach end of life. Wood waste wood from damaged pallets or wood packaging, for instance vegetable or fruit crates, this is an opportunity to generate new fuels for thermal recovery.

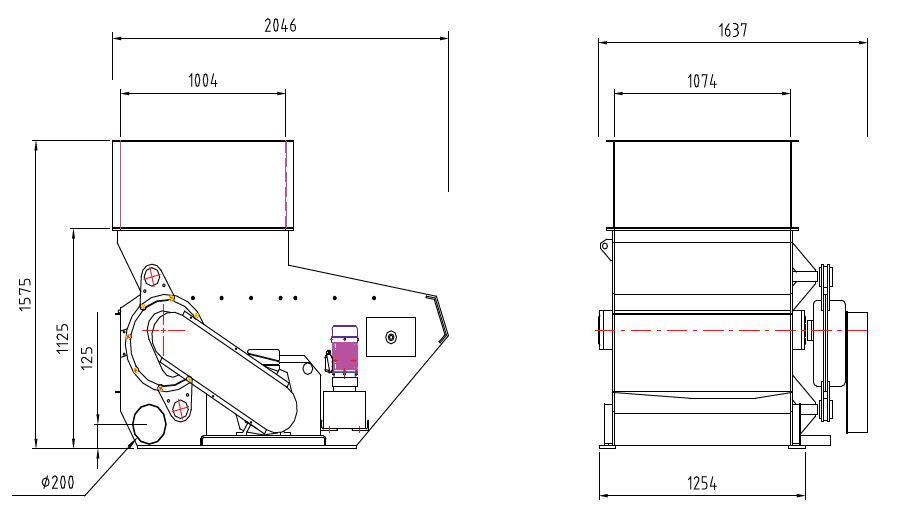

Floor Plan
Need assistance or Expert Advice
We pride ourselves in offering a friendly and professional service
Premium Granulates Free of Metal
All of Scanhuggers industrial wood shredders and chippers produce the best quality granulate for the immediate use in wood chip heating systems or to produce briquettes. Metal parts such as nails, screws, clamps or metal fittings are no problem for the cutting system in the HL-series of wood shredders. The metal is shredded together with the pallets and packaging wood. Then removed by an over band magnet raised perpendicular to the chip conveyor. The iron particles are then dropped into a collecting tray or box.
Shred Pallets and Packaging Wood into PROFIT
Scanhuggers robust industrial wood shredders have been developed to handle all types of wood waste. Including single-use pallets. Damaged euro pallets, and packaging wood. Varying on the required throughput, Scanhugger offer a range of shredders that were designed with the shredding of pallets and packaging wood. As the design of the system including the hopper and conveyor system is adapted to your individual requirements, loading may be done either by conveyor belt, wheel loader, forklift, grabber or even manually.
Turn wood waste into PROFIT
Scanhuggers reliable industrial wood shredders ensure the production of a homogenous granulate. The granulate can then be used for in-house wood chip furnace, biogas plant, biomass co-generation plant and the production of wood briquettes. This reduction in size also reduces your disposal, transport and storage costs. regardless of how you are planning to use the wood chips, Scanhugger can configure the shredder and auxiliary products for woodworking scrap, exactly according to your needs.
Unique Knife Design
Scanhugger’s knife design and precision mounting arrangement ensure long tool life, optimal chip quality and easy maintenance. The exclusive machined chip pocket in front of each knife position allows for chips to clear out of the cut, thereby maximizing the cutting action and the output of the chips. Each knife can be rotated up to four times which allows for a longer lifespan of a single blade.
The Rotor – Sturdy by Design
The rugged, heavy-duty frame and rotor, along with the chrome nickel shaft and over-sized roller bearings, are engineered to accommodate the heavy shock loads typical of shredders. Rotor and shafts for the HL 2/5/5 and HL 2/7/10 are turned down from one piece of steel grade ST.60. All other rotors used for the HL-series are two-piece construction using high-grade chrome-nickel steel for the shaft. The rotor body is turned from a steel tube ST.52. The rotor body and shaft are connected using high torque, conical power locks.
Smart RAM System
A Scanhugger PLC controls the unique Smart Ram-System. This system controls the ram action and ram speed based on the main motor load, as well as the material being shredded. The smart Ram-system eliminates overloading of the main motor, thereby maximizing the cutting action and the output of the chips.
Heavy-Duty screen for industrial wood waste shredding
The chip size is determined using a heavy-duty chip screen with square holes. Hole sizes range from 15x15mm to 70x70mm in a solid perforated steel plate. Hole sizes from 80x80mm are welded construction. There is access to the screen through the hinged cover on the machine front.
Guides and Cylinders
Scanhugger design the hydraulic cylinders for long wearing dependability. Combine the system with controls for ram-speed and action with features such as pause, stop, reverse and move forward ensures an optimal feeding intake. The reversible pheonolic guides guarantee a day in, day out performance and also smooth ram operation.
Material Handling
Scanhugger produce and tailor fit a large range of machinery related to separation, conveying and handling infeed and chip discharge to and from the production line. Our metal separation solutions ensure the removal of all ferrous particles before further processing.
Turnkey Wood Waste Utilization System
Fully customisable. Make it your own.
The Scanhugger HL line-up, coupled with a full range of options and auxiliary equipment enables Scanhugger to build turnkey wood waste utilization systems. The range of equipment includes: Pneumatic discharge system, chip conveyors and auger discharge systems. Furthermore, metal detection and separation systems can be put into place. And much more!
HL-Series
The reliable industrial wood shredders ensure the production of a homogeneous granulate. The granulate can then be used for in-house wood chip furnace, biogas plant, biomass co-generation plant and the production of wood briquettes. This reduction in size also reduces your disposal, transport and storage costs. Regardless of how you are planning to use the wood chips, we will configure the shredder and auxiliary products for woodworking scrap exactly according to your needs.
