ACM OBS-150

Enquire for price

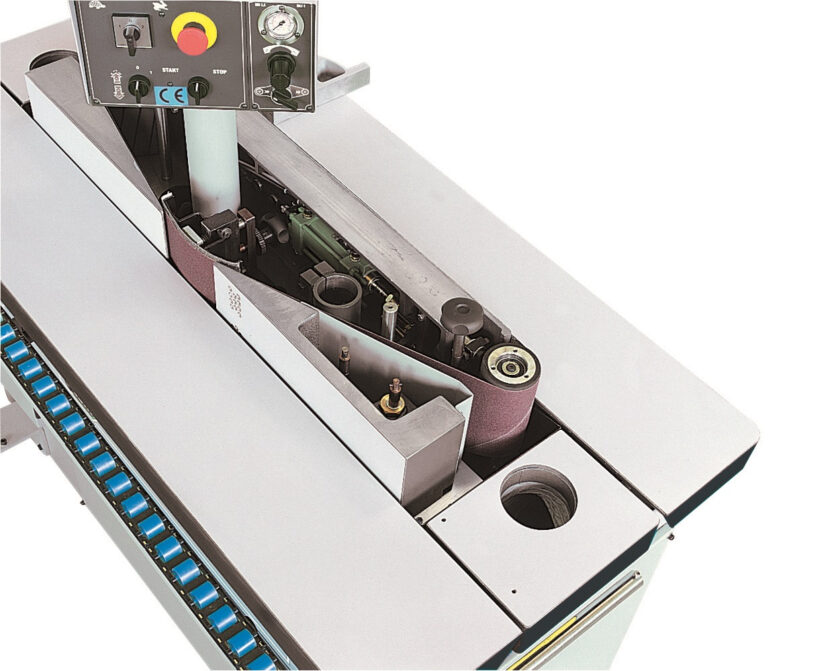

Universal sanding center with vertical oscillating sand belt.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Make
ACM
Table size
220mm x 1440mm
Working surface total width
700mm
belt speed
11.5 – 8mt/ sec
Driven roller 1 Diam.
160mm
Overall Dimensions
1500mm x 800mm x 1400mm
Working pressure
min 3 – max 6 bar
Machine weight
550kg
Model
OBS-150
table tilt
90° – 45°
working table height
950mm
2 speed belt motor
3.5 – 2.5hp
Driven roller 2 Diam.
80mm
Extraction Outlet
140mm
phase
415v / 3ph
ACM

OBS-150 Sander


  • Adjustable control panel with an additional stop
  • Manual raising and lowering of sanding assembly
  • Table tilts on the pad side with graduated scale for reading the angle
  • 120 grit abrasive belt
  • infeed fence and pad with micro-adjustable depth adjustment
  • Sliding mitre fence +45°
