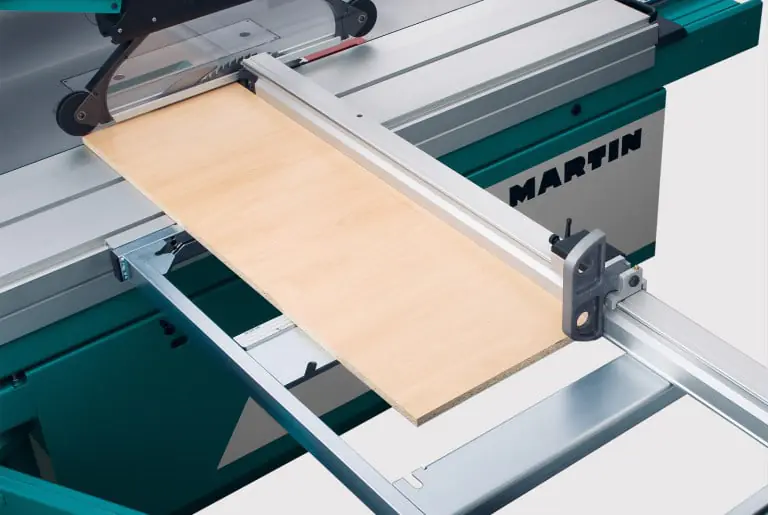

Analogue cross-cut fence T70 with continuous support
The dimension display on this crosscut fence with full-length support is provided in analogue form, i.e. using a scale.
In contrast to the 2-point version, this model has large flip stops and the full length of the workpiece rests on the fence. For example, this is ideal if you work a lot with thin flexible material.
The wood to be cut is straightened by the fence and can, therefore, be cut accurately to size. As in the case of a 2-point alignment, the inner stop element with fine adjustment and scale magnifier can be precisely adjusted.
The quick clamp of the stop element supports quick dimension change between 205 and 2020 mm, whereas lengths up to 3310 mm can be set with the extendable outboard stop.
If you prefer to work with digital exact dimensions, the digital cross-cut fence is the right option: The inner and outer stop work with separate measuring devices and can therefore be set independently with an accuracy of a tenth of a millimetre.
Each display can be changed over to display relative dimensions, in order to execute incremental cuts quickly, for example.
