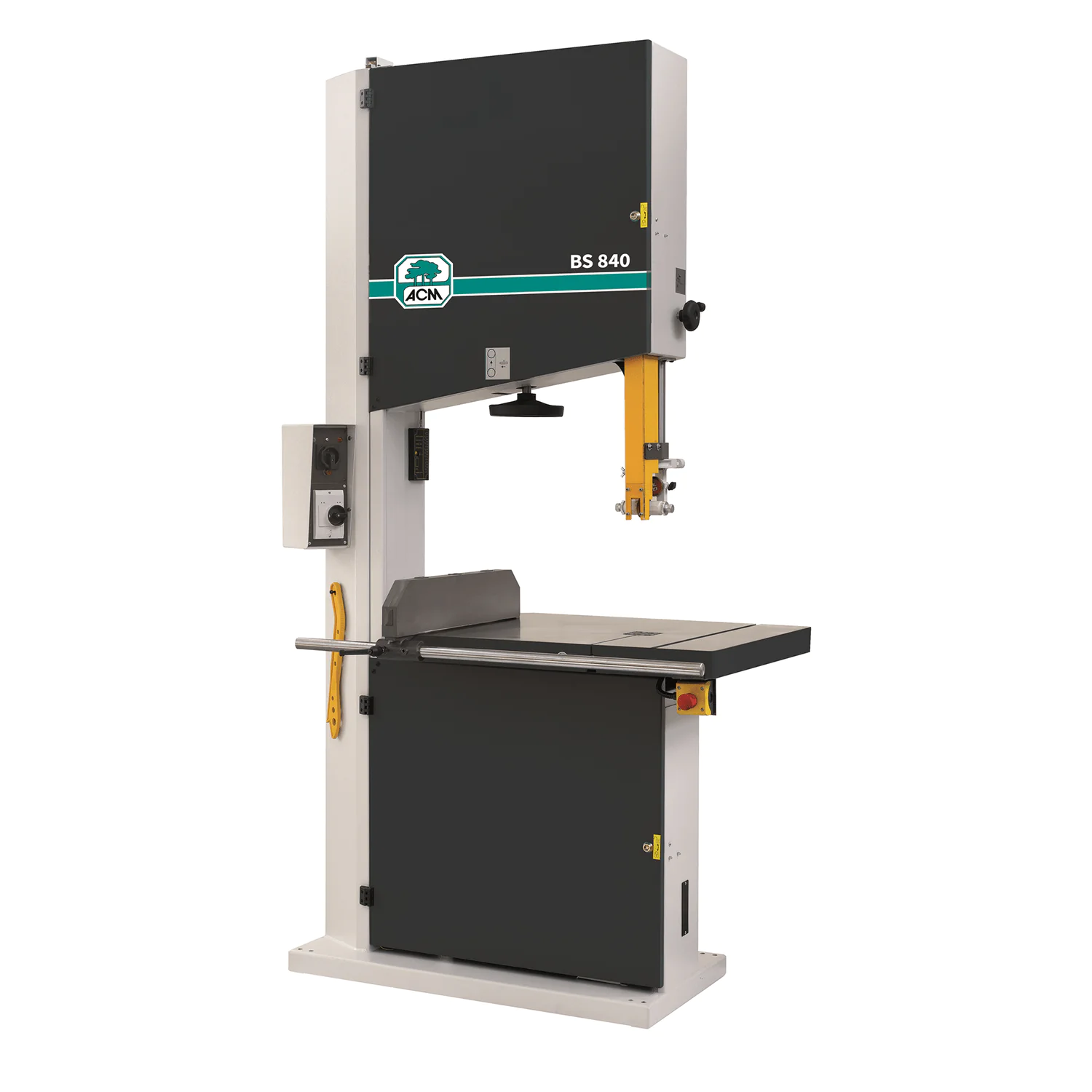

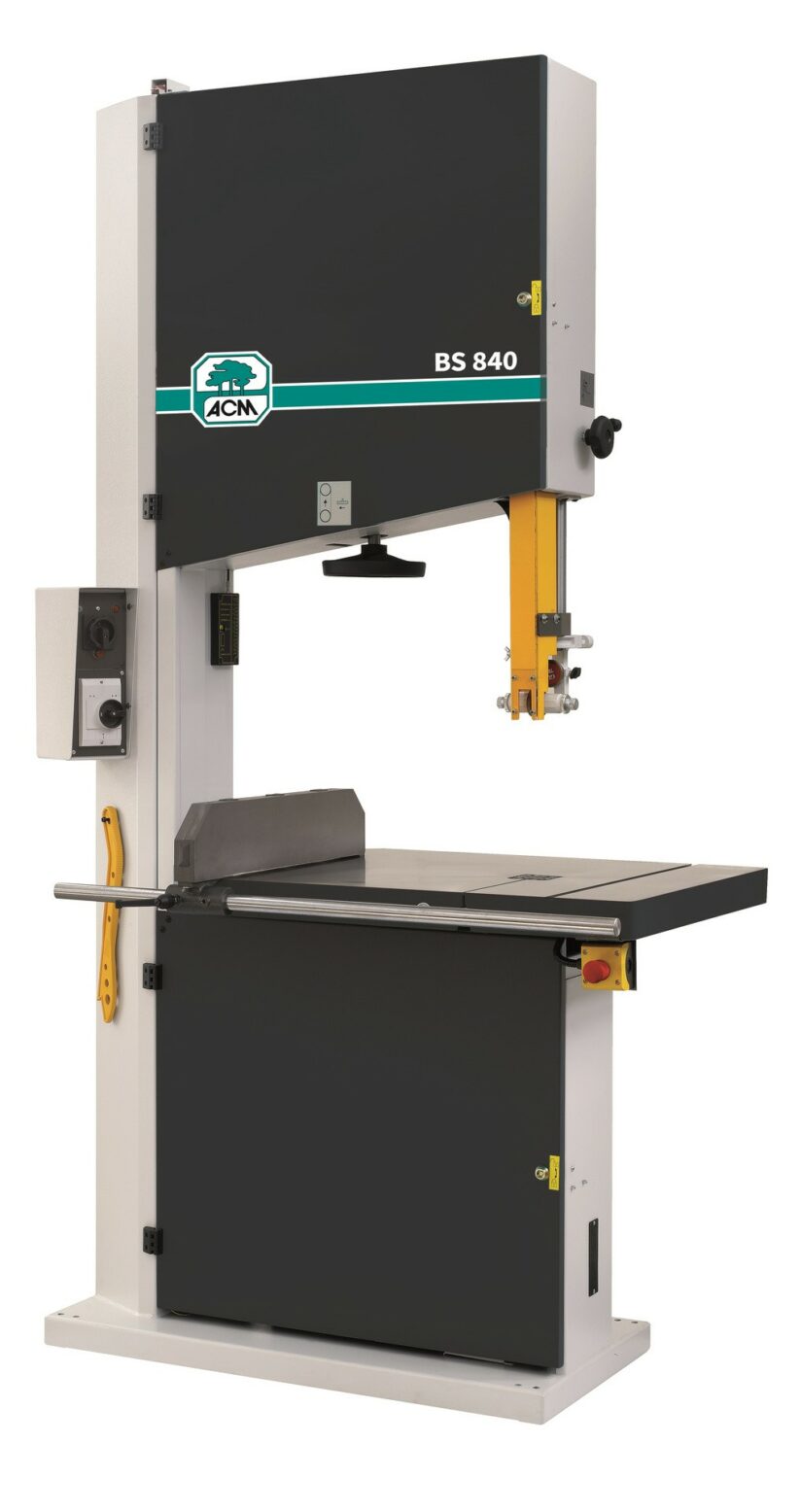

ACM BS 840 Bandsaw

Enquire for price

ACM designs, manufactures and markets a wide range of woodworking machines and special materials.

CE Certified



  • 400V/3/50 self-braking motor
  • Solid flywheels, rubber covered
  • Cleaning brush on lower wheel
  • Tilting table 0-20Ā°
  • Blade tension gauge
  • Parallel Guide
  • Upper saw blade guide with bearing system
  • Lower saw blade guide with bearing system
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Maximum cutting height
540mm
Flywheel Diameter
840mm
Motor Power
7.5HP
Blade length
min. 6030 max. 6110rpm
Overall Dimensions
1410x820x2650mm
Maximum cutting width
820mm
Flywheel speed
640rpm
Table dimensions
820x1160mm
Dust extraction outlets
2x Ƙ 140mm
Net Weight
580KG

ACM Bandsaws BS Range


Since 1979 ACM designs, manufactures and markets a wide range of woodworking machines and special materials. The ACM BS range is an industrial range of woodworking Bandsaws, they are constructed with reinforced steel to add extra stability. Designed to be superior at cutting solid wood. BS Range consists of the BS 540, 640, 740, 940 and ACM BS 840 Bandsaw (representing the flywheel diameter). Each designed for the woodworkers workshop. Many added options are available for the woodworking bandsaws in this range. ACM BS Bandsaws offer a great quality build, cast iron tilt-able table and flywheel.

Standard Equipment


    CE Certified

  • 400V/3/50 self-braking motor
  • Solid flywheels, rubber covered
  • Cleaning brush on lower wheel
  • Tilting table 0-20Ā°
  • Blade tension gauge
  • Parallel Guide
  • Upper saw blade guide with bearing system
  • Lower saw blade guide with bearing system
ACM BS 540 Bandsaw | MWM
Cast Iron Flywheels

Cast Iron flywheels. The BS 840 flywheels have a diameter of 840mm.

Parallel Guide

BS 840 Solid woodworking bandsaw’s Parallel guide.

Cleaning brush

Located on the lower flywheel, the cleaning brush cleans the flywheel on rotation.

Cast Iron Tilting table

ACM BS 840 has a cast Iron tilting table, capable of tilting from 0Ā° to 20Ā°

Spoked flywheels & rubber covered

The 840 diameter flywheels are spoked and layered with rubber

Stop circuit

ACM BS 840 Bandsaw stop circuit. This machine will not start unless the doors are shut.

Optional Extras


The following Optional Extra can be added to your order at an extra cost.

ACM BS 940 Bandsaw Optional circular cutting and sanding device
Circular cutting and sanding device

Simple attachable unit for circular cuts.

ACM BS 940 Bandsaw Sliding mitre fence mod 1
Sliding Mitre mod 1

Small mitre fence modification for the cast iron table.

ACM BS 940 Bandsaw Sliding mitre fence mod
Sliding mitre fence mod 2

Small mitre fence modification

ACM BS 940 Bandsaw Wheel kit
Wheel Kit

Wheel kit is available for the Bandsaws in the BS range.

ACM BS 940 Bandsaw Mitre fence on the cast iron table
Sliding Side Guide

Sliding side guide. Fits onto the side of the cast iron table, can be used with a mitre fence to cut angles.

ACM BS 940 Bandsaw cast iron lower flywheel
Front side table E-Stop

Emergency stop located on the front of the cast iron table.
