Technical Specifications

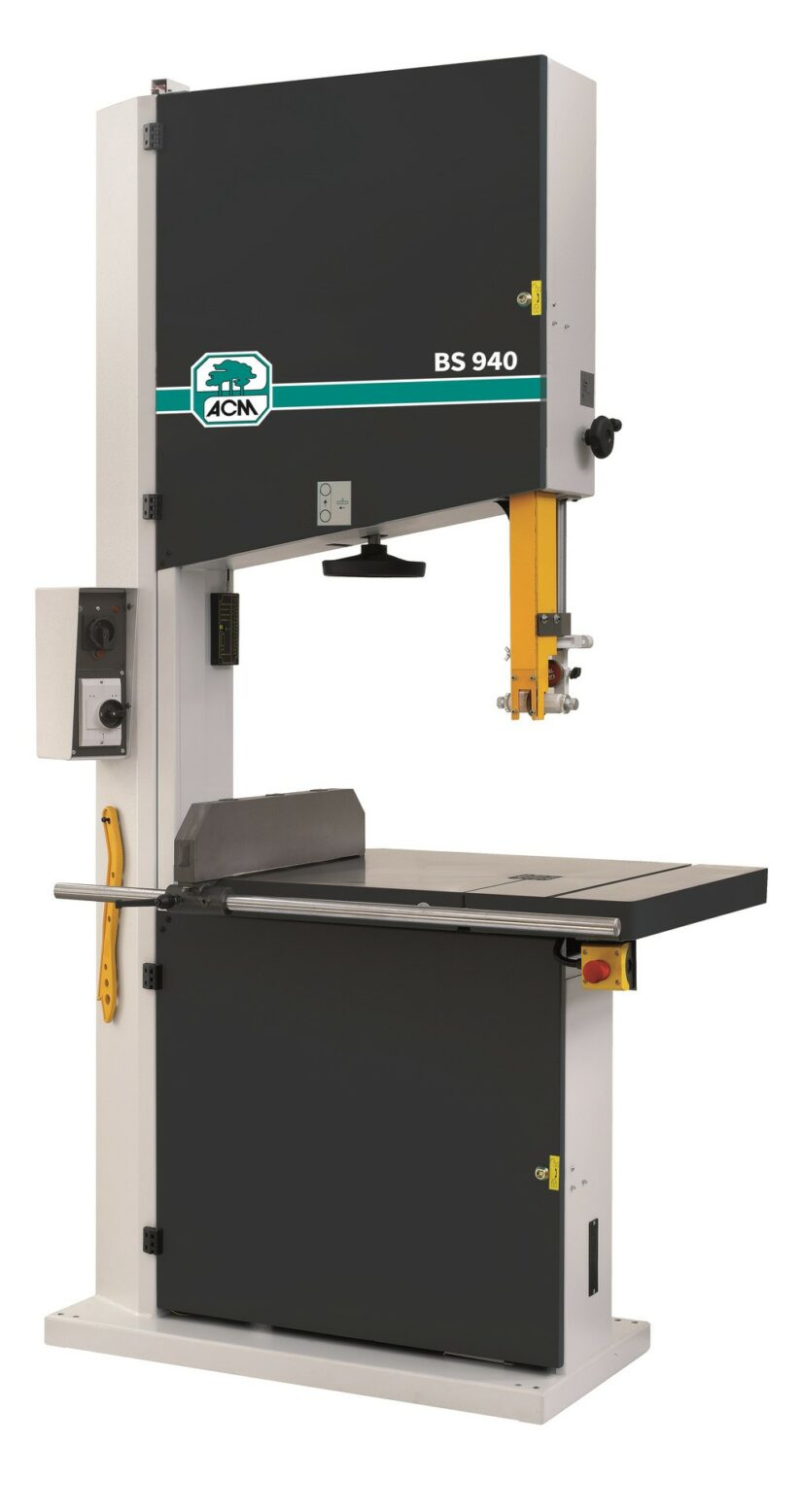

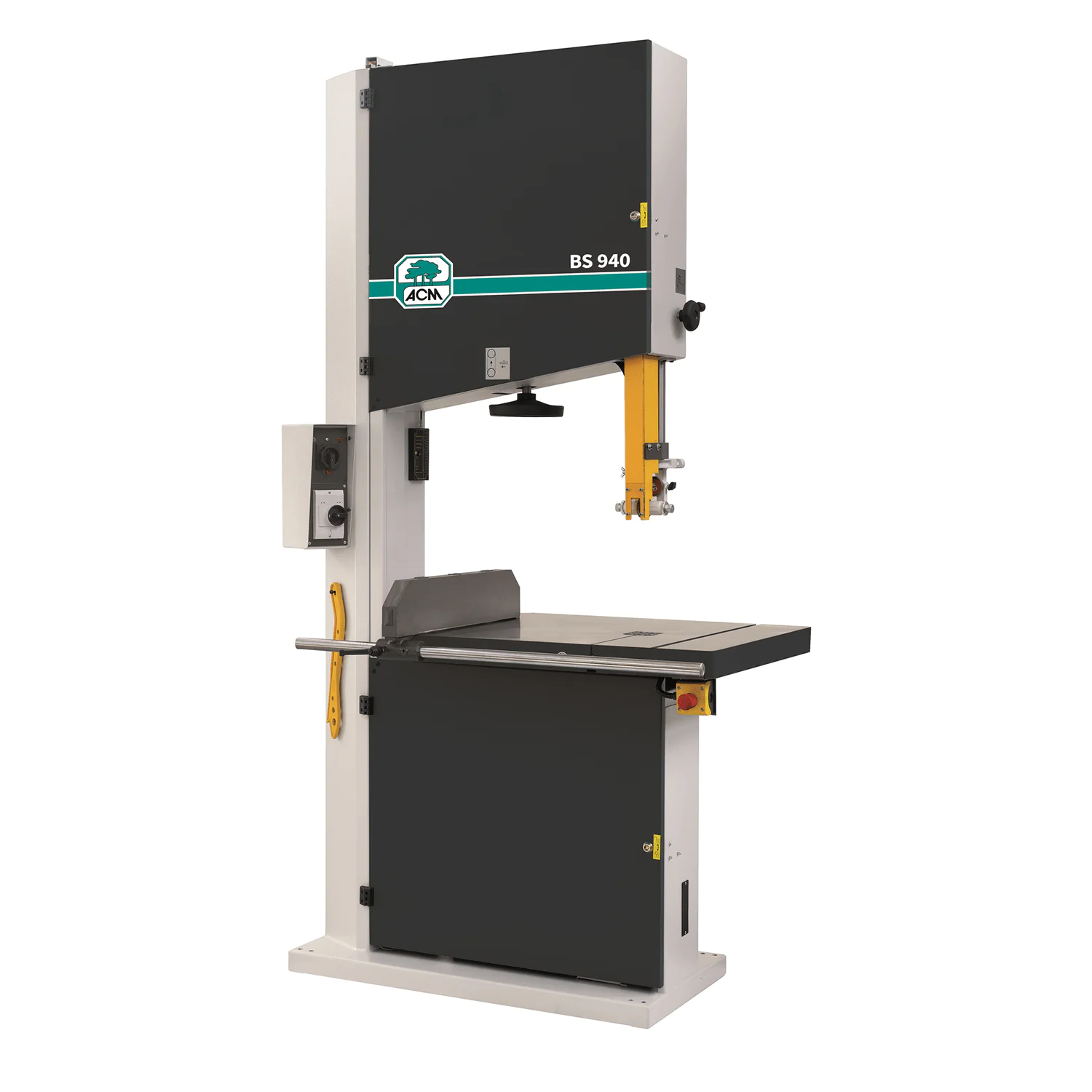

ACM Bandsaws BS Range
Since 1979 ACM designs, manufactures and markets a wide range of woodworking machines and special materials. The ACM BS range is an industrial range of woodworking Bandsaws, they are constructed with reinforced steel to add extra stability. Designed to be superior at cutting solid wood. BS Range consists of the BS 540, 640, 740, 840 and ACM BS 940 Bandsaw (representing the flywheel diameter). Each designed for the woodworkers workshop. Many added options are available for the woodworking bandsaws in this range. ACM BS Bandsaws offer a great quality build, cast iron tilt-able table and flywheel.
Standard Equipment
- CE Certified
- 400V/3/50 self-braking motor
- Solid flywheels, rubber covered
- Cleaning brush on lower wheel
- Tilting table 0-20°
- Blade tension gauge
- Parallel Guide
- Upper saw blade guide with bearing system
- Lower saw blade guide with bearing system
Cast Iron Flywheels
Cast Iron flywheels. The BS 940 flywheels have a diameter of 940mm.
Parallel Guide
ACM BS 940 Bandsaw Parallel guide.
Cleaning brush
Located on the lower flywheel, the cleaning brush cleans the flywheel on rotation.
Cast Iron Tilting table
ACM BS 940 has a cast Iron tilting table, capable of tilting from 0° to 20°
Spoked flywheels & rubber covered
The 940 diameter flywheels are spoked and layered with rubber
Stop circuit
ACM BS 940 Bandsaw stop circuit. This machine will not start unless the doors are shut.
Optional Extras
The following Optional Extra can be added to your order at an extra cost.
Circular cutting and sanding device
Simple attachable unit for circular cuts.
Sliding Mitre mod 1
Small mitre fence modification for the cast iron table.
Sliding mitre fence mod 2
Small mitre fence modification
Wheel Kit
Wheel kit is available for the Bandsaws in the BS range.
Sliding Side Guide
Sliding side guide. Fits onto the side of the cast iron table, can be used with a mitre fence to cut angles.
Front side table E-Stop
Emergency stop located on the front of the cast iron table.
