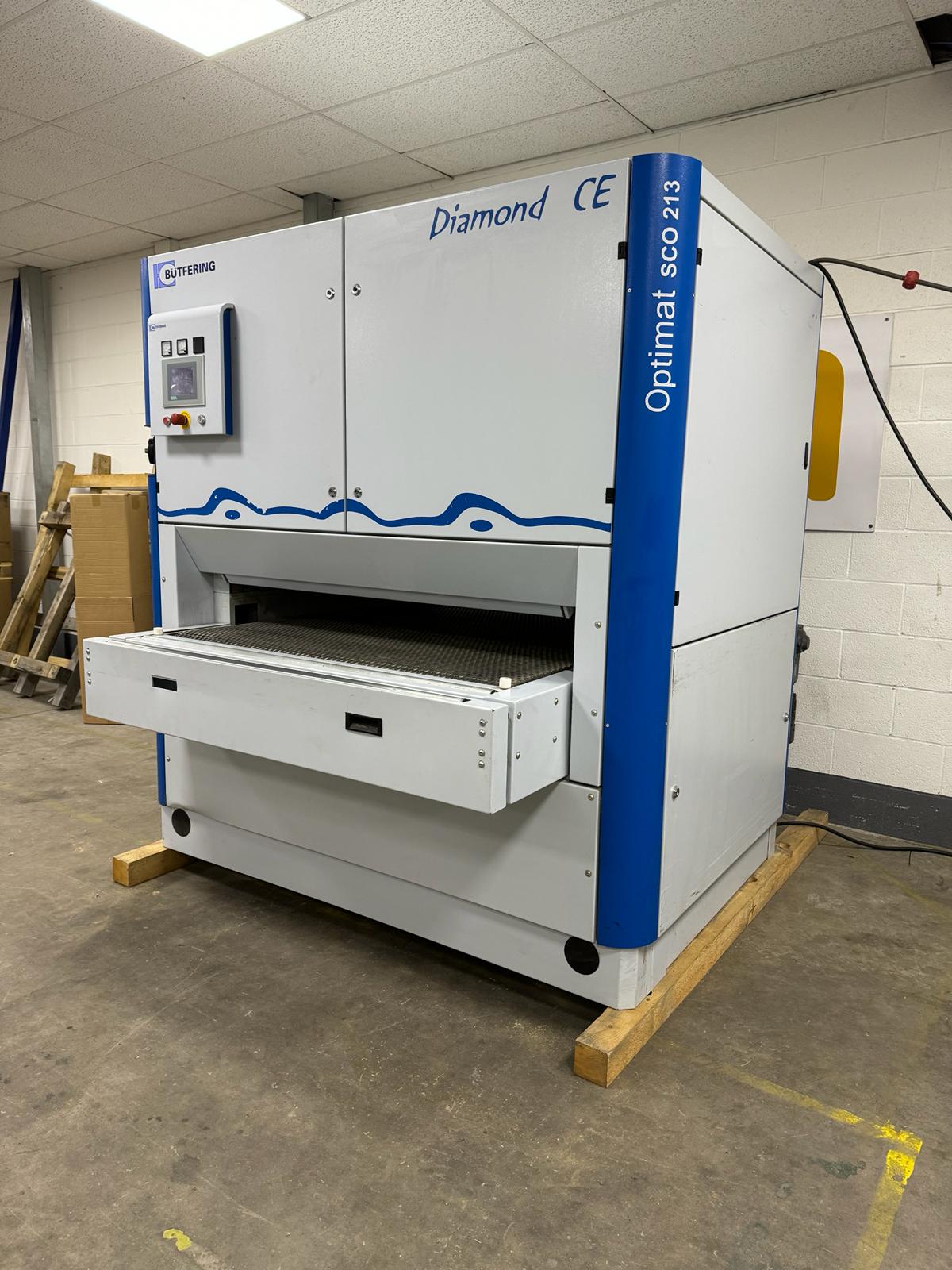

BUTFERING DIAMOND – OPTIMAT SCO 213 QC

POA

SCO 213 QC Diamond

The compact multi-role “sanding centre” with Cross belt and Combi Unit for solid wood, veneer and lacquer sanding. CPS II electronic pad with 25mm segment width and programable pressures, vacuum table, frequency controlled abrasive belt drive, Scotch and Cleaning Brushes. Touch Screen terminal with 1000 sanding programs, Automatic head locking.

  • 1350mm Working Width
  • 13.5kW First Drive Motor
  • 15kW Second Drive Motor
  • Feed Speed 2.5 – 13m/min
  • Workpiece thickness 3mm – 160mm
  • Weight – 3600KG
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Get a quote
Payment Options

Technical Specifications

Working Width
1250mm
Abrasive Belt Length Cross belt
4700mm
Abrasive Belt Width Cross belt
150mm
Abrasive Belt length Wide Belt
2150mm
Abrasive Belt Width Wide Belt
1370mm
Extraction Volume
5470m3/h
Compressed Air Consumption
120L/Min
Voltage
3 x 400 Volt
W x L x H (mm)
2050 x 2070 x 2180mm
Drive Motor First Head
13.5kW
Dive Motor Second Head
15.0kW
Feed Motor
1.0kW
Workpeice Thickness
3-160mm
Air Speed
20m/Sec
Minimum Air Supply
6bar
Weight of Machine
3600KG

Similar Products

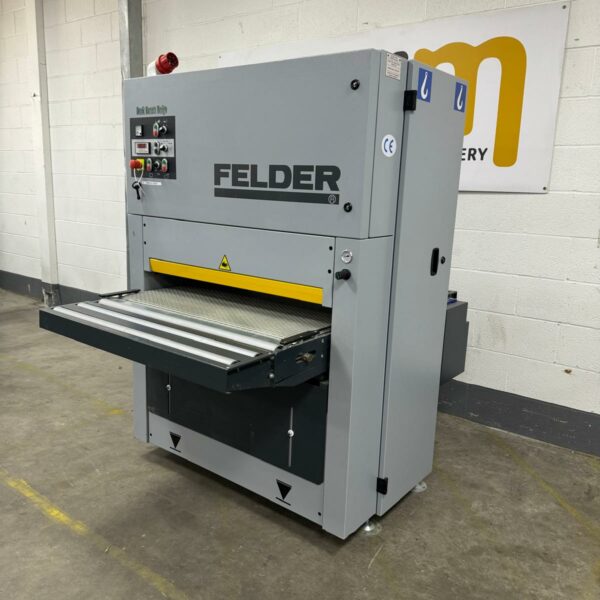

USED Felder FW 950C Wide Belt Sander

POA

SOLD

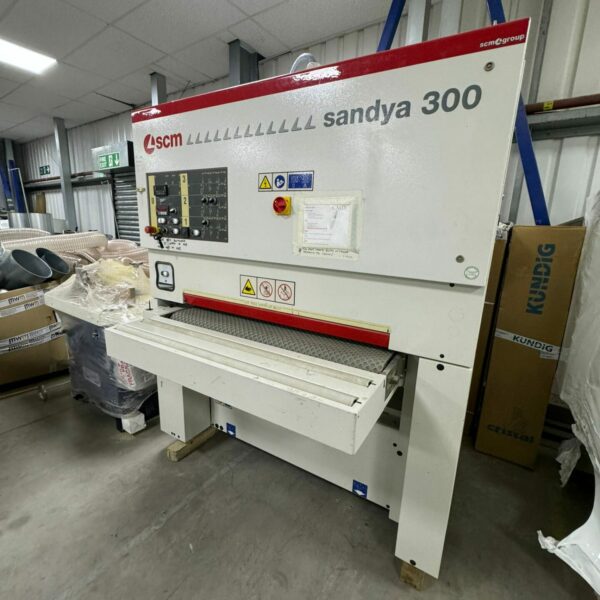

USED SCM 1100mm Sandya 300 Wide Belt Sander | Markfield Woodworking Machinery
