Technical Specifications
Surfacing Width
410mm (16”)

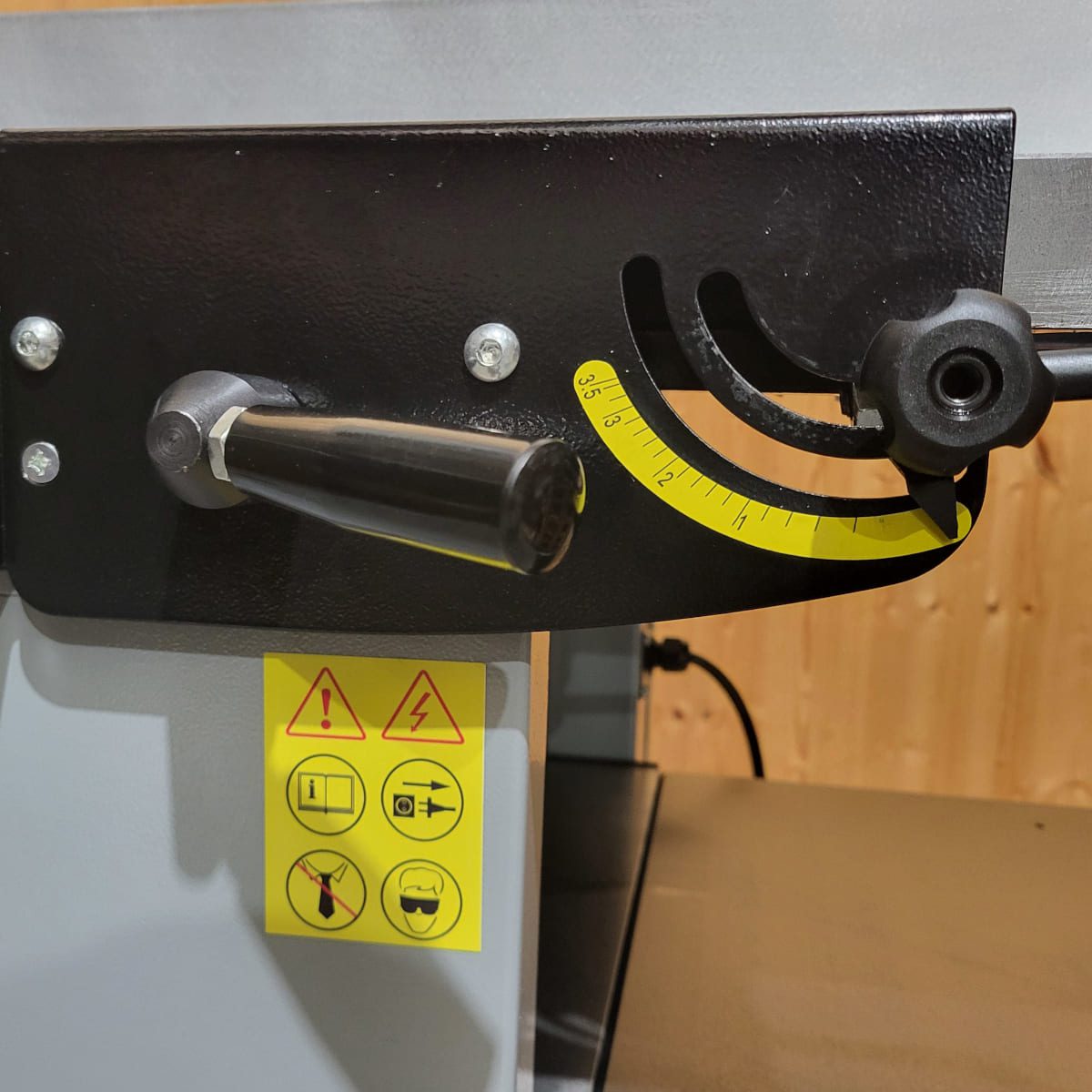

Maximum Depth of Cut – Planer
3.5mm

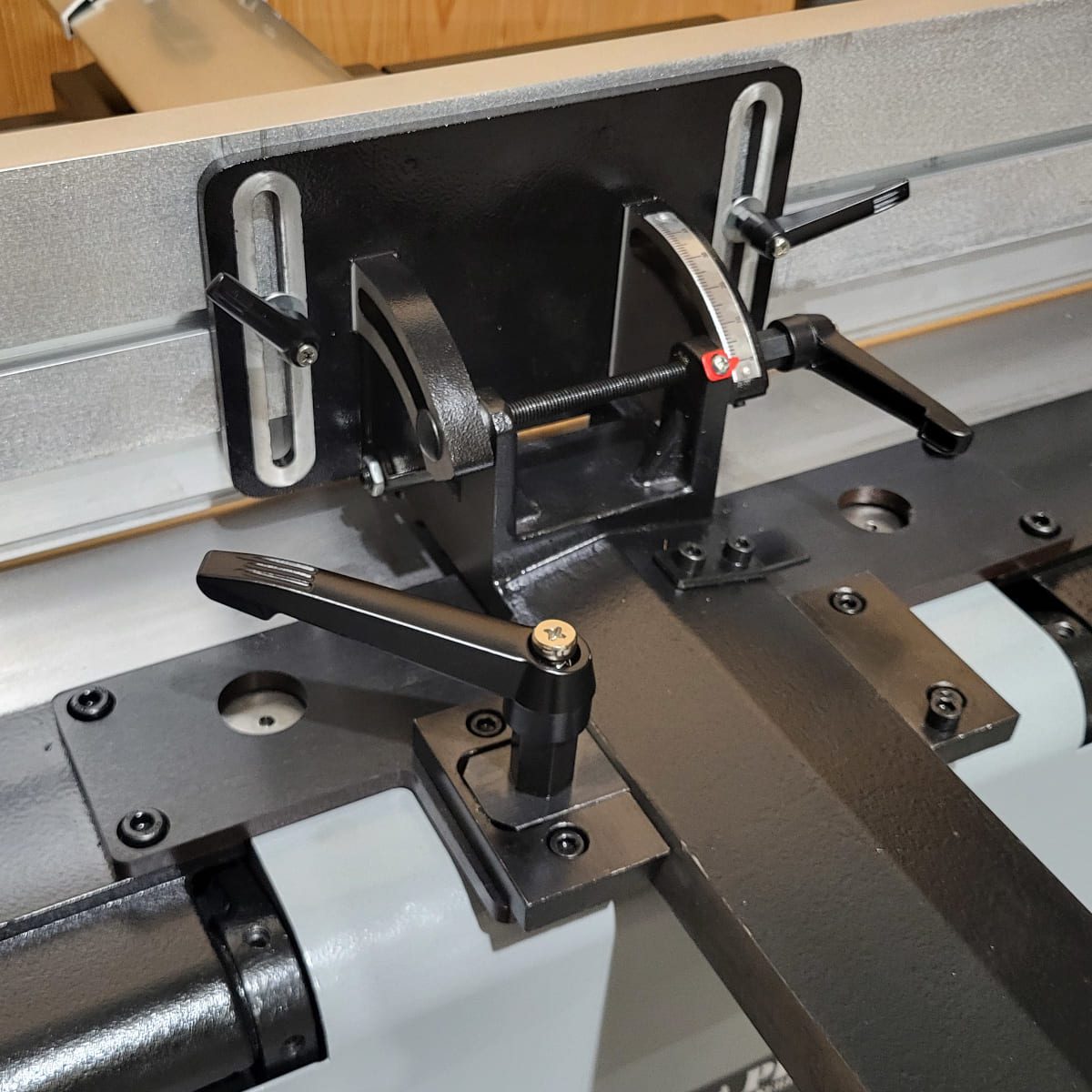

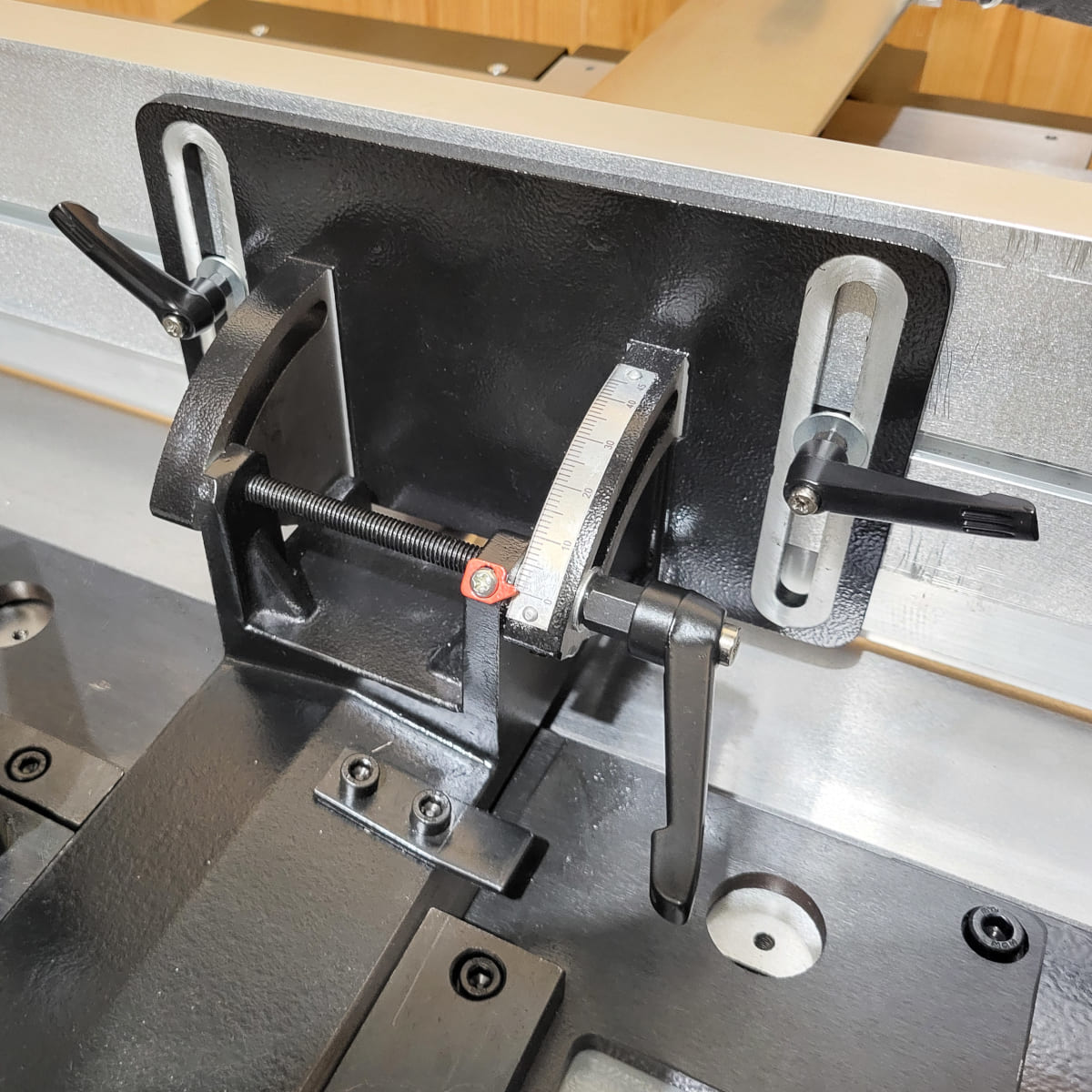

Fence Tilt
90-45 Degrees
Cutter Block Speed
4,500rpm

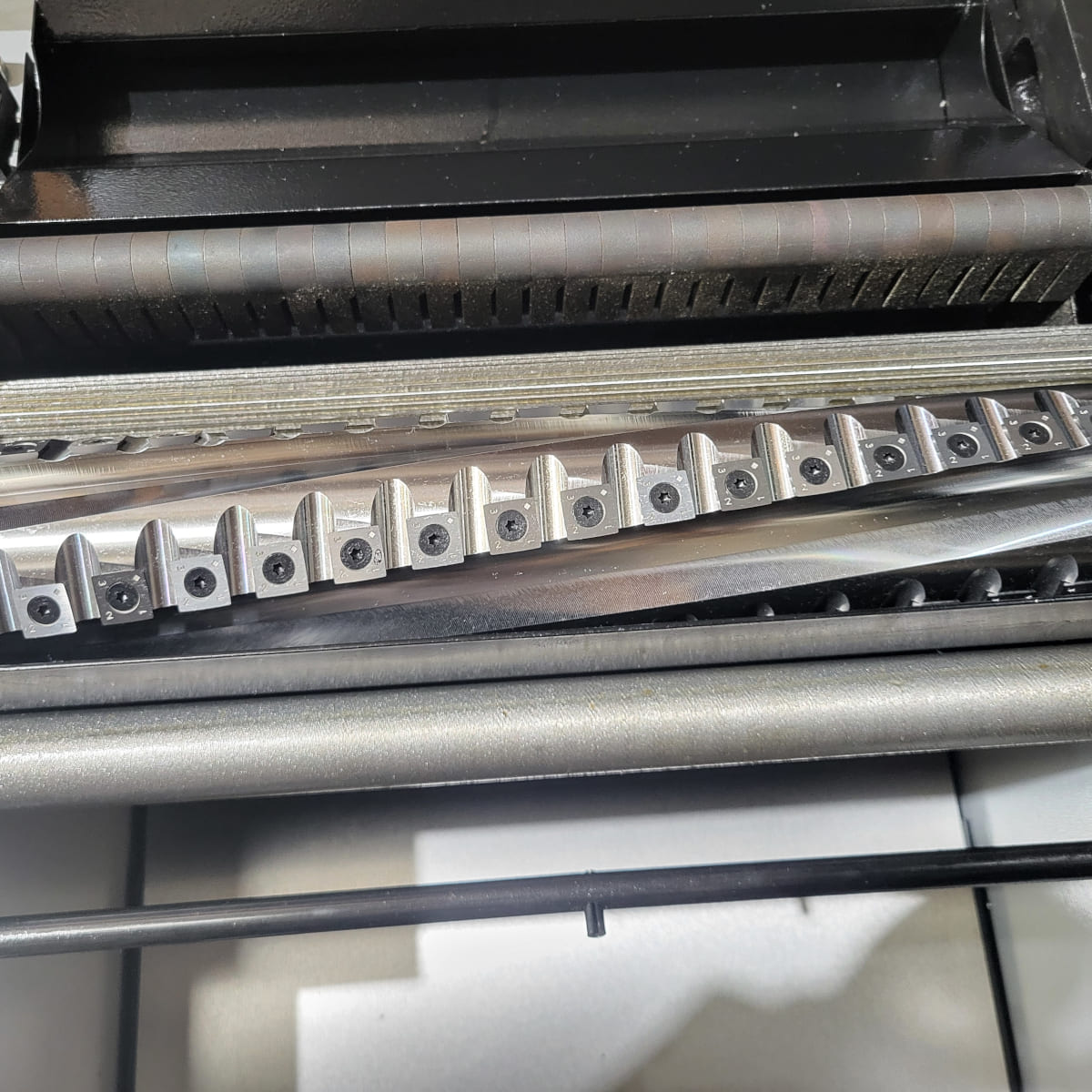

Cutter Block Type
Spiral (4 rows)

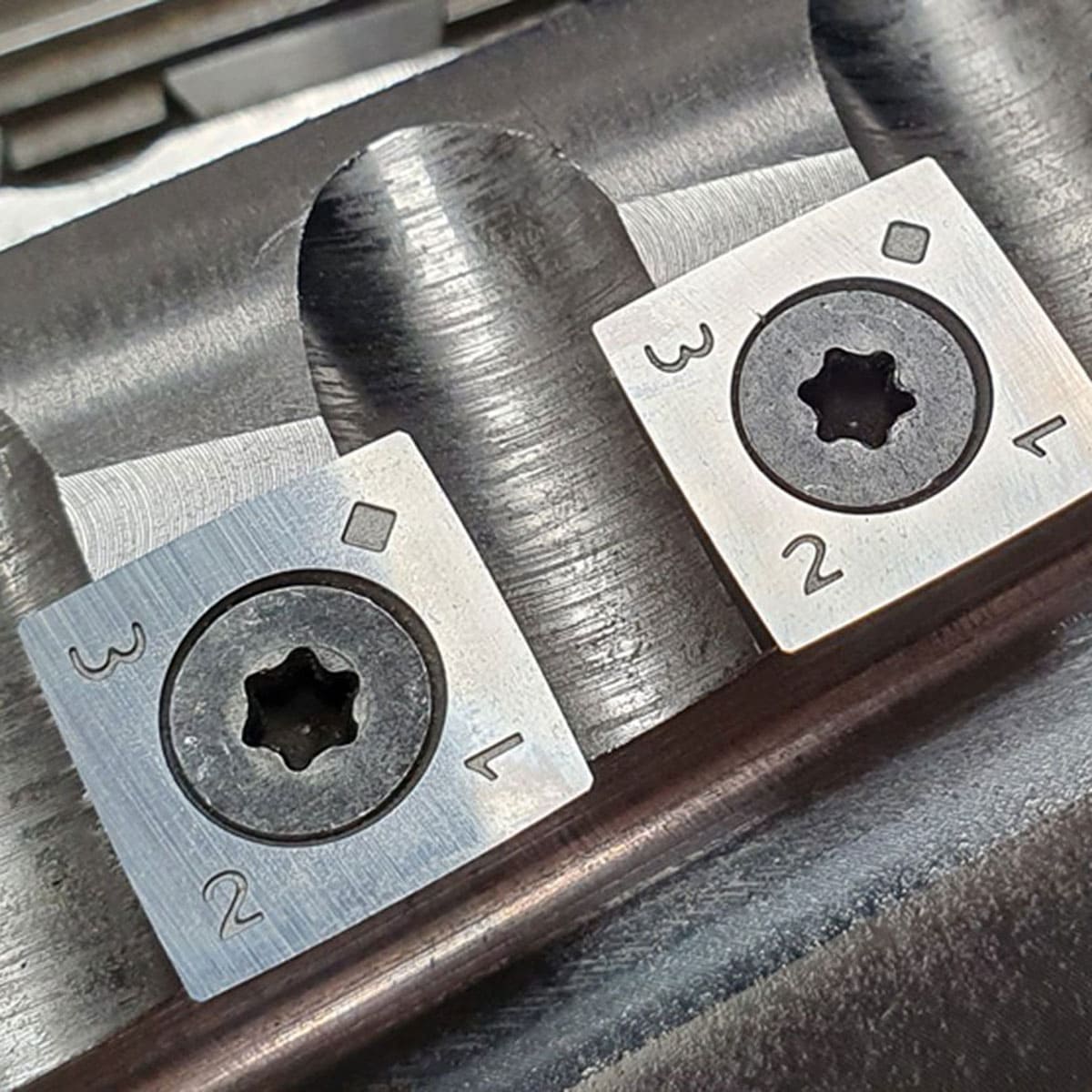

Cutter Size
15mm x 15mm x 2.5mm, R=150

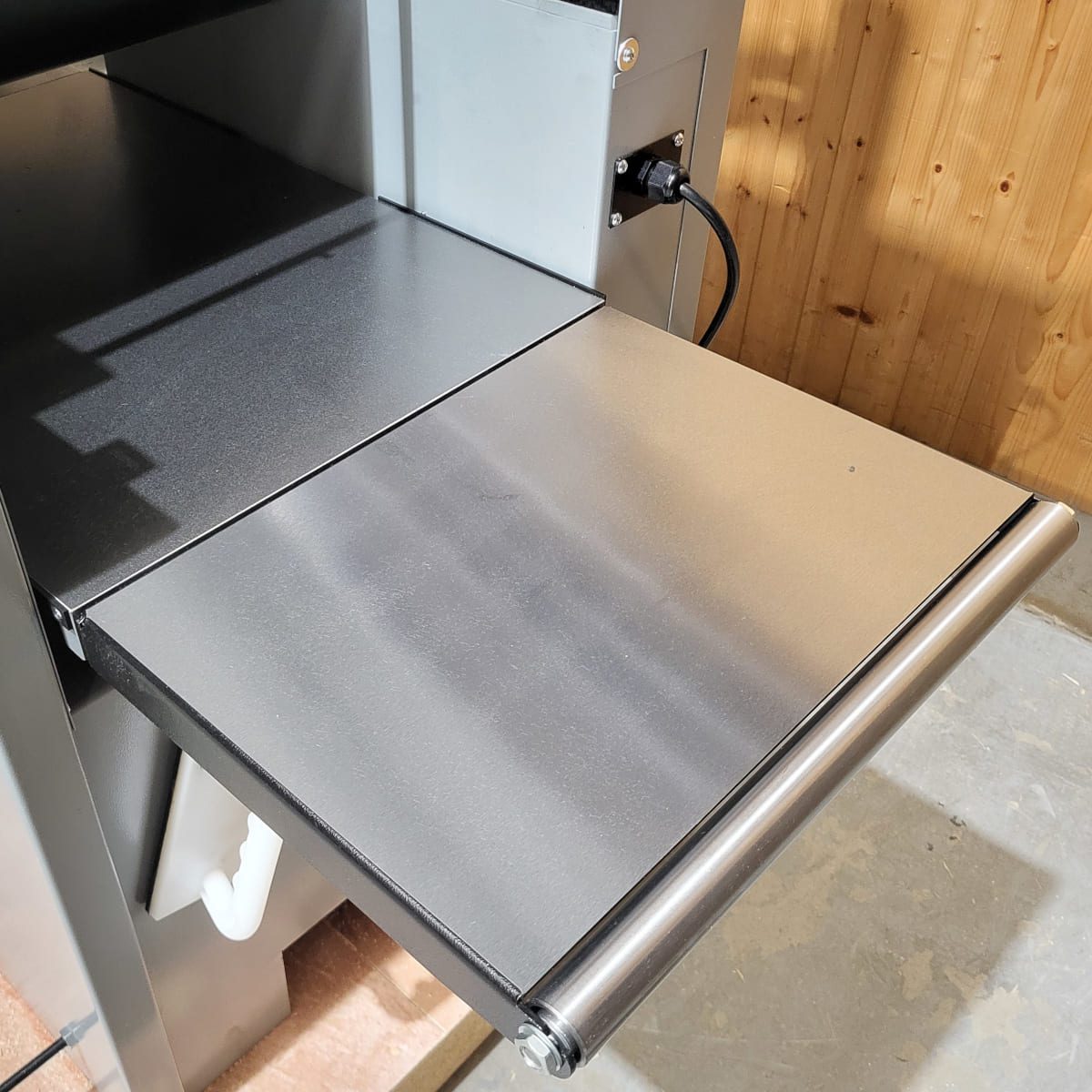

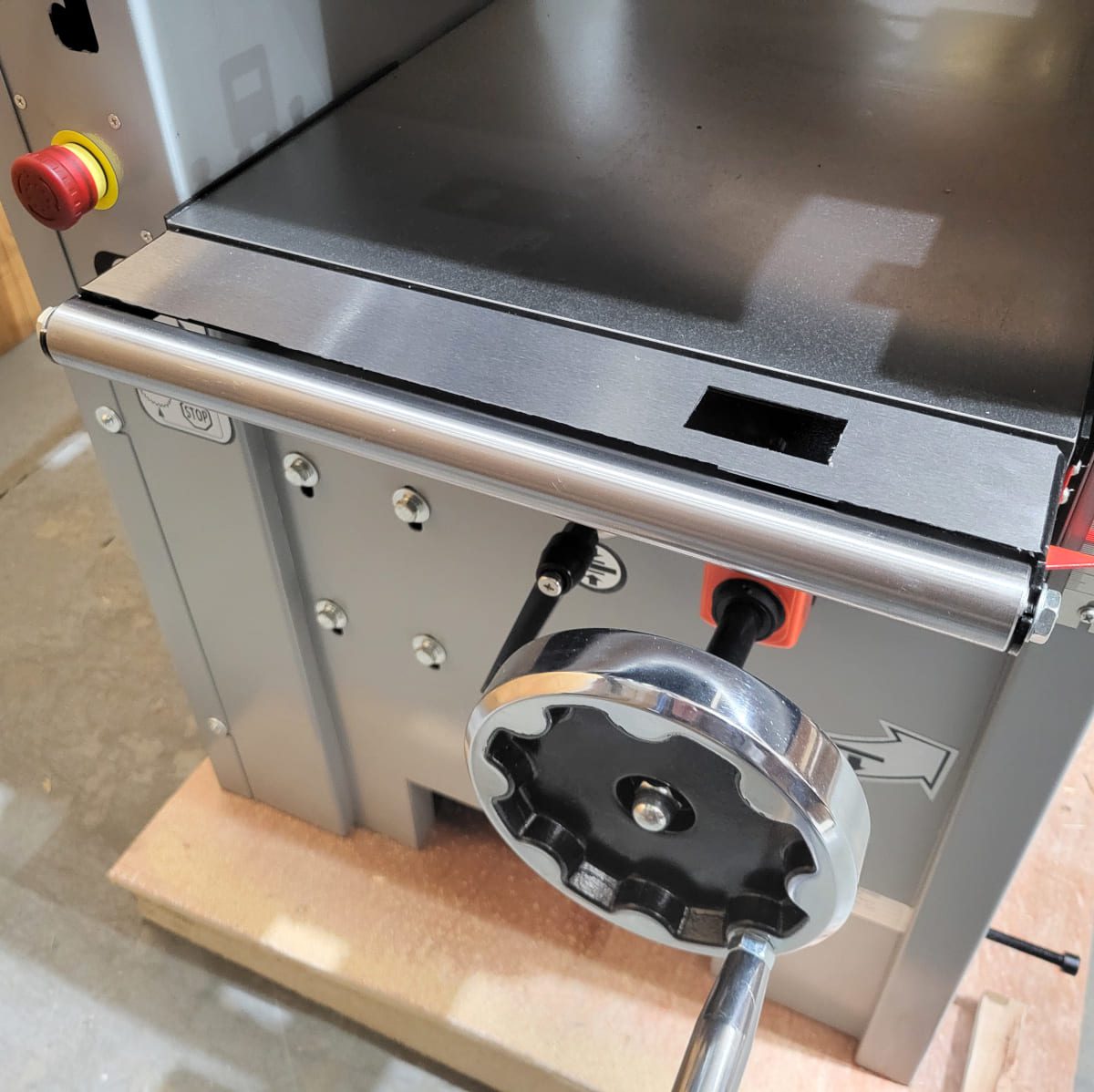

Length of Thicknessing Table / Including Extensions
600mm / 1000mm
Feed Speed
5.4m/min
Recommended Breaker Size (MCB)
16 Amps (Type C)
Assembled Dimensions (WxDxH)
1680mm x 1080mm x 1010mm
Weight (Net / Gross)
253kg / 295kg
Length of Surfacing Tables
1680mm
Fence Size
1100mm x 150mm
Table Height
850mm
Cutter Block Diameter
75mm
Number of Cutters
72 (4 x 18) TC

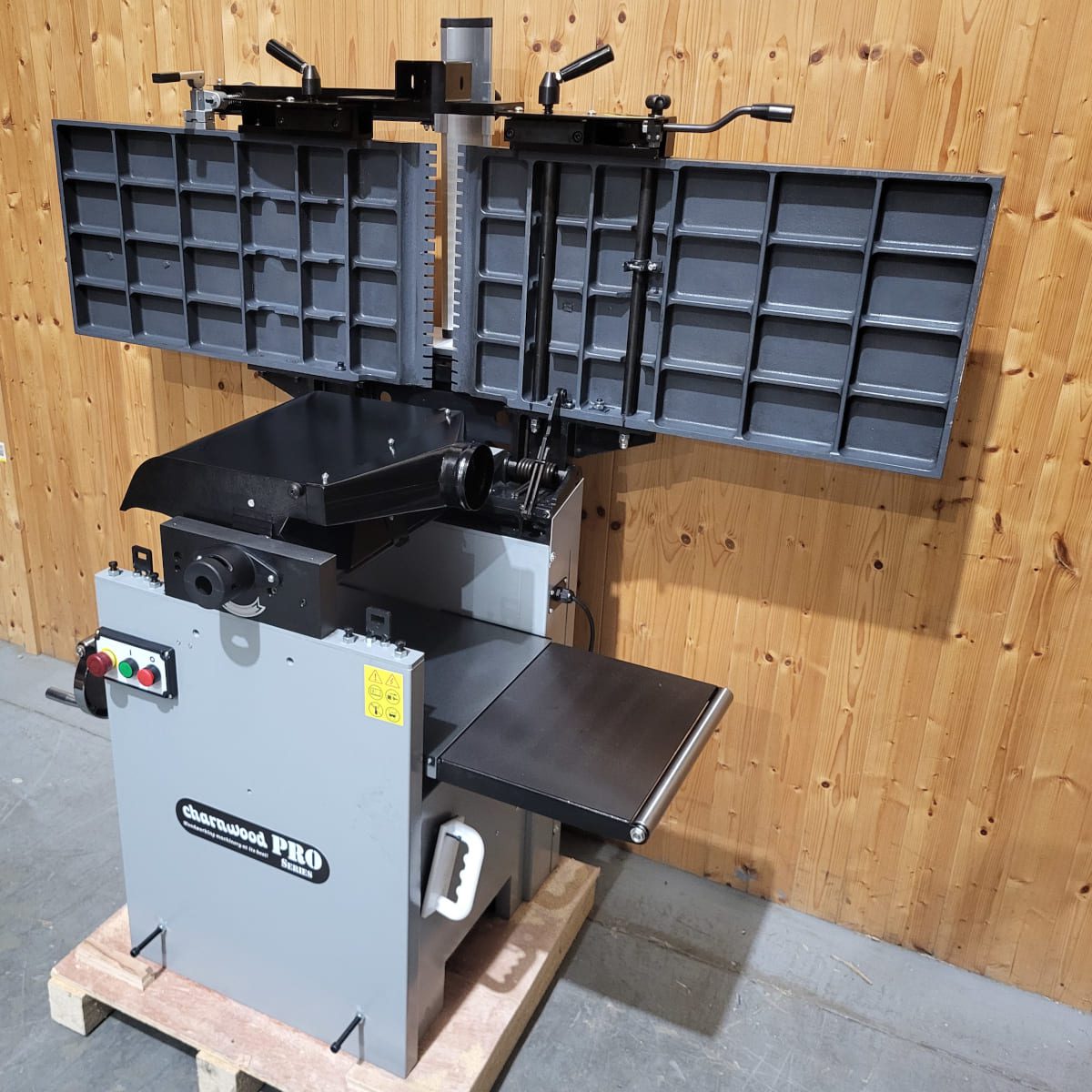

Thicknessing Capacity
5mm – 230mm
Maximum Depth of Cut – Thicknesser
4.5mm
Motor ( Induction)
3000w (4hp) / 240v, 50Hz
Dust Extraction Outlet
100mm
Shipping Dimensions (WxDxH)
1700mm x 760mm x 1060mm
Assembly Time Required
45 Minutes (Needs 2 People)
