Technical Specifications
Made in
Germany
Model
shark 83
Overall dimensions (MM)
L2290 x W1420 x 1750 mm
Phase
3ph
Make
Compacto
Motor pump
37 kw
Machine weight
1600 kg

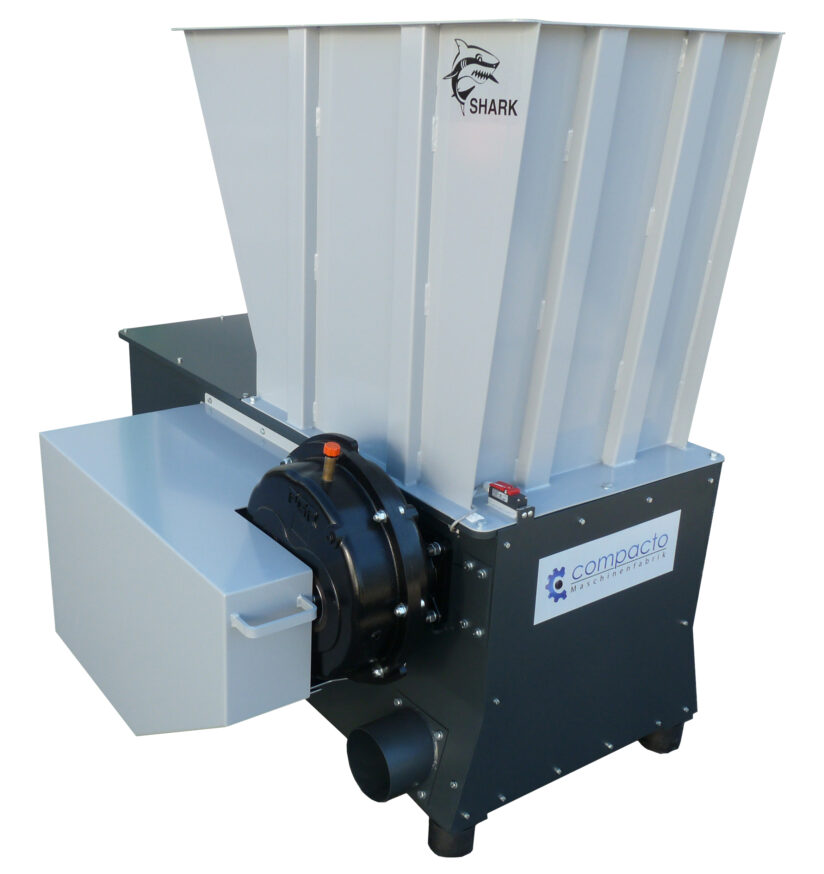

Compacto Shark 83 Plastics Shredder
The Compacto Shark range of machines are a high quality, German made industrial shredding series ranging from 53 to 153 cm long cutting blocks.
The Shark 83 Plastic offers a 830mm long cutting block and is a perfect machine for plastic recycling. A ferrous metal sorting conveyor is also available if required.
Specification:
- Motor: 37 kW; 400 V – 50 Hz – 3 ph (50hp)
- Knifes: 40 Pieces, rotable several times
- Rotordiameter: 360 mm with Ecorings for plastic
- Electric Panal: PLC Siemens S7-1200
- Cutting Unit Opening: 830 x 1000 mm
- Hoppervolume appr. 1.0 qbm
- Performance: 1 – 5 Hopperfillings / h
- Hydraulic Piston Screen at the choice (20 – 40mm)
- Connection piece Ć 160 mm
- Weight appr. 1.600 kg
- Dimensions (lxwxh) appr.: 2290 x 1420 x 1750 mm
- Special plastics scrapers for the hydrualic pusher
- Steel covered long life bearings
- Extra heavy duty gearbox with a special gear ratio
Technical data:

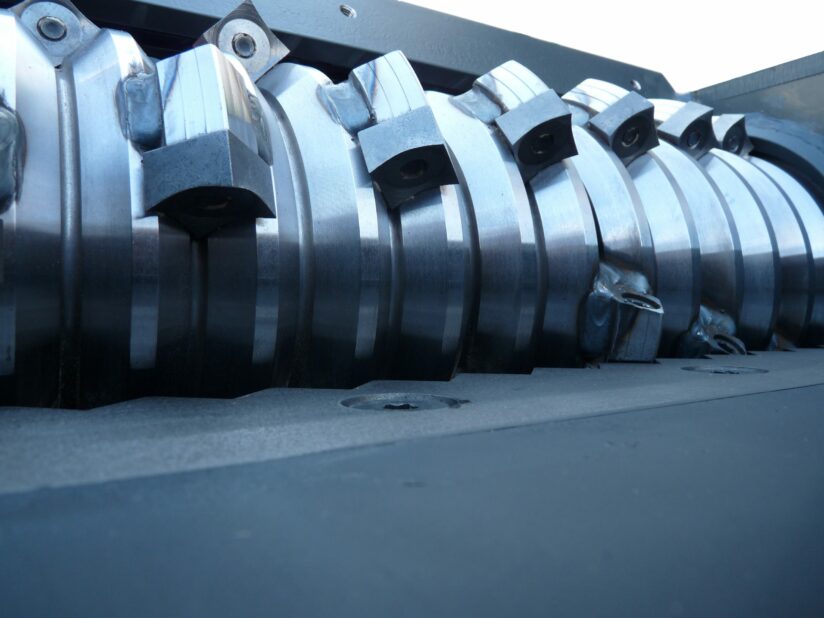

- V-Rotor for maximum output
- 2. row of knifes on the Rotor
- Ā automatic Star / Delta starting
- Ā fast Hydraulic
- Ā auto off when machine is empty
- Ā Driving speed 70-90 U/min for high performance
- Ā Cycle Mode to avoid no-load operation
- Ā performance enhanced with step by step control of the Hydraulicpiston
- Ā Pertinaxguides for Hydraulic piston
- Ā vibration-damping machine feet
- Ā CE Confirmation
