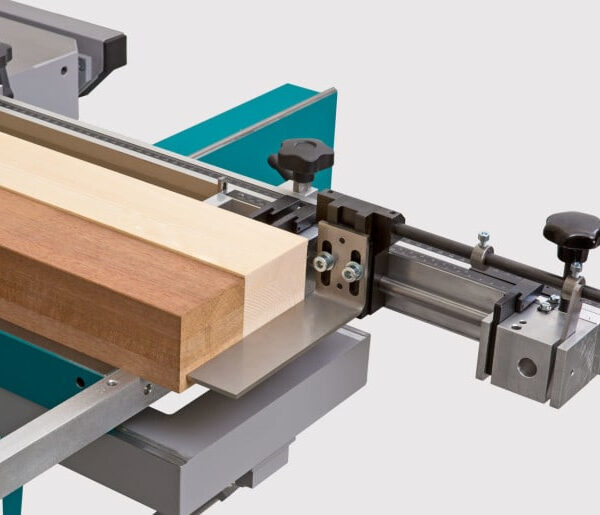

The dimension display on this cross-cut fence with 2-point alignment is provided in analogue form, i.e. using a scale. In contrast to the version with full-length support, the workpiece rests on two points in this fence.
Only in this way can slightly concave first cuts, perhaps caused by stresses in the board, also be precisely cut at an angle. Cutting lengths of 190 – 2020 mm can be set quickly and extremely accurately thanks to the scale, which can be easily read with the magnifier, and the standard fine adjustment for the inner stop element.
The quick clamp enables you to change the ball-raced stop element quickly from dimension to dimension and cut lengths up to 3310 mm with the extendable outboard stop.
If you prefer to work with digital exact dimensions, the digital cross-cut fence is the right option: The inner and outer stop work with separate measuring devices and can therefore be set independently with an accuracy of a tenth of a millimetre. Each display can be changed over to display relative dimensions, in order to execute incremental cuts quickly, for example.
