Technical Specifications
VOLTAGE / PHASE
415V / 3ph
INLET DIAMETER
150mm x 1 (6″ x 1) 100mm x 2 (4″ x 3)
BAG VOLUME
10.48 ft 3
PACKING
122cm x 58cm x 58 cm
DIMENSIONS
WxDxH: 1160 x 550 x 1950 mm
MOTOR POWER
2.2kW (3HP)
AIR VOLUME
1925 CFM
STATIC WATER PRESSURE
9.26 inch
WEIGHT
82KG

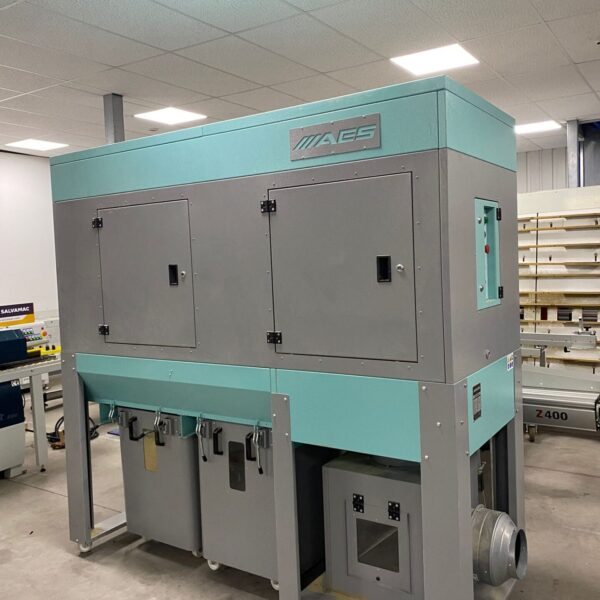

This machine has the capacity to collect dust from up to 3 operating machines simultaneously.
The standard steel impeller has been dynamically balanced.
A fan cooled motor installed for constant use.
OPTIONAL UPGRADE to 1 micron cannister.
