Technical Specifications
Motor
1800W (2.5HP)
Maximum cutting depth
330mm (13″)
throat width
340mm
fence height (Hi / Low)
140mm / 12mm

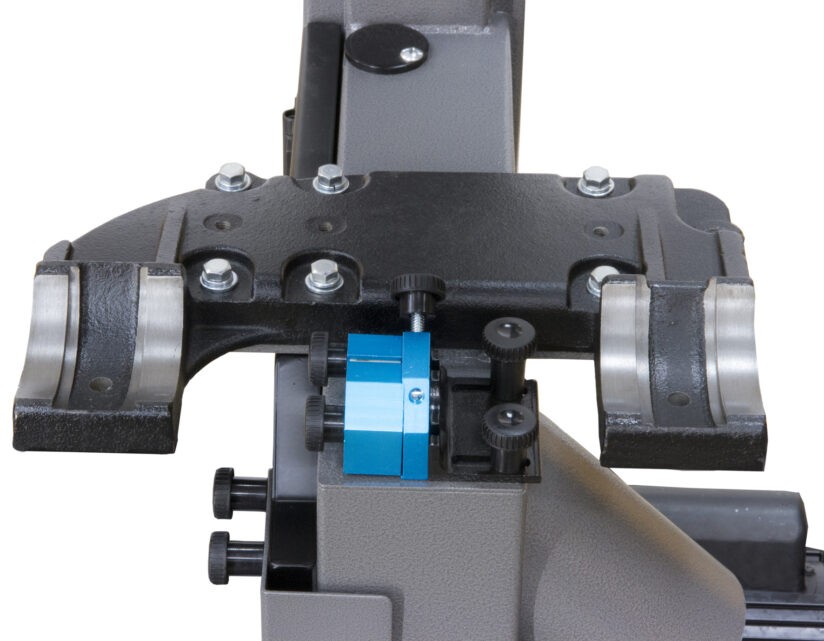

table tilt
-7 to 45 degrees
Blade length
2,921mm

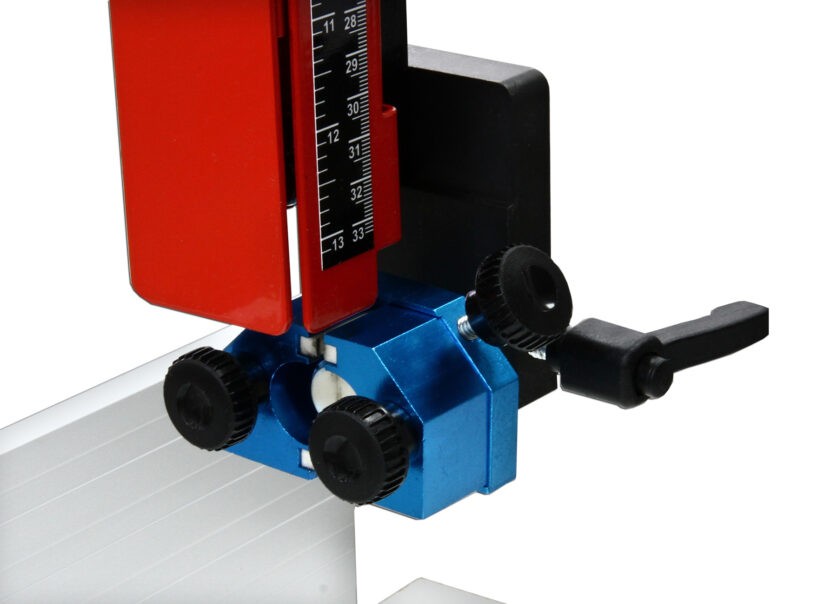

Blade guide (above and below table)
Laguna 5 piece ceramic
Power Cable
1.8m with UK 3 pin plug
Floor to table height
965mm
Dimensions
755mm x 713mm x 1790mm
Power Supply
22-240v / 50Hz / 1 Phase
Wheel size (cast iron)
355mm
maximum cutting width with fence
310mm
Table size
400mm x 546mm
T-slot for optional mitre guide
19mm to 25mm
Blade width
3mm to 19mm
Recommended breaker size
16 Amp
Dust extraction outlet
2x 100mm
Weight
123KG
Having the same impressivebuild quality as the 14|12, the main differences for this BX model are
Increased weight
Solid one-piece Frame
Frame is heavier Gauge
Larger motor

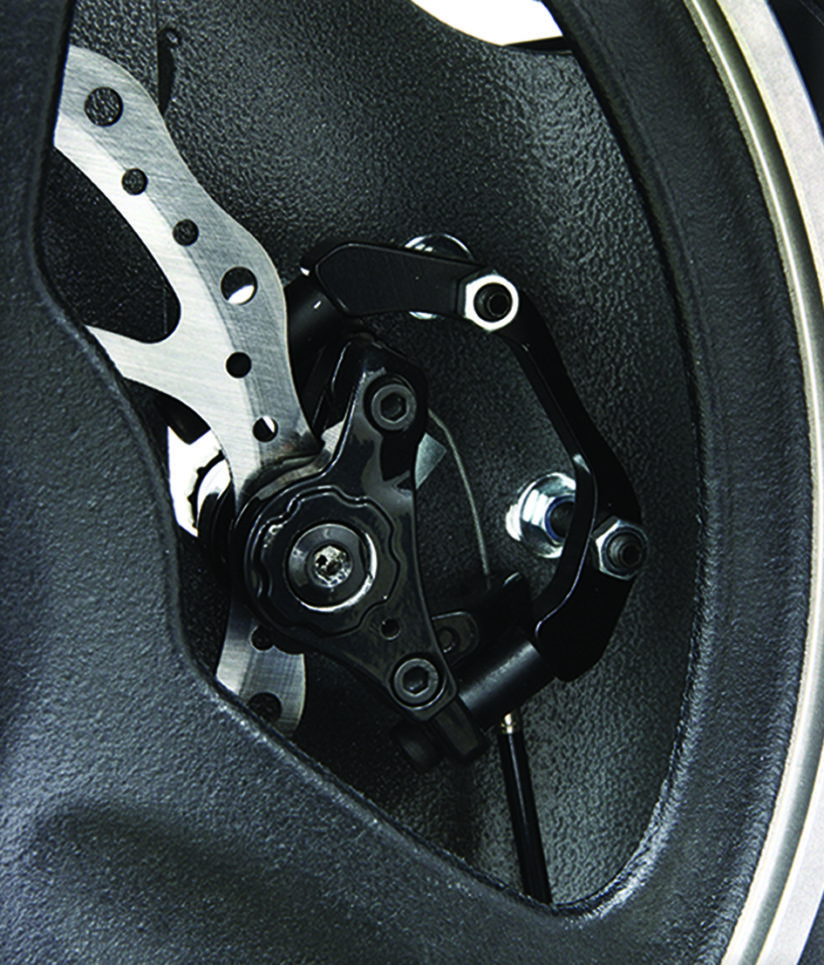

Disc-Brake with Micro-Switch
The 21/2 HP TEFC braked motor provides adequate power for even the deepest cuts. There is a quick blade release tension lever that makes blade changing faster and this is complimented with an easy to view blade tension scale indicator to easily ensure correct tension set up.
