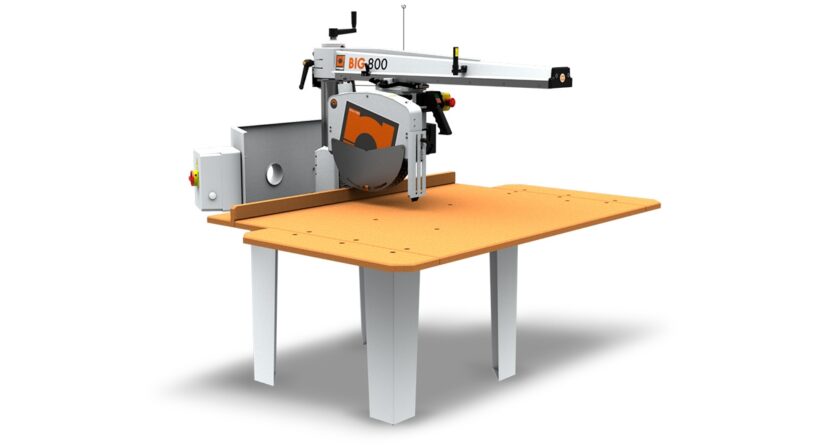

Maggi Big 800 Cross Cut Saw

Enquire for price

Maggi has been producing woodworking machinery since 1963 and continues to keep up a great reputation with quality, affordable machines manufactured in Italy.

ā€¢ CE
ā€¢ Predisposed for air suction
ā€¢ Self-braking motor with overload protection
ā€¢ Complete with blade guard with anti noise system
ā€¢ Arm and base made of cast-iron
ā€¢ 8 carriage bearings

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Make
Maggi
SAW BLADE DIAMETER (MM)
400mm
SAW BLADE TILT RANGE
0Ā° – 45Ā°
MOTOR POWER
4 hp
TABLE SIZE
1860 mm x 1145 mm
MAX CUTTING WIDTH
705mm
GROSS WEIGHT
237kg
PACKING DIMENSIONS
1900 x 850 x 660 mm
Model
Big 800
BLADE BORE DIAMETER
āŒ€ 30
BLADE SPEED
2800 rpm
DUST HOOD OUTLET DIAMETER
1 x āŒ€ 60mm + 1 x āŒ€ 100mm
MAX CUTTING HEIGHT
125mm
DEPTH OF CUT AT 45Ā°
80mm
NET WEIGHT
225kg

All Maggi machines we sell are CE approved, complying with all current regulations.


This includes a braked motor, enclosed blade, and two dust extraction ports.

The chassis of the machine has been designed with an anti-noise system Arm and base made of cast-iron. The blade moves on 8 carriage bearings and is retracted with a return spring.

Articulated Arm and Head Unit

For diagonal cuts, inclined cuts and trimmings

Options

  • Laser Pointer and fixing assembly
  • Assembly of main structure (body, arm and rear casing) with packaging in wooden box.
maggic cross cut saw | MW Machinery

Articulated Arm and Head Unit

For diagonal cuts

Inclined cuts and trimmings

(Optional) Laser Pointer and fixing assembly

Assembly of main structure (body, arm and rear casing) with packaging in wooden box.
