Technical Specifications
MAKE
Martin
SLIDING TABLE LENGTH
3.0m optional: 1.9m / 3.3m / 3.7m / 4.3m
MOTOR POWER
5.5Kw option: 7.5Kw
BLADE DIAMETER
400mm
SAW BLADE TILT RANGE
0-46°
MAX BLADE PROJECTION AT 45°
86mm
SPEED SCORING BLADE
11500rpm
CUTTING LENGTH
3300mm
SLIDING TABLE WIDTH
400mm
MODEL
T60c
PARALLEL / RIP FENCE CUT WIDTH
1350mm
VOLTAGE / PHASE
415V / 3ph
SAW BLADE RPM
4000 / 4800 / 6000
MAX BLADE PROJECTION AT 90°
130mm
MOTOR SCORING UNIT
YES
SCORING BLADE DIAMETER (MM)
120mm
DUST OUTLET SIZE (MM)
120mm / 100mm
CROSS-CUT CAPACITY
2200mm length (telescopes to 3360mm)
Forklift available for loading
- 5.5kw motor
- CE machine
- 1.9m cut length
- 400mm blade capacity
- 850mm cut width

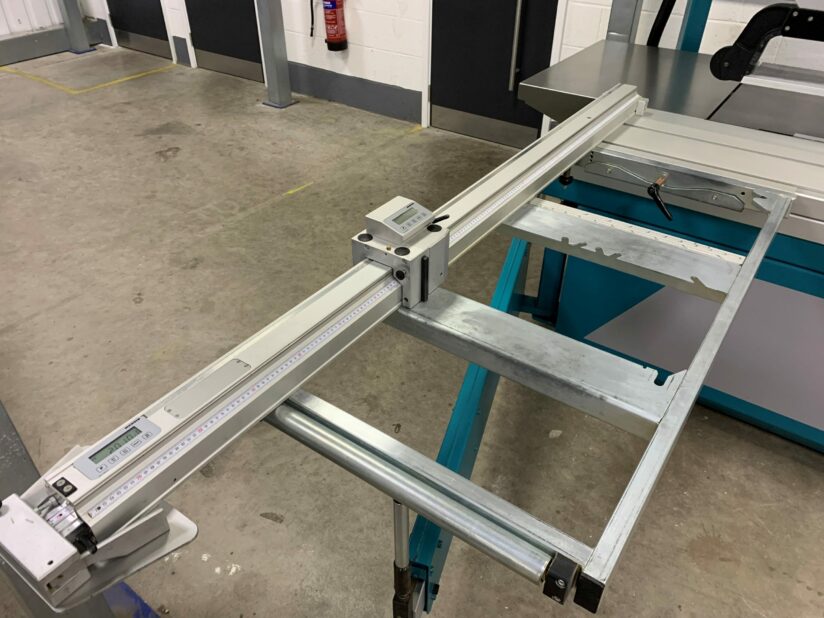

- T70 digital cross cut fence
- Handweel control rip fence with digital readout

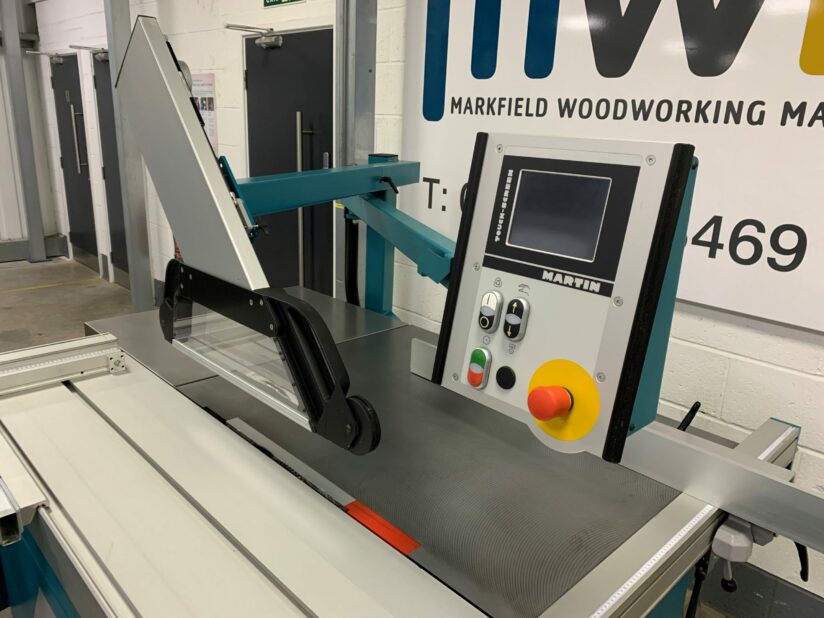

- Touch screen control rise / fall / tilt with digital readouts
- Tilt 45°
- Year 2006
