Technical Specifications

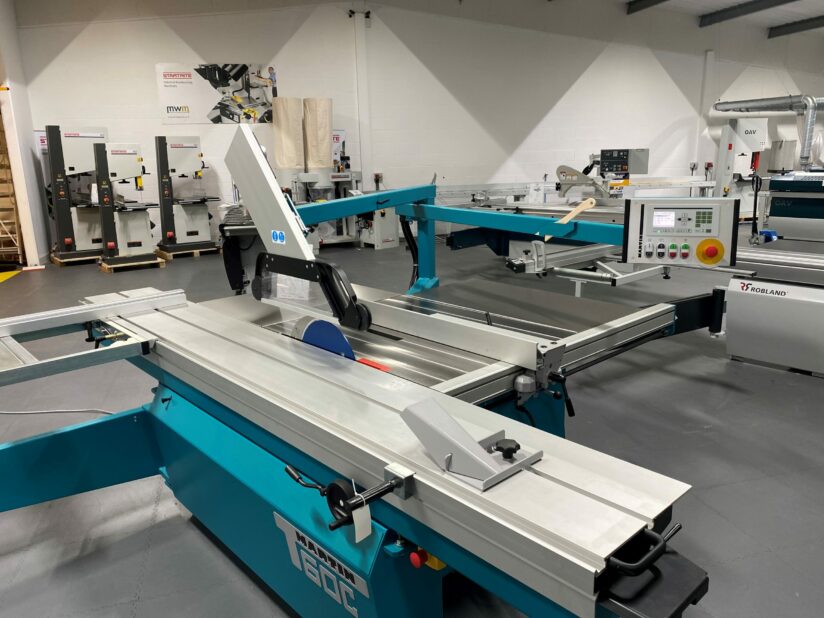

Martin T60C Panel Saw
With the new T60C saw, we want to respond to the increasing demand for well-equipped mid-range machinery. You can get this machine, which is based on the T60A frame, at a surprisingly favorable price. It is equipped with a 3.5” keypad controller at eye level, a powerful 7.5 HP motor with three rotational speed options, 1350 mm rip capacity as well as MARTIN’s exclusive hand-wheel adjustment of the rip fence. The T60C Automatic includes a motorised adjustment of the rip fence in lieu of hand-wheel version.
Martin T60C Panel Saw key features
- 3.5“ TFT screen and control panel (at eye level)
- Electronically controlled cutting height and angle
- Rip fence adjustment using a hand wheel (Motorised adjustment of rip fence included T60C Automatic)
- Digital indication of the cutting width integrated in the control
- Precise adjustment of the rip fence
- Cutting width: 1350 mm
- Sliding table length: 3000 mm
- Max. cutting height: 130 mm
- Fine adjustment on both cross-cut stop elements
- Individual configuration with a large selection of accessories available
High-quality mechanical design

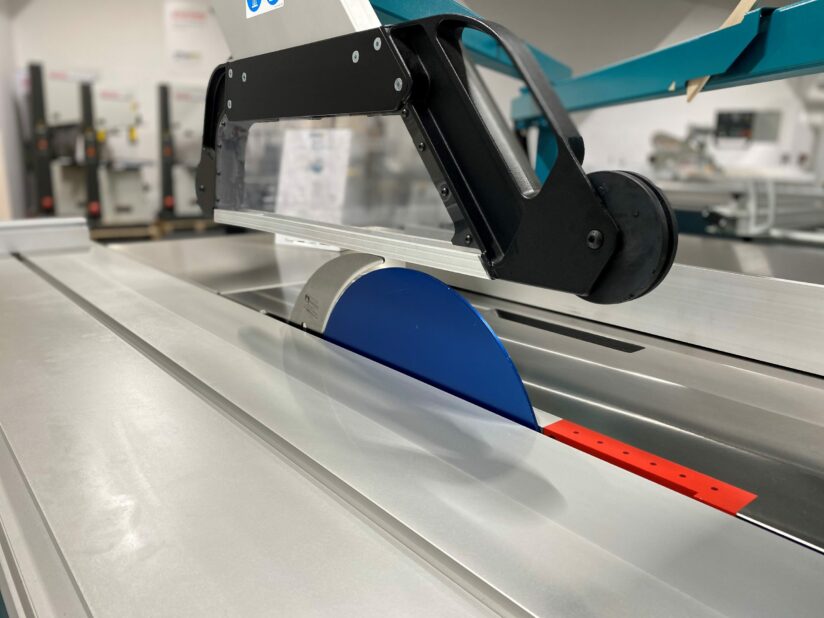

Like all the important mechanical components of the MARTIN saw line, the T60C’s sliding table, cross-cut fence and rip fence provide maximum precision and long life. The sliding table is designed like you would expect a MARTIN machine should be: with a replaceable table lip and durable, highlyribbed, hollow chambered aluminum profile. Another key feature includes the smooth movement of the two stop elements along the cross-cut fence rail.
The sliding table is designed like you would expect a MARTIN machine should be: with a replaceable table lip and durable, highlyribbed, hollow chambered aluminum profile. Another key feature includes the smooth movement of the two stop elements along the cross-cut fence rail.
Cross Cut Fence Options

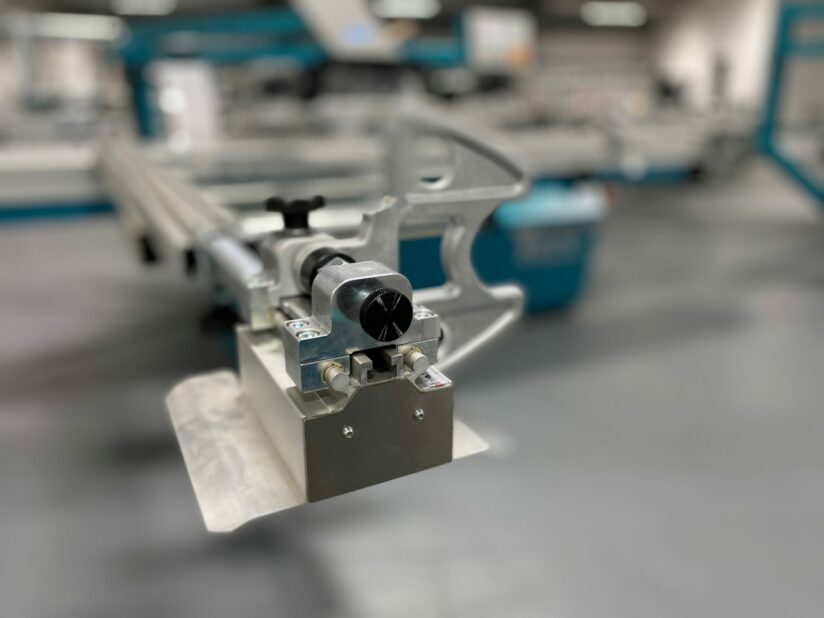

The Martin T60c comes with a sturdy and reliable fence including two stops featuring the traditional glass / rule. As an alternative option, you can request the larger T70 fance and stops, or have digital readouts.
Electrically adjustable scoring unit (Option)
With the T60C system, the scoring position and scoring height can be adjusted quickly and easily via controller. As is the case with conventional systems, the scoring width is adjusted with shims. Lifting and lowering the unit is done pneumatically. Depending on the task at hand the unit can be switched on and off without losing precious time and the settings can be stored.
Manual rip fence adjustment
On the T60C the rip fence is adjusted manually to a digital read-out. Standard features include a precise fine adjustment and mounting rack for the fence when the fence is removed from the table. The fence’s sophisticated guide system with four grooved ball bearings ensures long-term reliability.
