Technical Specifications

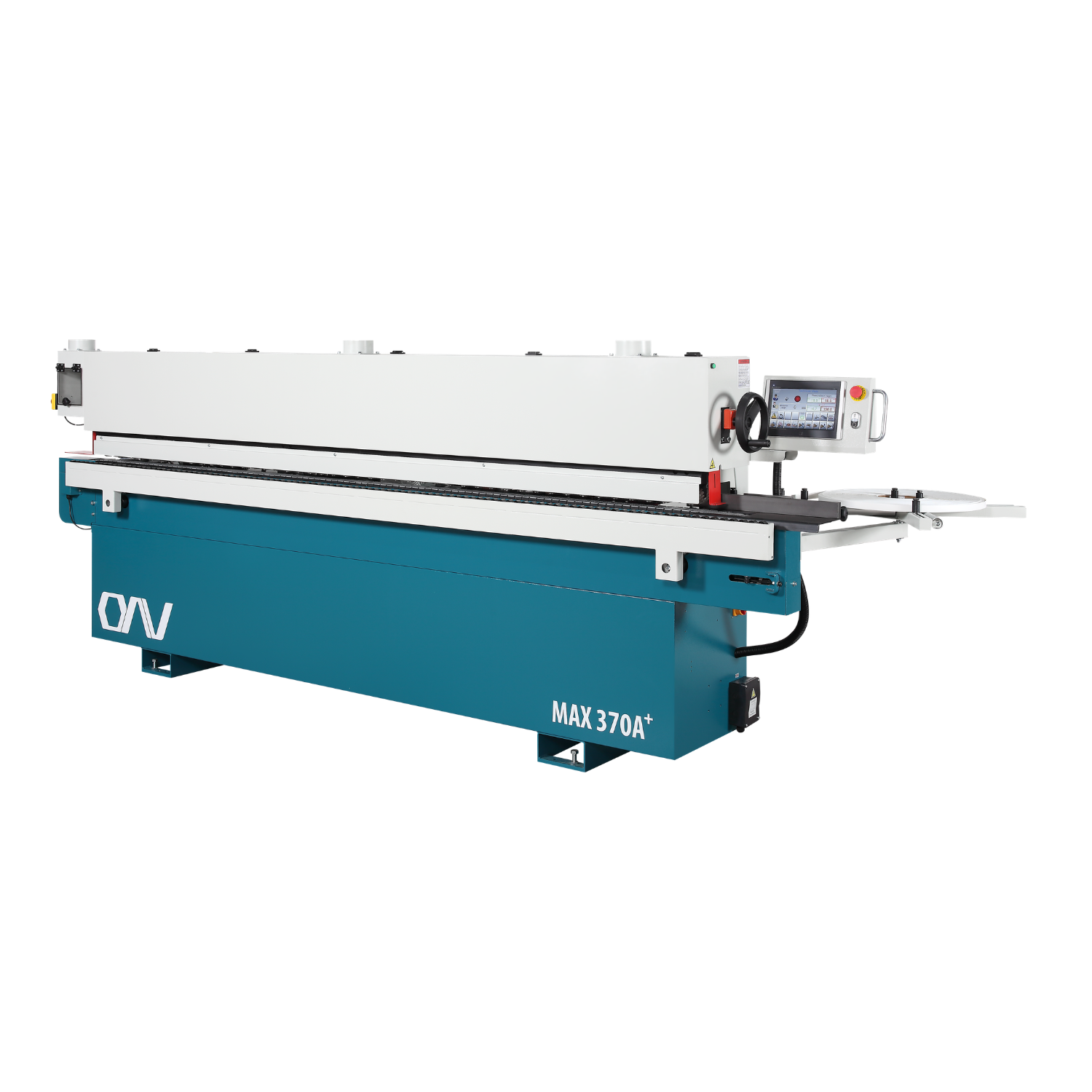

OAV 370A+ Edgebander Footprint
Machine Specs:
- 9m/min feed speed
- Automatic beam height
- Pre heat fence
- Radius scrape
- Nesting rollers
- 8-45mm panel thickness
- 8-45mm pre milling
- 0.4-3mm egding thickness
- Min panel width 95mm
- Min panel length 220mm
- Total motor power 8.1Kw
- 4088mm x 1003mm x 197mm overall size
- 905kg
Pre milling unit
Removes up to 3mm from the panel edge using diamond tipped cutters. Eradicating chips from saw blades and poorly set scribe saws.
Hot melt glue pot
Teflon coated for easy maintenance with a 1.2kg storage capacity.
Radius scraping unit
Top and bottom super sharp scrapers that calibrate the radius, cleans glue and removes cutter marks.
Buffing Unit
A final finishing stage removes fine traces of glue and tape discolouration.
End trimming unit
Uses a high frequency 12,000rpm motor mounted on high precision linear bearings
Radius trimming unit
Fully adjustable to create either a square flush edge or radius edge. 2mm radius fitted as standard

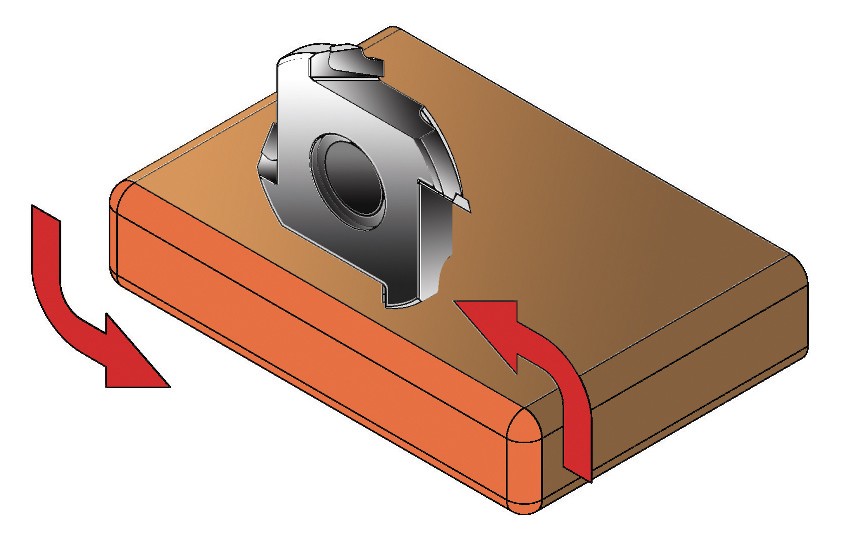

Corner rounding unit
Using a radius trimmer to add a corner to either end of the taped panel, stopping the need to extra trimming by hand
Browse OAV EdgeBanders
We have been working with OAV for over 5 years. We’re extremely impressed by the build quality of their woodworking machinery. We stock OAV Edgebanders and Bandsaws. Our OAV Edgebander range consists of:
- OAV 330 Hot Melt Edgebander
- OAV 350M Pre Milling EdgeBander
- OAV 350A Pre Milling EdgeBander
- OAV 370M Corner Rounding EdgeBander
- OAV 370P Automatic EdgeBander
- OAV 370P Automatic Corner Rounding EdgeBander
- OAV 570P EdgeBander
Delivery, Commission and Product familiarisation provided
As long as you have a forklift to unload the machine we can deliver and commission your Edgebander on the same day. On top of delivery and commission our engineers will train you and your staff to use the machines.
