Technical Specifications
MACHINE TYPE
Tenoners
VOLTAGE / PHASE
415V / 3ph
MAX TENON THICKNESS
30mm
TABLE VERTICAL ADJUSTMENT
100mm
FRONT TABLE TILT
-5°, +20°
SPINDLE MOTOR POWER
3.7kW
MAKE
Pade
MAX TENON WIDTH
100mm
MAX TENON DEPTH
50mm
TABLE TRANSVERSAL ADJUSTMENT
50mm
FENCE ROTATION
45°
ROTATION POWER
0.4kW

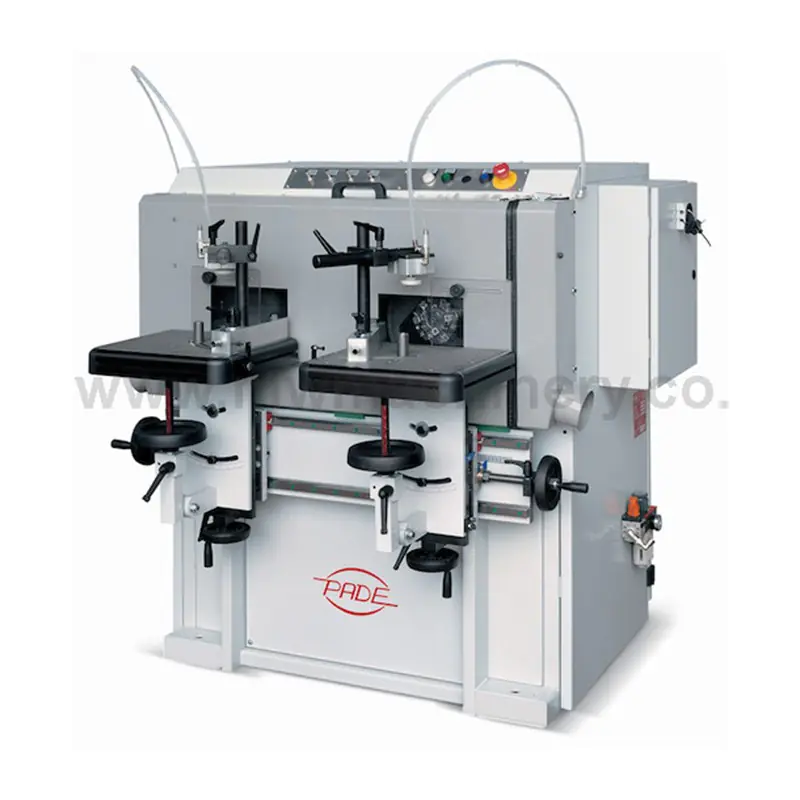

PADE-TF Round end Tenoner
TF produces round end tenons with a beveled edge angled tenons possible. The two worktables are fixed while the cutter block moves to each work tabl. The operator can feed one table whilst the second piece is being machined this enables continuous production.
