Technical Specifications
Markfield Woodworking Machinery ltd have been an Authorised Robland UK dealer for over 20 years and are the UK’s largest stockist of Robland machinery
Our Robland machines come with a 12 month manufactures warranty. Enquire for stock available & delivery dates!

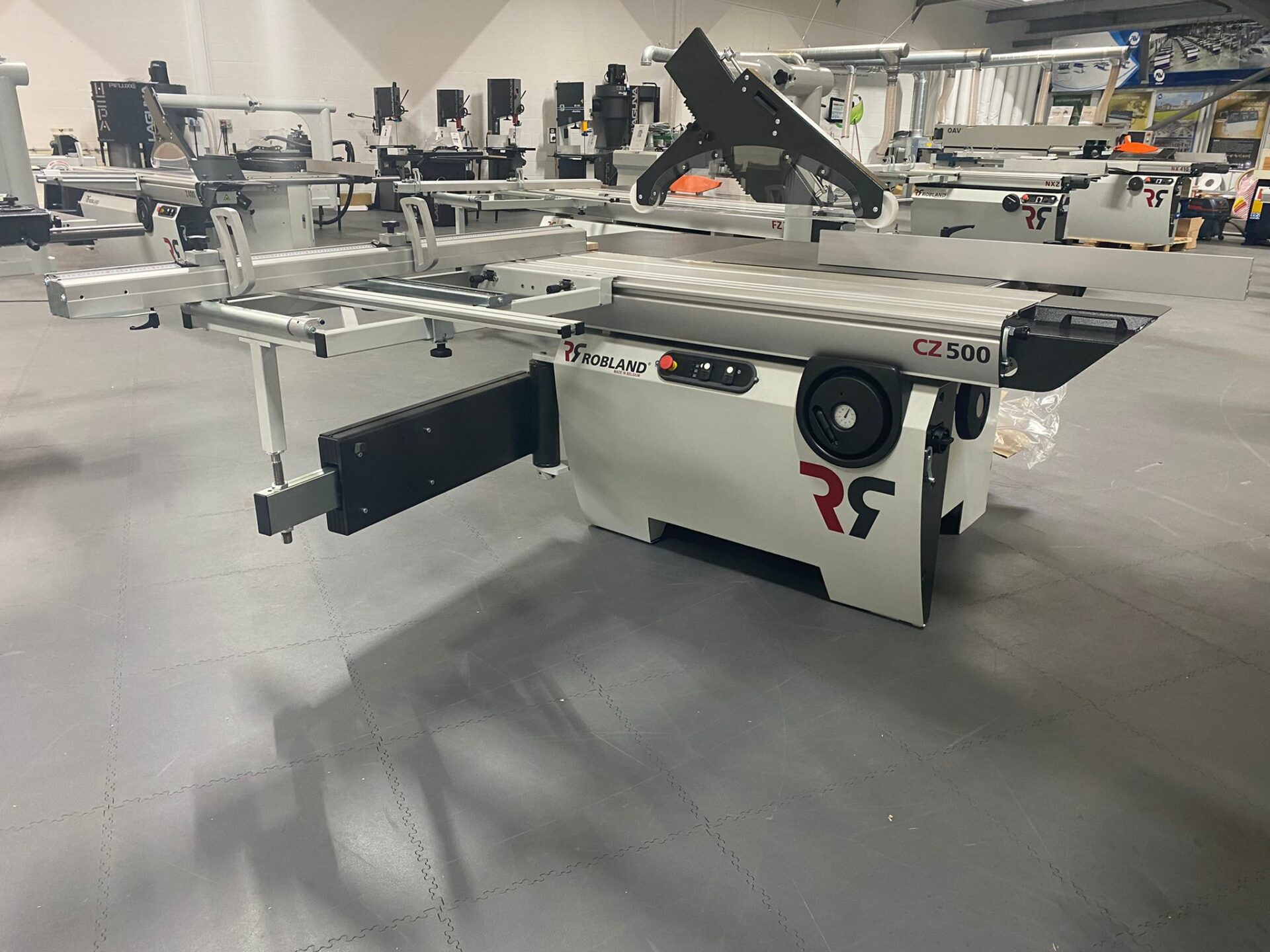

The Robland CZ500M is a compact industrial panel saw manufactured by Robland in Belgium.
Manual rise fall and tilt of the main blade and scribe. 2x Manual flip stops on the crosscut fence with telescopic fence extension. Overhead guard with integrated extraction tube. Z4 crosscut fence profile. Outrigger table with mitre guide. 500mm Main blade with scribe blade.
Need assistance or Expert Advice?
We pride ourselves in offering a friendly and professional service
500mm Main Blade with Scribe
The Robland CZ500M can take a 300 – 500mm main blade with scribe blade.
At 90 degrees a 500mm blade will provide a 175mm depth of cut and 120mm depth of cut at 45 degrees.
Overhanging Saw Guard with integrated extraction tube
As standard, the Robland CZ500 has the Z4 Overhanging saw guard with integrated extraction tube. The extraction outlet is a 100mm fitting.
Manual rip Fence 1,000mm
The CZ500 panel saw has a rip capacity of 1,000mm as standard specification. The CZ500M features manual positioning of the rip fence.
Optional Extras
rip cut capacity
- 1350mm
2x Manual Stops on Crosscut fence
The CZ500M has 2x Manual stops on the crosscut fence. These are the same manual flip stops with magnifying glass’ as the Popular Robland Z400M Panel Saw has
Outrigger table with Mitre guide
The CZ500M’s outrigger table includes a mitre guide which the crosscut fence can be pivoted on and secured for precise mitre cuts.
1600mm Sliding table
This machine has a 1600mm sliding table which will cut 1600mm lengths.
Optional Extras
Sliding table length
- 2500mm
Robland CZ500M Floor Plan
Manual Rise Fall and tilt
The Robland CZ500 ‘M’ is a manual machine. The Main blade and scribe blade both have manual rise, fall and tilt functions.
Telescopic Fence
The 1565mm wide crosscut fence is telescopic to 2550mm.
Three working Speeds
The Robland CZ500M has three working speeds, 3000 / 4000 / 5000. The drive belt has to be changed manually onto the correct pulley groove. The machine will light up the corresponding LED light to indicate which RPM the belt is currently on.
CZ500 other Variants
The CZ500 has four different variants.
CZ500M
CZ500EL
CZ500X1
CZ500X3
