Technical Specifications
MAKE
Sedgwick
MOTOR POWER
3kW
TABLE DIMENSIONS (MM)
800 x 750mm
DUST OUTLET SIZE (MM)
Cabinet 150mm, Saw Guard 50mm
VOLTAGE / PHASE
1ph or 3ph
MODEL
TA315
MAX DEPTH OF CUT AT 45 DEGREES
76 mm (105 mm at 90°)
TABLE HEIGHT (MM)
850mm
OVERALL DIMENSIONS (MM)
800 x 955 x 850mm

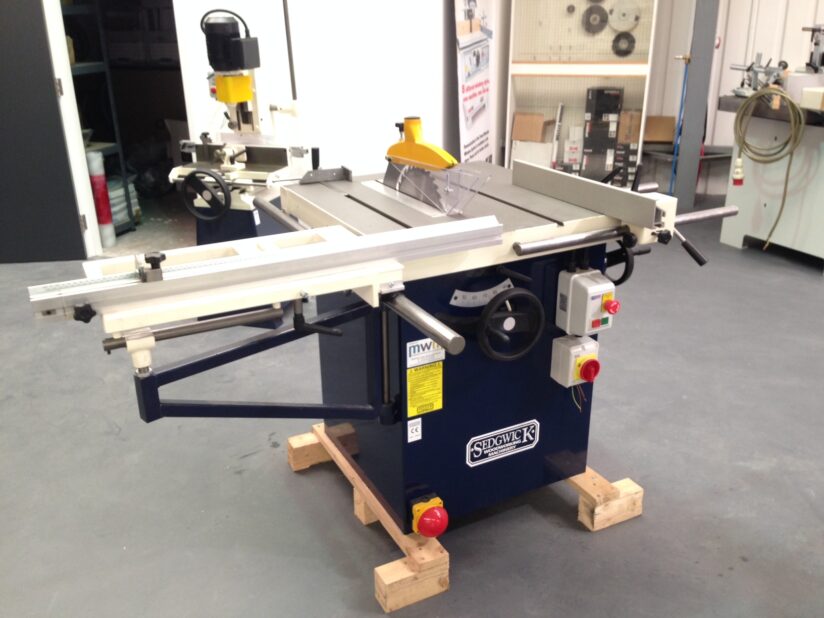

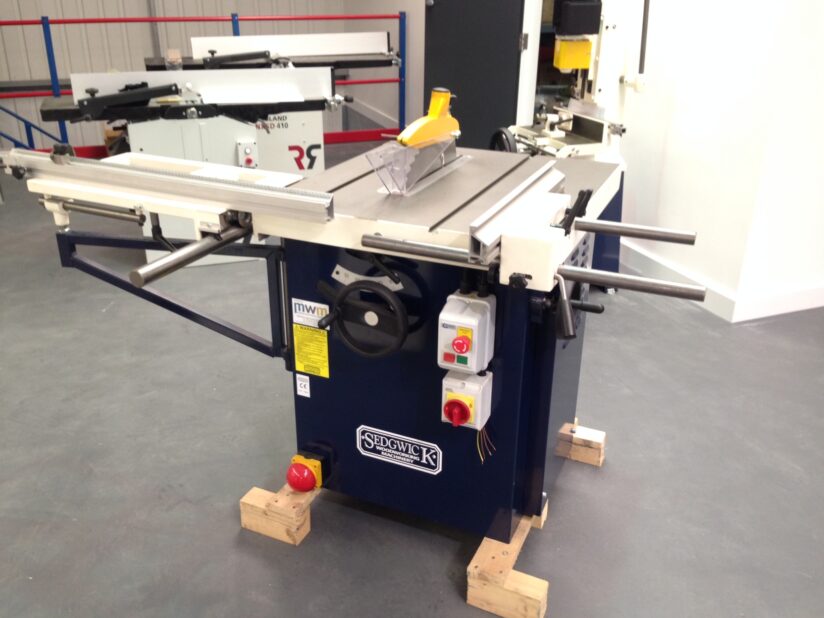

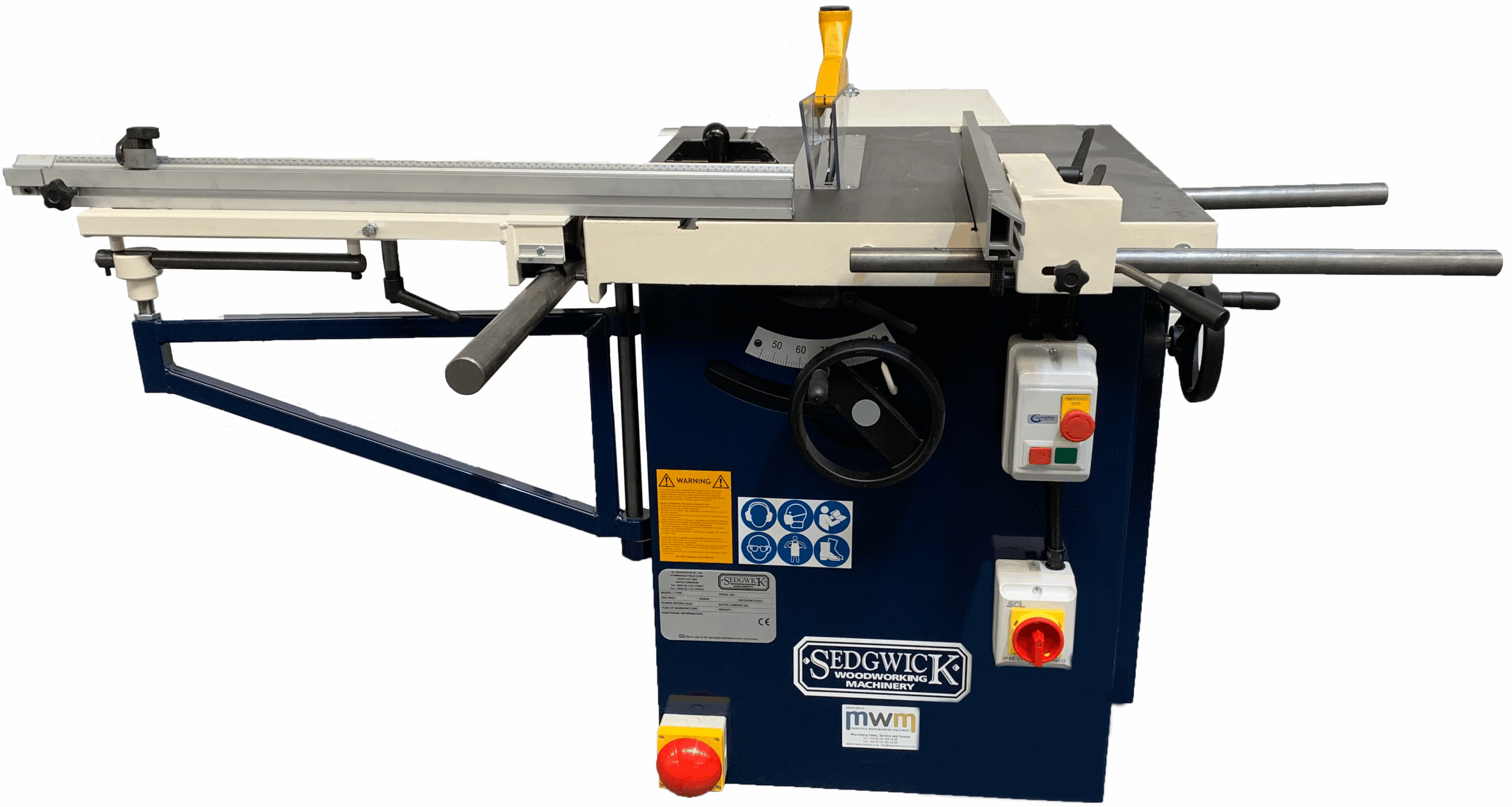

The backbone of any joinery workshop is its sawbench. The saw bench should be powerful, accurate, reliable and simple to operate. Sedgwick TA315 Table Saw is designed and built with all these requirements in mind. The TA315 is available fitted either with a 620mm or 1,220mm sliding table, designed for cutting mitres and compound angles, end trimming, squaring, dividing and trimming. A large cast iron table mounted on a heavy-duty steel cabinet provides a stable and accurate base for attaching the saw blade mechanism. Fitted with a braked motor and emergency stop switch and available in both single and three phase models.
