Technical Specifications
MACHINE TYPE
Tenoners
TIMBER CAPACITY
130 x 310mm
VERTICAL ADJUSTMENT TOP BLOCK
100mm
MAXIMUM LENGTH OF TENON 2 PASSES
205mm
MAIN CUTTER HEAD DIAMETERS
175mm
SLIDING TABLE SIZE
800 x 310mm
SHIPPING DIMENSIONS
1320 x 1020 x 1550mm
VOLTAGE / PHASE
415V / 3ph
MAXIMUM TOOLING DIAMETER
210mm
MAKE
Sedgwick
MAXIMUM TENON LENGTH
155mm
TABLE WORKING HEIGHT
860mm
HORIZONTAL ADJUSTMENT TOP BLOCK +/-
32mm
VERTICAL ADJUSTMENT BOTTOM BLOCK
50mm
MAIN CUTTER HEAD MOTORS
3hp each (both 3phase)
DUST OUTLET SIZE (MM)
2 x 150mm

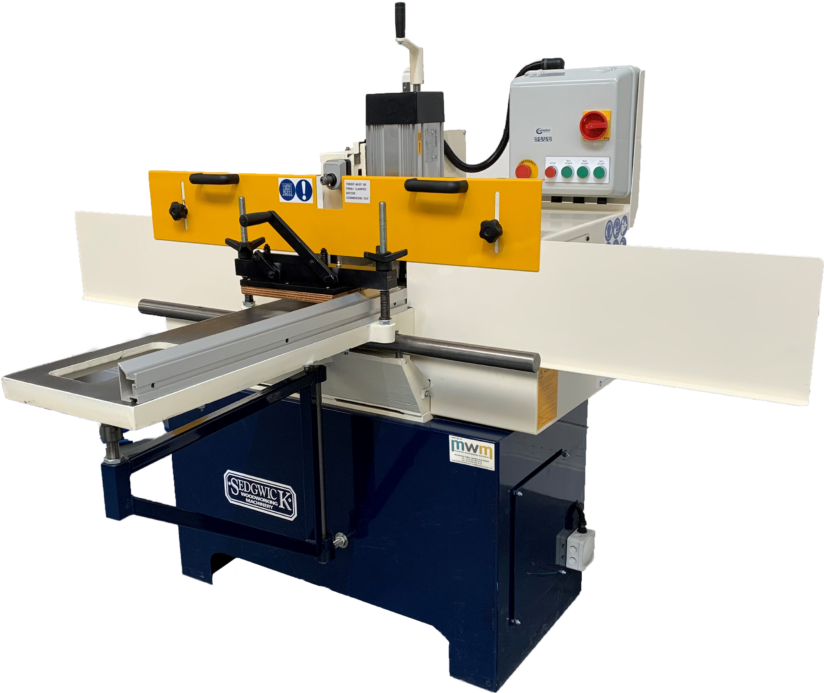

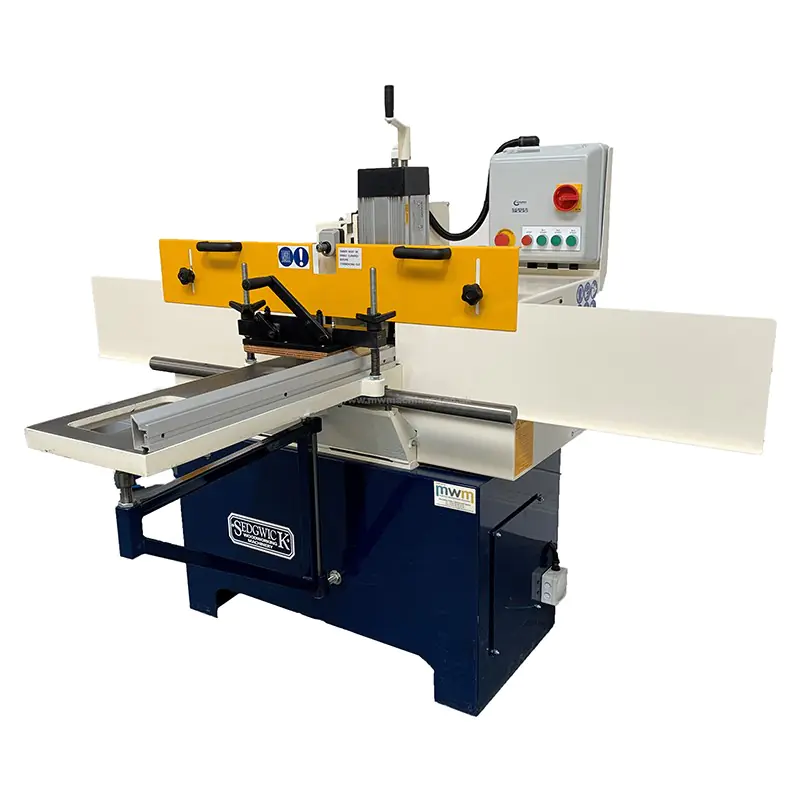

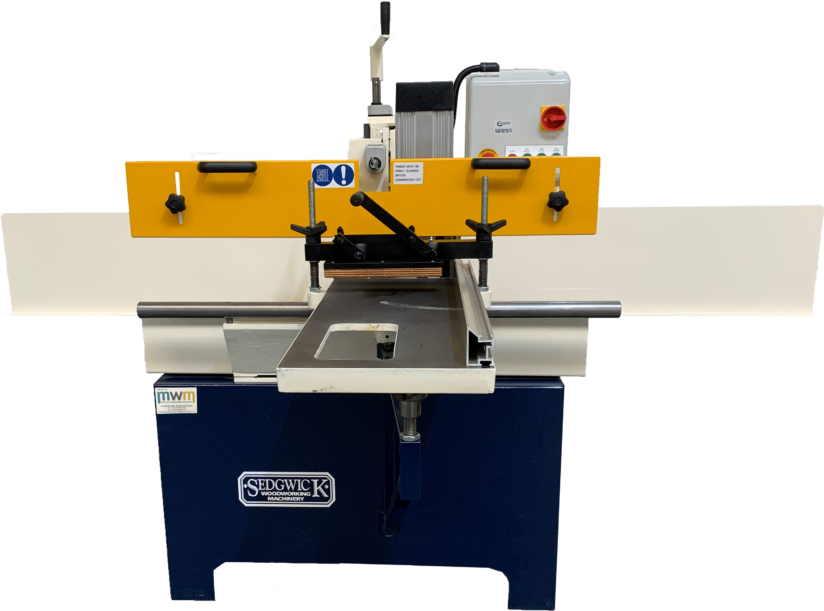

Sedgwick TE Single End 2 Head Tenoner 3 Phase
Each head is freely changeable for square shouldered tenons, or mitred tenons.

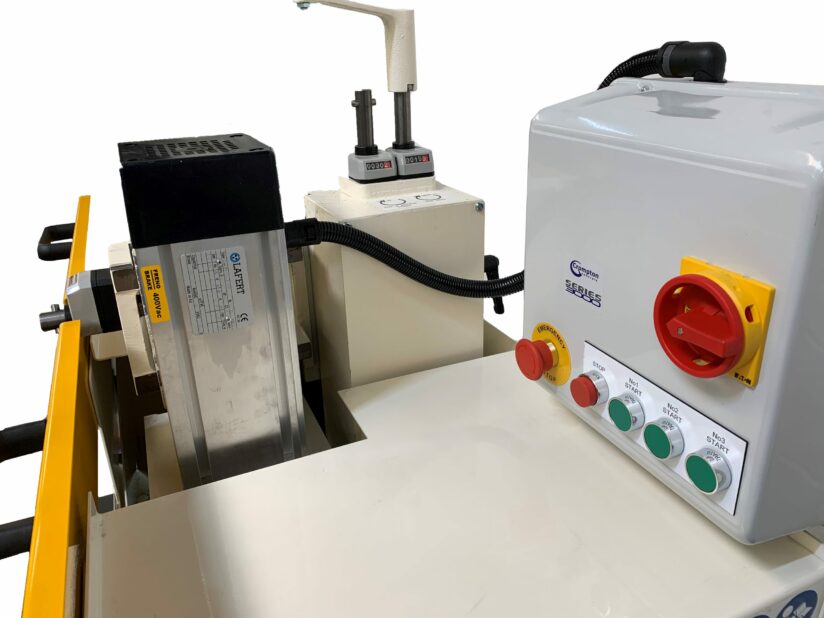

The heads are fitted with digital readouts with 0.1mm permitting you to set up rapidly and precisely in minutes.
Profiled scribing cutters and limitors can be fitted to the “combi” tenon heads.
This is a perfect machine for medium and small workshops

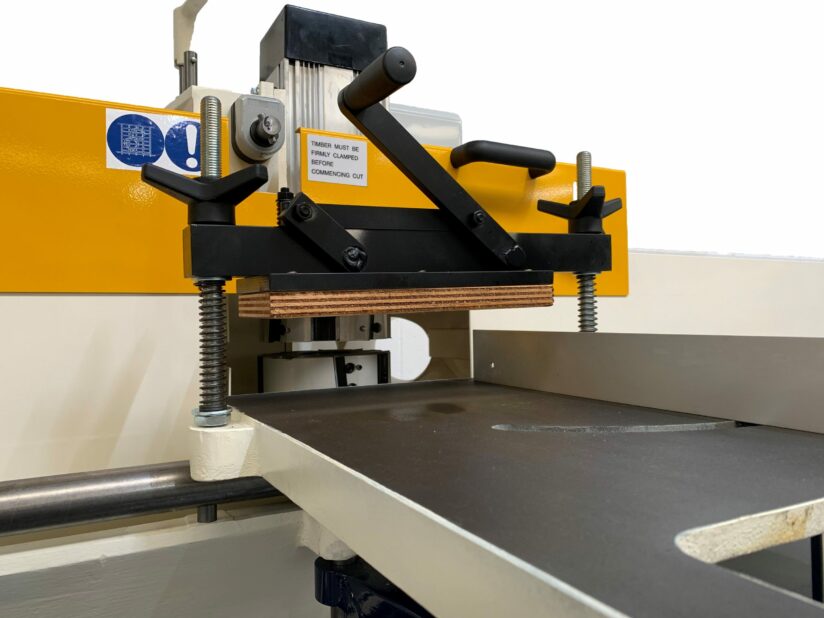

The machine is supplied complete with tenon blocks to take disposable TC cutters on the first 2 heads.
