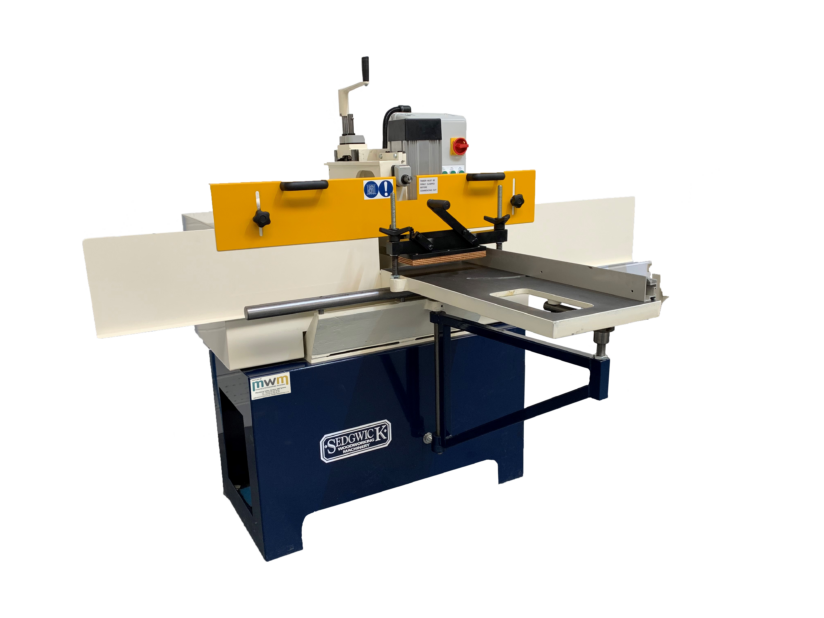

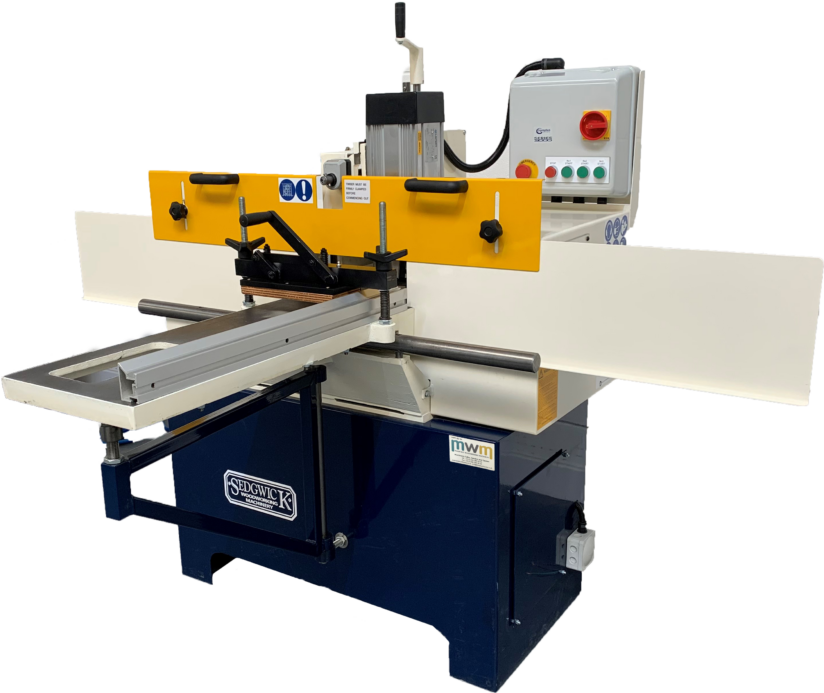

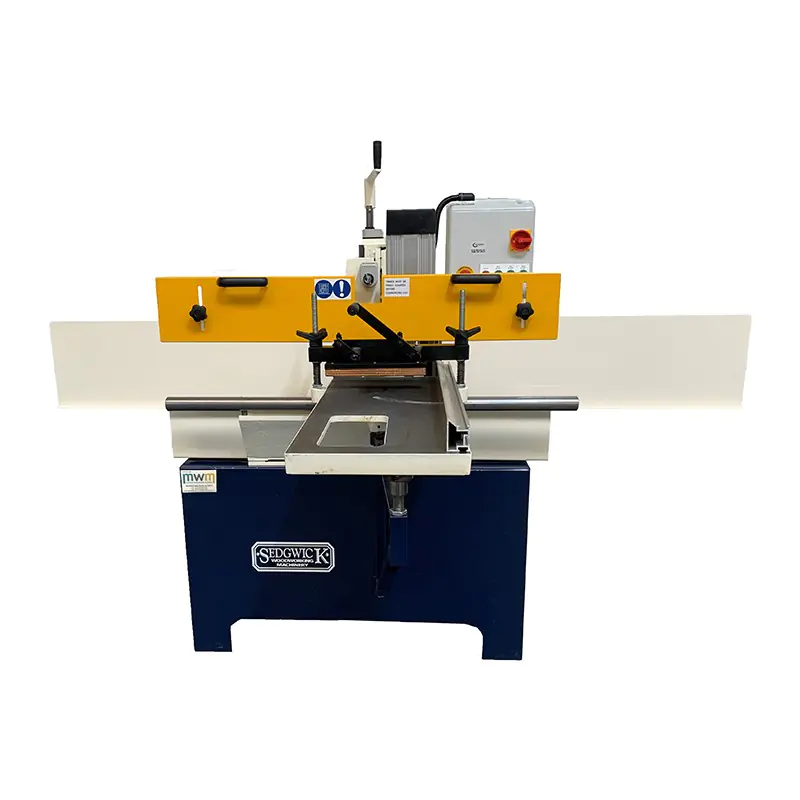

Sedgwick TESH Single End 3 Head Tenoner with Scribe 3ph

Enquire for price

Sedgwick TESH the classic 3 Head Tenoning Machine

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

MACHINE TYPE
Tenoners
VERTICAL ADJUSTMENT TOP BLOCK
100mm
MAXIMUM LENGTH OF TENON 2 PASSES
205mm
MAIN CUTTER HEAD DIAMETERS
175mm
SLIDING TABLE SIZE
800 x 310mm
SHIPPING DIMENSIONS
1320 x 1020 x 1560mm
VOLTAGE / PHASE
415V / 3ph
MAXIMUM TOOLING DIAMETER
210mm + 175mm
MAKE
Sedgwick
TABLE WORKING HEIGHT
860mm
HORIZONTAL ADJUSTMENT TOP BLOCK +/-
32mm
VERTICAL ADJUSTMENT BOTTOM BLOCK
0 – 60mm
MAIN CUTTER HEAD MOTORS
3hp
DUST OUTLET SIZE (MM)
150mm

Sedgwick TESH Single End 3 Head Tenoner with Scribe 3ph

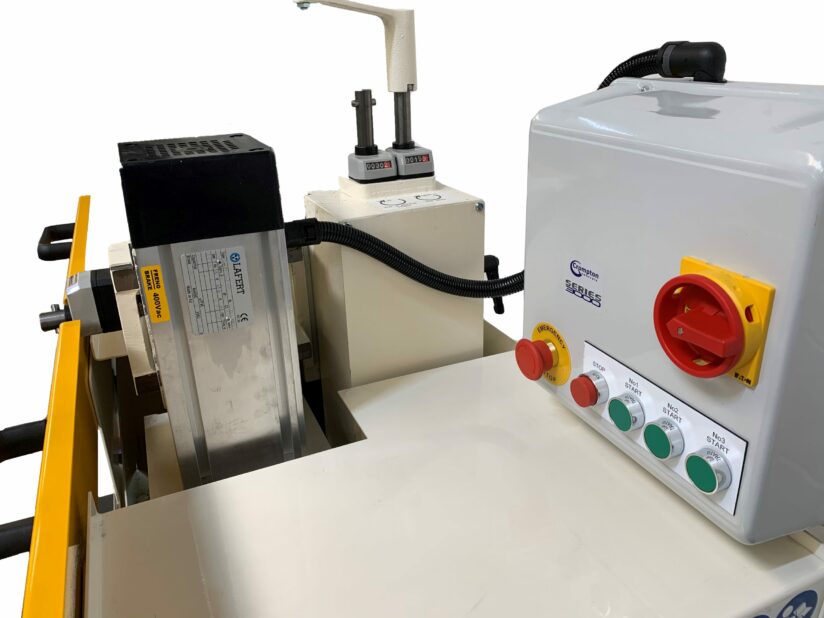

Ease of operation

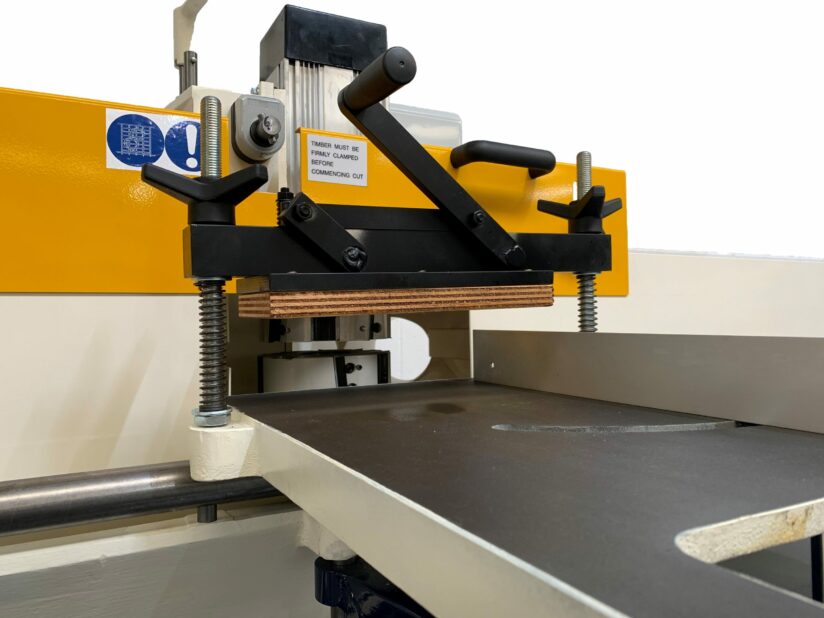

Taking only minutes to setup, the Sedgwick TESH is easy to use and accurate in operation. Work is positioned on the rolling table against an end stop and fence, and is secured by a cam action clamp. Its end is then passed between two vertically mounted cutterheads which machine the top and bottom cheeks of the tenon. The tenon width is set by raising or lowering the top motor, and its position on the timber by raising/ lowering the two motors in tandem. Variations in shoulder length are set using the rule on the end stop, and staggered tenons are achieved by simple handwheel adjustment of the top motor, again reading from a rule.

Versatility

Each cutting head has provision for profile knives to enable the operator to match the cross section of the components being jointed. Alternatively the optional scribing head provides improved accuracy, ease of setting, and finish. Stepped tenons, splayed tenons, scribed tenons, double tenons, and multiple bridles are all possible on this versatile machine. Combinations of 90 degree and bevelled cutting discs with appropriate spacers can also be fitted to produce interleaved joints as used in sash window construction.

Construction

The Sedgwick TE/TESH is designed and built to withstand continuous production use. Its cast iron base, column and slideways provide a rigid and durable mainframe assembly, and the 2.2Kw motors supply ample power. The generously proportioned cast iron sliding table is mounted on bearing equipped hardened steel rollers for minimum wear, and cutterhead slide movements are easily adjusted on dovetail slides for ease of maintenance.
