Technical Specifications
Motor
3ph 3.75kW
Cast iron wheel size
630 mm
Max. cutting width without fence
622 mm
saw blade length
4600 mm
Saw blade speed
1615 m/min
table height
830 mm
Braking system
foot pedal & micro switch
Machine size
1190 x 750 x 2060 mm
table size
850 x 600 x 50 mm
cutting height
400 mm
Max. cutting width with fence
570 mm
saw blade width
6 – 38 mm (25mm standard)
table tilting
45°(R)/ 20°(CE)
dust extraction outlet
2x 100 mm
blade guide
ball bearing
Weight
435 KG
Quick-release saw blade changing system
Tension meter, Electronic braking switch (CE)

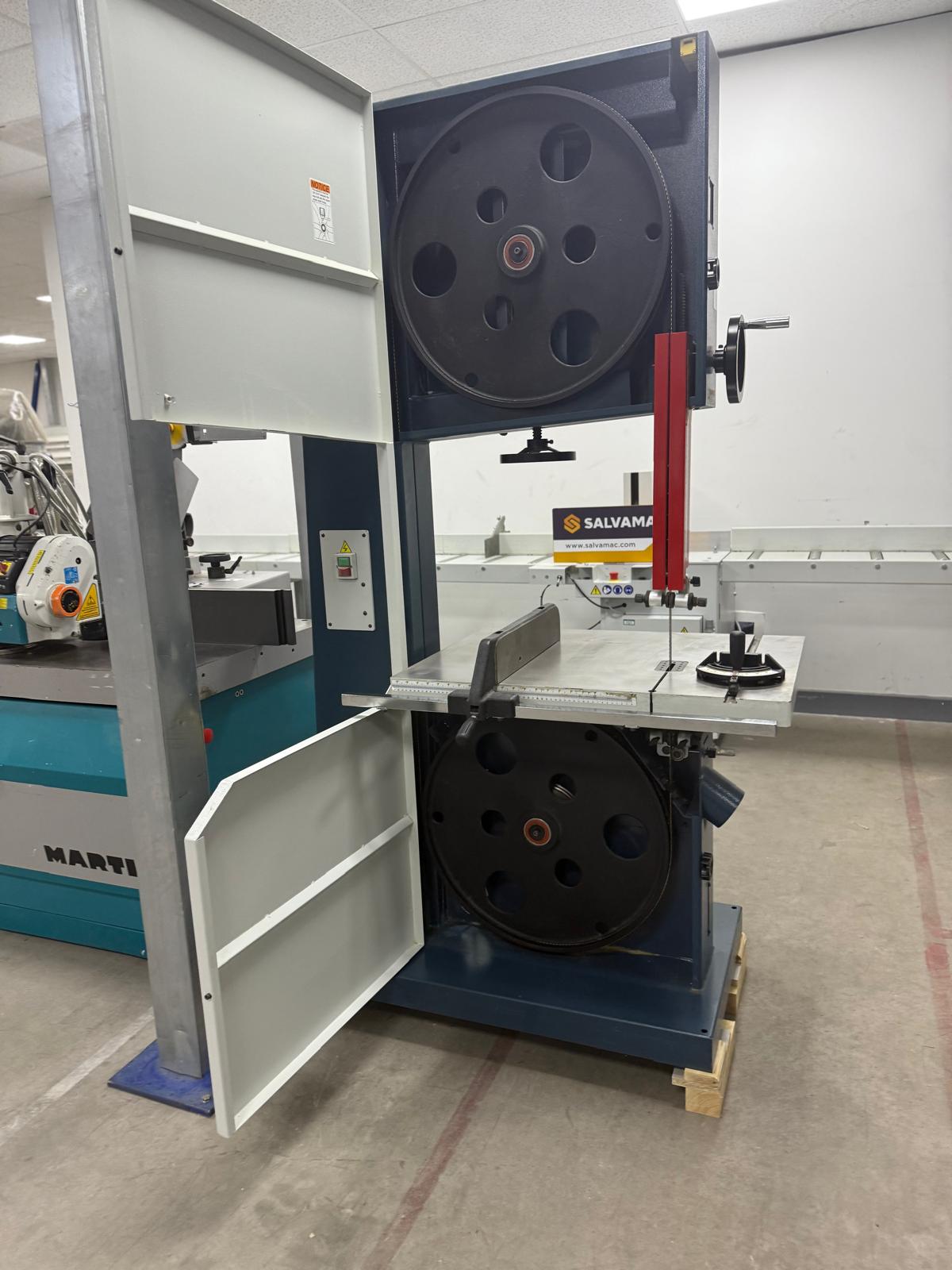

Built in micro switch to shut down power on door opening

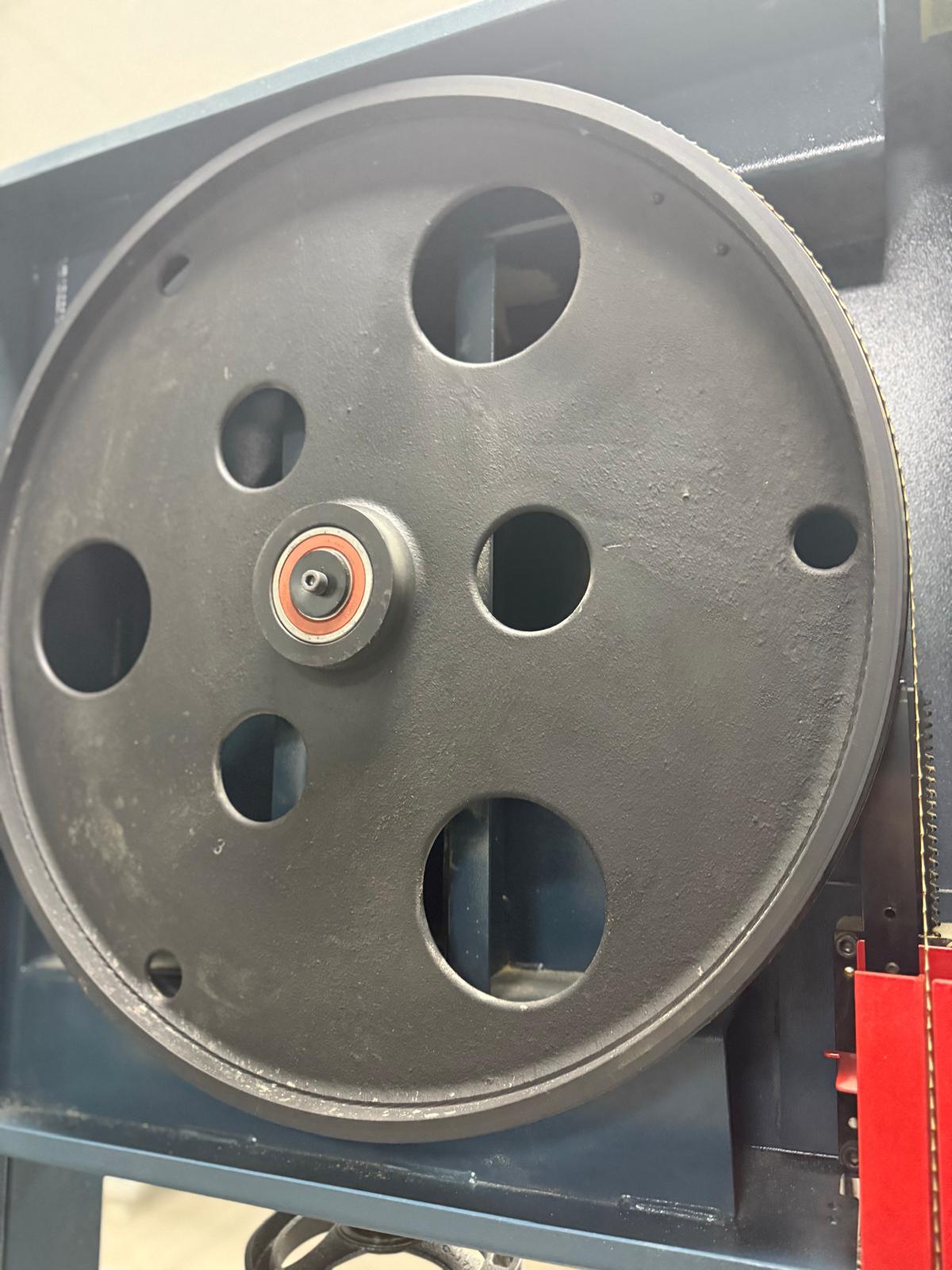

Deluxe casting iron hand wheel

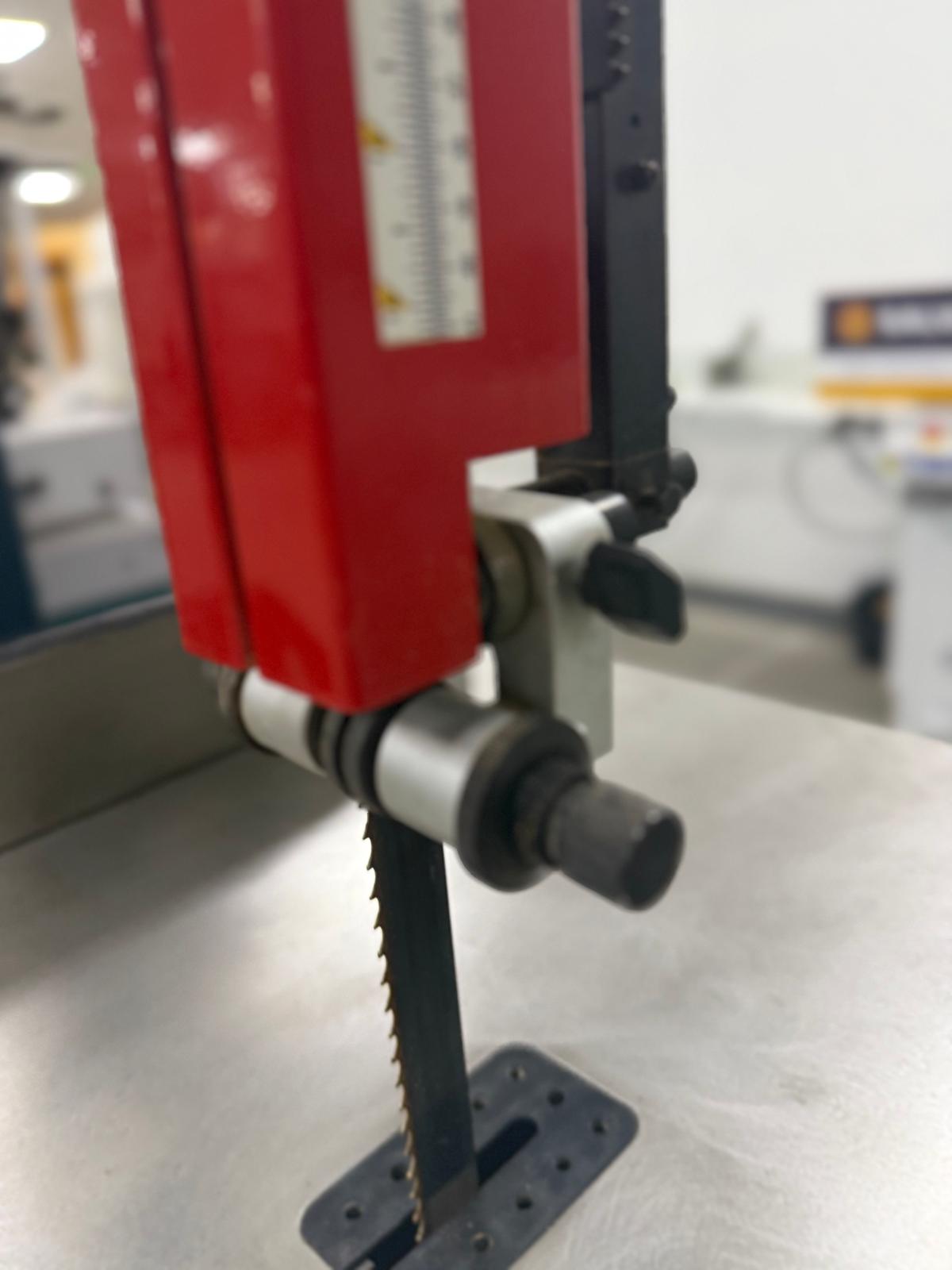

Upper ball bearing blade guide system
Lower ball bearing blade guide system

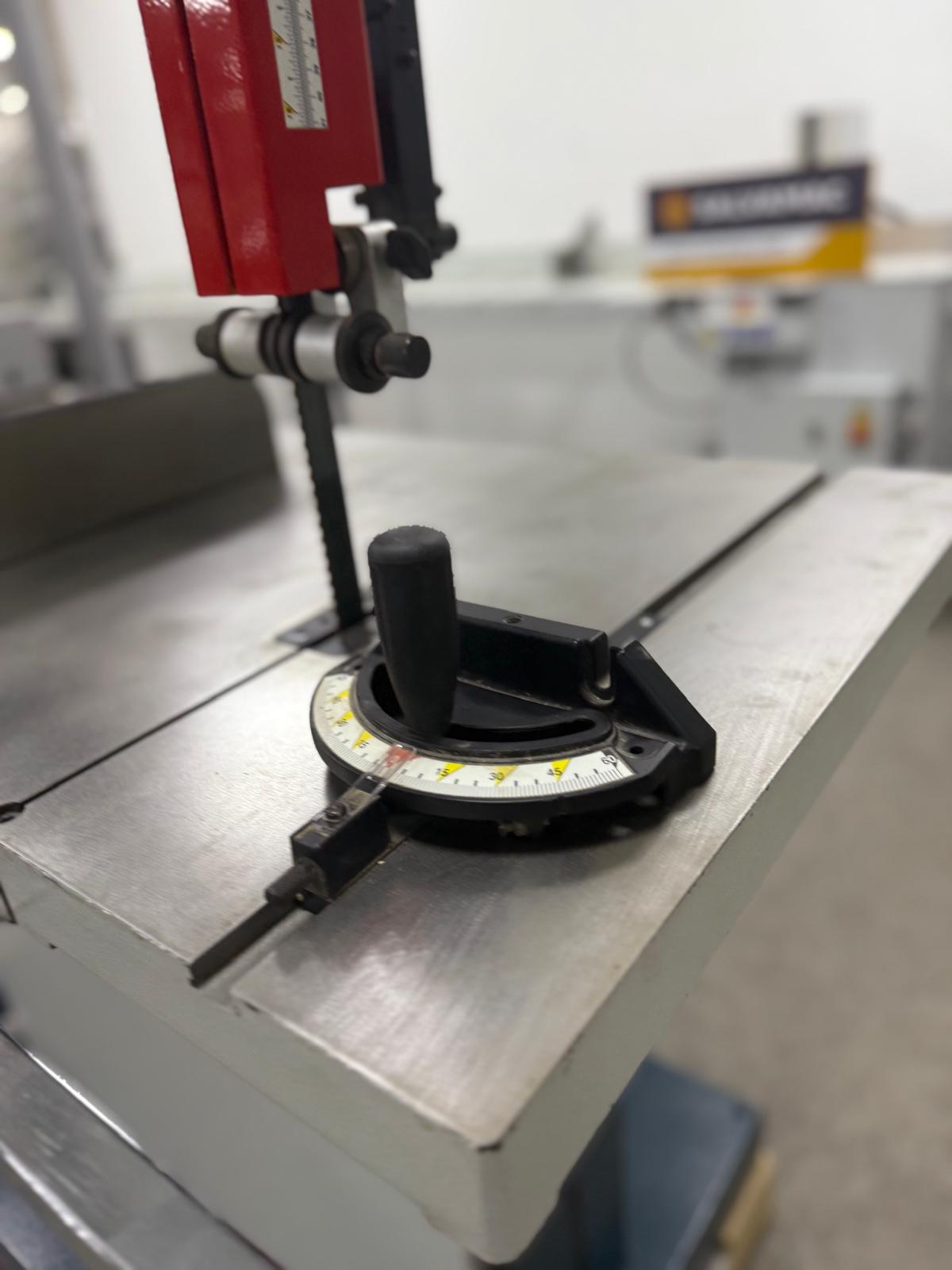

Large solid and rigid cast iron table, rip fence and heavy duty miter gauge
Standard 4″ dust port x 2 units

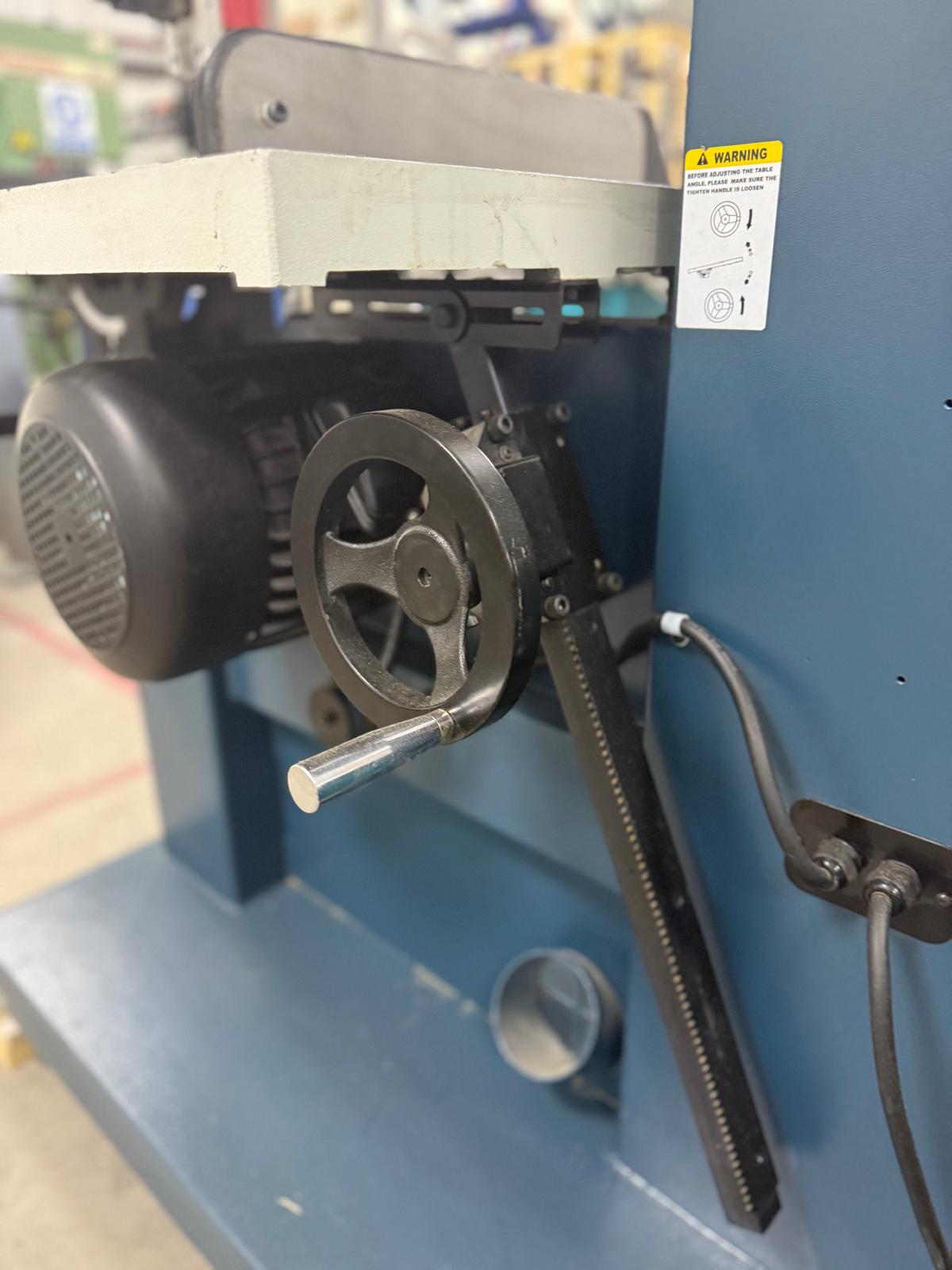

Quick table tighten / loosen handle

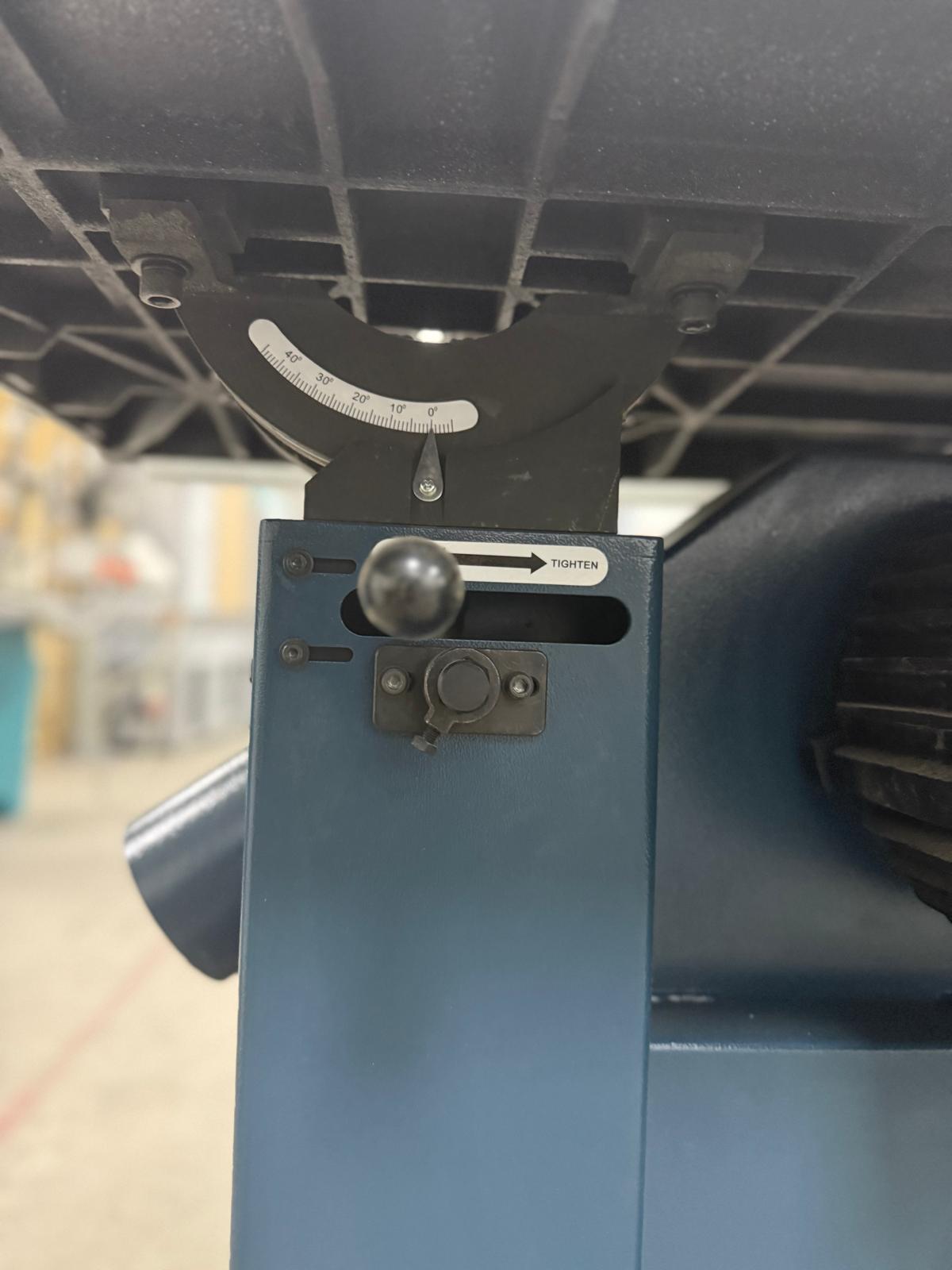

User friendly patented table titling device
