Technical Specifications

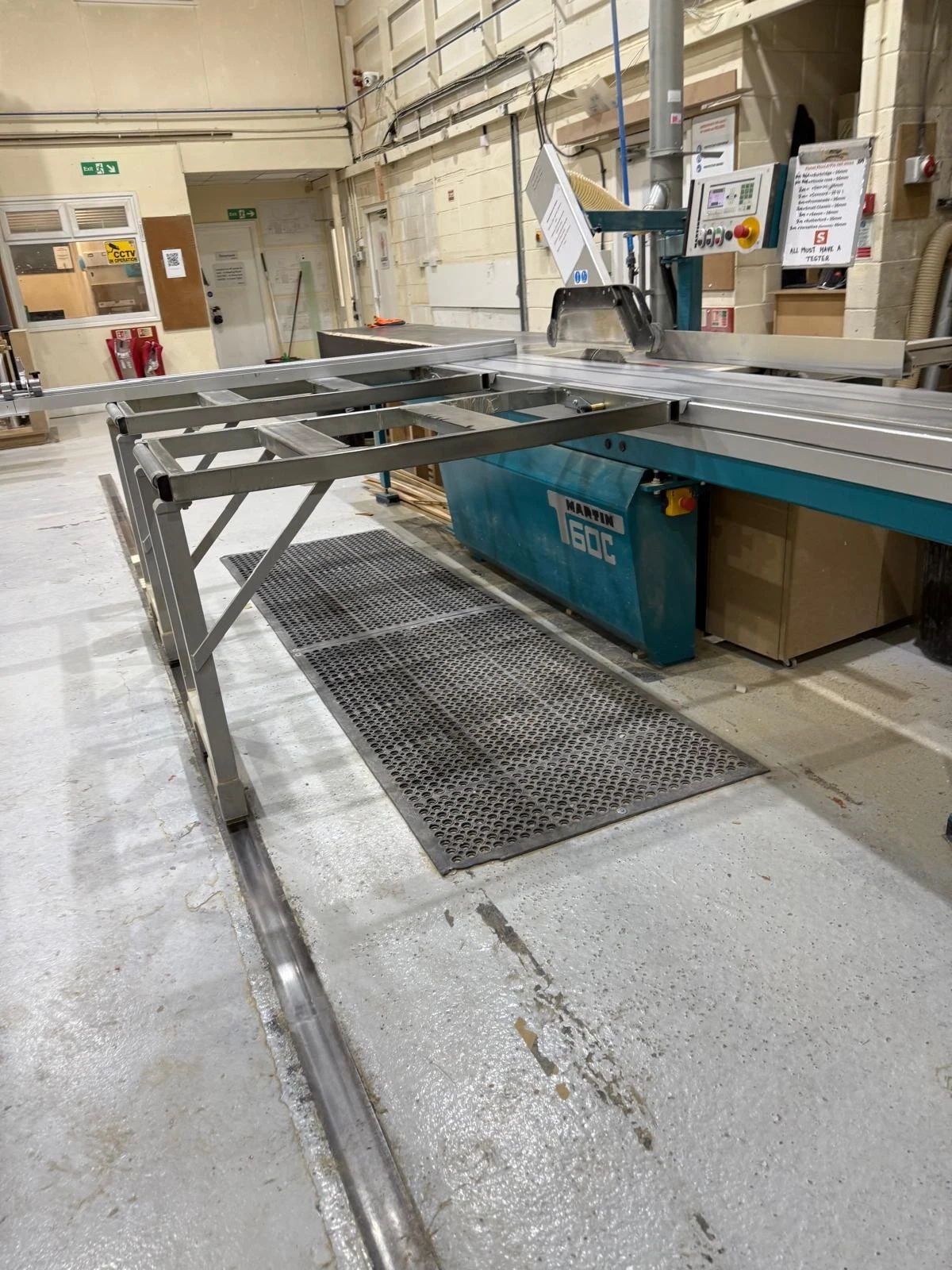

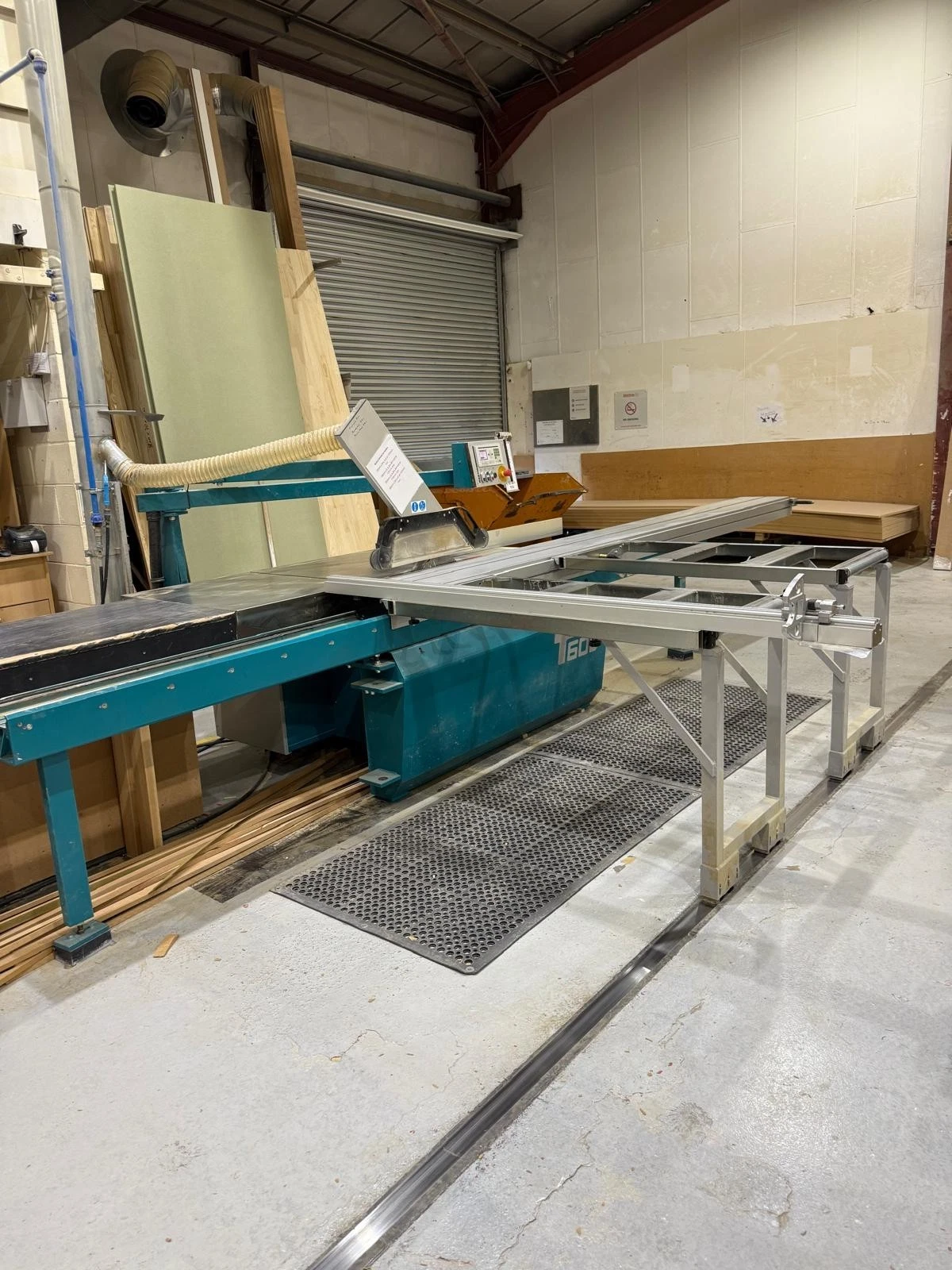

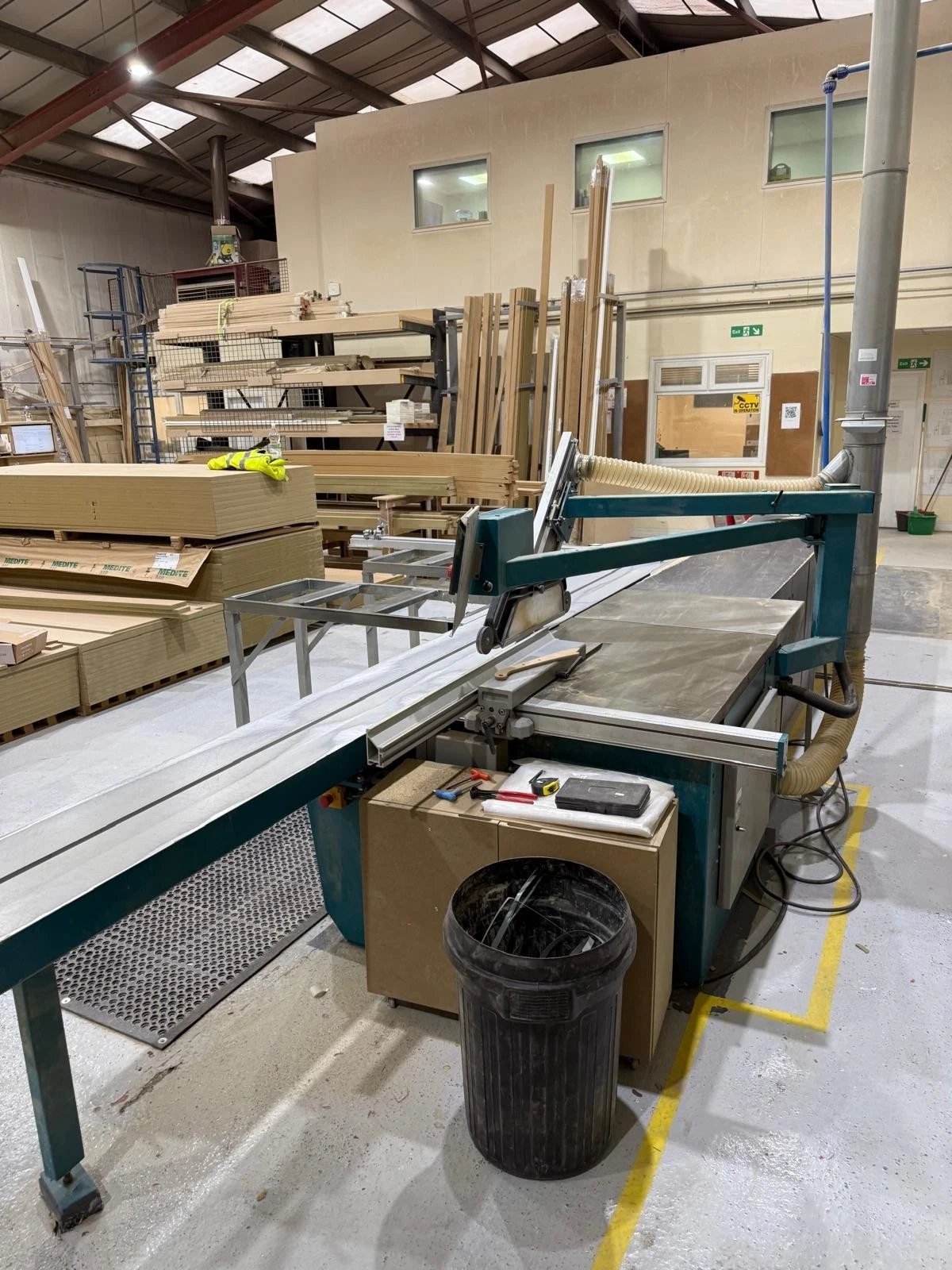

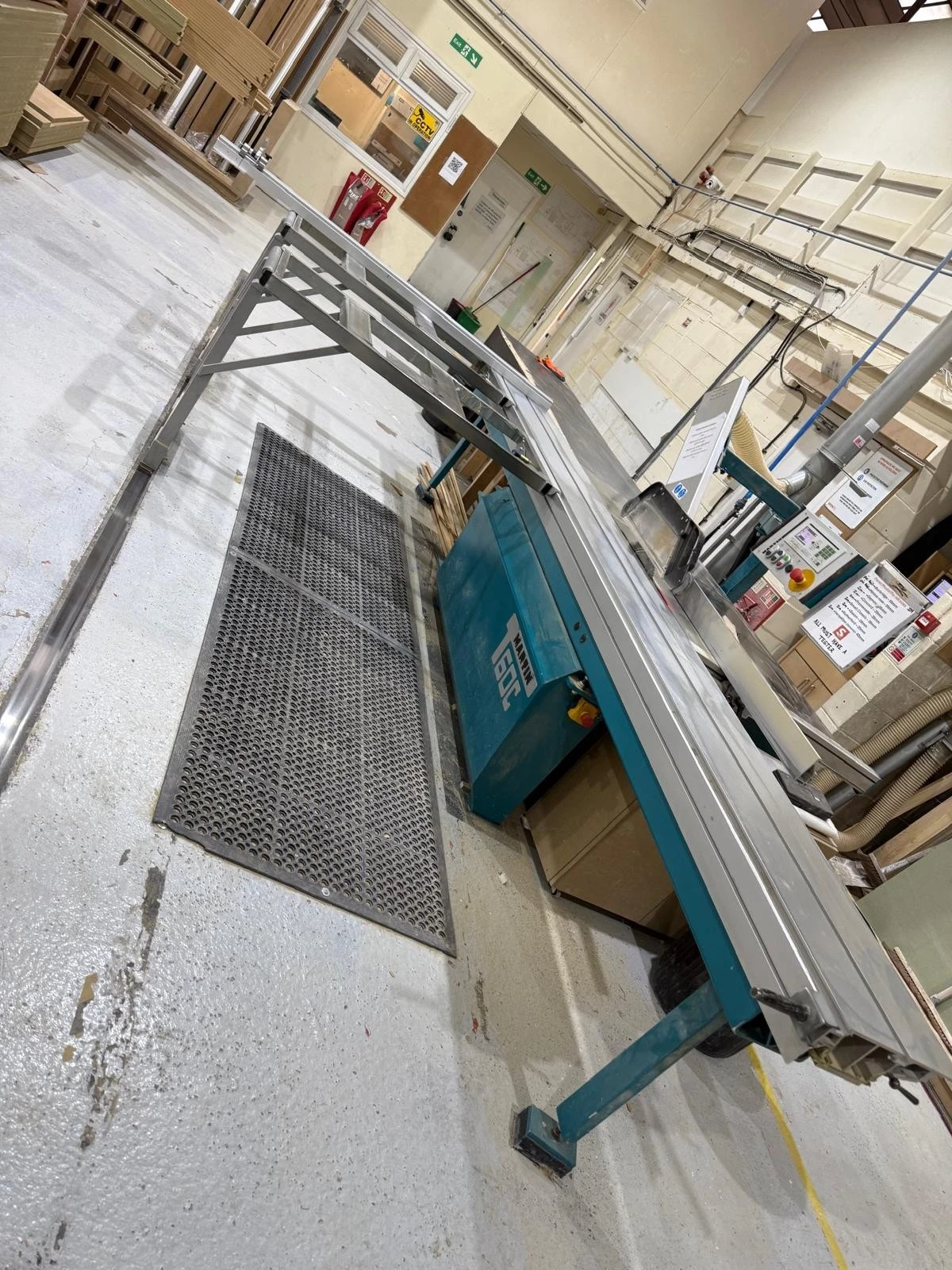

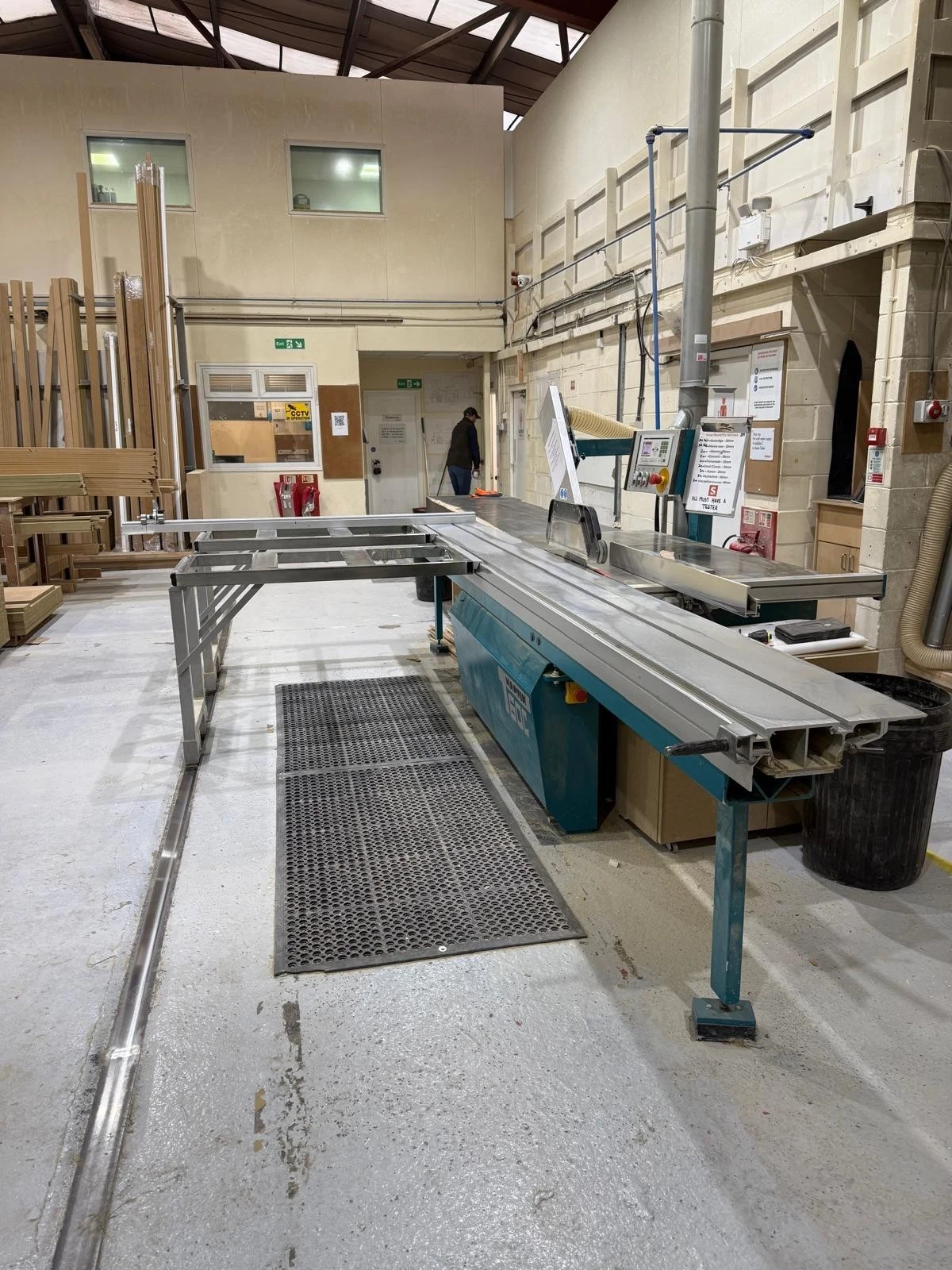

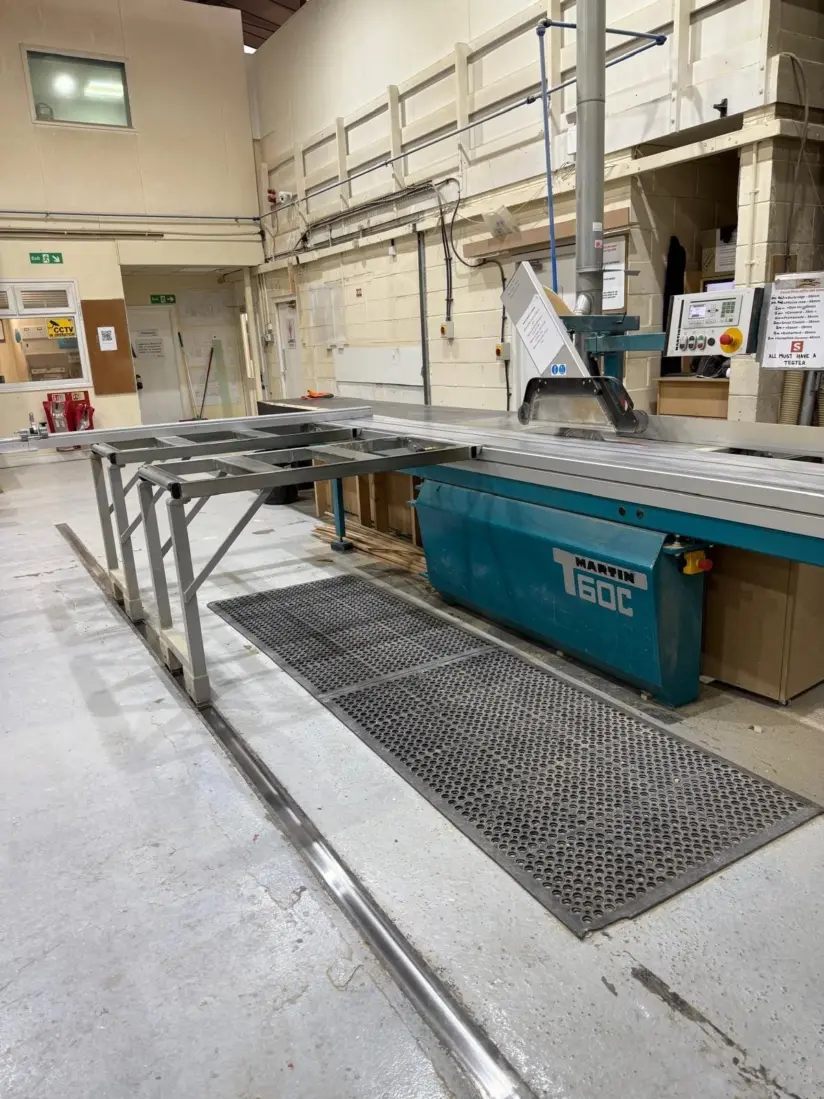

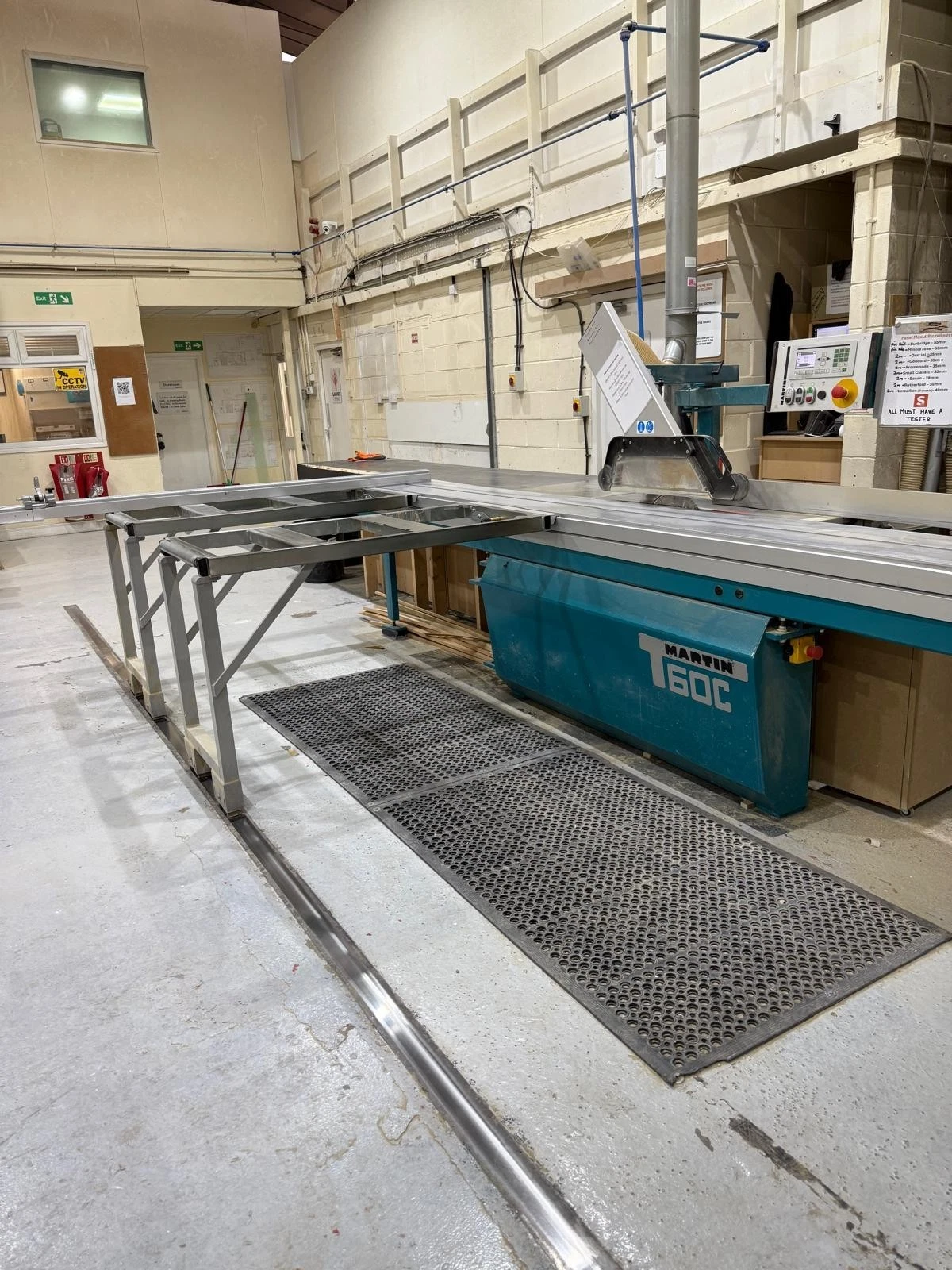

Martin T60C Panel Saw
With the new T60C saw, we want to respond to the increasing demand for well-equipped mid-range machinery. You can get this machine, which is based on the T60A frame, at a surprisingly favorable price. It is equipped with a 3.5” keypad controller at eye level, a powerful 7.5 HP motor with three rotational speed options, 1350 mm rip capacity as well as MARTIN’s exclusive hand-wheel adjustment of the rip fence. The T60C Automatic includes a motorised adjustment of the rip fence in lieu of hand-wheel version.
T60C Panel Saw key features

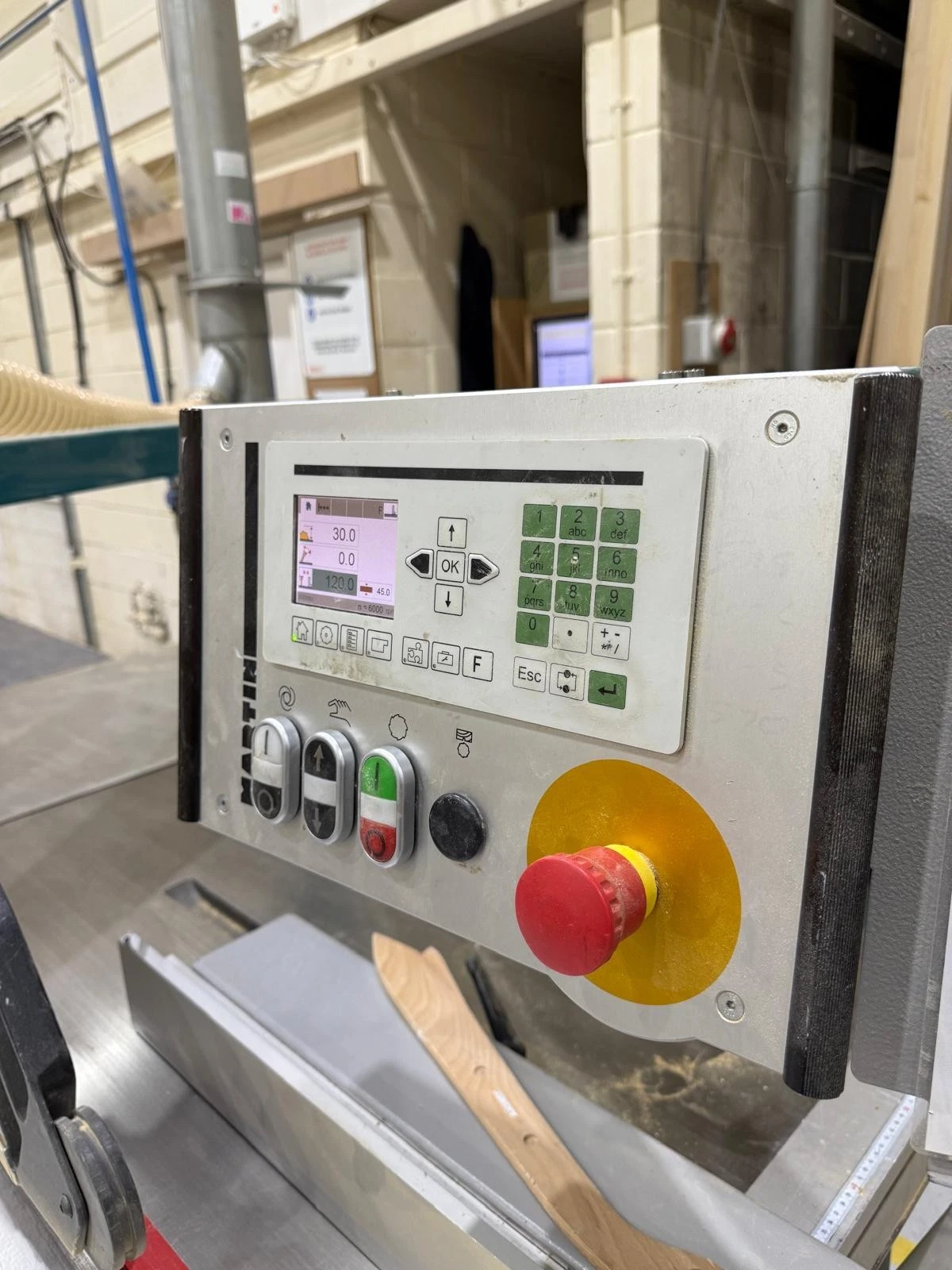

- 3.5“ TFT screen and control panel (at eye level)
- Electronically controlled cutting height and angle
- Rip fence adjustment using a hand wheel (Motorised adjustment of rip fence included T60C Automatic)
- Digital indication of the cutting width integrated in the control
- Precise adjustment of the rip fence
- Cutting width: 1350 mm
- Sliding table length: 3000 mm
- Max. cutting height: 130 mm
- Fine adjustment on both cross-cut stop elements
- Individual configuration with a large selection of accessories available
High-quality mechanical design

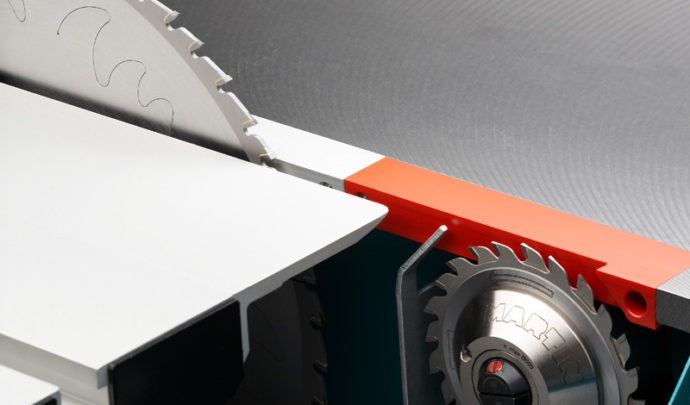

Like all the important mechanical components of the MARTIN saw line, the T60C’s sliding table, cross-cut fence and rip fence provide maximum precision and long life. The sliding table is designed like you would expect a MARTIN machine should be: with a replaceable table lip and durable, highlyribbed, hollow chambered aluminum profile. Another key feature includes the smooth movement of the two stop elements along the cross-cut fence rail.
The sliding table is designed like you would expect a MARTIN machine should be: with a replaceable table lip and durable, highlyribbed, hollow chambered aluminum profile. Another key feature includes the smooth movement of the two stop elements along the cross-cut fence rail.

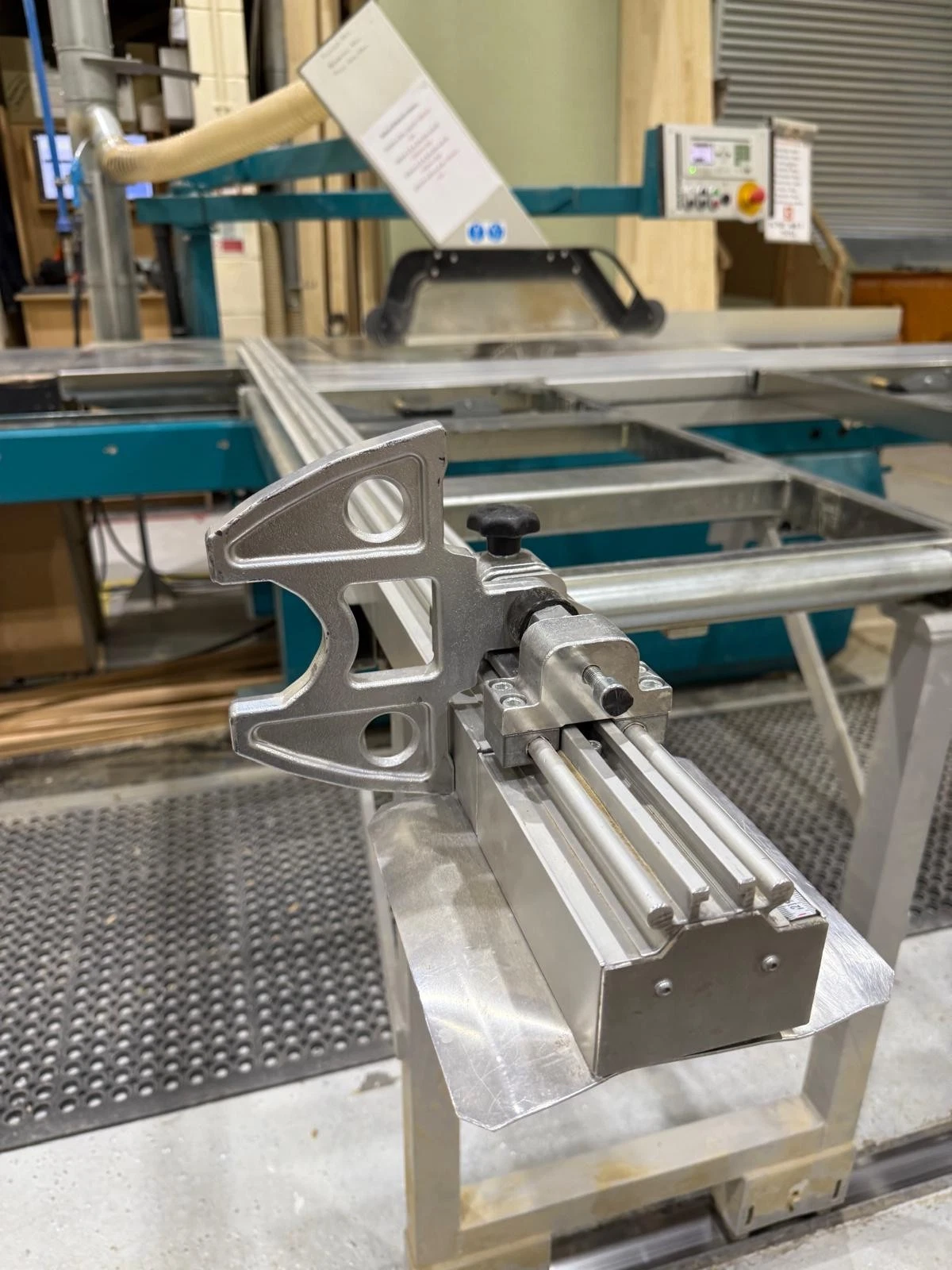

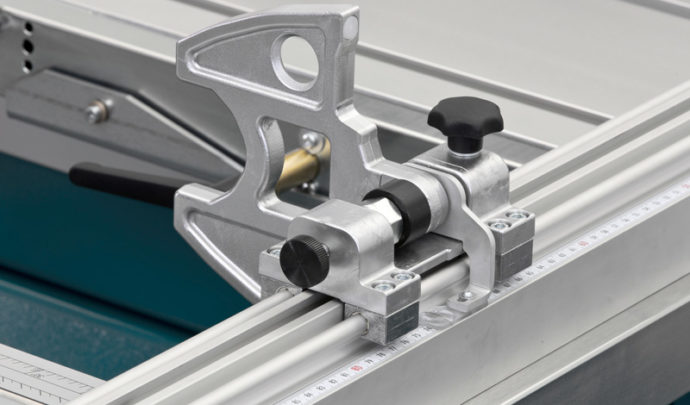

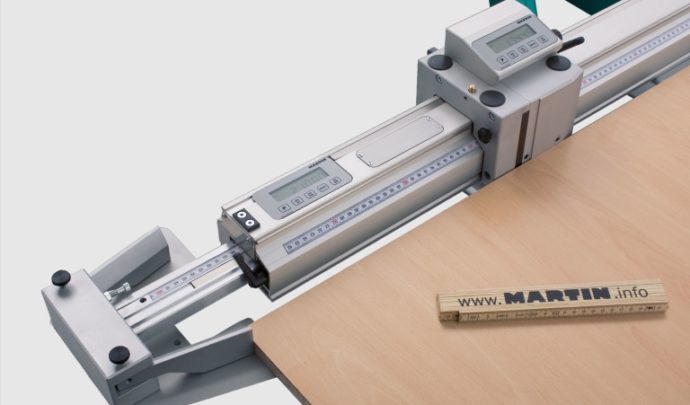

Cross Cut Fence Options
The Martin T60c comes with a sturdy and reliable fence including two stops featuring the traditional glass / rule. As an alternative option, you can request the larger T70 fance and stops, or have digital readouts.

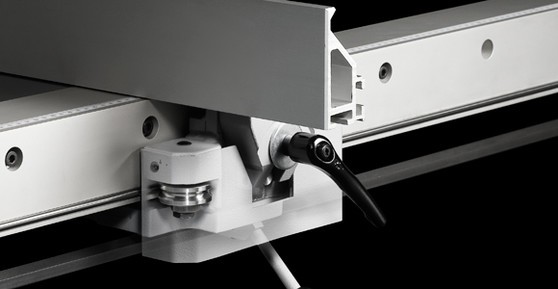

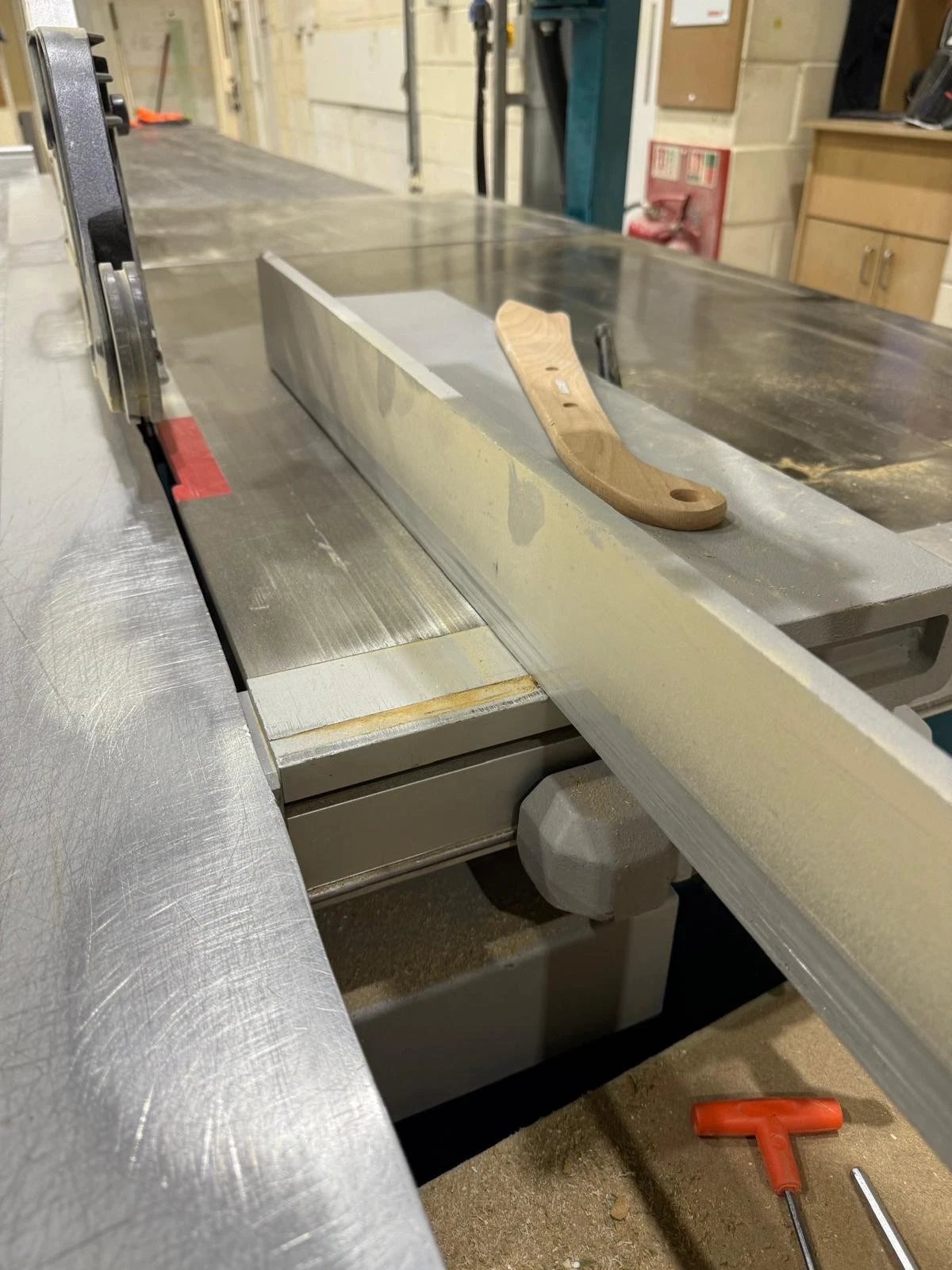

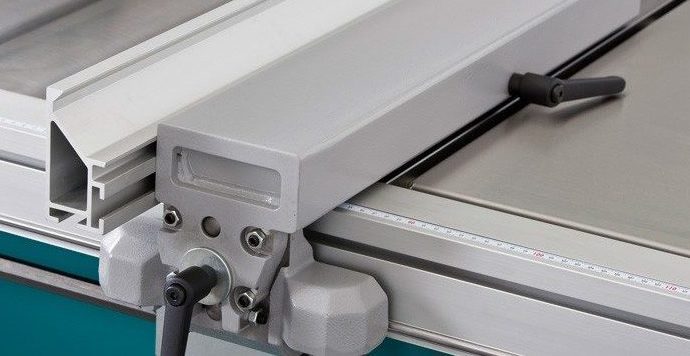

Manual rip fence adjustment
On the T60C the rip fence is adjusted manually to a digital read-out. Standard features include a precise fine adjustment and mounting rack for the fence when the fence is removed from the table. The fence’s sophisticated guide system with four grooved ball bearings ensures long-term reliability.
All of our machines can be custom built to your exact requirements
- 3.5“ TFT screen and control panel (at eye level)
- Cutting width: 1350 mm
- Sliding table length: 3000 mm
- Max. cutting height: 130 mms
