Technical Specifications
7 Inch Touch Panel
Operate the machine and select motors
Security
Conform CE
Table through feed
Air jets in table for better through feed of timber
Table width
160mm
Vertical spindle 1 Motor
7.5kW
Vertical spindle 1 RPM
6000 tpm
Vertical spindle 1 Suspension
Dovetailed
Vertical spindle 1 Positioning
Vertical CNC-positioned with ball circulating screw Horizontal CNC-positioned option with ball circulating screw
Vertical spindle 1 Turning Direction
Left and right
Vertical spindle 1
300mm with Prolock, Ø 50mm
Vertical spindle 1 Tooling Diameter
Minimum zero Ø 120mm Maximum Ø = zero Ø + 90mm, max. 240mm
Vertical spindle 1 Extraction
Ø 180mm
Feeding Device Speed
Adjustable between 2 – 12 m/min
Feeding Device Vertical
20mm to 140mm
Construction
Combined self-supporting frame with a cage construction
Table Guiding
80mm high, 1st fence is manually adjustable
Table cleaning
Compressed air system between table and fence
Table extension table
for storm proofing
Vertical spindle 2 Motor
7.5 kW
Vertical spindle 2 RPM
6000 tpm
Vertical spindle 2 Suspension
Dovetailed
Vertical spindle 2 Position
Vertical CNC-positioned with ball circulating screw Horizontal fix
Vertical spindle 2 Turning Direction
Left and right
Vertical spindle 2
300mm with Prolock, Ø 50mm
Vertical spindle 2 Tooling Diameter
Minimum zero Ø 120mm Maximum Ø = zero Ø + 90mm, max. 240mm
Vertical spindle 2 Extraction
Ø 180mm
Feeding Device Rollers
13 rollers, Ø 100 mm, every 103 mm
Feeding Device Positioning
CNC-positioned

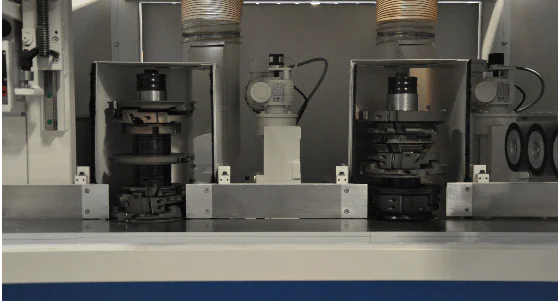

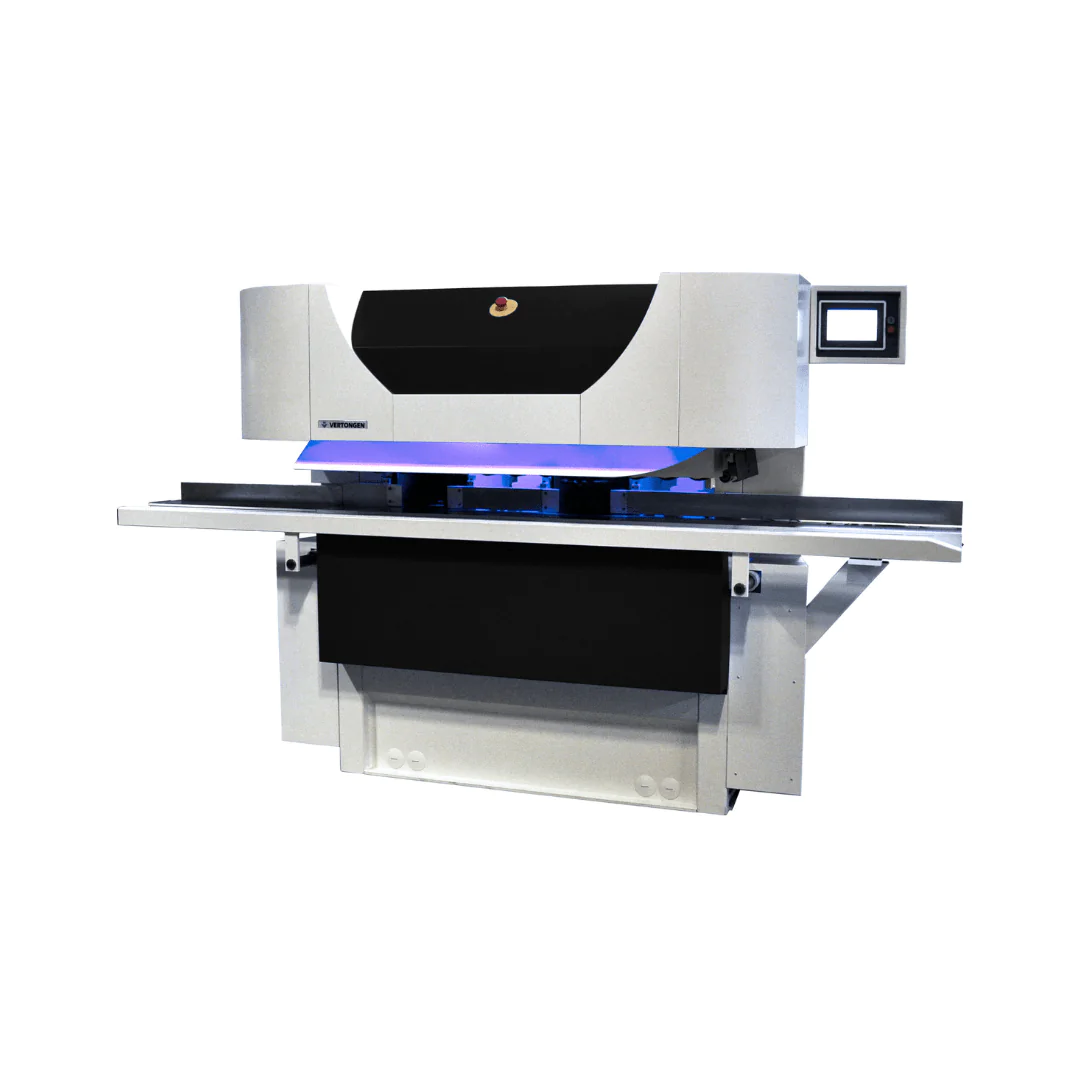

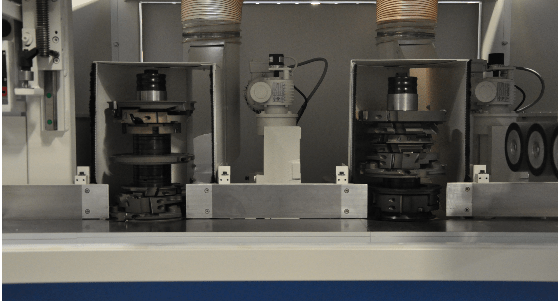

The advanced Profil Compact 2 moulder is produced with 2 spindles without top bearing
All tools for one product type can be installed at the same time, with easy change over for another product type. The 2 spindle profile moulder is a complete application so no further options are available. With the jump-head, storm proofing can be done without breakout. All operations can be controlled by the 7” touch-screen panel with an intuitive interface.
