Technical Specifications
MACHINE TYPE
Presses
PRESS PLATE DIMENSIONS
1550x3000x42mm
PRESSURE OF HYDRAULIC SYSTEM
282 kg/cm2
OIL CYLINDER
⌀85 x 8pcs
HOT OIL PUMP POWER
1.5 kw
OVERALL DIMENTIONS
4200 x 1900 x 2320mm
VOLTAGE / PHASE
415V / 3ph
MAX. TOTAL THRUST
160 ton (3.4kg/cm2)
MAX PLATE OPENING
380mm
HYDRAULIC MOTOR POWER
4 kw
HEATING PIPE POWER
36 kw
NET WEIGHT
7125Kg

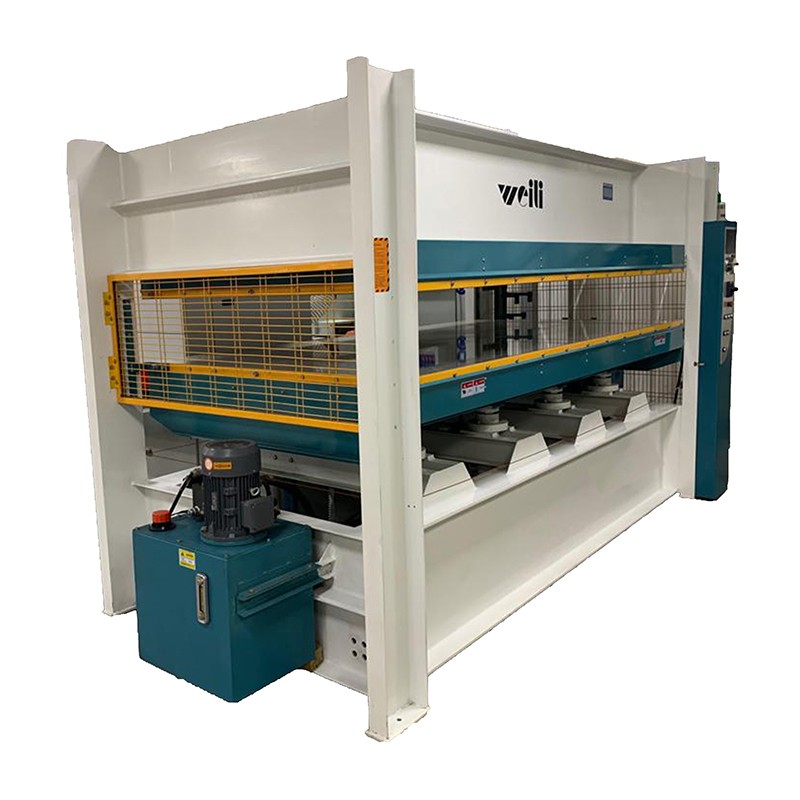

Weili Heated Oil Press 10×5

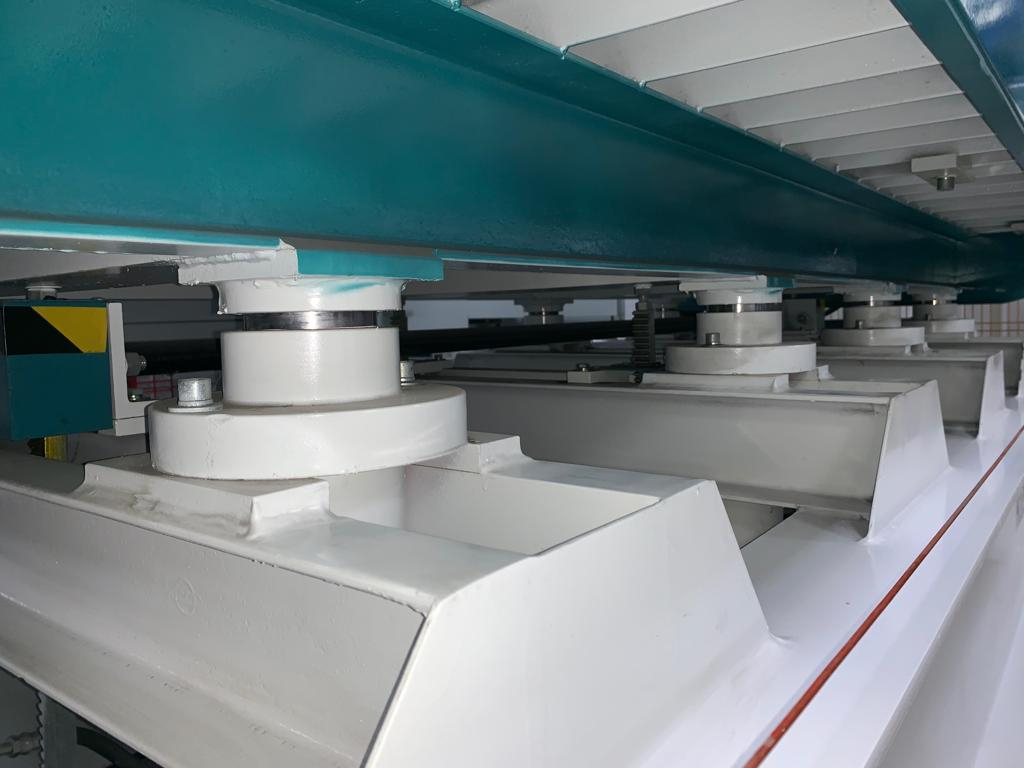

It has solid steel platens, 10 off 85mm hydraulic cylinders creating 160 ton of clamping pressure.
A 380mm opening and a Mylar protective film top and bottom that is replaceable for easy cleaning.
