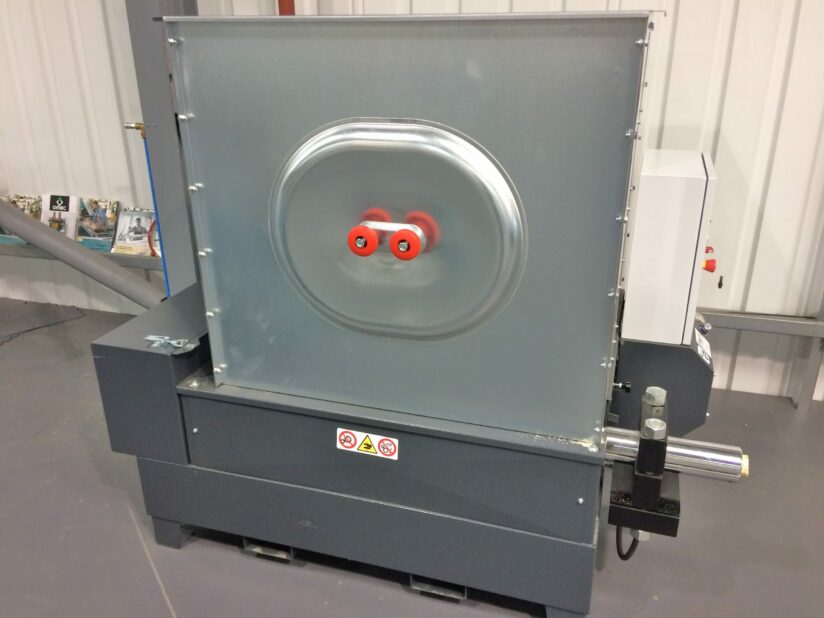

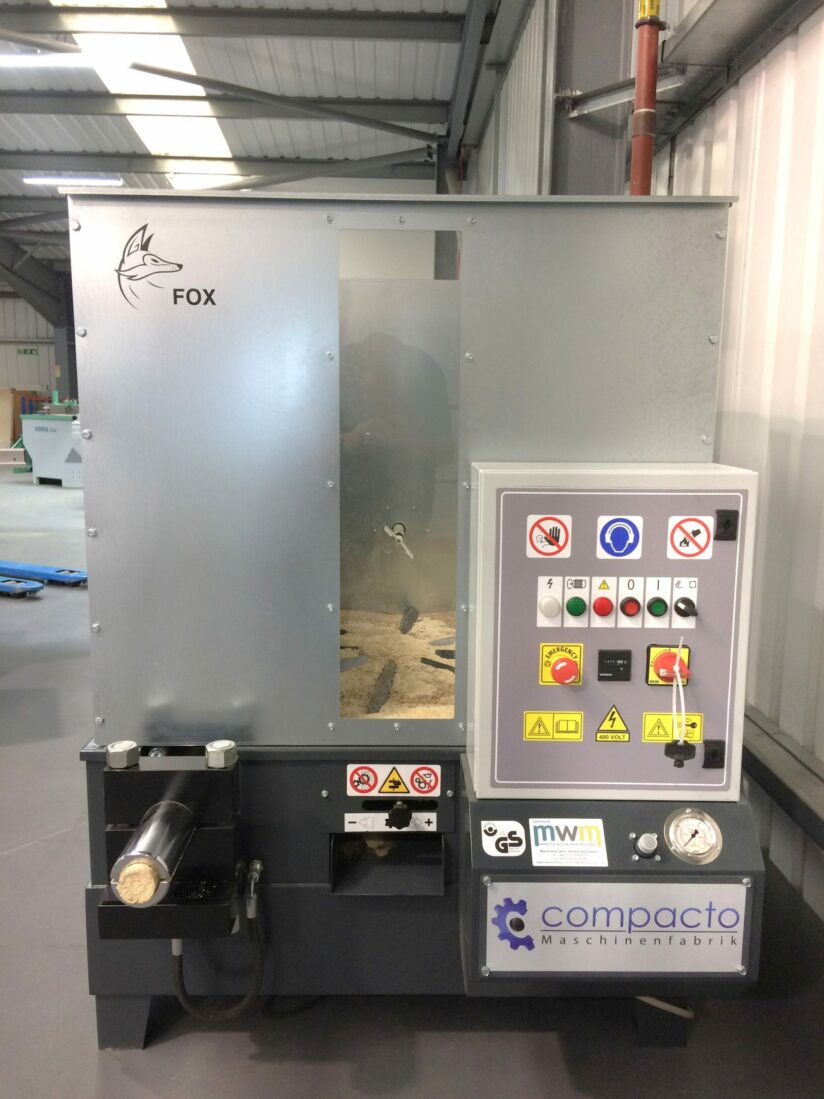

Compacto Fox 50 Briquetting Press

Compacto

From £11,000.00 + VAT

(£13,200.00 inc VAT)

The Fox briquetting presses are able to compact materials like wood shavings, sawdust, wood chips, dust and other residual materials into stable, cylindrical briquettes. Compared to loose material, the initial volume will be reduced by up to 90%.

With a briquette diameter of 50 mm and a 5.5Kw motor.

Processing wood chips at an output between 30 and 60 kg per hour is achieved.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Compacto Fox 50 Briquetter is the smallest press from the Compacto range. With a briquette diameter of 50 mm and a 5.5Kw motor. When processing wood chips at an output between 30 and 60 kg per hour is achieved.

Technical Data

Technical Specifications

Make
Compacto
Model
FOX 50
Motor Pump
27 Litre
Throughput
30-60 kg/hr
Auto Shutdown
Yes
Overall Dimensions (mm)
1680 x 1100 x 1500
Hopper Size
1000mm
Emission (db)
73
Briquette Diameter
60mm
Machine Weight
700kg
Phase
415v / 3ph

Compacto Fox 50 Briquetter


  • 50mm Sleeve
  • Silo with level indicator
  • Electrical control Panel
  • Automatic / Manual operation

Level Indicator


Using the level indicator, the machine detects whether material is in the silo of the press and starts and stops automatically. This option, for example, for a substructure under an exhaust system.

Fox Level Indicator

The briquettes are formed and produced in the easy and inexpensive to exchange wear bushings.

NEED ASSISTANCE OR EXPERT ADVICE?

We pride ourselves in offering a friendly and professional service

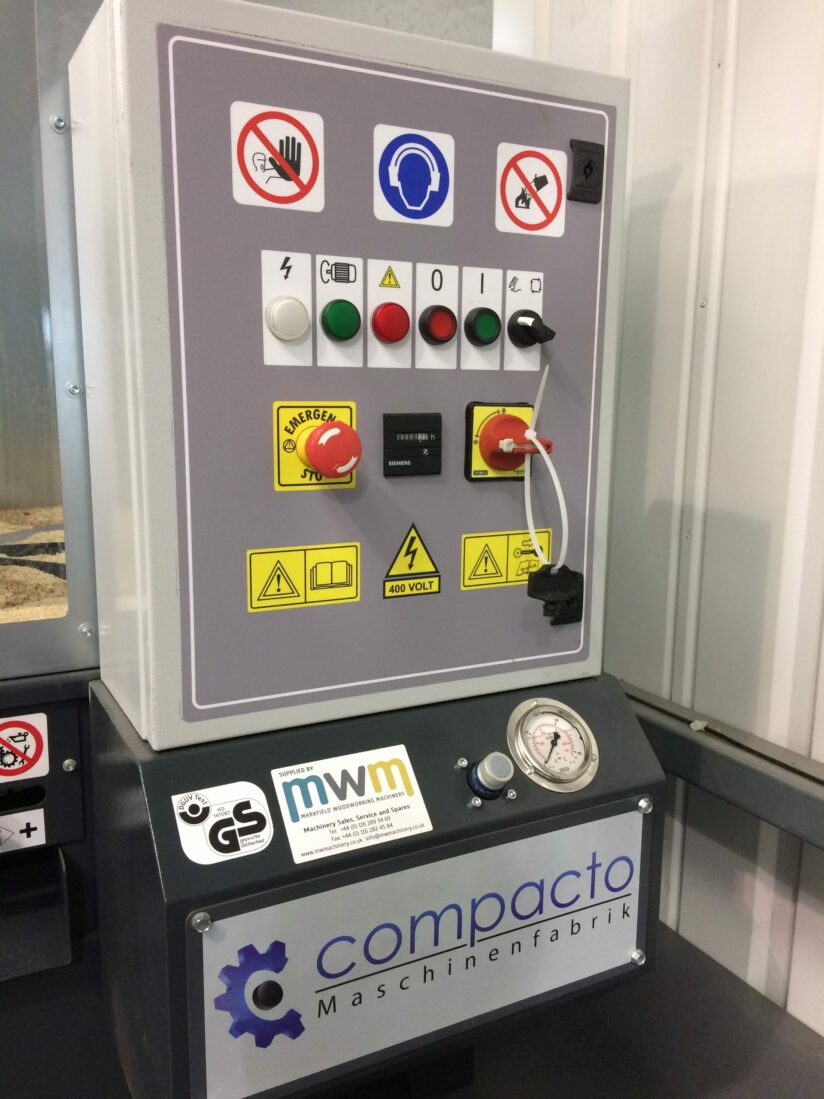

Fox 50 Control Panel

Electrical Control Board


When it comes to control technology, Compacto’s philosophy is to incorporate only as much technology into the machine as the customer really needs. For this reason, our FOX 50 briquetting press is equipped as standard with a contractor control system. On customers request it can also be delivered with a PLC control. As a rule, compacto do not use a separate motor for the discharge, We solve the rotation of the discharge energy-efficiently via the hydraulics. Whenever the press plunger presses back, without any effort, it drives the discharge.

Options Available

pre-compression

Pre-Compression

By increasing the size of the Pre-compression slide, it is possible to produce a longer briquette for light materials.

level indicator

Level indicator

Using the level indicator, the machine detects whether material is in the silo of the press and starts and stops automatically.

transport connection

Transport Connection

The briquettes can be transported from the height of the crimping pliers by the power of the subsequent briquette without further energy input.

transport pipe

Transport Pipe

The transport pipe is a component which is screwed on to the crimping pliers.

oil cooler

Oil Cooler

Information about Oil cooler here.

oil heater

Oil Heater

Information about the Oil Heater here.

special silo

Special Silo

Information about Special Silo here.

packaging carousel

Packaging Carousel

Information about Packaging Carousel here.

Technical Diagram

Fox 50 Floor Diagram
