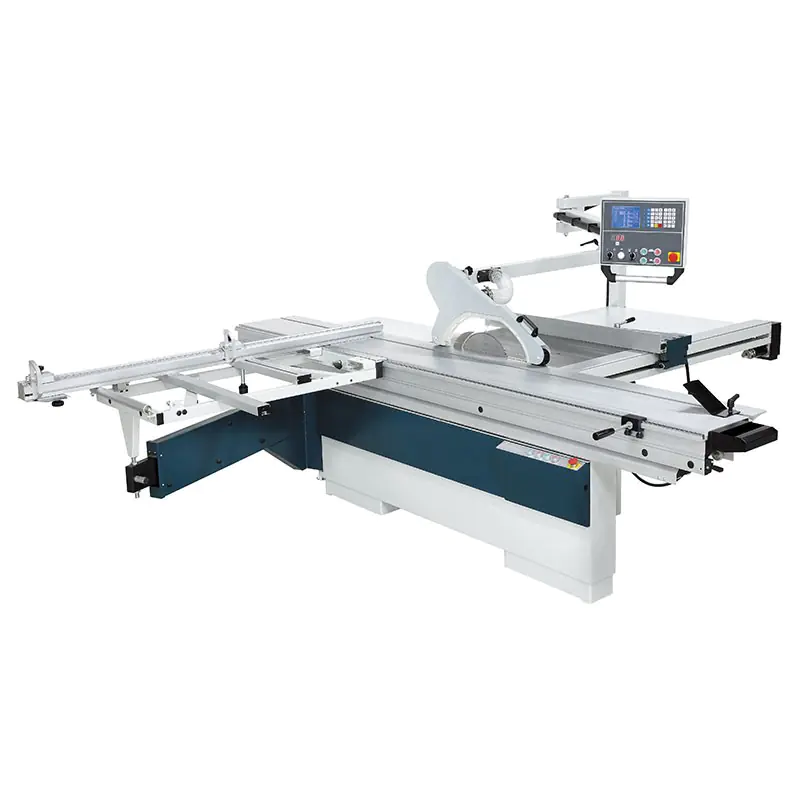

OAV A405E NC 3.2M Panel Saw

Enquire for price

Industrial 3200mm sliding panel saw with electronic control of main blade height and angle.

OAV A405E

  • Motorised rip fence
  • Digital crosscut stops
  • 120mm Scribe blade
  • Motorised rise, fall, tilt
  • 5.5kW main motor
  • 3200mm sliding table
  • 1300mm parallel cut capacity
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Sliding table dimensions
3200 x 395mm
Extension table (rear)
952 x 896mm
table size
1,500 x 1726mm
Max cutting height at 90°
90mm
Max cutting height at 45°
64mm
Scoring saw blade
120mm
Scoring blade bore
20mm
Scoring blade speed
8,000 RPM
cutting width adjustment
motorised
Height adjustment (main blade)
motorised
Weight
680KG
Cast Iron table dimensions
548 x 896mm
Extension table (front)
830 x 320mm
Main saw blade Max. Diameter
305mm
Main saw bore
30mm
Main motor power
5.5kW
Main blade speed
3000 / 4000 / 5000 RPM
Scoring blade motor
0.75kW
cutting width
1300mm
Tilt adjustment (main blade)
motorised 90° – 45°
Extraction outlets (optional)
120mm / 65mm (120mm / 102mm)

OAV A405E 3.2M Panel Saw


The machines of the Industrial Series are excellent for large productions, and are designed to operate continuously for 2-3 working shifts within a 24-hour period, which translates to more effective production. The Industrial Series machines are loaded with features that ensure that large amounts of panels can be processed, both faster and easier than ever.

The A405E/NC Sliding Table Saw has multiple functions for high accuracy cutting of sheet materials for the production of kitchen cabinetry, furniture, millwork operations, and more. The NC rip fence provides the operator with the added convenience of setting the rip width automatically through an eye level control. This saves time while providing a high level of accuracy and repeatability. The 3200mm and 3800mm sliding table is made from a precision aluminium extrusion and runs on precision linear guide rails.

Cyber Overhead Guard (Optional)


The CE overarm blade guard is supplied which can be easily pivoted out of the way to access the saw blades. Dust port 45 for a clean work environment. The guard can be quickly raised lowered into position on a THK linear guide.

Carriage


The sliding table is made out of a heavily ribbed aluminium extrusion which is anodized to eliminate the making of your panel and ensure a long surface life

Crosscut fence


Heavy duty crosscut fence can be positioned at the front or back of the outrigger for operator convenience.

Hold down Clamp


Quick and secure locking wood clamp. User-friendly design with 0° – 45° adjustment.

Scoring Adjustment


User-friendly design with reliable and accuracy

Need assistance or Expert Advice?

We pride ourselves in offering a friendly and professional service

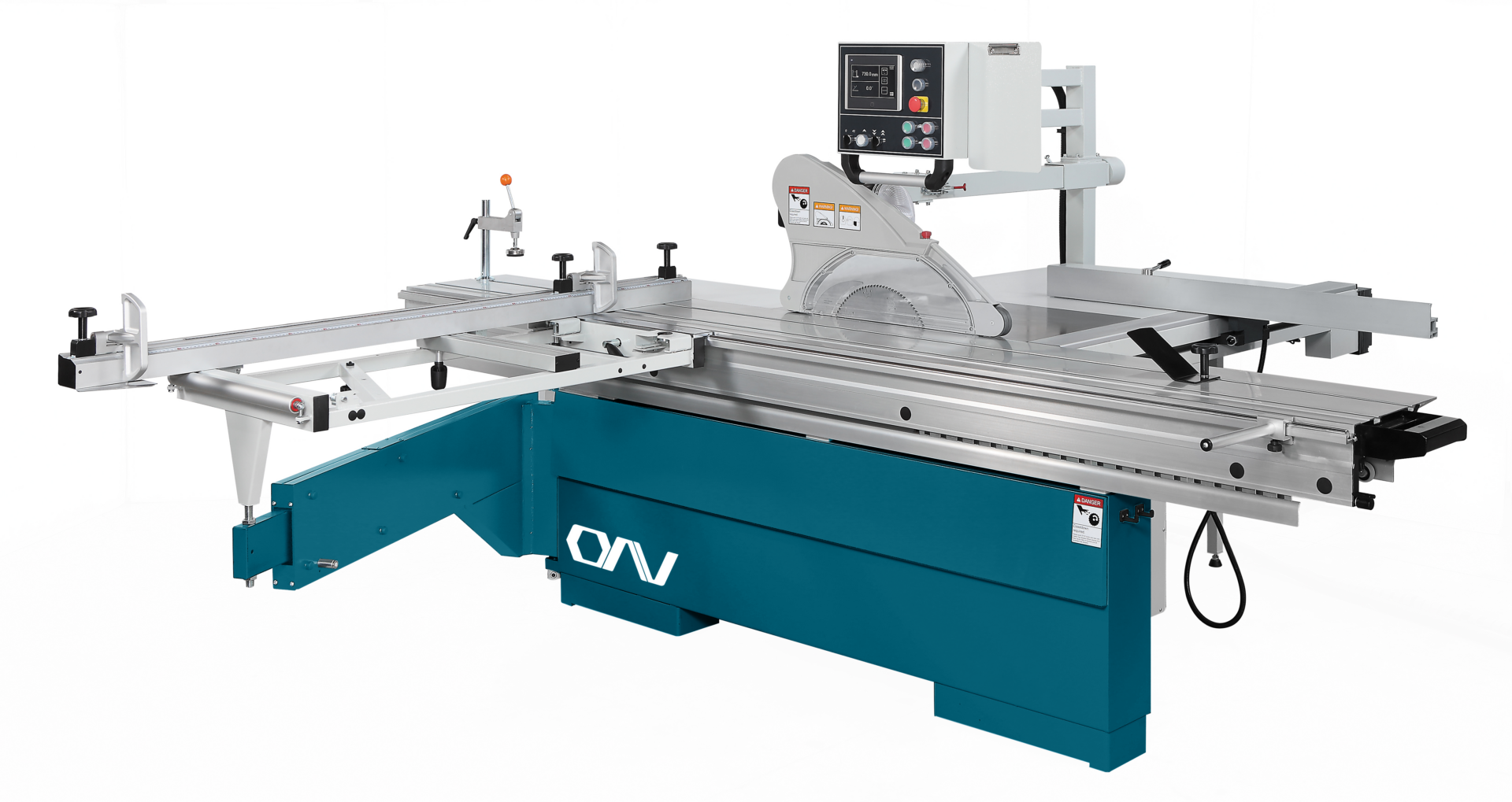

OAV A405E/NC Sliding panel saw


Industrial panel saw with a 3200mm sliding table, Manufactured to work continuously with 8×4 and 10×5 panels.

This industrial OAV Panel saw is loaded with features that can ensure large amounts of panels to be processed efficiently and safely.

The electronically controlled rip fence provides the perfect practicality to the operator, allowing the operator to set the rip width automatically through an eye level control. This saves a lot of time whilst providing a higher level or accuracy and repeatability.
