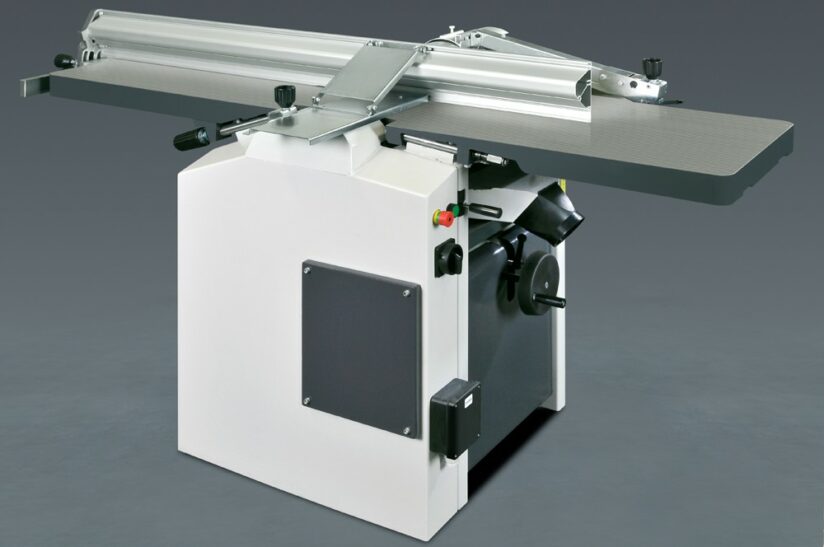

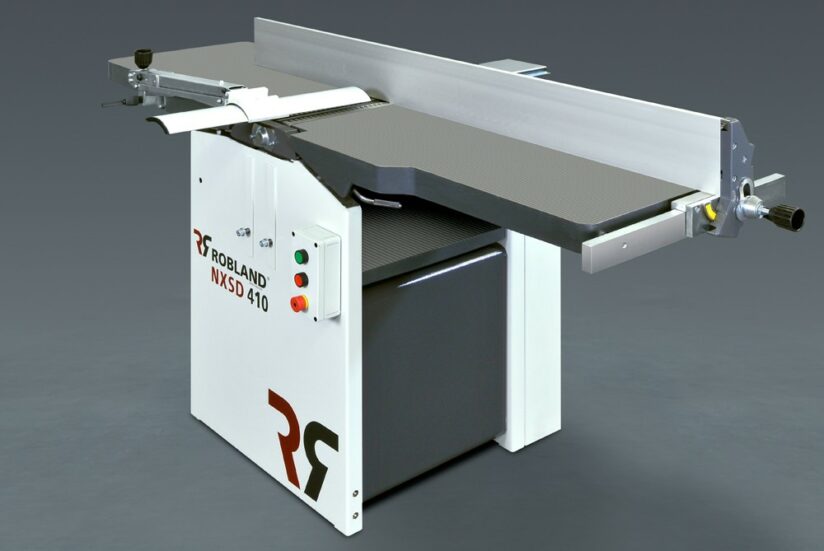

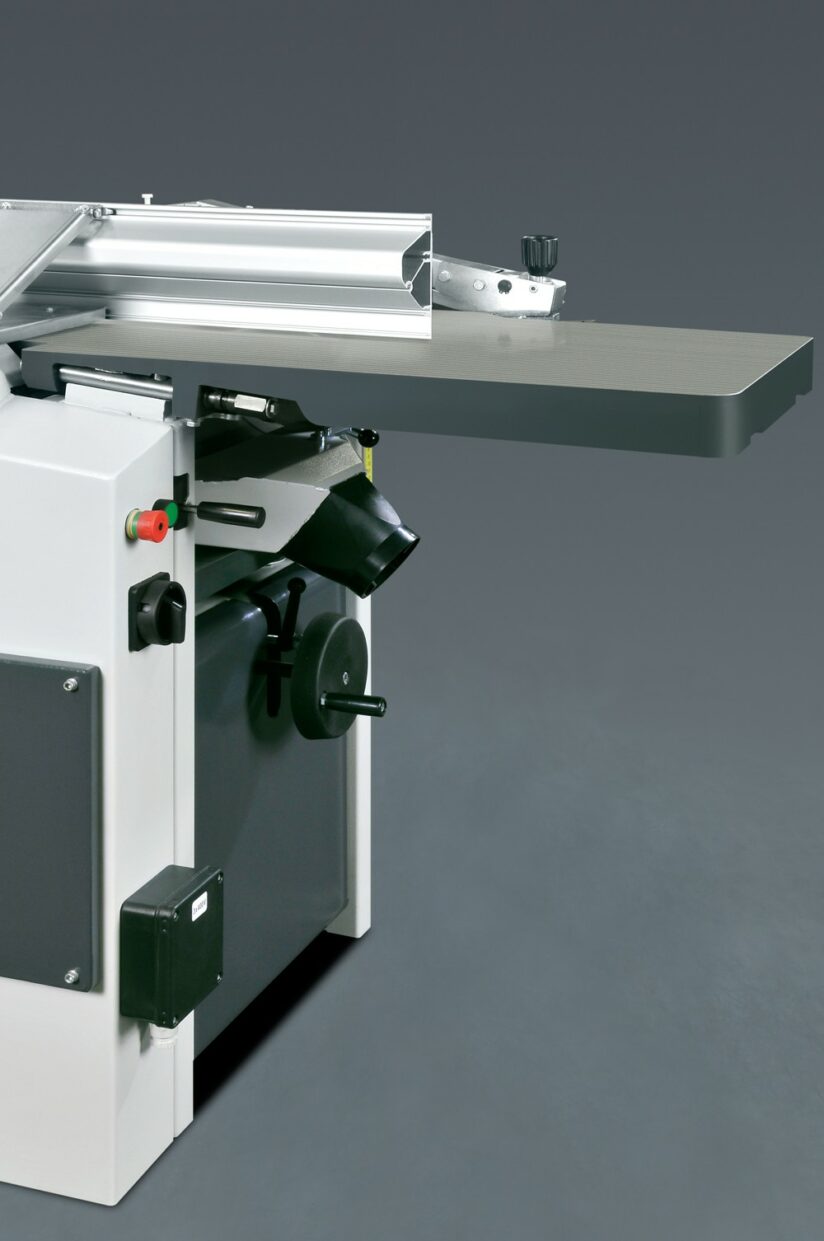

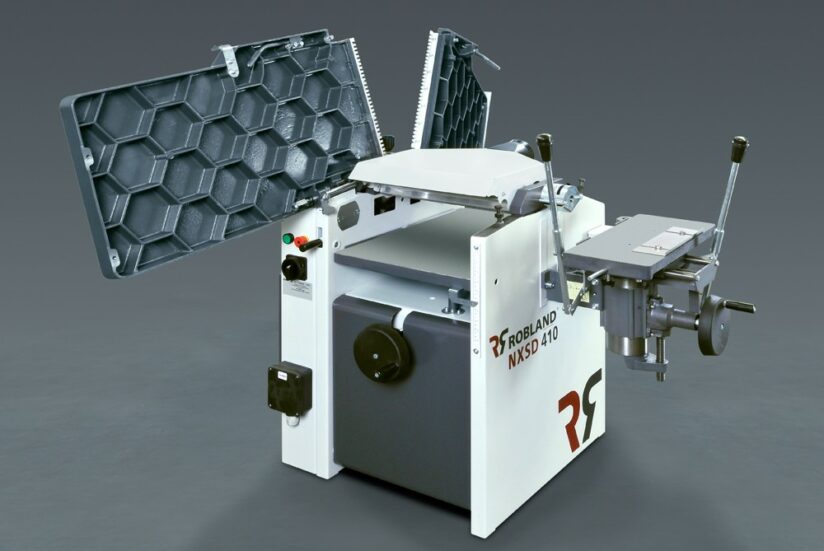

Robland NXSD410 Planer Thicknesser 3ph with SPIRAL BLOCK

From £3,995.00 + VAT

(£4,794.00 inc VAT)

The Robland NXSD 410 has a hard anodized jointer fence, which makes edgeplaning easy. Thanks to its special swivel-support bracket, the fence sets angle without a gap between the fence and the table surface.

This particular machine has the optional spiral cutter block installed

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Motor power
6.6 hp
cutter block speed
5500 rpm
length of outfeed table
880 mm
Max. Thicknessing height
230 mm
Dust outlet size
100 mm
Fence dimensions LxH
1500 x 150 mm
cutter block diameter
70 mm
length of infeed table
880 mm
tilting fence
90° – 45°
Max. Planing width
410 mm
voltage / phase
1ph or 3ph

NEED ASSISTANCE OR EXPERT ADVICE?

We pride ourselves in offering a friendly and professional service

Optional support wheel kit that lifts up the machine for easy manoeuvring. Robland Planer thicknesser NXSD 410
Wheelsystem

rnrnWith the wheelsystem, you can easily move your machine.

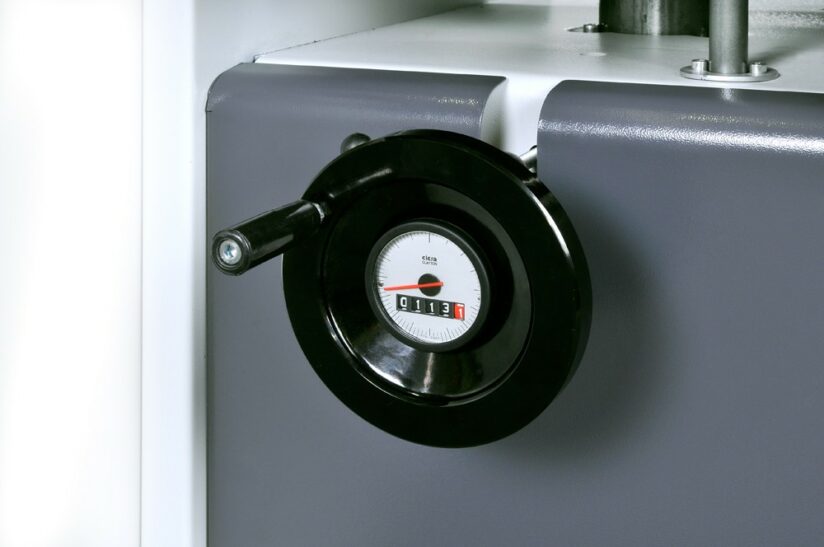

Handwheel for thicknessing bed with optional analogue readout. Robland Planer thicknesser NXSD 410. Robland Planer Thicknesser NXSD
Handwheel

rnrnHandwheel with integrated analogue read out thickness table.

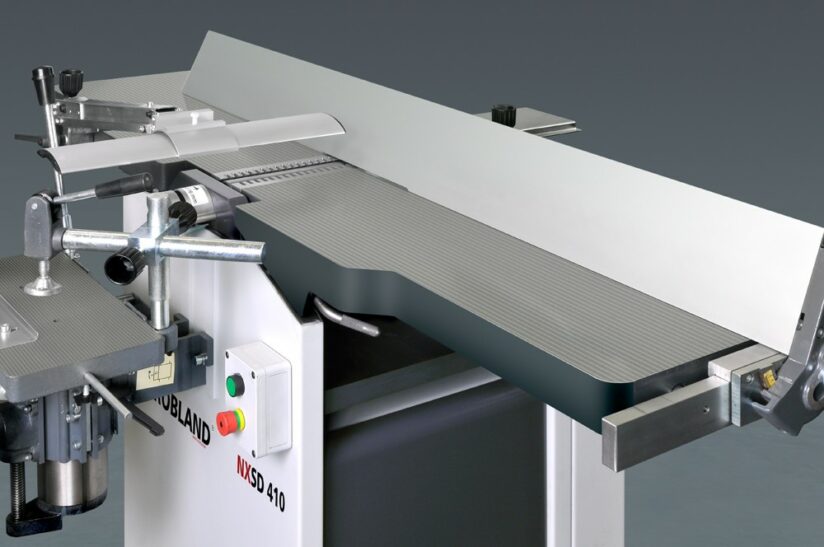

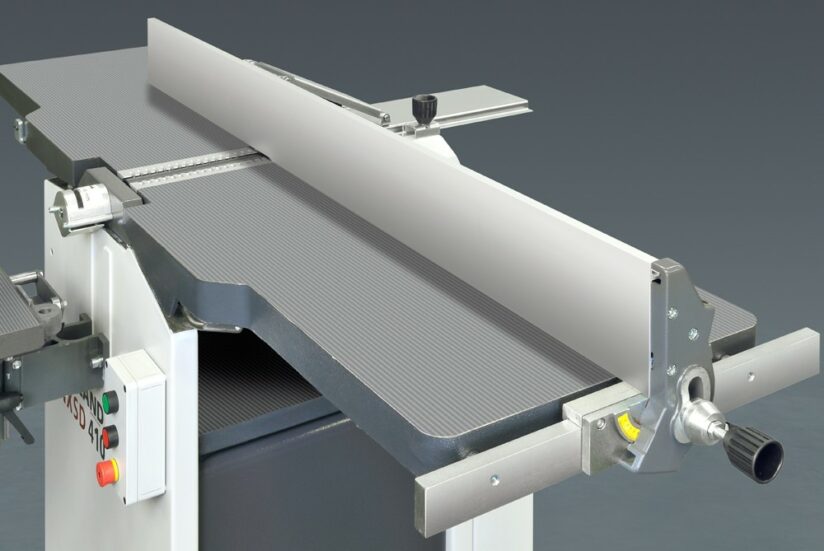

The heavy duty jointer fence. In it's position on top of both infeed & outfeed tables. Robland Planer thicknesser NXSD 410
Jointer Fence

rnrnThe large, hard anodized, jointer fence makes edge planing easy. Thanks to its special swivel-support bracket, the fence sets at any angle without a gap between the fence and the table surface.

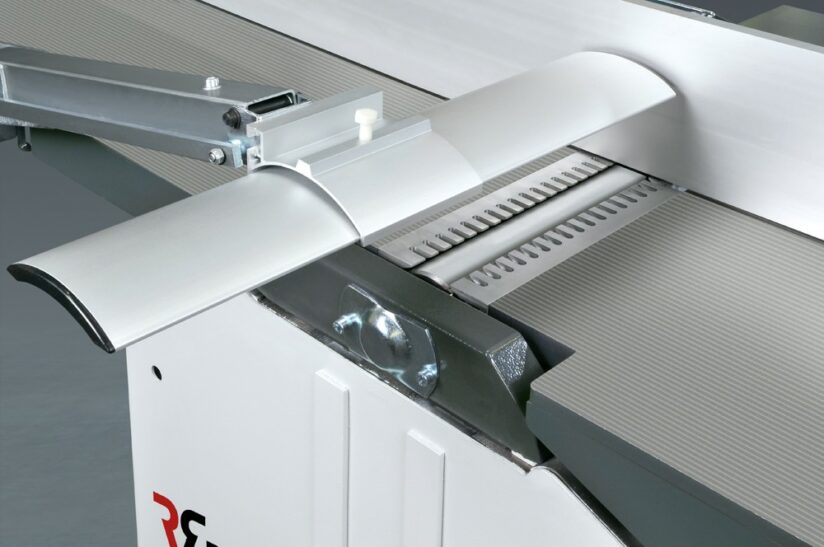

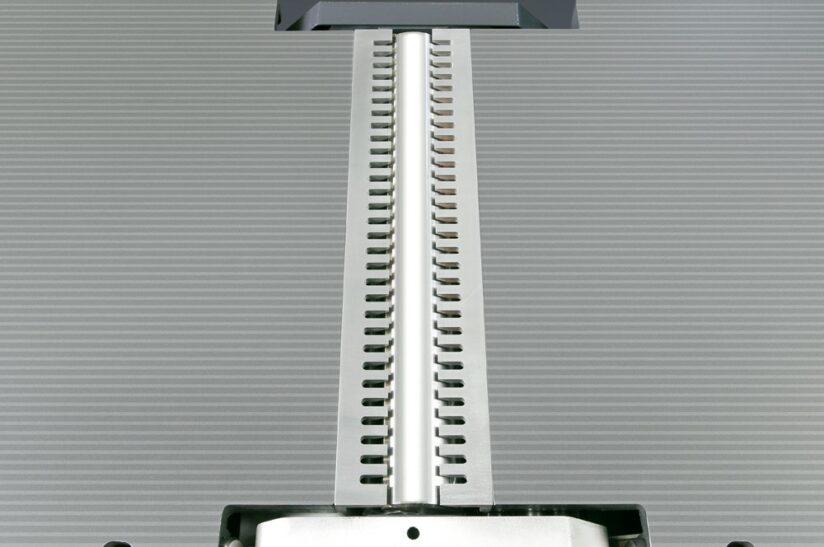

close up image of the cast iron tables & standard block. Robland Planer thicknesser NXSD 410. Robland Planer Thicknesser NXSD
Cast Iron Tables

rnrnThe cast iron tables have a total length of 1800 mm.

standard block components consisting of 2 knives (packaging) and the block. Robland Planer thicknesser NXSD 410
Tersa

rnrn“TERSA” cutter-block with 3 reversible knives (HSS), provides quick precise setting of the knives.

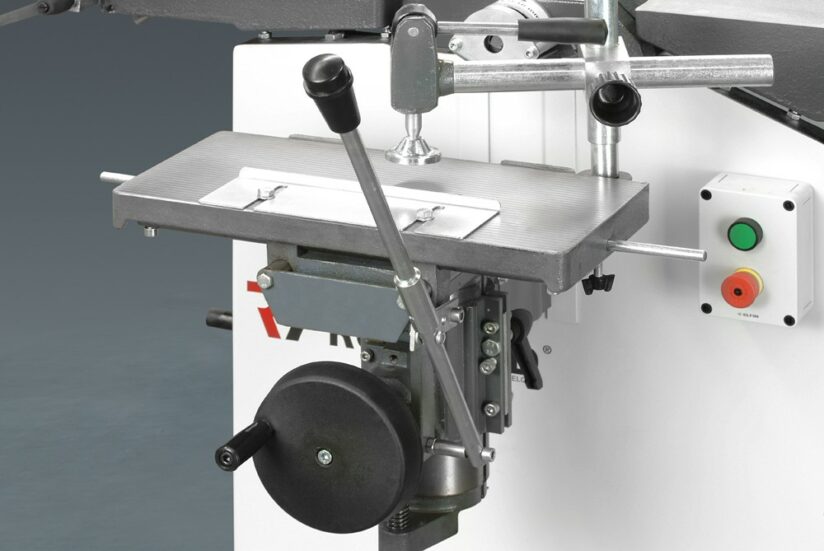

Optional morticer component that sits on the back of the NXSD. Robland Planer thicknesser NXSD 410
Morticer

rnrnThe smooth and easy to operate mortiser unit can be removed from the machine within minutes. It also has 2 detachable handles, easy when machining large workpieces. The chuck capacity is from 0 to 16 mm.

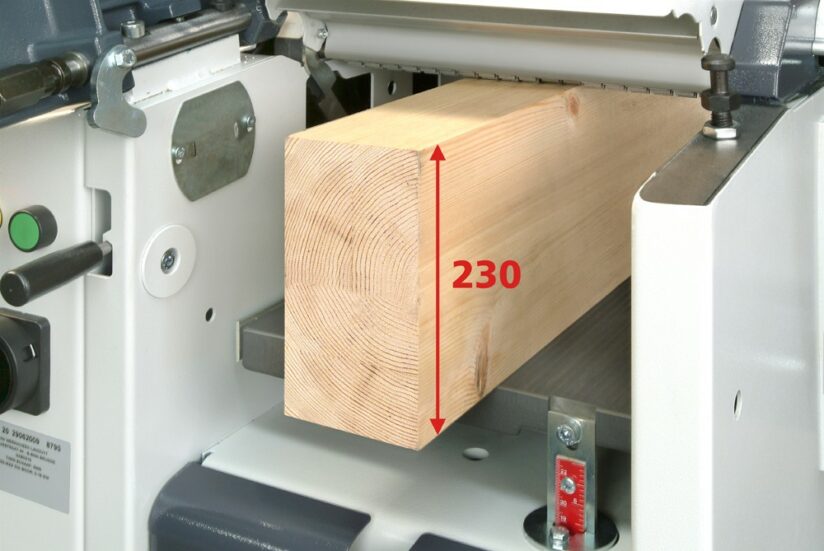

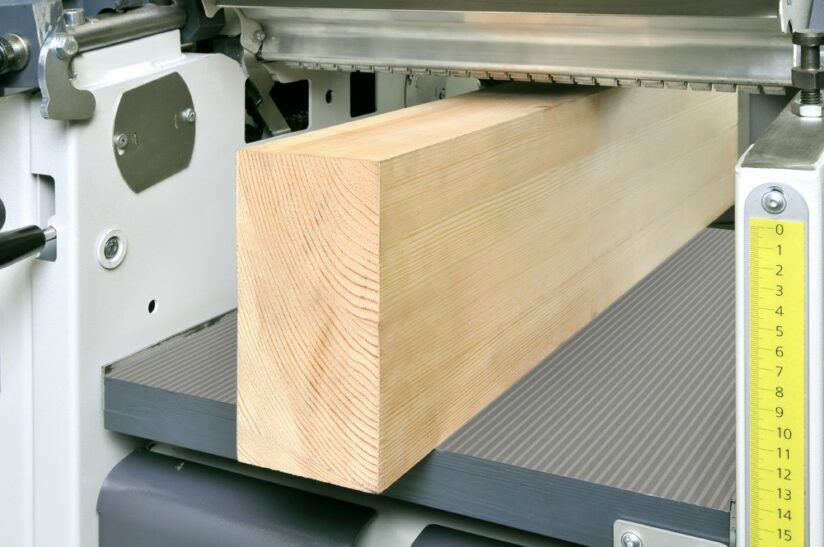

maximum size block of wood 230mm on top of thicknessing bed. Robland Planer thicknesser NXSD 410. Robland Planer Thicknesser NXSD
Thicknessing Capacity

rnrnUp to 230 mm thicknessing capacity with precision setting and locking. The very sturdy central column and positive feed system ensure excellent results.
