Technical Specifications
The precision planed table is mounted on 4 big columns to give stability even under very heavy loads. The 2 speed rise and fall of the table, driven by its own motor is standard on all machines, the passage of the wood is 300 mm! For wet or damp timber adjustable rollers (1 or 2) can be provided. Please note that this option must be ordered with the initial order for the machine. Planed table: The cast iron table is precision planed for smooth sliding of the workpiece. Highest quality ‘cold process machining’ is used, which ensures the table surface stays absolutely flat throughout it’s life.
4 Sturdy Columns
4 Sturdy columns support the thicknesser.
Stepless Feeding
Stepless feeding of the wood: variable speed from 5 to 22m/min
2 table Rollers
2 table rollers for easier sliding of damp timber
Touch Screen
Touch Screen panel for numerical control of thickness height and feeding speed
Planer Table
The cast iron table is precision planed for smooth sliding of the workpiece. Highest quality ‘cold process machining’ is used, which ensures the table surface stays absolutely flat.
Rise & Fall
The 2 speed rise and fall of the table, driven by its own motor is standard on all machines, the passage of the wood is 300 mm!
For wet or damp timber adjustable rollers (1 or 2) can be provided. Please note that this option must be ordered with the initial order for the machine.

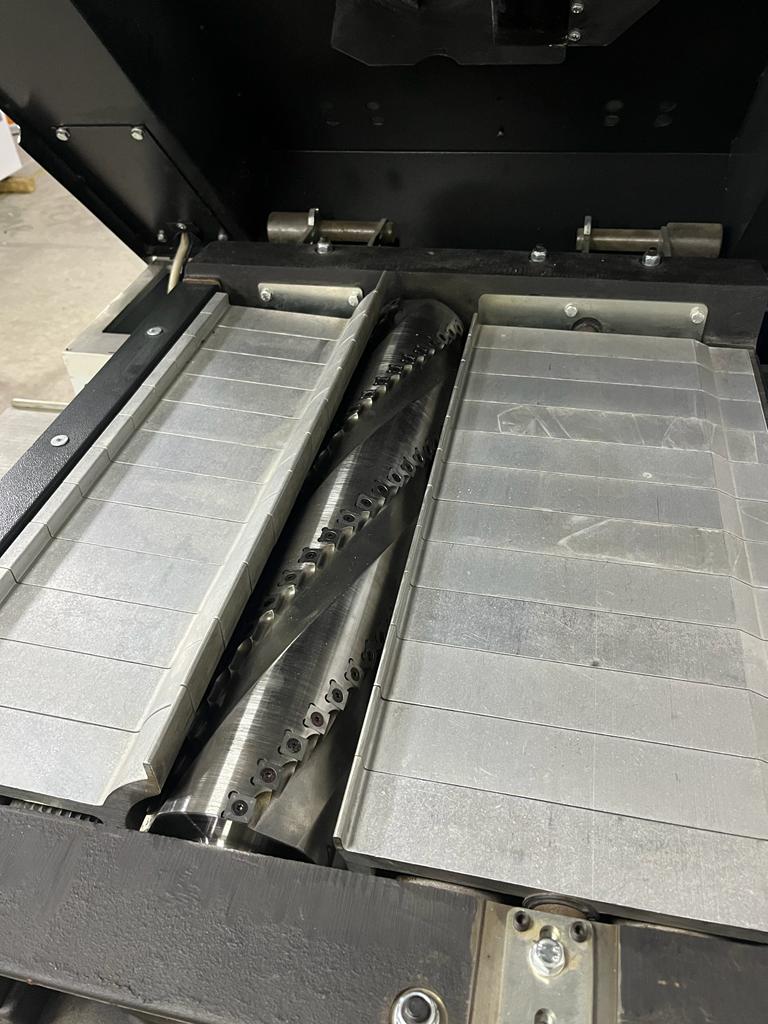

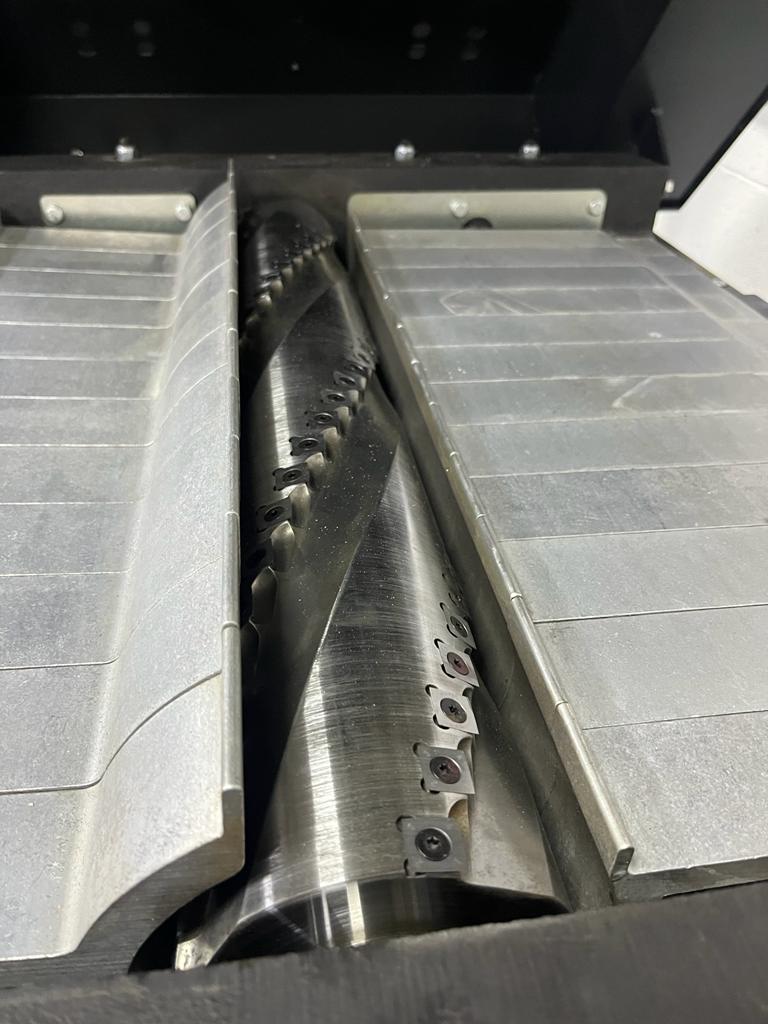

Spiral Infeed Roller
Spiral infeed roller guarantees an efficient feed motion of the wood and a good quality
Digital Readout
Digital read-out thicknesser.
Sectional Infeed Roller
With the sectional infeed roller, it is possible to work wood with different thicknesses (thickness difference up to 2 mm) and the feed motion of long pieces with a difference of 2 mm between beginning and end.
Height adjustment Scissor table
Height-adjustment scissor table.
