Compacto Shark 123 Wood Shredder

Compacto

From £44,445.00 + VAT

(£53,334.00 inc VAT)

The Compacto Shark range of machines are a high quality, German made industrial shredding series ranging from 53 to 153 cm long cutting blocks.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Made in
Germany
Model
Shark 123
Volume of hopper
2,0
Machine weight
3500kg
Power of the press
22kw
Automatic shutdown
yes
Make
Compacto
Hopper Size
1230 x 1235
Overall dimensions (MM)
2460 x 1980 x 1750
Emissions DB
77
Phase
3ph

The Compacto Shark range of machines are a high quality, German made industrial shredding series ranging from 53 to 153 cm long cutting blocks.

The following high quality options are standard on our Shark 123 Shredder.

Shark 123

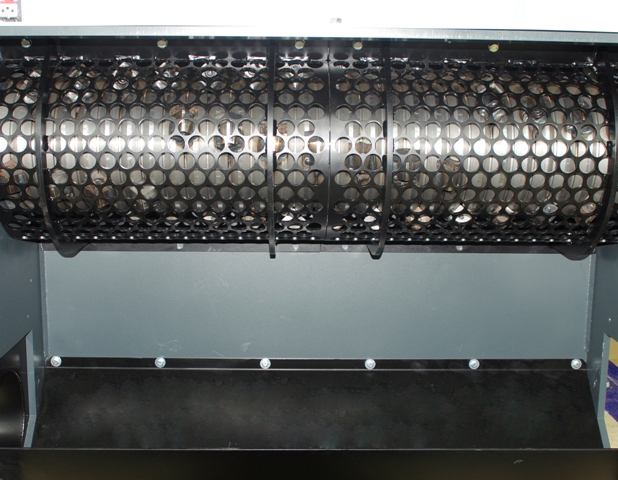

Shark 123 screen
Shark 123 cylinder
Shark 123 hydraulic
High performance gearbox
Robust drive
Fast Hydraulic
Turbo Coupling
Turbo coupling
Clock control
Robust machine base
Second row of knives
Profile rotor
Screen
Robust bearings
Limit switch
Aspiration connection
Siemens PLC
Vibration damper

The SHARK 123 shredding machine is traditionally used for shredding wood residues. In addition to the production residues of the wood industry all kinds of waste material can be shredded with this machine included but not limited to cardboard, paper, plastics, cables and much more. The SHARK 123 is built with a working width of 120 cm and designed in the standard configuration with a 37 kW electric motor. The rotor diameter is 368 mm.

The following options can be purchased for the Shark 123 shredding machine for an additional charge:

Hopper cover

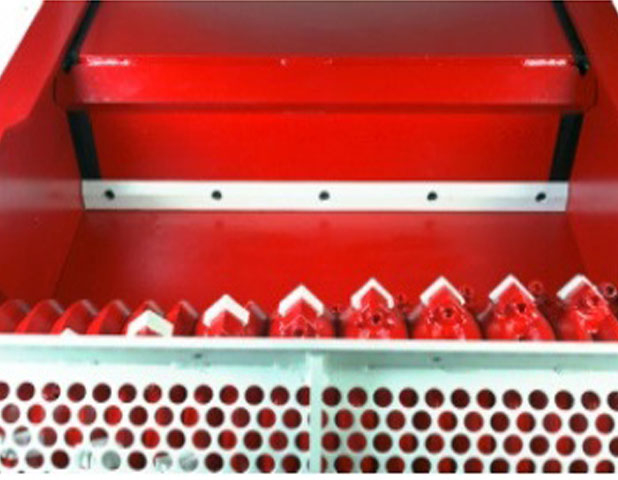

Scraper bar
Flared hopper
Transport screw

The following options for metal separation are also available for an additional charge:

Pipe magnet
Magnet bar in aspiration channel
Magnet bar

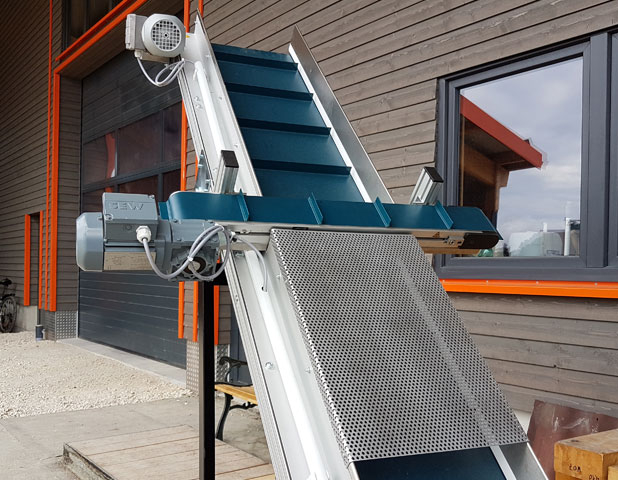

Shark Shredder Option | Overbelt Magnet
Overbelt magnet

The material to be shredded is filled into the hopper of the SHARK shredding machine. To prevent bridging in the hopper, the material residues should optimally not be larger than the working width of the machine. A hydraulic slide presses the material against a slowly rotating cutting rotor equipped with cutting tips. The current consumption of the rotor is monitored by a Siemens PLC control. The slide is clock-controlled and always works with the maximum possible pressure, depending on the current consumption of the rotor. Thus, the machine always produces the maximum throughput, no matter what material is supplied. The shredding of the material takes place between the knives and the counter knife. Behind the cutting rotor a sieve is mounted. As soon as the shredded material fits through the perforation of the sieve, it falls into the chip channel and can be removed by suction, conveyor belt or screw conveyor. The machine can be operated in manual or automatic mode. In automatic mode, the machine switches off automatically when there is no material left in the hopper.

Specification:

Motor: 22 kW; 400 V – 50 Hz – 3 ph
Knifes: 40 Pieces, rotable several times
Rotordiameter: 360 mm
Electric Panal: PLC Siemens S7-1200
Cutting Unit Opening: 830 x 1000 mm
Hoppervolume appr. 1.0 qbm
Performance: 1 – 5 Hopperfillings / h
Hydraulic Piston Screen at the choice (20 – 40mm)
Connection piece Ø 160 mm
Weight appr. 1.600 kg
Dimensions (lxwxh) appr.: 2290 x 1420 x 1750 mm

Technical Data:

– V-Rotor for maximum output
– 2. row of knifes on the Rotor
– automatic Star / Delta starting
– fast Hydraulic
– auto off when machine is empty
– Driving speed 70-90 U/min for high performance
– Cycle Mode to avoid no-load operation
– performance enhanced with step by step control of the Hydraulic piston
– Pertinax guides for Hydraulic piston
– vibration-damping machine feet
– CE Confirmation
