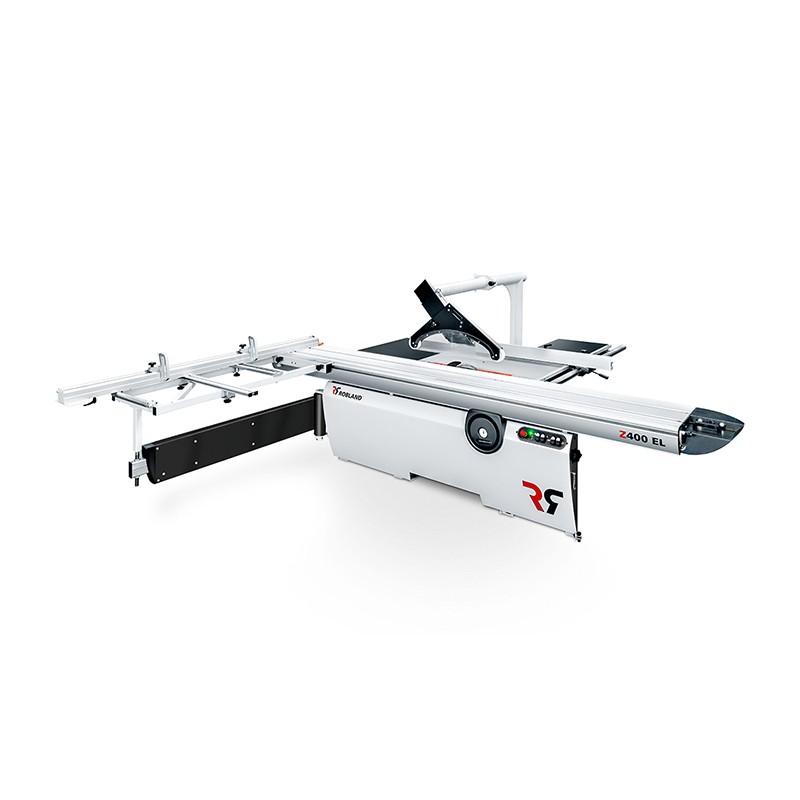

Robland Z400 EL

£9,500.00 + VAT

(£11,400.00 inc VAT)

The Z-Series offers you a broad selection of saw diameters (300, 400 or 500 mm), sliding tables, outrigger tables, options and accessories, to be combined with one of four different executions : manual (M), electrical height and tilt of the blade (EL), controlled parallel fence (X1) or a 3 axes controlled machine (X3). The saw aggregate is made out of one piece in cast iron for natural absorption of vibrations and therefor offers superior stability and precision.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Get a quote
Payment Options

Technical Specifications

Sliding Table Length
3200 mm
Motor Power
7 kW / 9 HP
Blade Diameter
400 mm
Saw Blade tilt range
90° – 45°
Max blade projection at 45°
90 mm
Speed scoring blade
8200 RPM
Cutting length
3200 mm
Sliding Table width
395 mm
Parallel / RIP fence cut width
1350 mm
Voltage / Phase
415V / 3ph
Saw Blade rpm
3000 / 4000 / 5000
max. blade projection at 90°
125 mm
Motor Scoring Unit
1.3 kW
Scoring blade diameter
120 x 20 mm
Dust extraction outlet
1 x 120 mm + 1 x 100 mm
Outrigger Table



Large outrigger table with telescopic cross cut fence, index system and shown with Optional digital read out on flippers.

Saw Aggregate

Saw aggregate rotating on shells maintaining the origin while tilting.

Sliding Table



The hard anodized sliding table is precision machined. The heart of the sliding table is 8 hardened steel rods inserted into the table extrusion, thus making the whole system extremely wear free.

Saw Guard



Overhead Saw guard with integrated tube for improved extraction.

Cast Iron Saw Aggregate



Saw aggregate is cast for more precision and stability.

Without Scoring Blade



400mm without scoring blade.

With Scoring Blade



300mm with scoring blade.

Control Panel



EL Control panel Z400 with analogue indication of the tilt of the blade.

Digital Read-out Optional extra



Digital read-out on parallel fence and cross cut available options

NEED ASSISTANCE OR EXPERT ADVICE?

We pride ourselves in offering a friendly and professional service

0116 2893469 Send us a message

Robland Z400 EL Floor Plan
