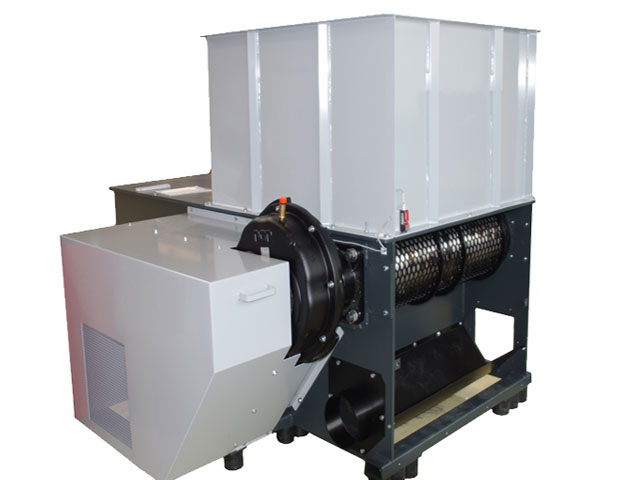

Compacto Shark 103 Wood Shredder

The SHARK 103 shredding machine is traditionally used for shredding wood residues. In addition to the production residues of the wood industry all kinds of waste material can be shredded with this machine included but not limited to cardboard, paper, plastics, cables and much more. The SHARK 103 is built with a working width of 103 cm and designed in the standard configuration with a 30 kW electric motor. The standard rotor diameter is 368 mm. Our shredder SHARK 103 is the first machine in the SHARK series that can be used to shred europallets in one piece without further pre-shredding.

The following options can be purchased for the Shark 103 shredding machine for an additional charge:

The following options for metal separation are also available for an additional charge:

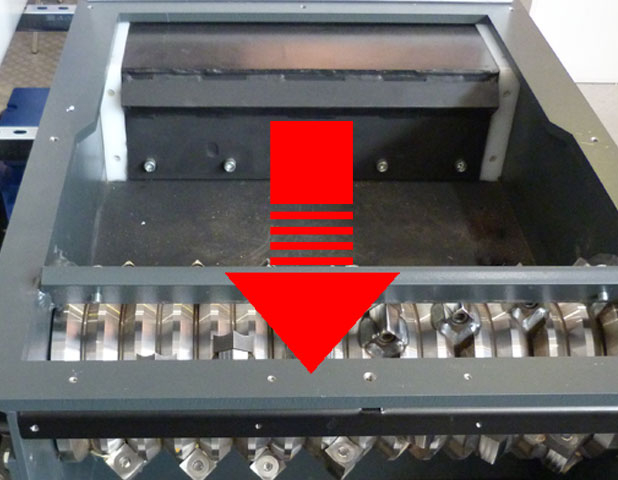

The material to be shredded is filled into the hopper of the SHARK shredding machine. To prevent ‘bridging’ in the hopper, the material residues should optimally not be larger than the working width of the machine. A hydraulic slide presses the material against a slowly rotating cutting rotor equipped with cutting tips. The current consumption of the rotor is monitored by a Siemens PLC control. The slide is clock-controlled and always works with the maximum possible pressure, depending on the current consumption of the rotor. Thus, the machine always produces the maximum throughput, no matter what material is supplied. The shredding of the material takes place between the knives and the counter knife. Behind the cutting rotor a sieve is mounted. As soon as the shredded material fits through the perforation of the sieve, it falls into the chip channel and can be removed by suction, conveyor belt or screw conveyor. The machine can be operated in manual or automatic mode. In automatic mode, the machine switches off automatically when there is no material left in the hopper.

Specification:

Motor: 30 kW; 400 V – 50 Hz – 3 ph
Knifes: 40 Pieces, rotable several times
Rotordiameter: 360 mm

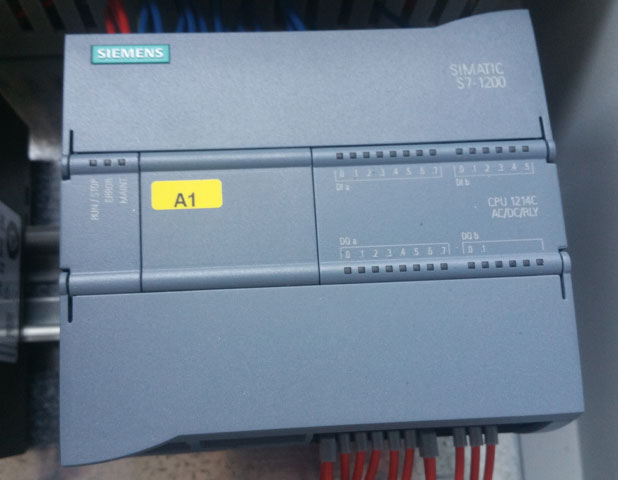

Electric Panal: PLC Siemens S7-1200
Cutting Unit Opening: 830 x 1000 mm
Hoppervolume appr. 1.5 m3
Performance: 1 – 5 Hopperfillings / h
Hydraulic Piston Screen at the choice (20 – 40mm)
Connection piece Ø 160 mm
Weight appr. 2000 kg
Dimensions (lxwxh) appr.: 24600 x 1980 x 3000 mm

Technical Data:

– V-Rotor for maximum output
– 2. row of knifes on the Rotor
– automatic Star / Delta starting
– fast Hydraulic
– auto off when machine is empty
– Cycle Mode to avoid no-load operation
– performance enhanced with step by step control of the Hydraulic piston
– Pertinax guides for Hydraulic piston
– vibration-damping machine feet
– CE Confirmation
