Compacto Shark 53 + Fox 50 Wood Shredder Briquette Press System

Compacto

Enquire for price

A complete solution for wood waste, combining the Shark 53 shredder and the Fox 50 briquette press with a auto feed conveyor system eradicates the need for complex material handling and extra man power to move waste.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Motor
15 kW; 400 V – 50 Hz – 3 ph
Knifes
24 Pieces, rotable several times
Cutting Unit Opening
510 x 810 mm
Performance
1 – 5 Hopperfillings / h
Screen at the choice
(10 – 40mm)
Weight
appr. 1.100 kg
Rotordiameter
260 mm
Electric Panel
PLC Siemens S7-1200
Hoppervolume
appr. 0,4 qbm
Hydraulic
Piston
Connection piece
Ø 160 mm

Compacto Shark 53 + Fox 50 Wood Shredder Briquette Press System


A complete solution for wood waste, combining the Shark 53 shredder and the Fox 50 briquette press with an auto-feed conveyor system eradicates the need for complex material handling and extra manpower to move waste.

Simply load offcuts/pallets in one end and empty briquettes out of the other end.

Intelligently connected – Neither machines will run empty or overfill.

Solids or dust – Large offcuts, long lengths, and blocks of wood can be put straight into the shredder. Dust or shavings can skip this process and can be added straight into the briquette press hopper.

Briquettes are perfect for burning or selling. They also take up less room in the skip!

We also supply wood waste heaters so you can get the most out of your waste.

Aggressive Shredding

The heavy shredders of the SHARK series are able to shred materials like wood, miscanthus, cardboard, paper, plastic, cable and many more. It is our mission to offer the best possible quality and longevity of products.

For this very reason compacto machines are manufactured in Germany. The single shaft shredders will be adapted to the customer’s material, the required throughput performance, and the needed granule size.

It is possible to choose from various machine widths, rotor diameters, drive engine variants, screen perforations and hopper sizes.

Function

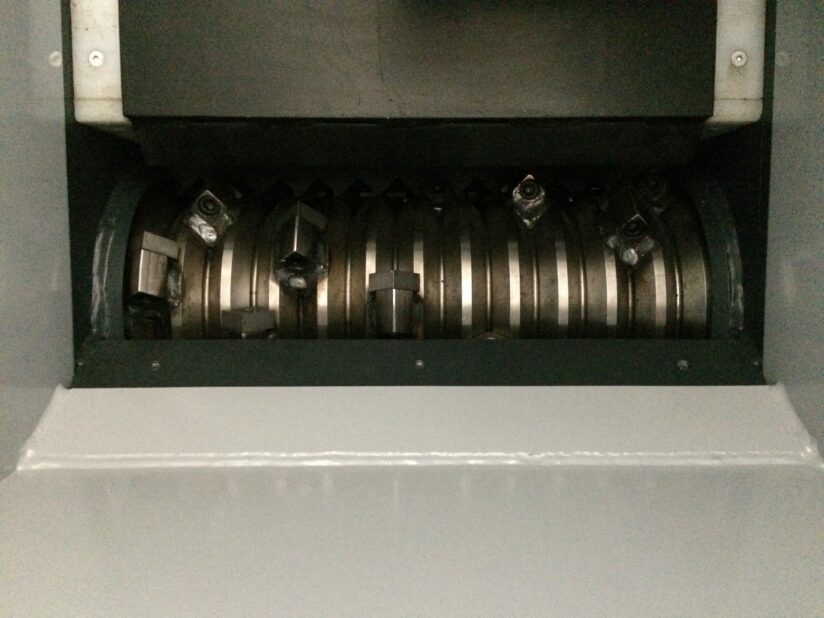

The material to be shredded will be filled into the hopper of the SHARK shredder. At the bottom of the hopper runs a hydraulic slider pushing the material against the rotating rotor.

The electricity-consumption of the rotor is monitored with a Siemens PLC control system. The slider is clock-controlled and works in connection with the needed electricity-consumption of the rotor, always with the maximum possible pressure.

As a result, the machine always produces the maximum throughput, no matter what material is used.

Benefits

  • Profile Rotor
  • Sturdy, edged machine base
  • Second row of knives
  • Fast hydraulics
  • Special hopper for big material
  • High performance gear box
  • Pulse controlled hydraulic piston
  • V-Belt drive
  • Turbo coupling starting with a 22 kW engine
  • Siemens PLC-Control system
  • CE certified

Serial-Production:

  • V-Rotor for maximum output
  • 2. row of knives on the Rotor
  • Automatic Star / Delta starting
  • Fast Hydraulic
  • Auto-off when machine is emp
  • Driving speed 70-90 U/min for high performance
  • Cycle Mode to avoid no-load operation
  • Performance enhanced with step by step control of the Hydraulicpiston
  • Pertinaxguides for Hydraulicpiston
  • Vibration-damping machine feet
  • CE Confirmation

The Fox briquetting presses are able to compact materials like wood shavings, sawdust, wood chips, dust and other residual materials into stable, cylindrical briquettes. Compared to loose material, the initial volume will be reduced by up to 90%.

Residual materials transformed into compact briquettes can be processed much more efficiently, used for heating efficiency and can be sold.

A further advantage based on briquetting is the reduction in the danger of fires and explosions. Because of the fact that briquettes are considered as low-flammable like solid wood there aren’t any additional costs for complex fire protection regulations.

The material moisture content shouldn’t exceed a maximum of 18% ATRO. Furthermore the granule size has to be smaller then 20 mm. By changing individual parameters, the briquetting presses can be adapted to customer materials, required throughput performances and individual conditions. It’s possible to choose from various cylinder sizes, drive engine variants and silo shapes.

The filling of the briquetting press can take place manually or automatically. During the material flow via a screw, a belt conveyor or a suction unit, the machine recognizes the fill level of the silo and are able to start and stop automatically.

There is no operating personnel necessary. The produced briquettes can be transported with a briquette transport pipe to the briquette stock without any further use of energy, just by pressure of the hydraulic. Function: Shavings are fed in the hopper, where it is dosed and supplied by an integrated agitator into the pre-compression unit.

In this unit runs a hydraulic piston, which pre-compresses the material and feeds the main cylinder. The hydraulic piston presses the material into the closed sleeve until the adjusted pressure is reached (which is usually set up to 80 bars). Then the sleeve opens and finally a stabile briquette is produced. The more homogeneous the material, the more uniform results the length of the produced briquettes.
