Compacto Shark 63 Wood Shredder

Compacto

From £16,750.00 + VAT

(£20,100.00 inc VAT)

The Compacto Shark range of machines are a high quality, German made industrial shredding series ranging from 53 to 153 cm long cutting blocks.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Made in
Germany
Model
Shark 63
Volume of hopper
0,6
Machine weight
1400
Power of press
18.5 kw
Automatic shutdown
Yes
Make
Compacto
Hopper Size (mm)
630 x 810
Overall dimensions
1750 x 1200 x 1640
Emissions DB
75
Phase
3ph

Compacto Shark 63 Shredder


The Compacto Shark range of machines are a high quality, German made industrial shredding series ranging from 53 to 153 cm long cutting blocks.

The Shark 63 offers a 830mm long cutting block and is a perfect machine for preparing material for briquetting. A ferrous metal sorting conveyor is also available if required.

The following high-quality options are standard on our Shark 63 Shredder

Shark 63
Shark 63 rotor
V-belts 63

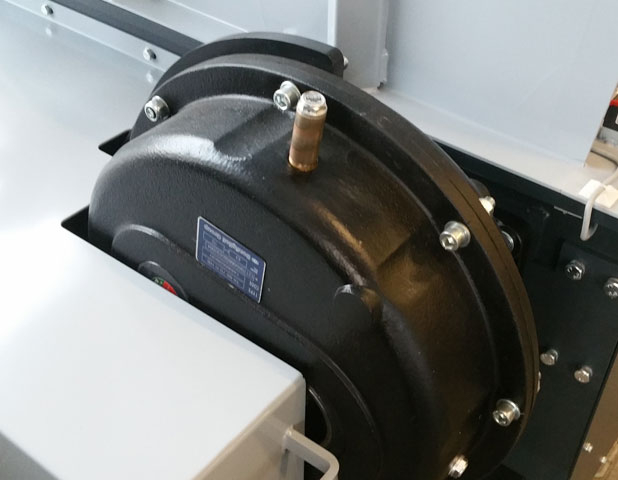

Shark 63 gearbox
High performance gearbox
Robust drive

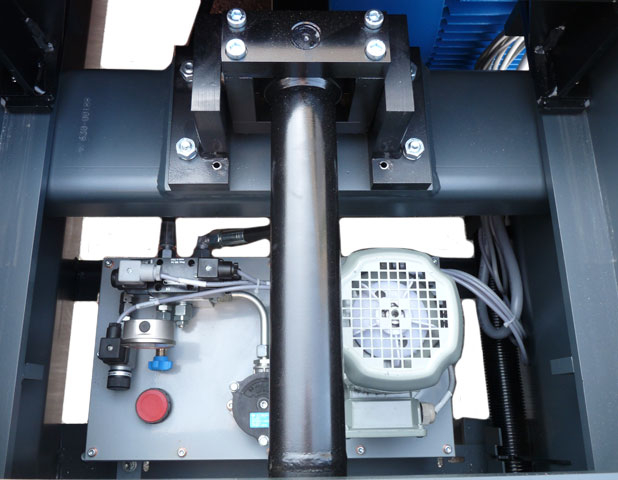

Fast hydraulic
Vibration dampers
Clock control
Robust machine base
Profile rotor
Robust Bearings
Robust bearings
Limit switch
Aspiration Controller
Aspiration connection
Second row of knives
Siemens PLC
Screen

The SHARK 63 shredding machine is traditionally used for shredding wood residues. In addition to the production residues of the wood industry all kinds of waste material can be shredded with this machine included but not limited to cardboard, paper, plastics, cables and much more.

The SHARK 63 is built with a working width of 60 cm and designed in the standard configuration with a 18.5 kW electric motor. The single-shaft shredder SHARK 63 is our best-selling shredding machine. Because of its working width of 60 cm, production residues from the kitchen and furniture industry can be optimally shredded.

For an optimal crushing process, the largest parts should not be longer than 55 cm. In this way one reaches a hopper filling with little air between the woods and thus a high efficiency of the shredding process of the machine can be achieved.

The following options can be purchased for the Shark 63 shredding machine for an additional charge:

Hopper cover
Scraper bar
Screen
Transport screw
Pipe magnet
Magnet in aspiration channel
Magnet bar
Shark Shredder Option | Overbelt Magnet
Overbelt magnet

The material to be shredded is filled into the hopper of the SHARK shredding machine. To prevent ‘bridging’ in the hopper, the material residues should optimally not be larger than the working width of the machine. A hydraulic slide presses the material against a slowly rotating cutting rotor equipped with cutting tips. The current consumption of the rotor is monitored by a Siemens PLC control.

The slide is clock-controlled and always works with the maximum possible pressure, depending on the current consumption of the rotor. Thus, the machine always produces the maximum throughput, no matter what material is supplied. The shredding of the material takes place between the knives and the counter knife. Behind the cutting rotor a sieve is mounted. As soon as the shredded material fits through the perforation of the sieve, it falls into the chip channel and can be removed by suction, conveyor belt or screw conveyor. The machine can be operated in manual or automatic mode. In automatic mode, the machine switches off automatically when there is no material left in the hopper.

Specification:

  • Motor: 22 kW; 400 V – 50 Hz – 3 ph
  • Knifes: 40 Pieces, rotable several times
  • Rotordiameter: 360 mm
  • Electric Panal: PLC Siemens S7-1200
  • Cutting Unit Opening: 830 x 1000 mm
  • Hoppervolume appr. 1.0 qbm
  • Performance: 1 – 5 Hopperfillings / h
  • Hydraulic Piston Screen at the choice (20 – 40mm)
  • Connection piece Ø 160 mm
  • Weight appr. 1.600 kg
    Dimensions (lxwxh) appr.: 2290 x 1420 x 1750 mm

Technical Data:

  • V-Rotor for maximum output
  • 2. row of knifes on the Rotor
  • automatic Star / Delta starting
  • fast Hydraulic
  • auto off when machine is empty
  • Driving speed 70-90 U/min for high performance
  • Cycle Mode to avoid no-load operation
  • performance enhanced with step by step control of the Hydraulic piston
  • Pertinax guides for Hydraulic piston
  • vibration-damping machine feet
  • CE Confirmation
