Technical Specifications

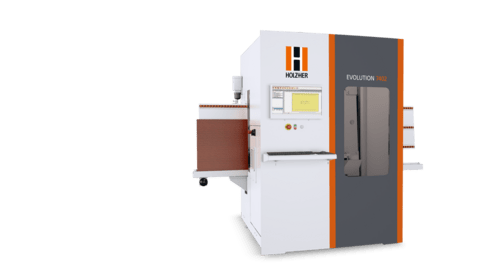

EVOLUTION 7402 4mat CNC Cutting & Drilling
- Quattro HSK package
- Complete Processing
- CAMPUS V7 Machine Control
- Drilling and cutter unit
- Unique clamping concept
7402 Doors Package
The optional EVOLUTION 7402 door package, consisting of a specially developed angle gear for lock boxes and a lock box cutter, expands the capabilities of this vertical CNC machine from Holzher.
This requires the Quattro HSK package with tool changer for 4 tools.
The door package allows complete machining of door leaves with a maximum thickness of up to 70 mm. This process machines the hinge side and lock side in two clamping operations. The 16 mm dia. shat cutter allows a cutting depth of up to 115 mm making it possible to cut lock boxes with different bolt dimensions. Handle and lock holes can also be drilled precisely using HOPS macros. After turning and reclamping the door leaf, it is possible to recess hinges for rabbeted doors as well as install concealed hinges or fittings for object doors.
3-axis Clamex package for the 7402
In addition to drilling dowel holes and countersinking Cabineo connectors, the macros included with the EVOLUTION 7402 with Quattro HSK equipment and 3-axis Clamex tool set, also allow you to cut pockets for Lamello Clamex connectors in the X and Y directions, as well as in all four edges of the workpieces. You decide which connectors you need for your application.
7402 4mat means complete processing
Complete processing on all 4 sides with lengths up to 800 mm without reclamping
Significantly shorter machining times
Generous machining dimensions: Height up to 920 mm and length up to 2,500 mm without additional supports. And still extremely space-saving and compact.
Fully automatic thickness adaptation for work pieces from 8 to 70 mm.
The technical data for the EVOLUTION series speaks for itself
Workpieces with height up to 920 mm and unlimited length can be processed with the smallest possible space requirements. Material thicknesses of 8 to 70 mm make the vertical machining centers from Holzher all-round machines for producing everything from drawers to body parts, furniture fronts and rear walls; in short machining of all your products. Short cycling times and extreme precision, because workpieces with lengths up to 1,100 mm can be machined without reclamping. The solid design of the EVOLUTION series guarantees you maximum machining quality.
Here is what the EVOLUTION 7402 offers
- Quattro HSK package
- Complete Processing
- CAMPUS V7 Machine Control
- Drilling and cutter unit
- Unique clamping concept
Perfectly equipped – standard drilling head
15 drilling spindles for 5 in-line holes each in X and Y directions as well as 6 horizontal drills and integrated sawing unit for quick and precise results. As an option, the EVOLUTION series can also be equipped for even higher performance with an XL-drilling head, with up to 22 drilling spindles and grooving saw.
Short machining times
Easy on material and time-saving, because workpieces with lengths up to 1200 mm can be machined without reclamping.
- Up to 35% shorter machining cycles.
Extra large XL drilling head
Thanks to the XL drilling head, the range of applications and the enormous versatility of the vertical machining center is further increased. Equipped with up to 22 spindles, the head can be generously equipped for drilling rows of holes, structural and through-holes – reducing time-wasting drill changes.
Above all the possibility to equip the head with an additional double-drilling spindle in the Y direction and an extra strong spindle for hinge drill bits brings a unique level of flexibility. This allows 5 mm and 8 mm holes to be drilled in the sides in both X and Y directions – flexibility to your advantage.
Automatic tolerance correction
Determination of exact length dimension and automatic correction of tolerances for dimension-dependent drilling. Perfect optional supplement for high precision drilling, e.g. for workpieces which have already been edged.
