Technical Specifications
Length
880mm
Height
490mm
Infeed table
154 x 620 mm
Saw blade guard
30mm
Main port
60mm
Working height
9 – 92mm
Motor output
1.0 kW
Frequency
50Hz
Table size
620 x 300mm
Width/Depth
835mm
Net weight
49kg
Max. cutting depth
1.5mm
Thicknesser
50mm
Table size
320 x 154mm
Max. cutting depth
1mm
Supply voltage
230V
Sliding table
740 x 120mm
Extra Technical Details

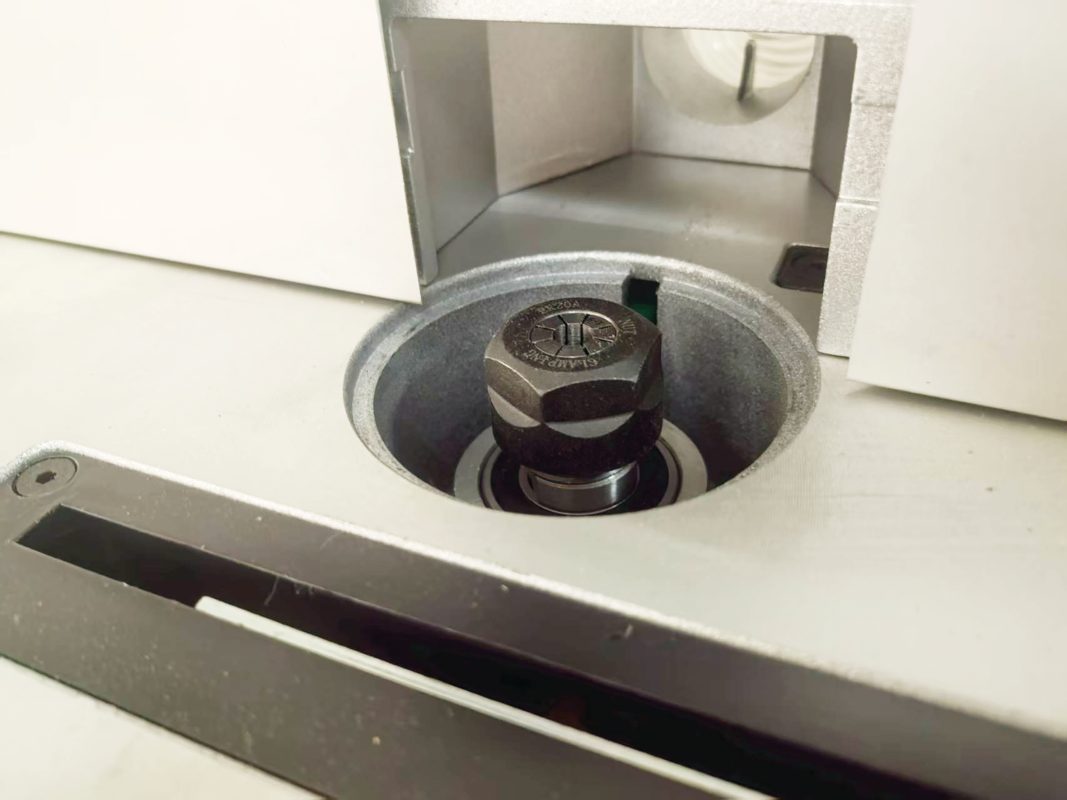

Milling Spindle
-
Speed: 9000 min⁻¹
-
Shaft diameter holder: 6 / 8 mm
Planing Shaft
-
Diameter: 48 mm
-
Number of blades: 2
-
Speed: 6000 min⁻¹

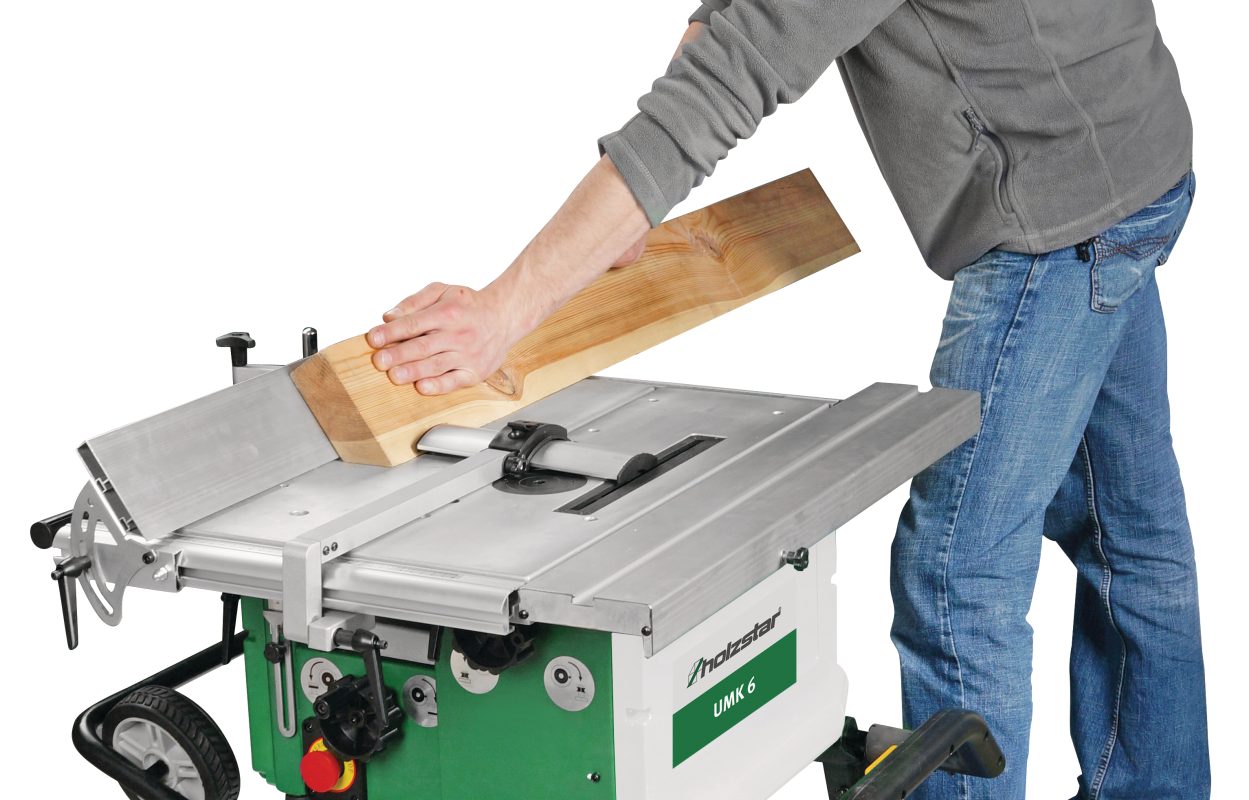

Circular Saw Unit
-
Max. cutting height (90°): 65 mm
-
Saw blade: Ø200 mm
-
Saw speed: 4200 min⁻¹
-
Trimming length: 500 mm
Feed
-
Feed speed: 7 m/min
-
Feed shaft diameter: 20 mm

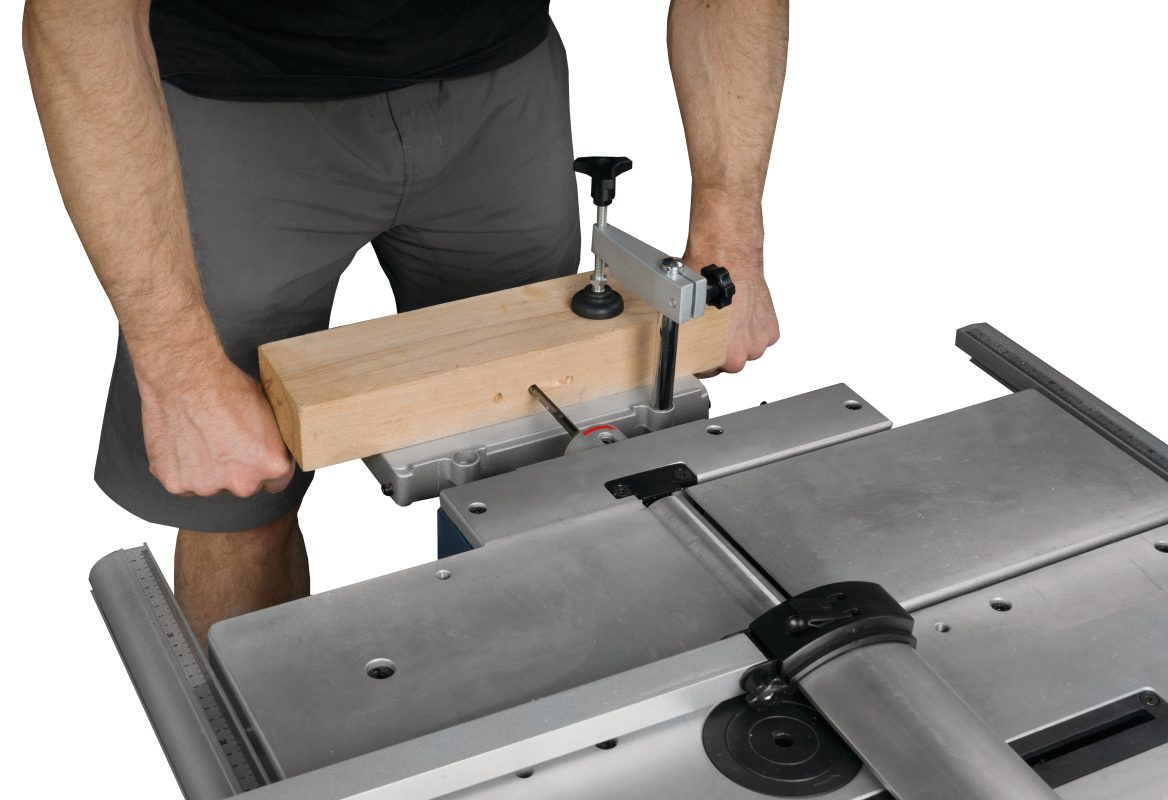

Slot Mortising Unit
-
Table size: 260 x 125 mm
-
Vertical stroke: 95 mm
-
Drill depth: 60 mm
-
Longitudinal stroke: 45 mm
-
Shaft holder diameters: 6 / 8 / 10 mm
