LINEA 6015 Beam Saw Standard Features
Single Press – Angle pressure device
The rubber-coated side pressure roller is prepositioned by the optimisation feature to lower immediately in front of the workpiece.
This ensures maximum performance when cutting panel strips to length. The side pressure is applied by the solid linear guides.

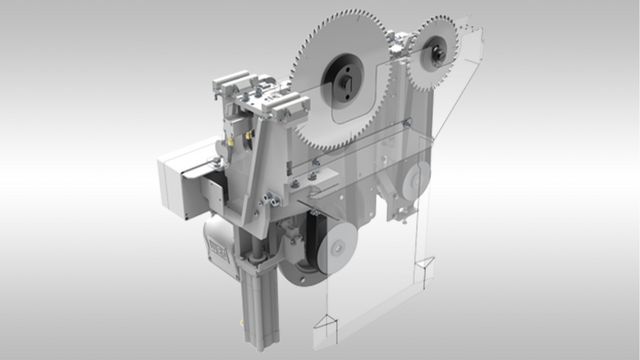

The prescoring saw on the LINEA series has an output of 2.2 kW for hard coatings and materials.
The adjustment concept promises extremely high speed setup and adjustment times. The prescoring saw can be adjusted while running.
A perfectly designed workplace provides the basis for efficient, non-fatiguing work. With the 21.5″ control terminal Holzher panel cutting saws satisfy all requirements placed by machine operators. The ergonomically adjustable and arresting shelf offers space for a label printer, scanner, keyboard and mouse within easy reach of the operator.
Line laser for cutting line
The Visible Cut Line uses a laser beam to indicate the exact cutting line. This also allows cuts according to a manual sketch to be positioned and cut perfectly. Naturally this device also provides a major advantage when cutting real wood (e.g. edging).
The LINEA 6015 pressure beam saw sets new standards in the economy class.
Most powerful saw motors in their class, rapid setup times for prescoring saw and gentle, scratch-free panel handling.
Numerous refinements in software and hardware will also convince you of the advantages of the LINEA 6015. To ensure the perfect quality of your cutting work, the LINEA 6015 provides everything as standard features, such as air cushions on the support and machine table or the prescoring unit with 2.2 kW of power.
Here is what the Holzher LINEA 6015 offers
- Saw Blade Protrusion up to 68 mm
- Sawing Unit: up to 11 kW
- Prescoring saw: 2.2 kW
- Cutting dimensions: 3,100 x 3,100 mm
The CUT CONTROL 2 control package
The control is decisive for the power output of a state-of-the-art pressure beam saw. All Holzher panel cutting saws are equipped with our CUTCONTROL 2 and the preinstalled EASY-PLAN and OPTI-CUT software packages.
Hand-held control unit
For remote control and easy machine operation.
The clamps can be opened or closed from all positions. Moreover the sawing cycle can be started or discontinued from any position around the machine. The user can control the materials in every situation.
The solid, industrial class charging rollers can be attached to the machine tables at the front as well as along the side for charging with a panel cart or with the stacker.
Infinite clamping pressure
A pressure gage on the front of the machine allows infinite adjustment of the clamping pressure. This is gentle on sensitive and soft materials.
Remnant cutting device integrated into the pressure beam
The clamps move forward right up to the cutting line.
Panels can be cut without waste, allowing utilisation of the entire panel during machining. During scratch cutting the sawing carriage regulates the feed rate fully automatically for a clean cut.
The first three workpiece clamps on the LINEA 6015 are located close together especially for cutting strips. The clamps are optionally available with a floating mount on a linear guide allowing them to compensate irregularities in the panels/stacks. Optional controlled stops are available for precise cutting on veneered workpieces.
Freely programmable rip fence
Workpiece clamps with optional floating design compensate for tension in the panel stack toward the top.
Stable, welded construction with precision, hardened linear guide ensures precise, smooth running. Direct rack-and-pinion drive (upright shaft) and proximity-type sensor for absolute dimensions guarantee maximum positioning accuracy. The servo-technology motor moves the fence quickly to the selected positions. The measuring system is equipped with a CC (Continuous Checkup) mode for continuous, autonomous checks.
Inspection & storage access door
A double sliding door provides access to the rear of the machine.
The sliding door moves on precision linear guides. Space for up to 6 Euro-pallets is present in the rear area of the machine below the roller tracks. The perfect access for service and cleaning work in the rear area of the pressure beam saw.
The access can be installed on the right or left as desired.
