Robland Z400 X1 With Optional Extras

From £13,750.00 + VAT

(£16,500.00 inc VAT)

Avaialble from stock for Delivery with the The Following Options installed above standard

  • Integrated Start/ Stop buttons on the sliding Table
  • 1500mm cutting width
  • Digital readouts on the cross cut carriage
  • Mitre fence with wood clamp



Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Sliding Table Length
3500 mm
Motor Power
7 kW
Blade Diameter
400 mm
Saw blade tilt range
90 – 45
max blade projection at 45
90 mm
Speed scoring blade
8200 RPM
cutting length
3500 mm
sliding table width
395 mm
cross-cut capacity
1420 x 650 mm
Parallel / RIP fence cut width
1500 mm
Voltage / Phase
415V / 3ph
Saw blade RPM
3000 / 4000 / 5000
max blade projection at 90
125 mm
Motor Scoring unit
1.3 kW
Scoring blade diameter
120 x 20 mm
Dust extraction outlet
1 x 120 mm + 1 x 100 mm
Saw blade diameter
400 mm

Robland Panel Saws






Robland have been manufacturing sturdy, high quality, reliable yet affordable panel saws for more thank 50 years with over 100,000 machines sold worldwide.  This particular model is the  X1 (Controlled parallel fence)

The saw aggregate is made out of one piece in cast iron for natural absorption of vibrations and therefore offers superior stability and precision.

All Robland Panel Saws are being developed and manufactured in their factory located in Bruges, Belgium. Robland also manufacture 85% of their parts, so spare parts are readily available even decades after your purchase. With well over one thousand panel saw manufactured each year we can proudly announce Robland as one of the major leading panel saw manufacturers in Europe.

Markfield Woodworking Machinery have the largest Robland woodworking machines showroom in the UK.

Outrigger Table




Large outrigger table with telescopic cross-cut fence, index system and digital read out on flippers included on this machine

Saw Aggregate




Saw aggregate rotating on shells maintaining the origin while tilting

Sliding Table




The hard anodized sliding table is precision machined. The heart of the sliding table is 8 hardened steel rods inserted into the table extrusion. Thus making the system extremely wear free

NEED ASSISTANCE OR EXPERT ADVICE?



We pride ourselves in offering a friendly and professional service

Saw Guard




Overhead saw guard with integrated tube for improved extraction

Cast Iron Saw Aggregate




Saw aggregate in cast for more precision and stability

Without Scoring Blade




Large outrigger table with telescopic cross-cut fence, index system and digital read out on flippers included

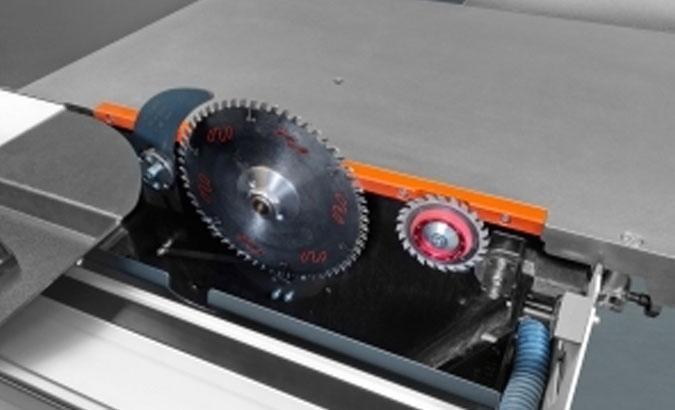

With Scoring Blade




400mm saw without scoring blade
