Robland Z500M Panel Saw

Enquire for price

The Z-Series offers you a broad selection of saw diameters (300, 400 or 500 mm), sliding tables, outrigger tables, options and accessories, to be combined with one of four different executions : manual (M), electrical height and tilt of the blade (EL), controlled parallel fence (X1) or a 3 axes controlled machine (X3). The saw aggregate is made out of one piece in cast iron for natural absorption of vibrations and therefor offers superior stability and precision.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

sliding table length
3200 mm
motor power
9.2 kW
Blade Diameter
500 mm
saw blade tilt range
90Ā° – 45Ā°
max blade projection at 45Ā°
120 mm
speed scoring blade
8200 RPM
cutting length
3200 mm
sliding table saw
395 mm
Parallel / rip fence cut width
1350 mm
voltage / phase
415V / 3ph
saw blade rpm
3000 / 4000 / 5000
max blade projection at 90Ā°
175 mm
motor scoring unit
1.3 kW
scoring blade diameter
120 x 20 mm
dust extraction outlet
1 x 120 + 1 x 100 mm
cross-cut capacity
3000 mm
Outrigger Table

Large outrigger table with telescopic cross cut fence, digital readout on flippers and index systems with length compensations.

Sawblade

500mm without scoring blade for max. Cutting depth 175mm

Sawblade with Scoring Blade

350mm with scoring blade

NEED ASSISTANCE OR EXPERT ADVICE?

We pride ourselves in offering a friendly and professional service

Saw Aggregate

Saw aggregate in cast iron rotates on shells for more precision and stability

Overhead Sawguard

Overhead Sawguard with integrated tube for aspiration

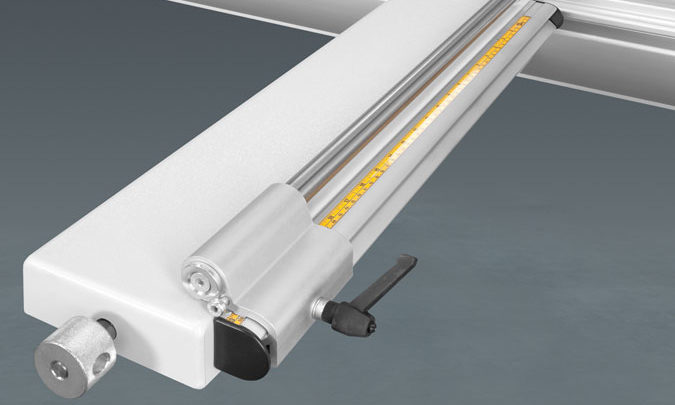

Support Table

Support table with rip fence and ruler

Digital Readout Parallel Fence

Digital readout on parallel fence

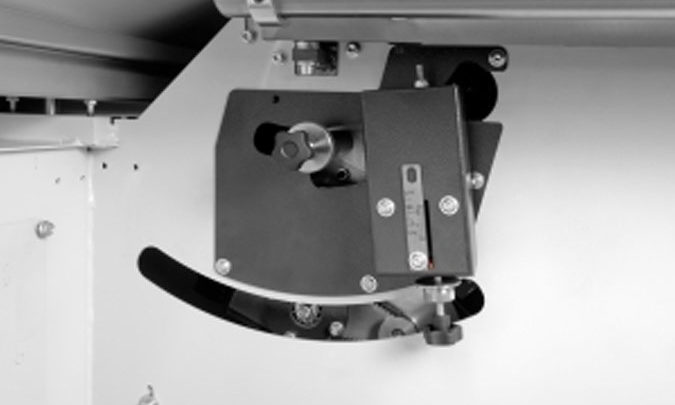

Sawblade and Scoring Blade Adjustments

Manual height adjustment of main sawblade and scoring blade

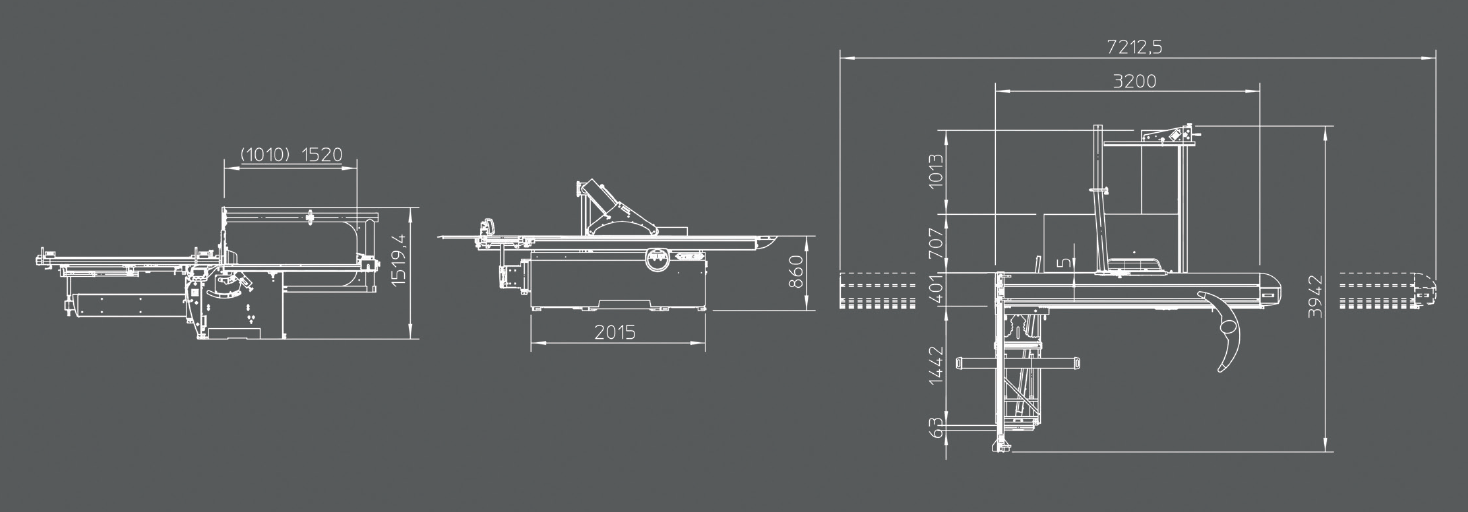

Robland Z500M Panel Saw Floor Plan
