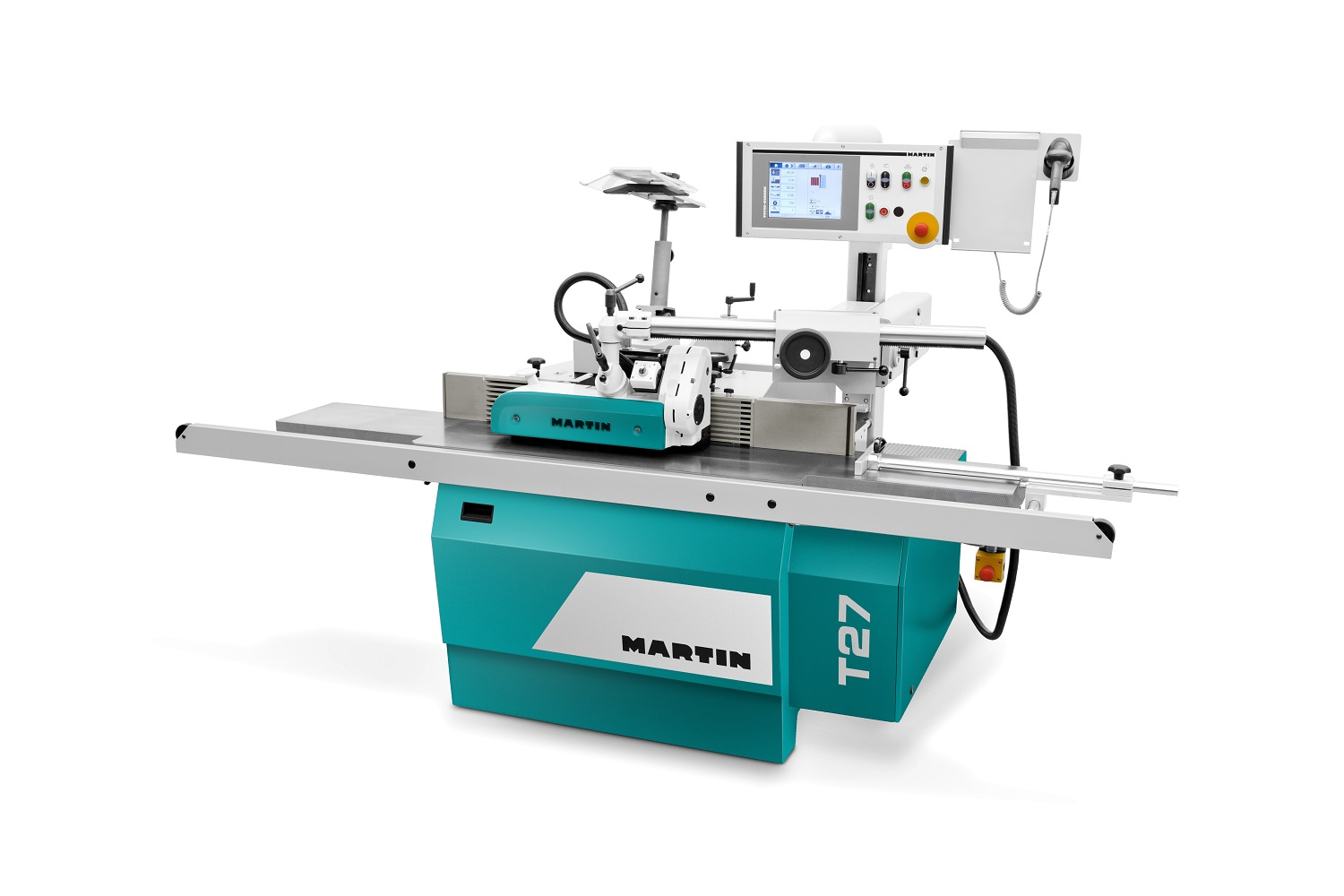

Martin T27 Fix Spindle Moulder

POA

All of our machines can be custom built to your exact requirements



Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

MAKE
Martin
OPERATION
Automatic
SPINDLE SPEED (RPM)
3000, 4000, 5000, 6000, 8000, 10000 Option Variable
MAX DIAMETER OF TABLE OPENING
255mm
SPINDLE TILTING RANGE
+46° to -46°
DUST OUTLET SIZE (MM)
2 x 120mm
MODEL
T27 Fix
MOTOR POWER
5Kw Option – 6, 7.5, 9.5, 11Kw
SPINDLE STROKE
150mm
TABLE DIMENSIONS (MM)
1255 x 900
TABLE HEIGHT (MM)
900
SPINDLE LENGTH (MM)
140mm
VOLTAGE / PHASE
415V / 3ph

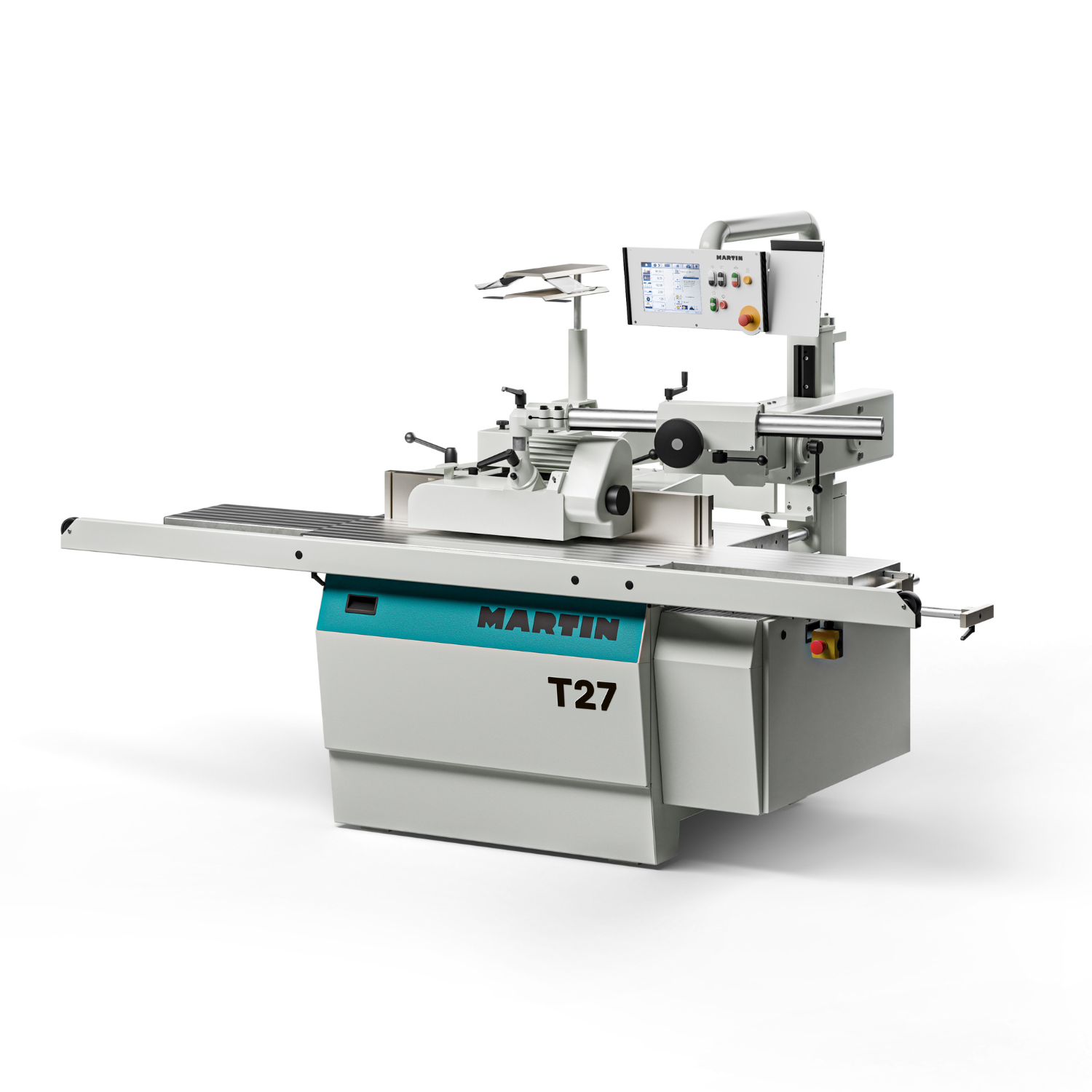

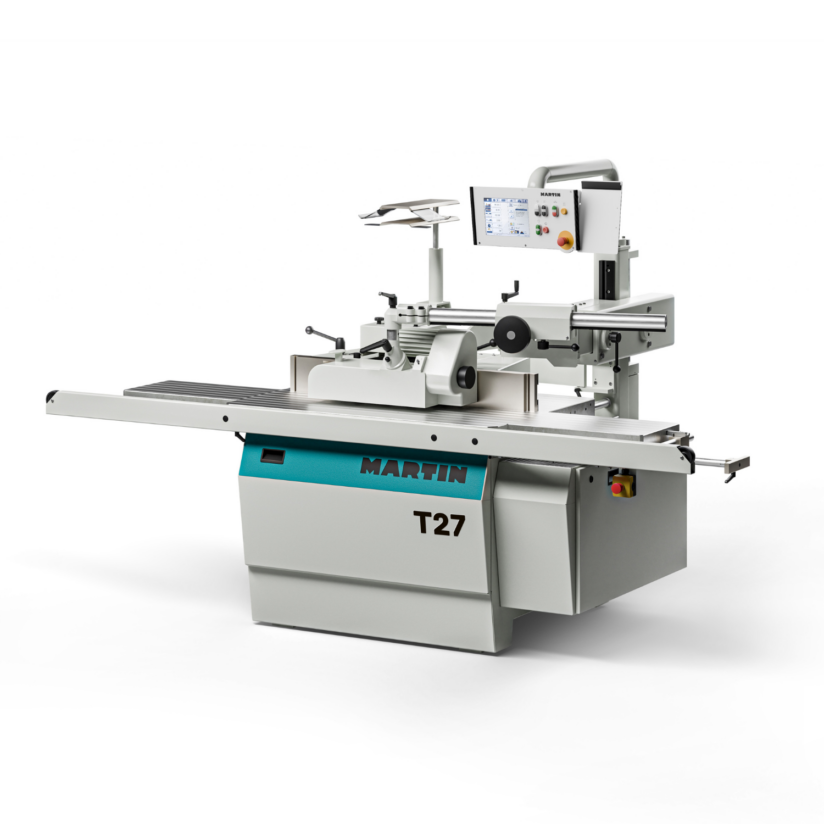

Martin T27 Fix Spindle Moulder


MARTIN are without doubt the world’s finest manufacturer of wood working machinery, combining traditional exemplary engineering with the very latest in computer control technology.

This perfect blend results in new levels of efficient working and a level of repeatable accuracy previously only ever dreamed of MARTIN’s design and development engineers are simply not satisfied with a good solution if there is ultimately a better one to be had.

  • A modern touchscreen controlis exactly what is required in today’s woodworking facility; minimising set-up times and increasing production
  • You can easily adjust the cutting height via the electronic controller and the cutting depth via handwheel according to the digital display.
  • The standard features of the T27 Fix include an automatic star-delta starter, two EMERGENCY STOP buttons, lockable main switch, and electric wear-free spindle brake. A 5-pole socket with plug for connecting a power feeder is also included in the basic equipment. The machine is also supplied with a convenient switch to change the rotational direction of the spindle.
  • By adding further controlled axes, you can upgrade the T27 Fix to a profiling center with up to 5 controlled axes. Every additional axis is fully integrated in the operating electronics and networked with the other axes, making it a true performer.
  • For curved moulding operations, the fence can be removed and later remounted in seconds. With the optional folding support, you can lift the fence from the table and fold it to the back of the machine, thereby reducing expensive set-up time.
  • Great for mortising jobs – The MARTIN sliding table is an ideal option for every T27 shaper. The sliding table features a heavy, robust design, a work table that can be turned to 45° (fence up to 65°) in both directions, and many other unique details make this option an indispensable aid for cutting difficult mortises and tenons.

Ready to mould

On the T27 Fix, you can easily adjust the cutting height via the electronic controller and the cutting depth via handwheel according to the digital display. As soon as you activate a tool, both values will indicate the actual position in relation to the table and fence jaws.

By adding further controlled axes, you can upgrade the T27 Fix to a ‘profiling center’ with up to 5 controlled axes. Every additional axis is fully integrated in the operating electronics and networked with the other axes, making it a true performer. The standard features of the T27 Fix include an automatic star-delta starter, two EMERGENCY STOP buttons, lockable main switch, and electric wear-free spindle brake.

A 5-pole socket with plug for connecting a power feeder is also included in the basic equipment. The machine is also supplied with a convenient switch to change the rotational direction of the spindle.

Options you will no longer want to live without

For curved moulding operations, the fence can be removed and later remounted in seconds. With the optional folding support, you can lift the fence from the table and fold it to the back of the machine, thereby reducing expensive setup time.

Thanks to MARTIN’s exacting German tolerances, the time-consuming remounting of the fence is no longer necessary because of the superior mechanical fit. The cutting height is automatically referenced without having to be recalibrated.

Sliding table for mortising operations

For mortising jobs, the MARTIN sliding table is an ideal option for every T27 shaper. The sliding table features a heavy, robust design, a work table that can be turned to 45° (fence up to 65°) in both directions, and many other unique details make this option an indispensable aid for cutting difficult mortises and tenons.

Tool changes made easy with the ProLock system

The basic T27 features the DornFix system, the original MARTIN quick-change system. The Dornfix system allows the operator to change from a 30 mm to a 40 mm arbor in a matter of seconds. The optional ProLock system further facilitates quick tooling changes
