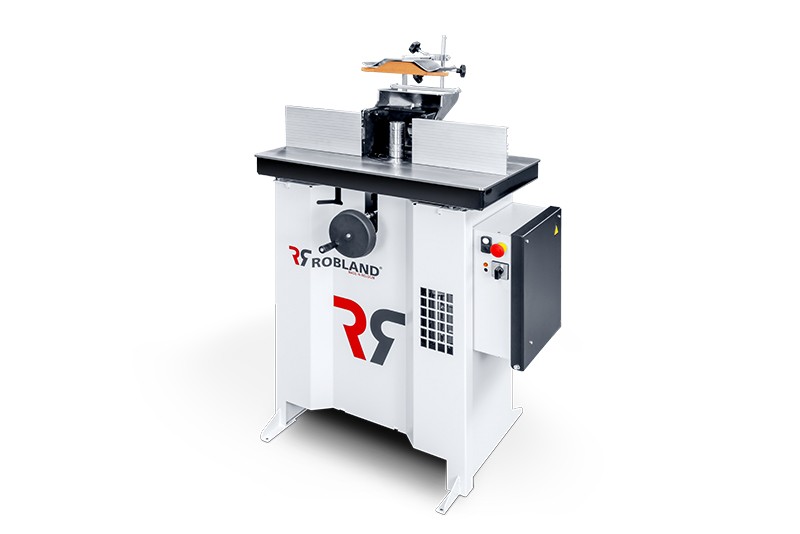

KT30 Spindle Moulder

From £3,250.00 + VAT

(£3,900.00 inc VAT)
  • Integrated handwheel installed
  • single phase
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Available Phase
1ph or 3ph
Diameter of table opening
179mm
Max. tool diameter
180mm
Spindle Stroke
140mm
Spindle Rotation speed (single phase)
3000 / 6000 RPM
Dust extraction outlet
100mm
Weight
130 – 150 KG
Height table opening
60mm
Spindle Length
120mm
Spindle Diameter
30mm (optional 50mm)
Spindle Rotation speed (three phase)
6000 RPM

Optional Accessories


Longer / Heavy duty table & support beam


  • Optional longer table with support beam
  • Optional heavy duty fence for tools up to 250mm (requires optional motor break) providing easier repeatedly and better air circulation for dust extraction

Handwheel siko counter


Handwheel with integrated siko counter

Tenoning table


Cast iron tenoning table on heavy steel bars and tenoning hood for tools with diameter up to 250mm. (requires optional motor break)

Ring guard fence


Ring guard fence to mould curved pieces

History of Robland woodworking Machinery


ROBLAND is a privately owned Belgian company, that was
founded in 1968 by Robert Landuyt. The first successes were
achieved by building affordable qualitative universal
woodworking machines, a large part of which are still in
use today.

Robland do have all resources and competencies in house for
product development, parts manufacturing, product
assembly, sales and after sales support.

With Robland’s state of the art, highly automated, parts
manufacturing machines we are able to remain cost effective
while manufacturing in Belgium near the historical city
of Bruges. Although our machines will last for years, this is
not enough for us. A quality service and after sales support is
key to ROBLANDs success. As Robland manufacture
all machine parts themselves, you can rely on spare parts
always being rapidly available.

Robland’s company mission is to offer woodworking
machines with the best quality/price ratio to the high end
Do-It-Yourself market and to the small and medium-sized
enterprise market.

Robland’s product portfolio, aimed at the second wood processing,
includes panel saws, table saws, universal machines,
planers, thicknessers, spindle moulders, horizontal mortisers,
a semi-automatic boring machine, a CNC boring machine,
edgebanders and dust extraction systems.

We have an international dealer network and currently export
over 85% of our production worldwide to more than
100 countries. In its 20.000 m² large factory ROBLAND
employs over 80 people.
