Martin T27 Flex spindle moulder

From £21,300.00 + VAT

(£25,560.00 inc VAT)

  All of our machines can be custom built to your exact requirements

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Make
Martin
Motor Power
5Kw
Spindle Stroke
150mm
Table Dimensions
1255 x 900
Table height (from floor)
900mm
Spindle Length
140mm
Model
T27 Flex
Operation
Automatic
Spindle Speed
3000, 4000, 5000, 6000, 8000, 10000 Option Variable
Max. Diameter of table opening
255mm
Spindle Tilting range
+46° to -46°
Dust outlet size
2 x 120mm
Phase
3 / 415v

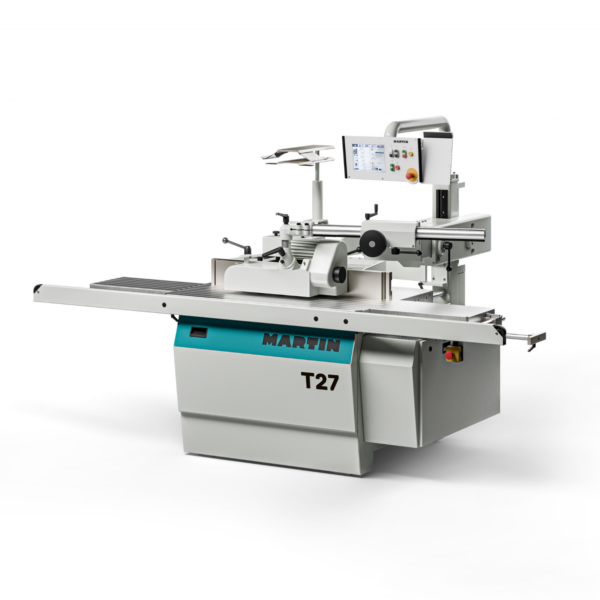

Martin T27 Flex spindle moulder

Thanks to the controller’s integrated tool conversion, the operator can make efficient use of the wide tilting range of the T27 FleX (2 x 46°), allowing them to set up even complex moulding patterns with a tilted spindle in a flash

  • Fully programmable Martin Spindle Moulder

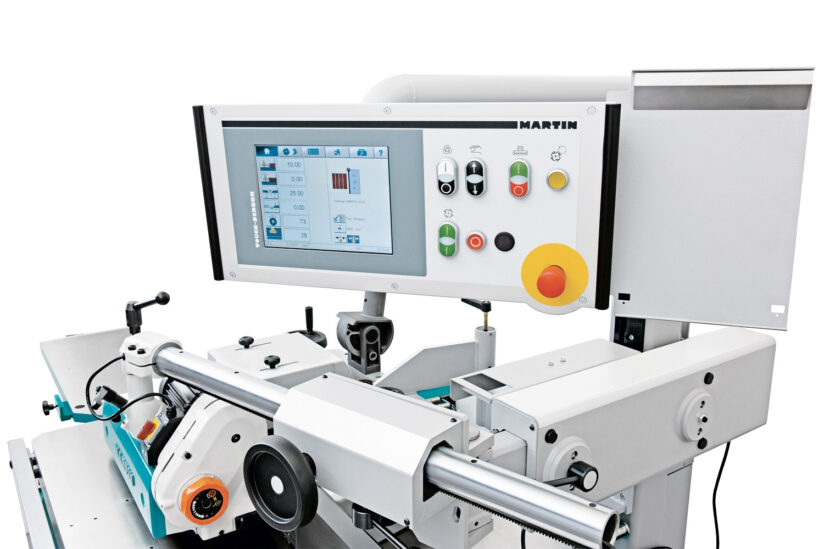

  • Colour touch screen interface
  • Electronically controlled spindle height
  • Electronically controlled spindle angle + 46 – 46 deg
  • Electronically controlled fence position
  • Electronically controlled bed rings Integral fences
  • Cast table extensions
  • Front pull out support
  • 4 Roller power feed unit

Reduced set-up times thanks to state of the art technology

No matter whether you work with the spindle tilted to the front or to the back, the controller prompts you in setting up the moulding process. Cutting height, cutting angle – everything is structured in an obvious way for the operator.

After activating the tool, the controller will indicate the location to reference the tool in relation to the table and fence jaws. In this way, setup procedures that used to be very time-consuming can be performed rapidly – a major step in the direction of more flexibility and efficiency for the operator.

Perfect results on six axes

On the T27 FleX, up to six axes can be motorized and controlled. In addition to the cutting height and cutting angle, the cutting depth, the infeed jaw of the fence, the table opening, and the height setting of the feed support can be adjusted by the controller. Up to 1,000 tools and 1,000 programs can be stored in the controller.

A powerful search function as well as ‘group’ and ‘favorite’ functions assist the operator in selecting the needed profiles. On the basic machine, the entire fence is adjusted with an easily accessible handwheel via a digital display; the infeed jaw is also adjusted with a handwheel according to a Vernier scale.

Benefit from HSK technology

Besides the proven MARTIN DornFix quick-change system that is used on the basic T27 machine, two versions of pneumatically clamping HSK tools are also available. The HSK system is especially suited for those who want to use their shaper as an effective supplement to their shapers or CNC processing centers.

Besides HSK85 PowerLock, we also offer the HSK63F system. Using this technology, you can easily adapt the tooling of a CNC processing center directly to the shaper, freeing up your router from time consuming traverse moulding jobs, thereby reducing bottlenecks.
