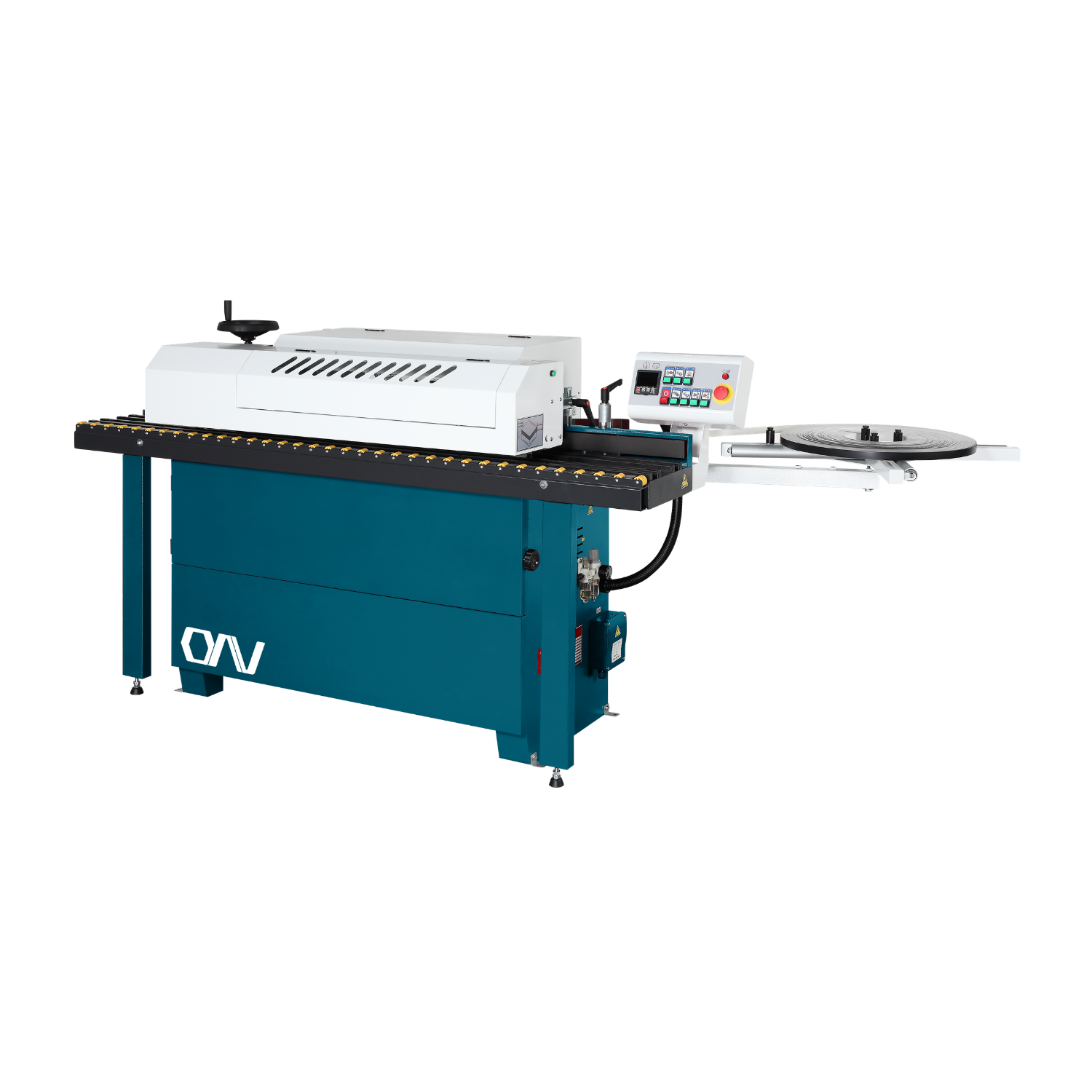

OAV 330 Hot Melt Edgebander

From £6,950.00 + VAT

(£8,340.00 inc VAT)

OAV’s entry level industrial edgebander is a fantastic value for money hot melt machine.

  • PRE HEATING
  • HOT MELT GLUE POT
  • END TRIMMING UNIT
  • RADIUS TRIMMING
  • BUFFING UNIT
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

MAKE
OAV
MOTOR POWER
3.2Kw
TOP AND BOTTOM TRIM
Yes
DUST OUTLET SIZE (MM)
2 x 100m
SCRAPING
Yes
MINIMUM EDGE THICKNESS
0.4
VOLTAGE / PHASE
415V / 3ph
MINIMUM PANEL WIDTH
70MM
MODEL
330
BANDER TYPE
Hot Melt
END TRIM
Yes
BUFFING
Yes
FEED SPEED
5m/min
MAXIMUM EDGE THICKNESS
3mm
WEIGHT
464KG
CFM RATING
1600CFM

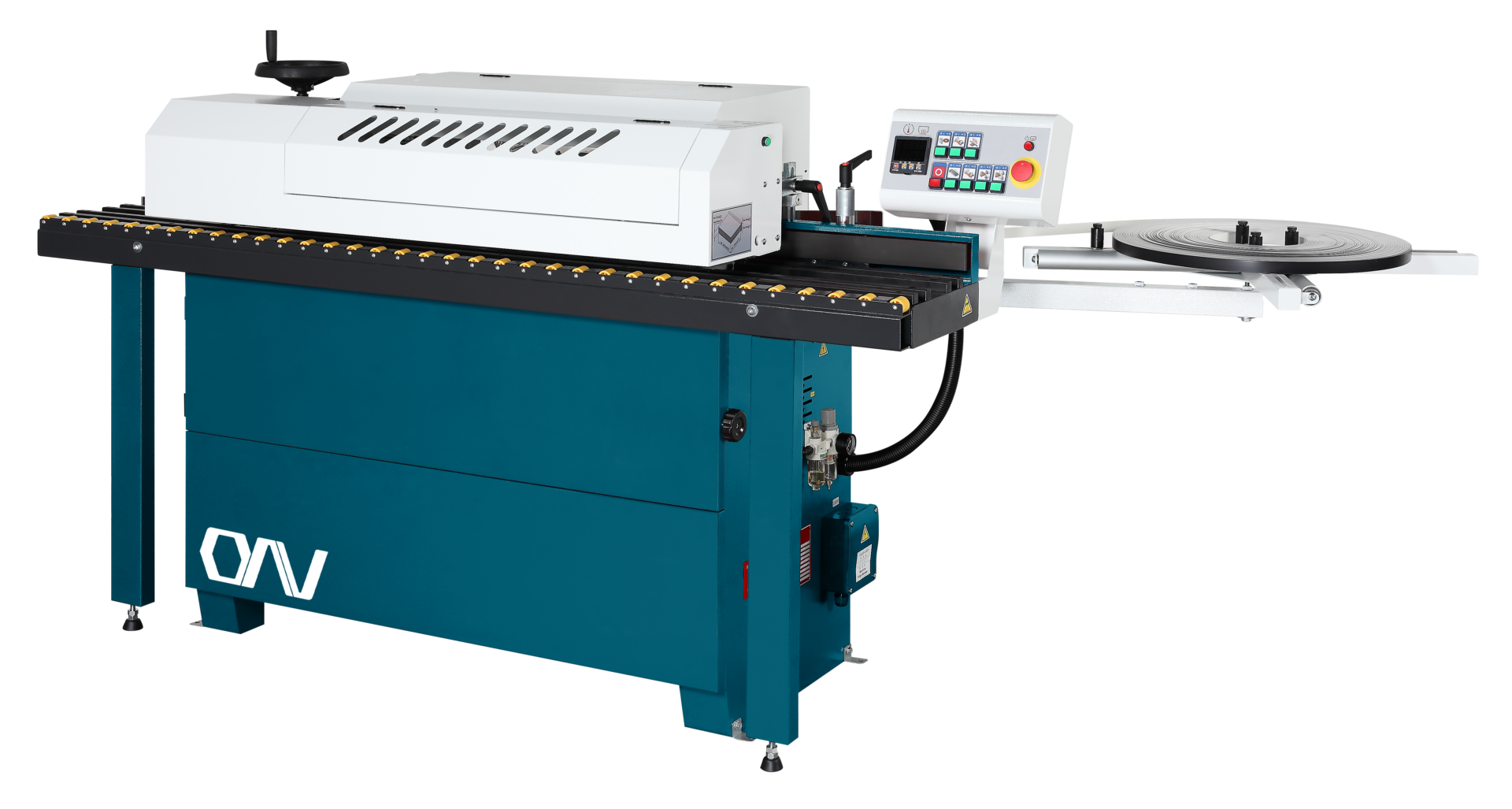

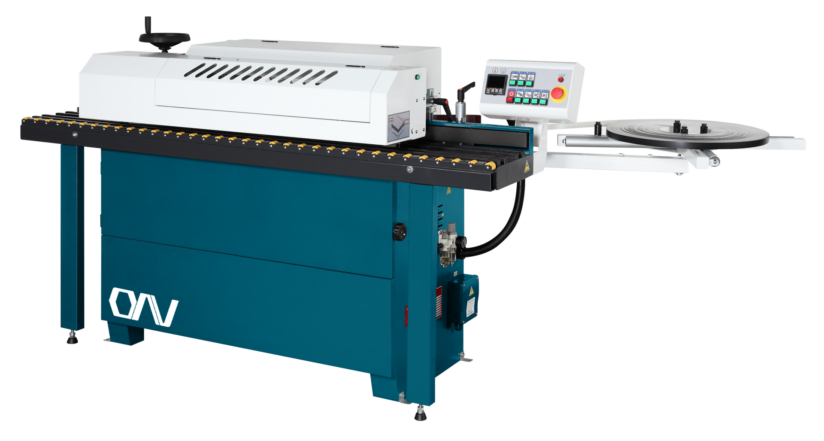

OAV 330 EdgeBander


OAV EdgeBanders allow for stable and reliable working conditions which will raise the quality of your products while also saving time.
The OAV 330 EdgeBander can apply edges to straight panels with an automatic feed and can apply glue directly to panels with both wood and plastic edges, in coils up to 3mm thick, and strips up to 4mm thick. It’s equipped with automatic front/ rear trimming cut-off, and flush trimming/ buffing on both sides of the workpiece.

Features


  • A unique feeding guide – there is no need to adjust. Even when working with edges of varying thickness
  • A stable copying disk
  • A dust port in the table. Making it quick and easy to keep the environment clean
  • Electronic temperature regulation
  • The saw can easily cut coils up to 3mm
  • Synthetic table guides. And a heavy-duty roller to support both large and heavy bander jobs.
  • A table extension. With adjustable front supports. For gluing large panels
  • A feeding device with an upper driven belt system
  • Precise adjustment and read-out units for both thickness and trimming
Visit our YouTube

Pre Heating


Heated infeed fence helps with glue adhesion

Hot melt glue pot


Teflon coated for easy maintenance with 1.1KG storage capacity

End trimming unit


high quality cutters powered by an impressive 3 phase motor for perfect results

Radius trimming


Fully adjustable to create either a square flush edge or radius edge. 2mm radius fitted as standard

Buffing unit


The buffing unit, which can be positioned wherever it is necessary, perfectly cleans and polishes the edges, leaving them in pristine condition

Browse OAV EdgeBanders


We have been working with OAV for over 5 years. We’re extremely impressed by the build quality of their woodworking machinery. We stock OAV Edgebanders and Bandsaws. Our OAV Edgebander range consists of:

  • OAV 330 Hot Melt Edgebander
  • OAV 350M Pre Milling EdgeBander
  • OAV 350A Pre Milling EdgeBander
  • OAV 370M Corner Rounding EdgeBander
  • OAV 370P Automatic EdgeBander
  • OAV 370P Automatic Corner Rounding EdgeBander
  • OAV 570P EdgeBander
Browse OAV EdgeBanders

Delivery, Commission and Product familiarisation provided


As long as you have a forklift to unload the machine we can deliver and commission your Edgebander on the same day. On top of delivery and commission our engineers will train you and your staff to use the machines.
