OAV 350M Pre-Mill Edgebander

From £11,700.00 + VAT

(£14,040.00 inc VAT)

OAV’s Edge Bander MAX350M  is the compact machine choice with pre-milling functionality.

We can demo this machine at our works

Please contact us to arrange a time for your OAV EdgeBander Demo.



Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

MAKE
OAV
MOTOR POWER
6kw
MINIMUM PANEL LENGTH
170mm
DUST OUTLET SIZE (MM)
100mm
SCRAPING
Yes
MINIMUM EDGE THICKNESS
0.4
MINIMUM PANEL THICKNESS
8mm
PRE MILLING UNIT
Yes
OVERALL DIMENSIONS
L 3,200 x W 1,250 x H 1,200 mm
MINIMUM PANEL WIDTH
70MM
MODEL
350 M
BANDER TYPE
Hot Melt/pre-mill
END TRIM
Yes
BUFFING
Yes
FEED SPEED
7m/min
MAXIMUM EDGE THICKNESS
3mm
MAXIMUM PANEL THICKNESS
45mm
VOLTAGE / PHASE
415V / 3ph
WEIGHT
528KG
CFM RATING
3200CFM

OAV 350M EdgeBander


Allows for stable and reliable working conditions which will raise the quality of your products while also saving time.

In coils up to 3mm thick, and strip up to 3mm thick, this affordable machine is equipped with 1.2KG capacity glue tank, auto gluing, edge cuting, pre-milling end trimming, flush trimming and scraping, and buffing functions.

Featuring a user friendly adjustment with numerical indicators as well as an LCD display for temperature control, 9M feeding speed.

This machine has a panel capacity of 45mm, but please note the STANDARD PRE MILL CUTTERS ARE 35MM.

OAV 350M EdgeBander

Features


  • 9m/min feed speed
  • 8-45mm panel thickness
  • 8-32/45mm pre milling height depending on cutters
  • up to 2mm premill
  • 0.4-3mm edging thickness
  • Min panel width: 100mm
  • Min panel length: 170mm
  • 4088mm x 1003mm x 197xx overall size
  • 700 KG

Pre Heating


Heated infeed fence helps with glue adhesion

Pre Milling


Removes up to 1mm from the panel edge using diamond tipped cutters. Eradicating chips from saw blades and poorly set scribe saws

Hot melt glue pot


Teflon coated for easy maintenance with 1.2KG storage capacity

OAV 350A Edgebander

End trimming


Uses a high frequency 12,000rpm motor mounted on high precision linear bearings

Radius trimming


Fully adjustable to create either a square flush edge or radius edge. 2mm radius fitted as standard

Radius scraping


Top and bottom super sharp scrapers that calibrate the radius, cleans glue and removes cutter marks

OAV 330 Automatic Edgebander Buffing Unit

Buffing Unit


The Buffing unit removes traces of glue and discolouration

Browse OAV Edgebanders


We have been working with OAV for over 5 years. We’re extremely impressed by the build quality of their woodworking machinery. We stock OAV Edgebanders and Bandsaws. Our OAV Edgebander range consists of:

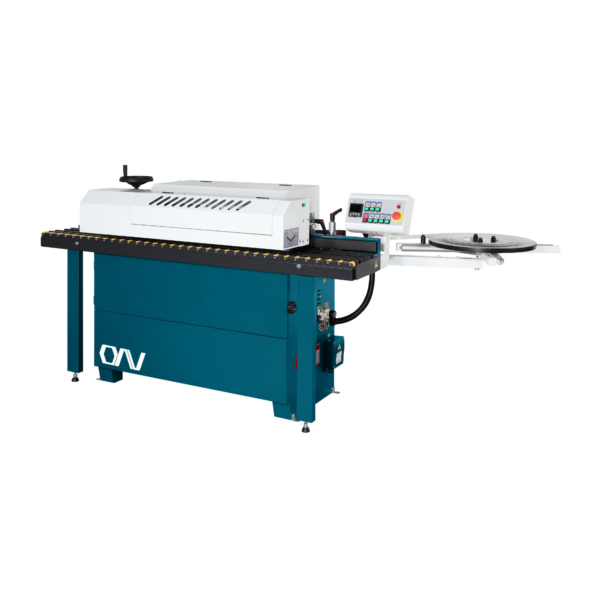

  • OAV 330 Hot Melt Edgebander
  • OAV 350M Pre Milling EdgeBander
  • OAV 350A Pre Milling EdgeBander
  • OAV 370M Corner Rounding EdgeBander
  • OAV 370P Automatic EdgeBander
  • OAV 370P Automatic Corner Rounding EdgeBander
  • OAV 570P EdgeBander
Browse OAV EdgeBanders

Delivery, Commission and Product familiarisation provided


As long as you have a forklift to unload the machine we can deliver and commission your Edgebander on the same day. On top of delivery and commission our engineers will familiarise you and your staff on how to use the machines.
