Technical Specifications
OAV 350M Edgebander Footprint

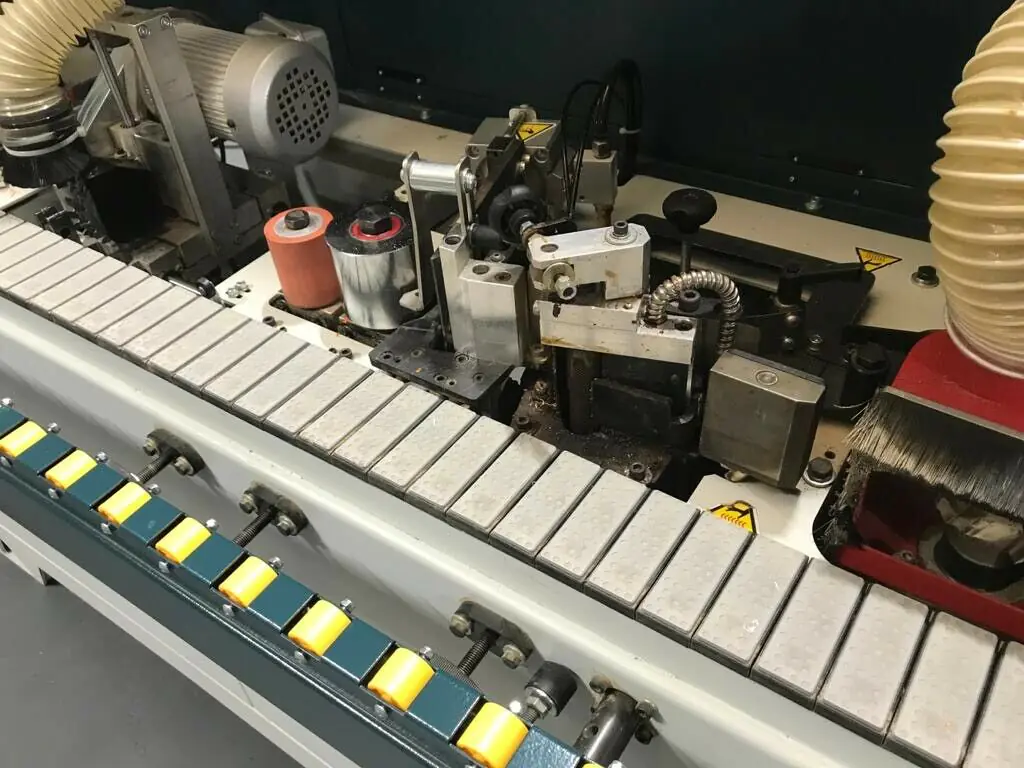

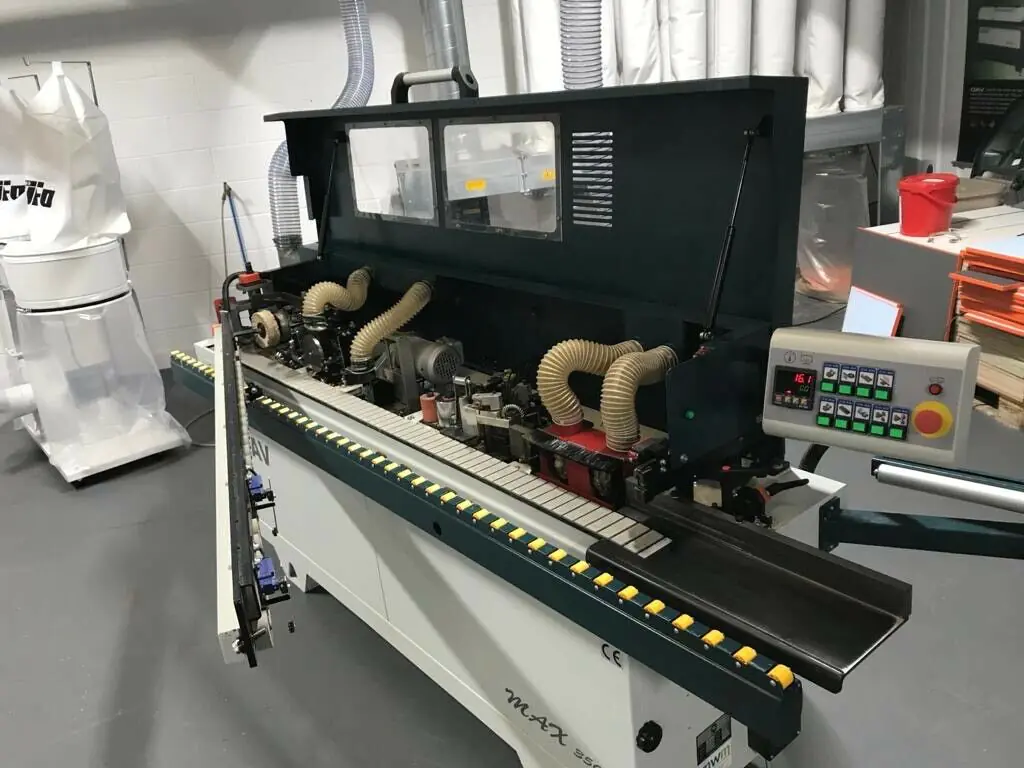

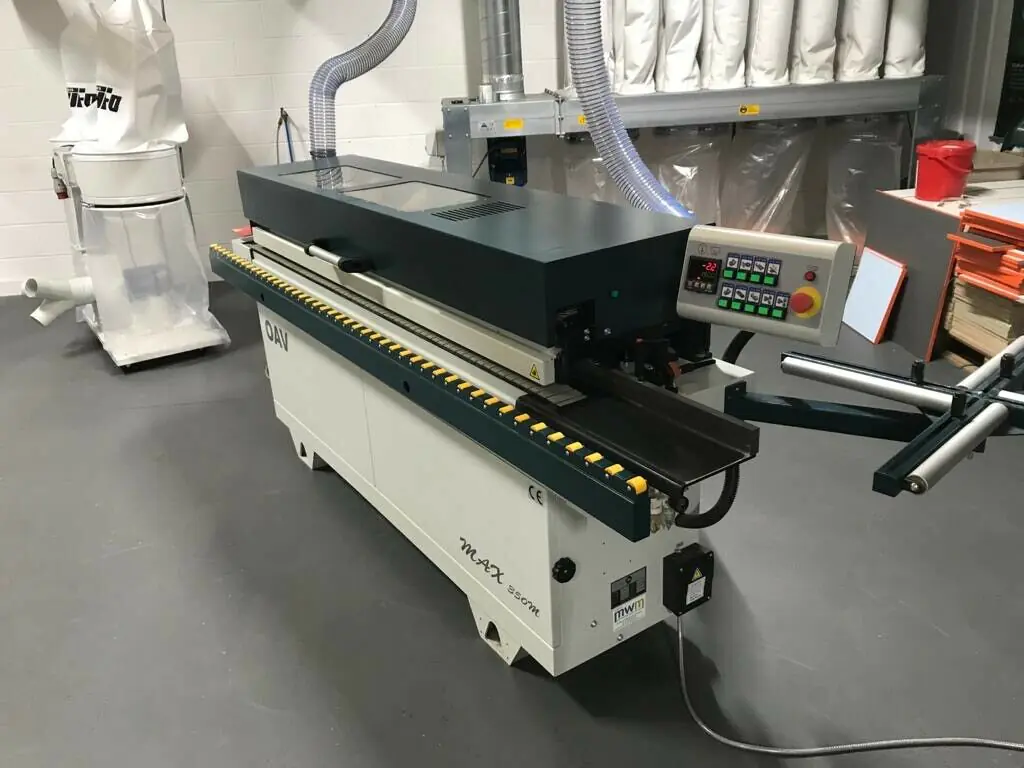

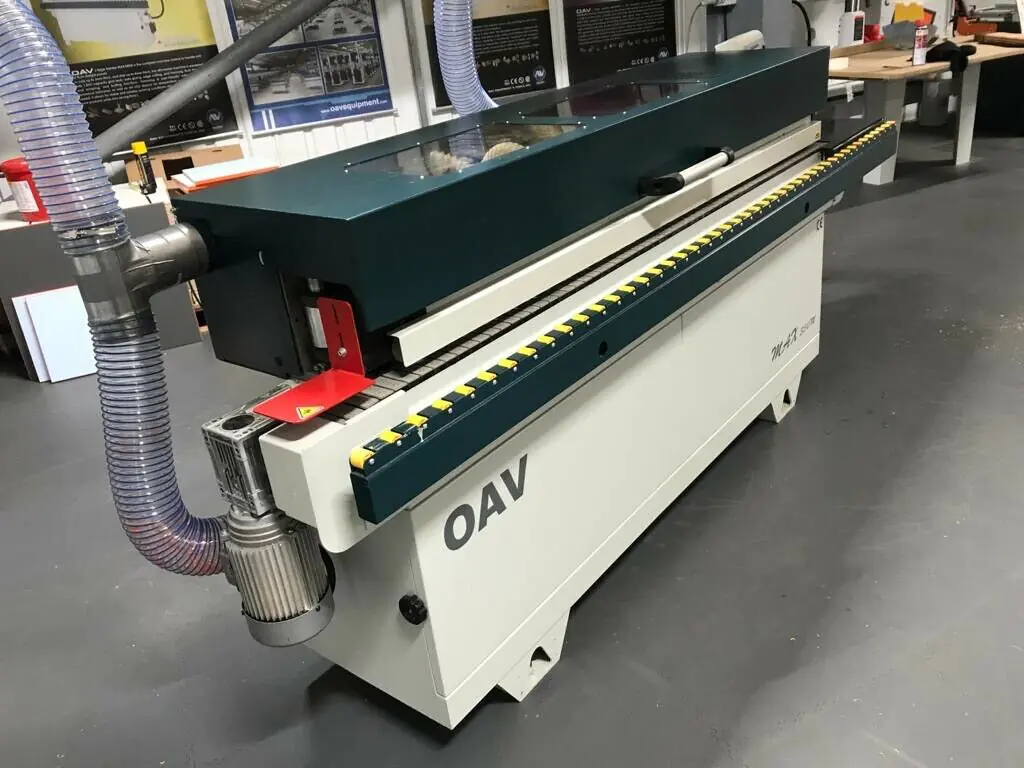

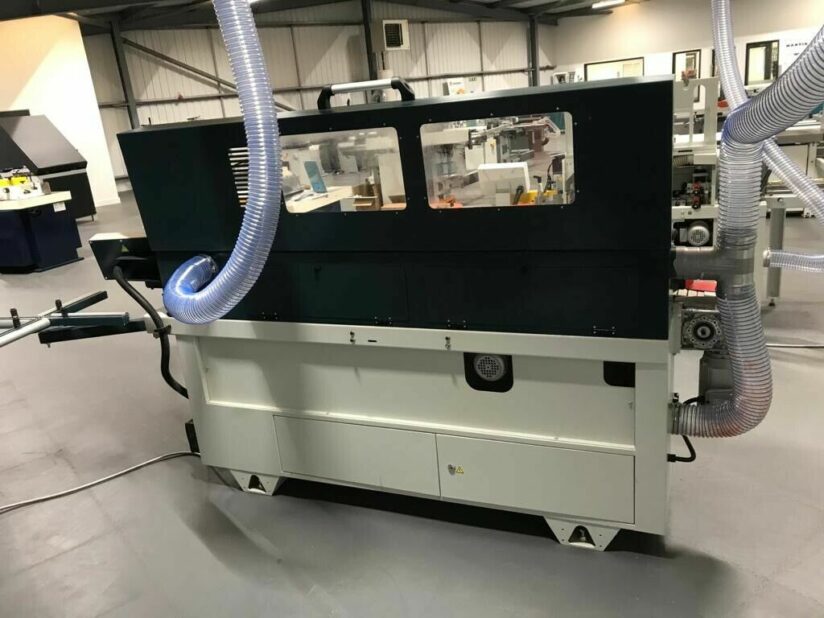

OAV 350M EdgeBander
Allows for the stable and reliable working conditions which will raise the quality of your product while also saving you time.
In coils up to 3mm thick, and strip up to 3mm thick, this affordable machine is equipped with 1.2KG capacity glue tank, auto gluing, edge cutting, pre-milling, end trimming, flush trimming and scraping, and buffing functions.
Featuring a user friendly adjustment with numerical indicators as well as an LCD display for temperature control, 9M feeding speed.
This machine has a panel capacity of 45mm, but please note that the STANDARD PRE MILL CUTTERS ARE 35MM.
Features
- 9m/min feed speed
- 8-45mm panel thickness
- 8-45mm pre milling
- 0.4-3mm edging thickness
- Min panel width: 100mm
- Min panel length: 170mm
- 4088mm x 1003mm x 197xx overall size
- 700 KG
Pre heating
Heated infeed fence helps with glue adhesion
Pre milling
Removes up to 3mm from the panel edge using diamond tipped cutters. Eradicating chips from saw blades and poorly set scribe saws
Hot melt glue pot
Teflon coated for easy maintenance with 1.2KG storage capacity
End trimming
Uses a high frequency 12,000rpm motor mounted on high precision linear bearings.
Radius trimming
Fully adjustable to create either a square flush edge or radius edge. 2mm radius fitted as standard.
Radius scraping
Top and bottom super sharp scrapers that calibrate the radius, cleans glue and removes cutter marks.

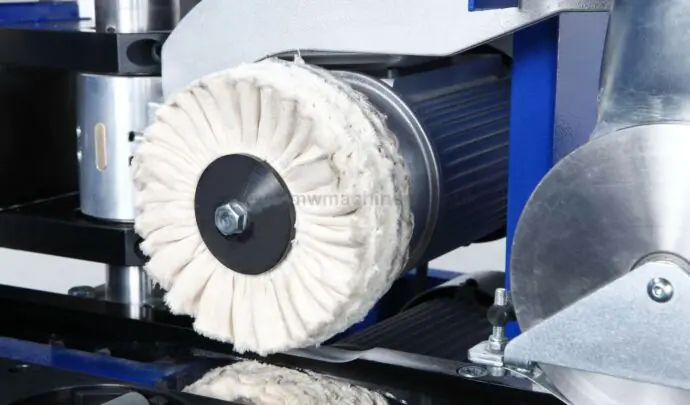

Buffing unit
The Buffing unit removes traces of glue and discolouration
Browse OAV Edgebanders
We have been working with OAV for over 5 years. We’re extremely impressed by the build quality of their woodworking machinery. We stock OAV Edgebanders and Bandsaws. Our OAV Edgebander range consists of:
- OAV 330 Hot Melt Edgebander
- OAV 350M Pre Milling EdgeBander
- OAV 350A Pre Milling EdgeBander
- OAV 370M Corner Rounding EdgeBander
- OAV 370P Automatic EdgeBander
- OAV 370P Automatic Corner Rounding EdgeBander
- OAV 570P EdgeBander
Delivery, Commission and Product familiarisation provided
As long as you have a forklift to unload the machine we can deliver and commission your Edgebander on the same day. On top of delivery and commission our engineers will familiarise you and your staff on the use of the machine.
