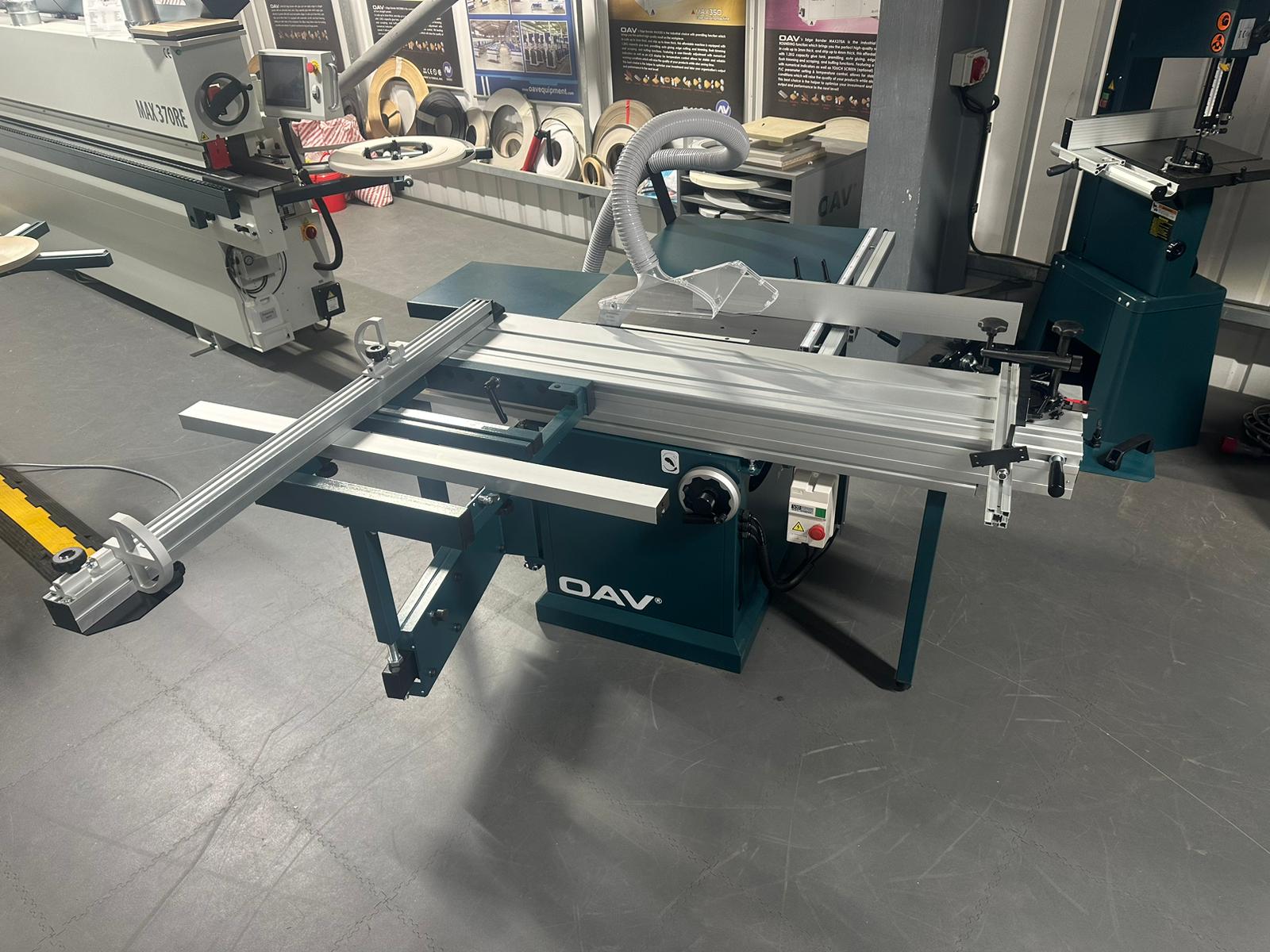

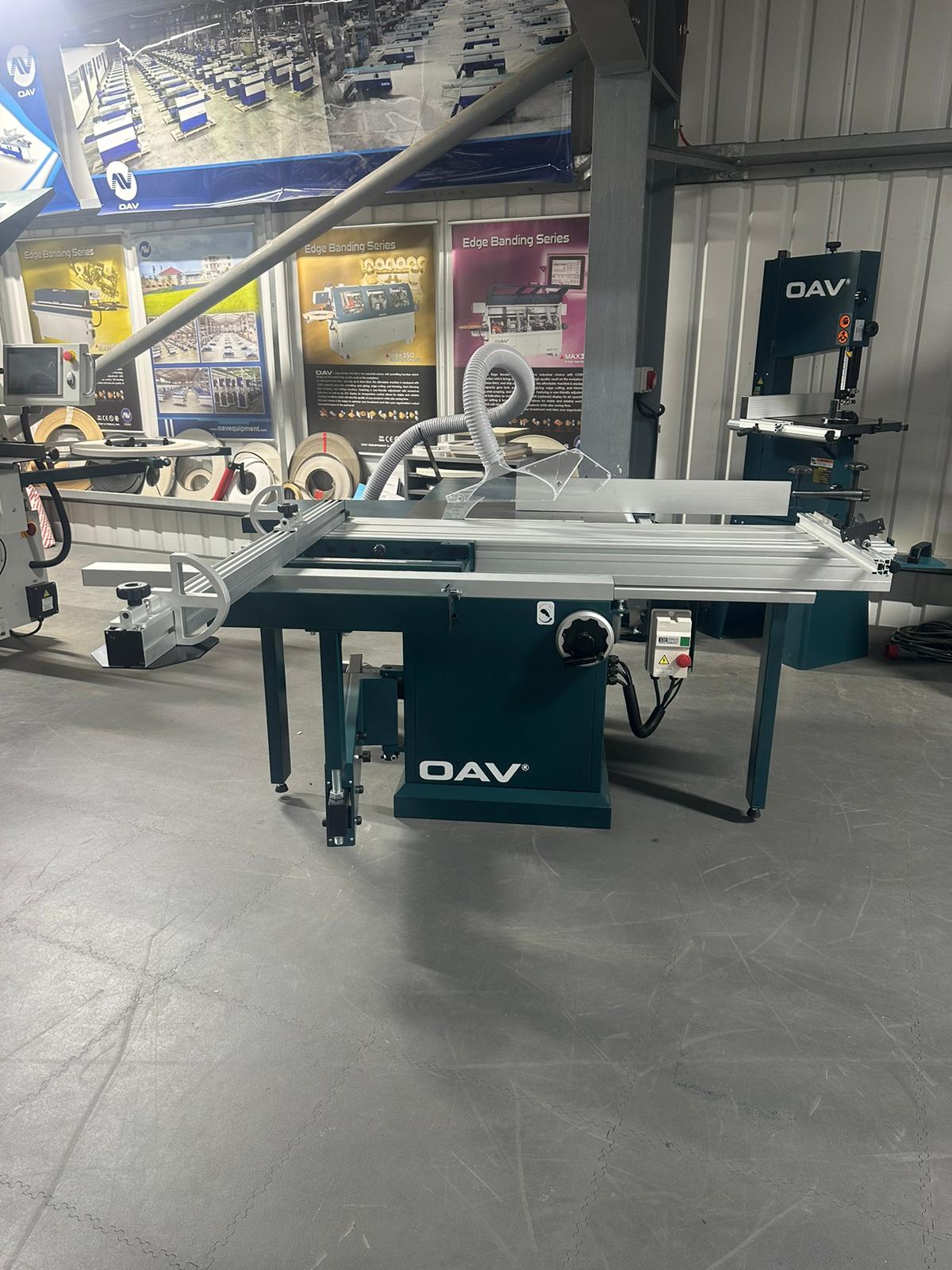

OAV P25 1600mm Panel Saw

Save £550.00

Original price was: £3,000.00.Current price is: £2,450.00.

(£2,940.00 inc VAT)

The OAV P25 is a compact 240v panel saw capable of cutting 1600mm lengths. Equipped with a scoring blade and a 250mm Main blade.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Get a quote
Payment Options

Technical Specifications

Main Motor Power
5 HP
Main saw blade bore
15.9mm
Scoring blade diameter
80mm
Main Saw blade tilt adjustment
90° – 45°
Max. cutting height 90°
80mm
Max. rip cut
837mm
Dust Extraction outlets
1x 100mm & 1x 60mm
Max. Main blade diameter
254mm
Main blade speed
4,000 RPM
Scoring blade speed
8,000 RPM
Sliding table dimensions
1600 x 315mm
Max. cutting height 45°
57mm
Floor to table height
854mm
Machine Weight
293KG

Floor Plan

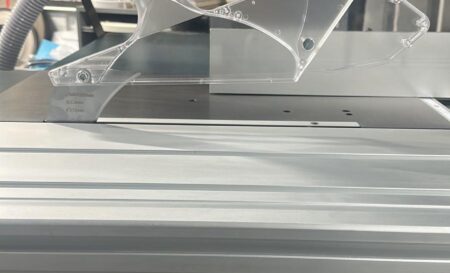

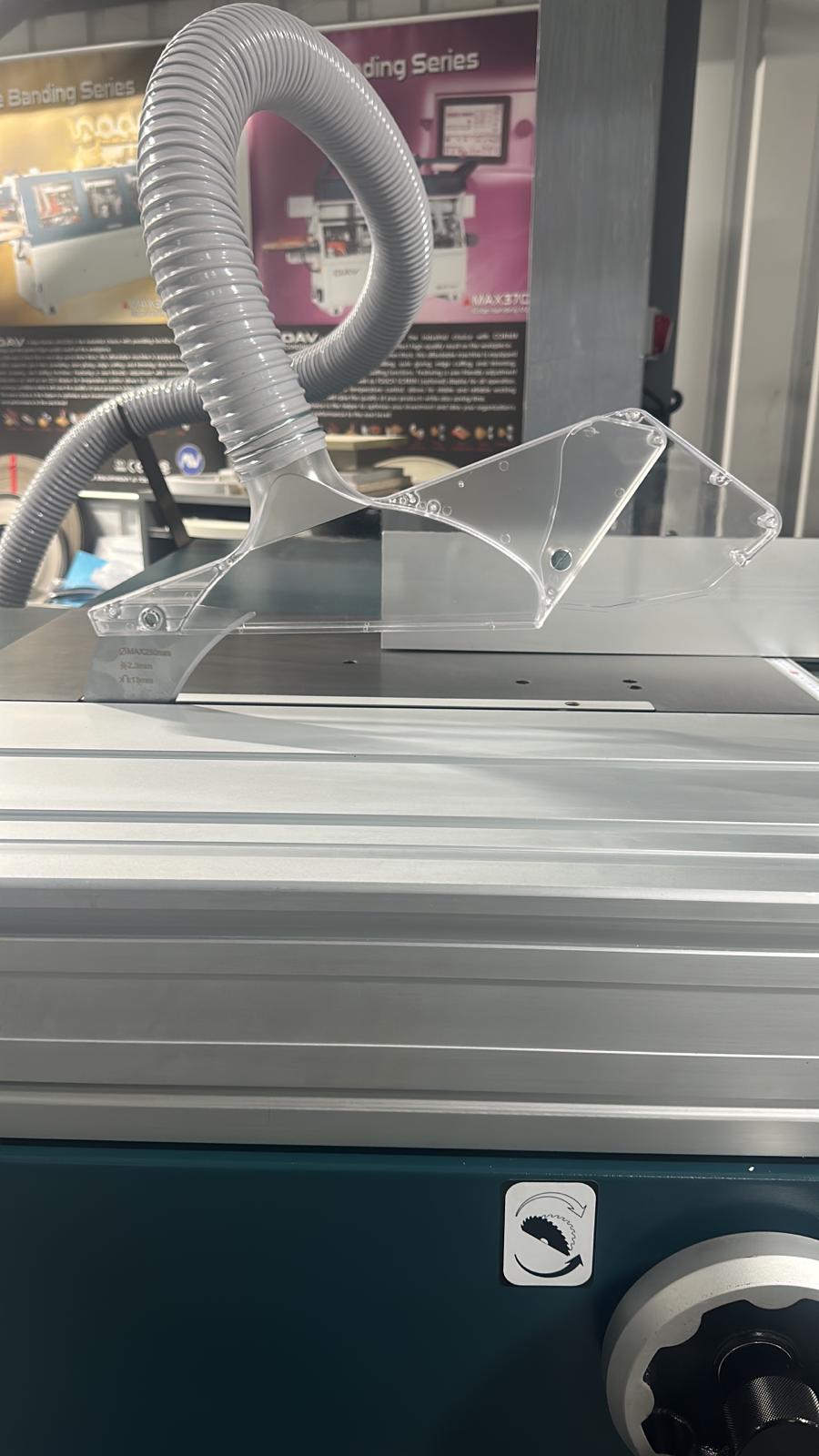

Saw guard

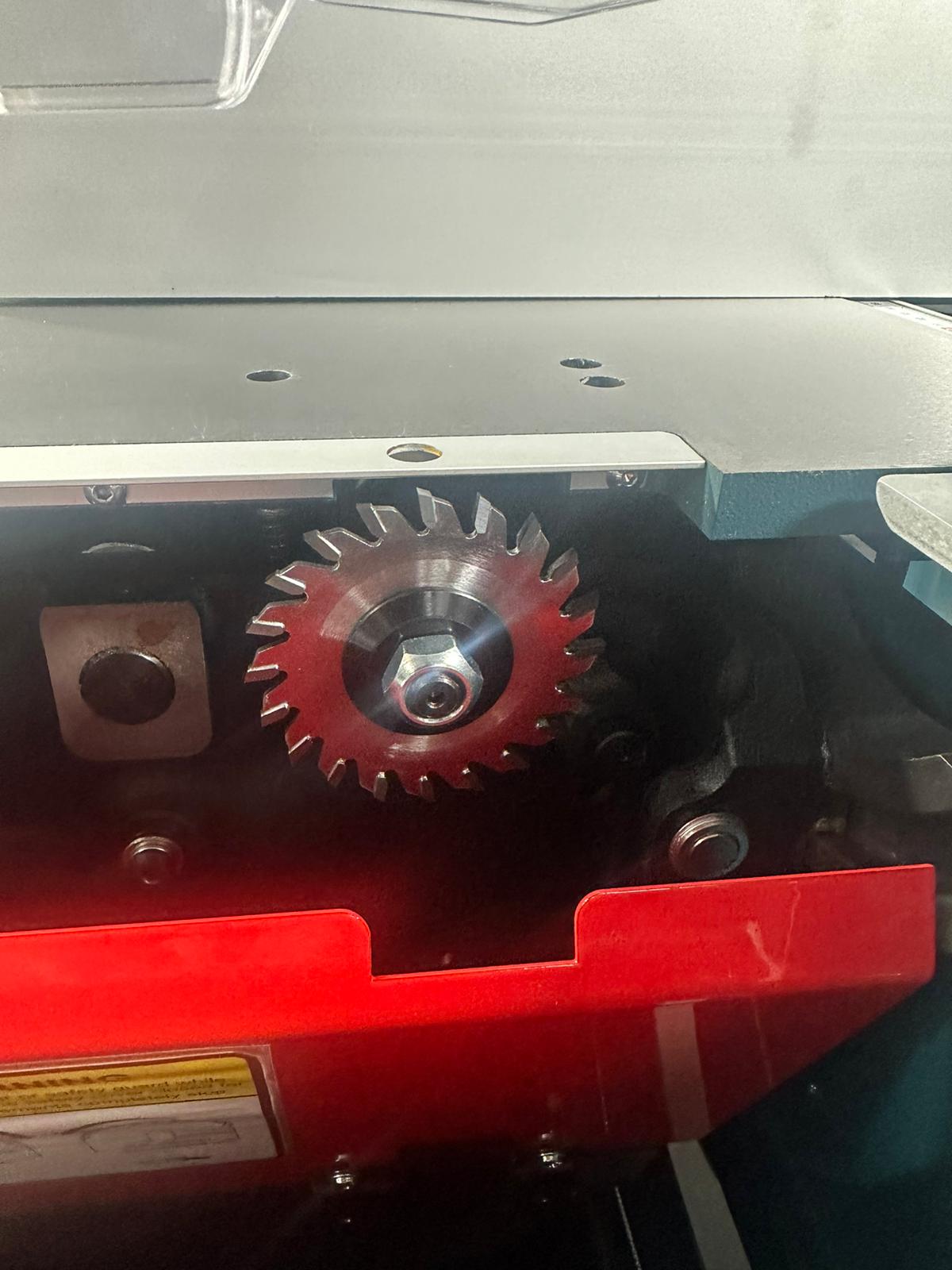

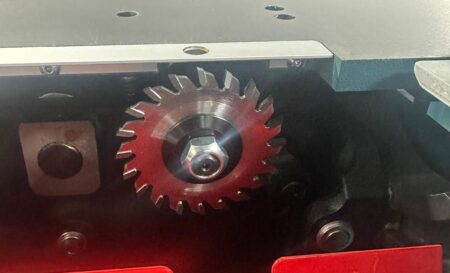

Scribe Unit

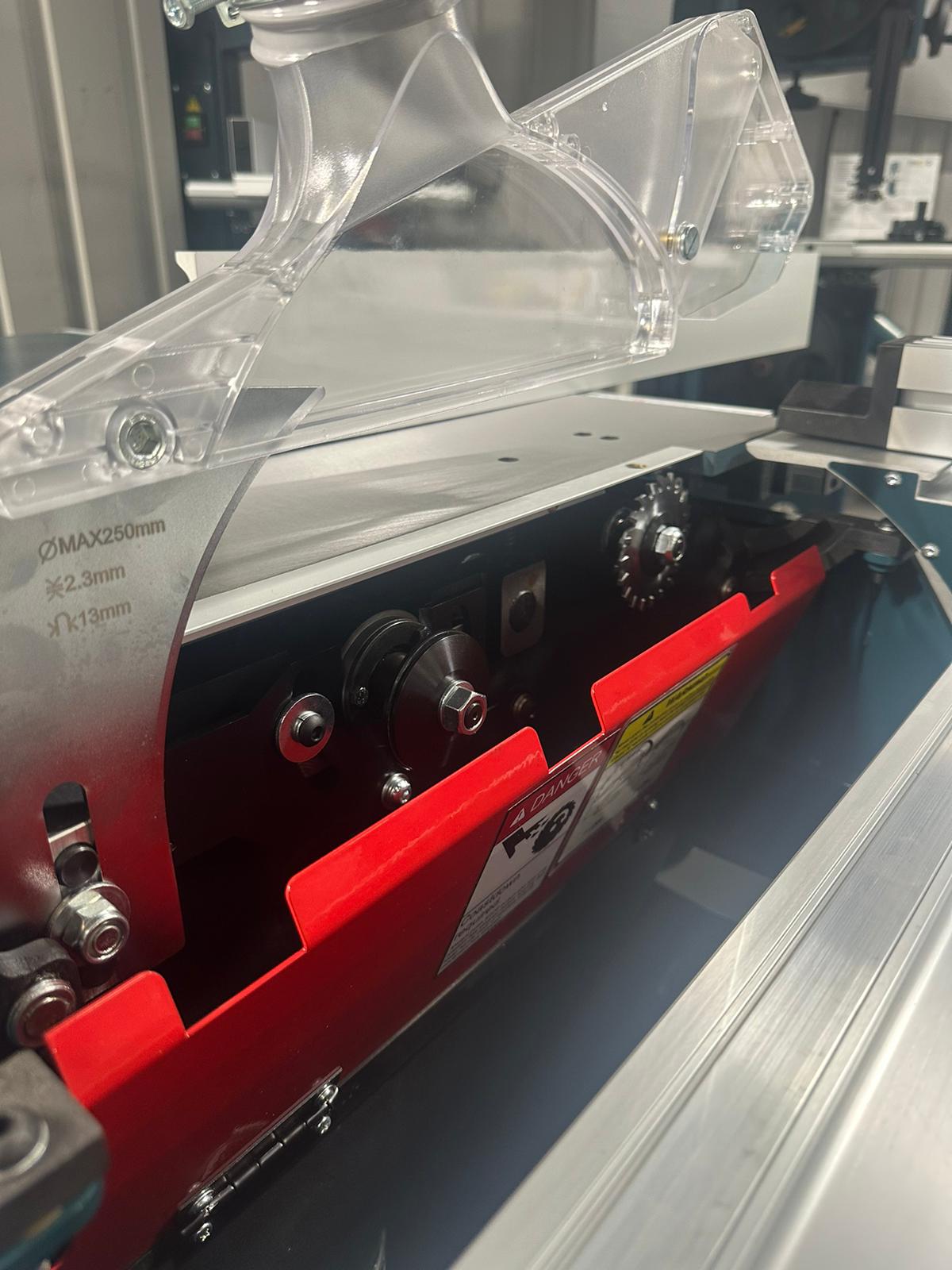

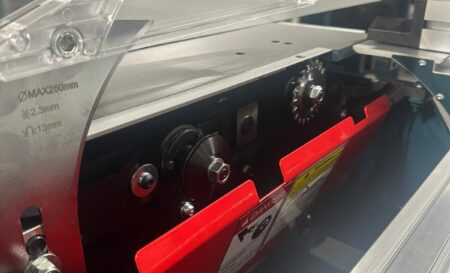

250mm Main blade with Scribe Unit

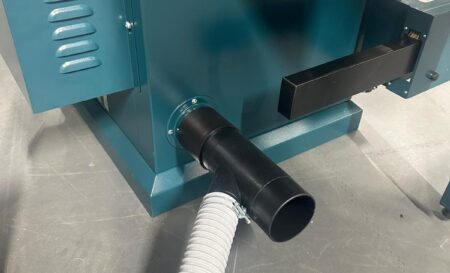

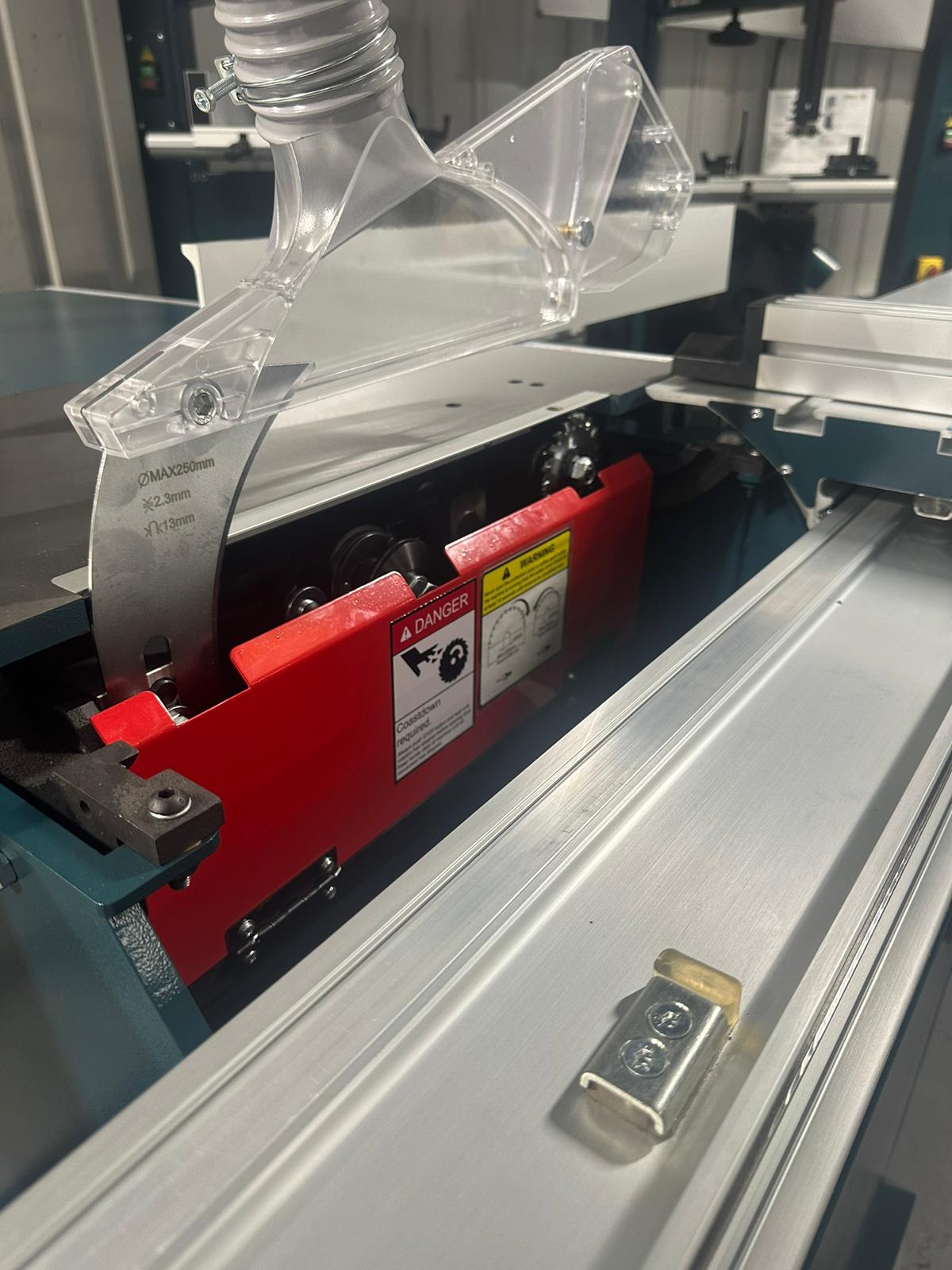

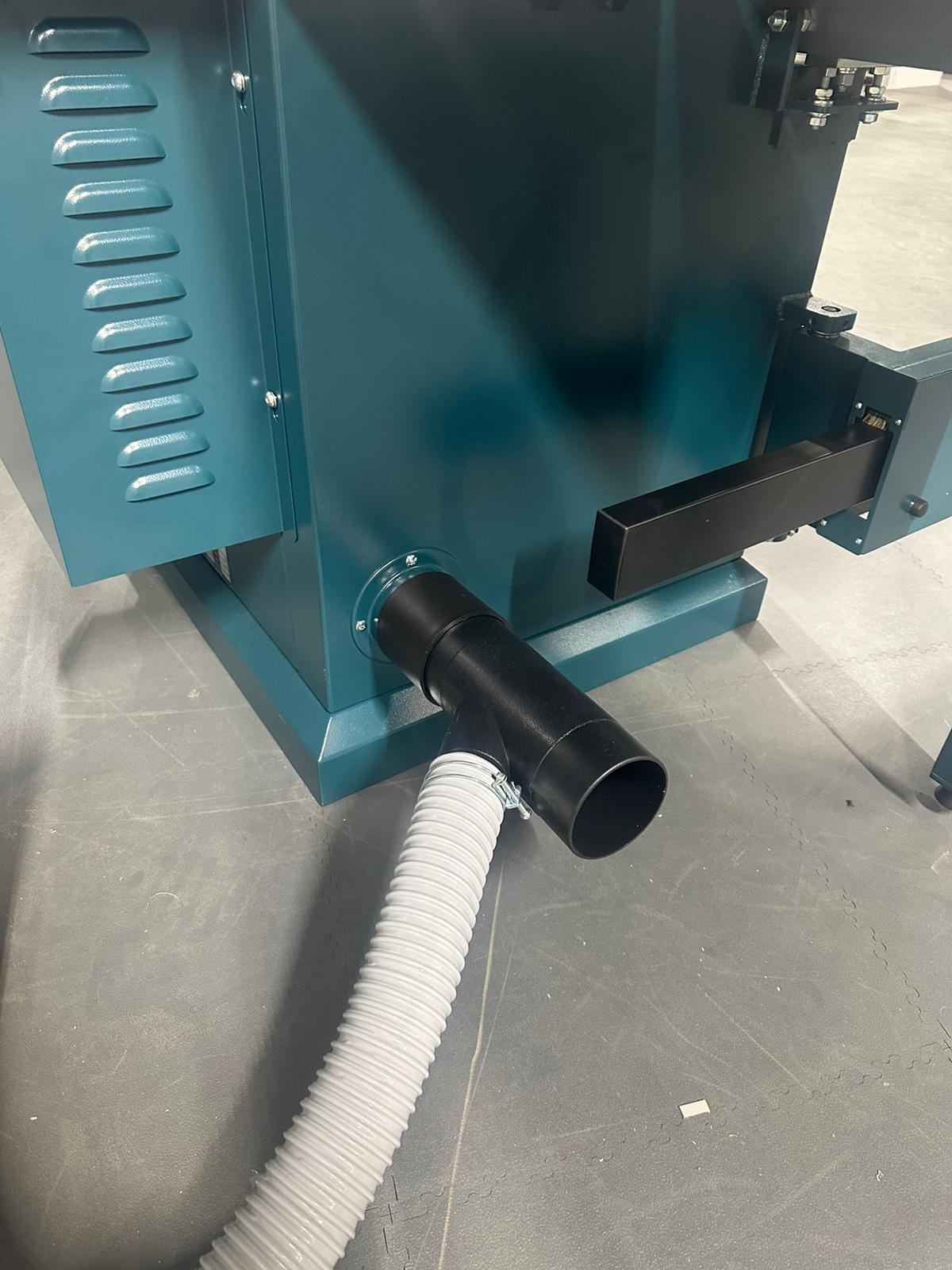

Integrated Extraction

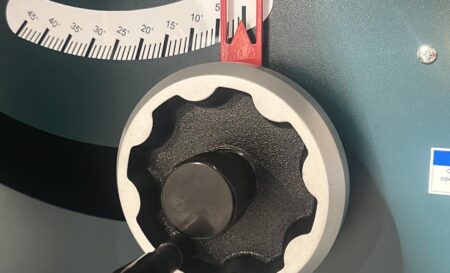

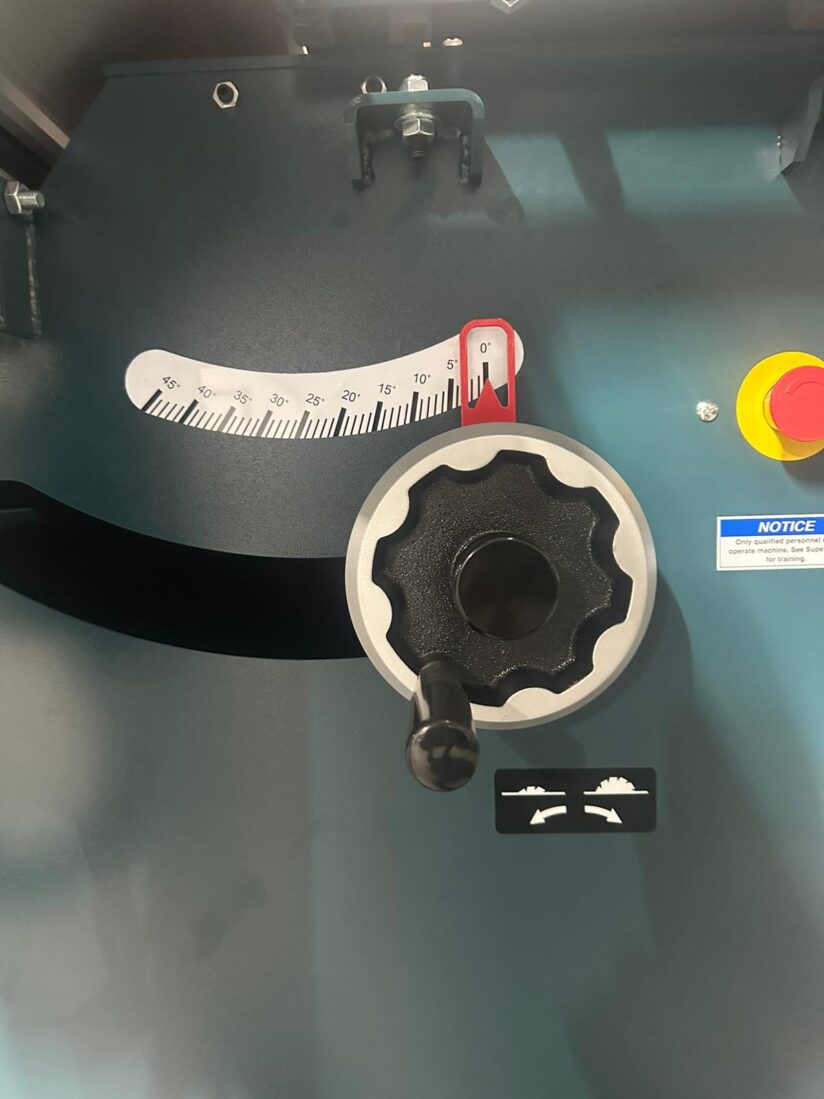

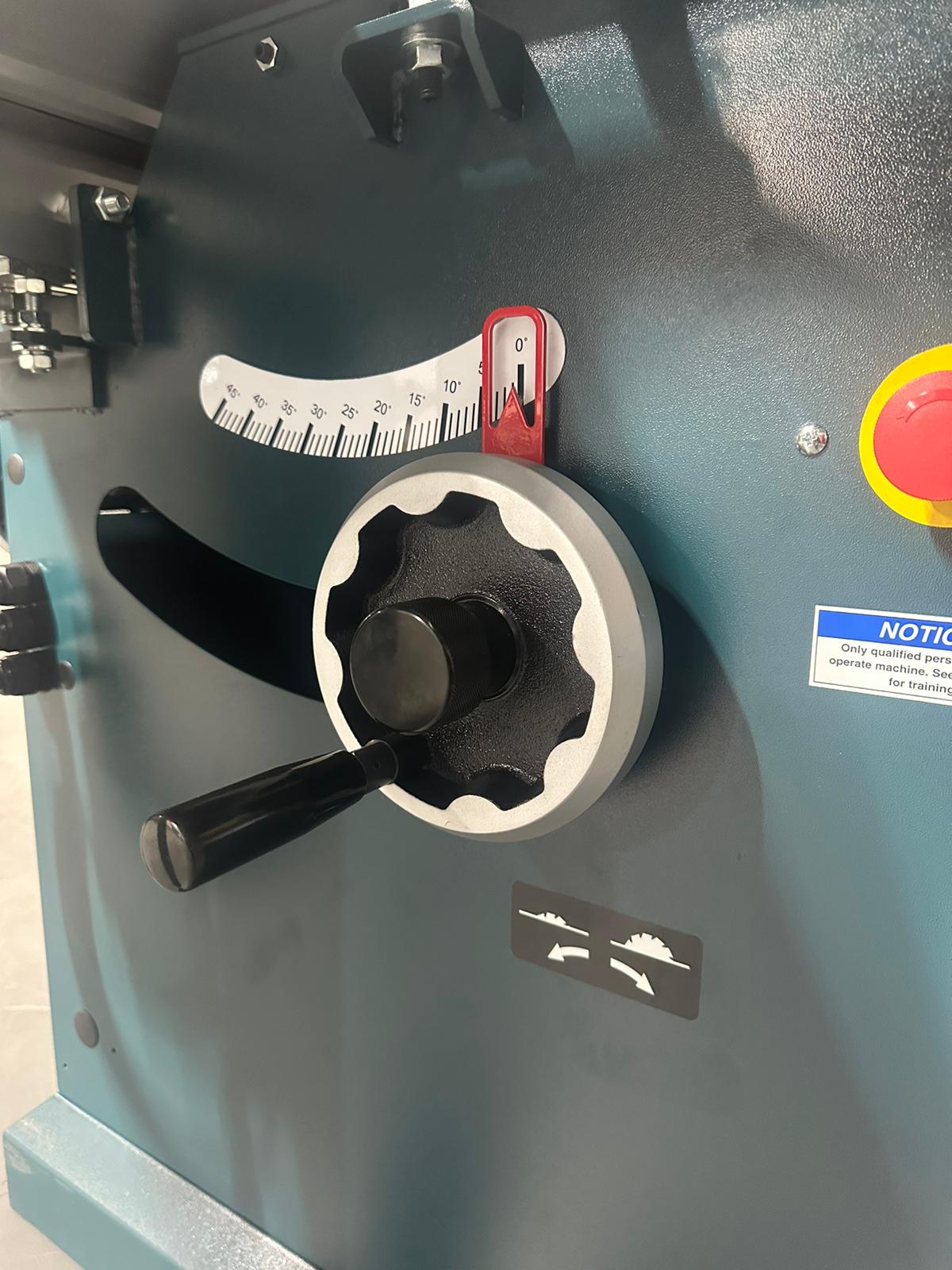

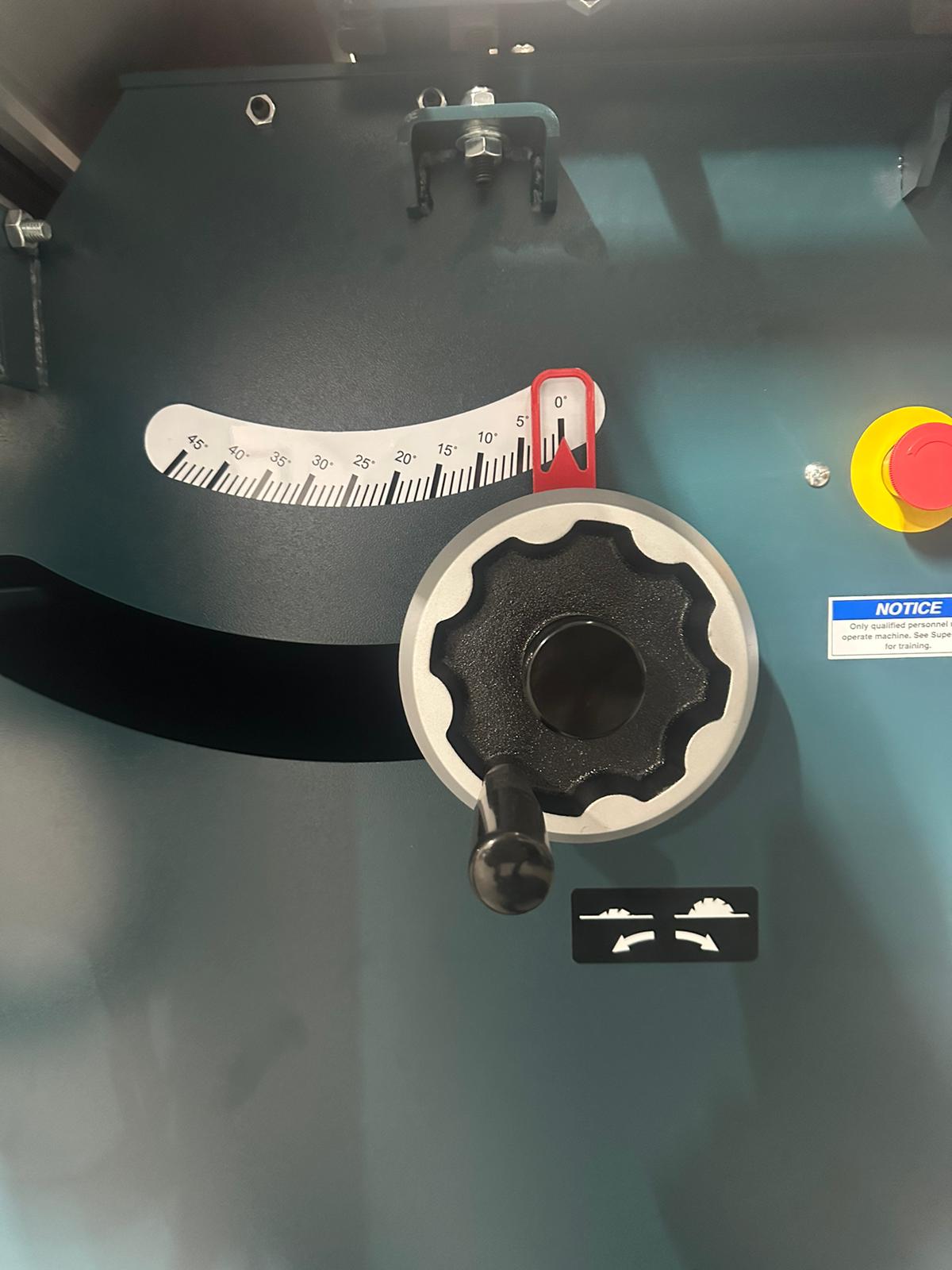

Handwheel for blade height and angle readout

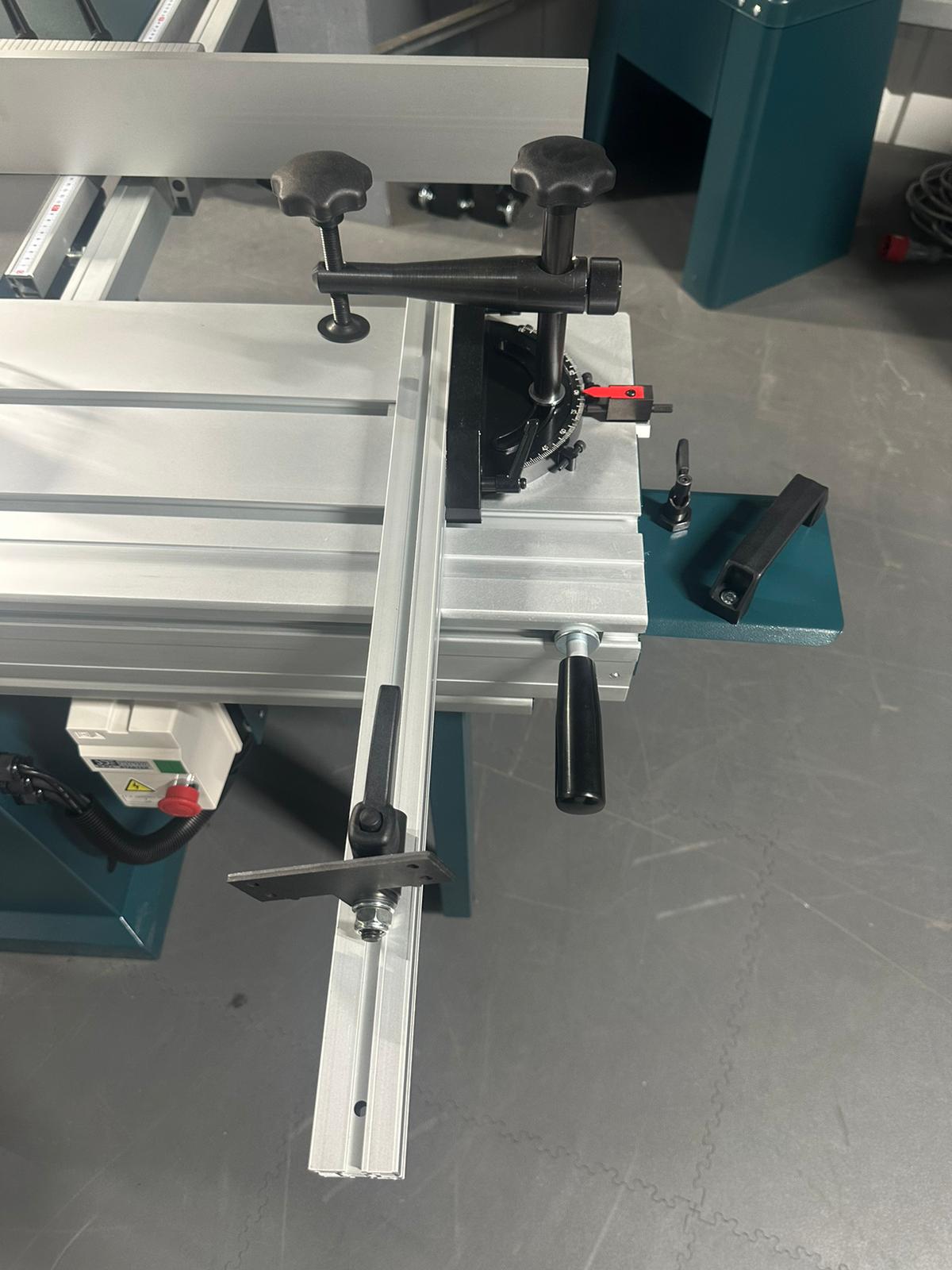

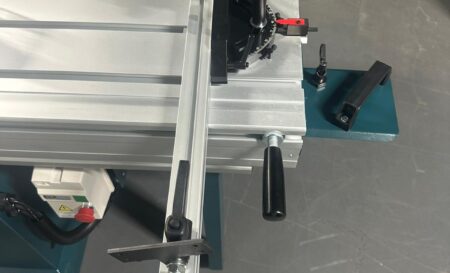

Mitre Fence on sliding table

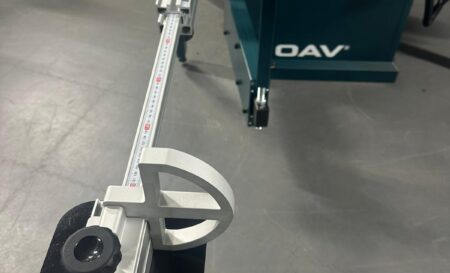

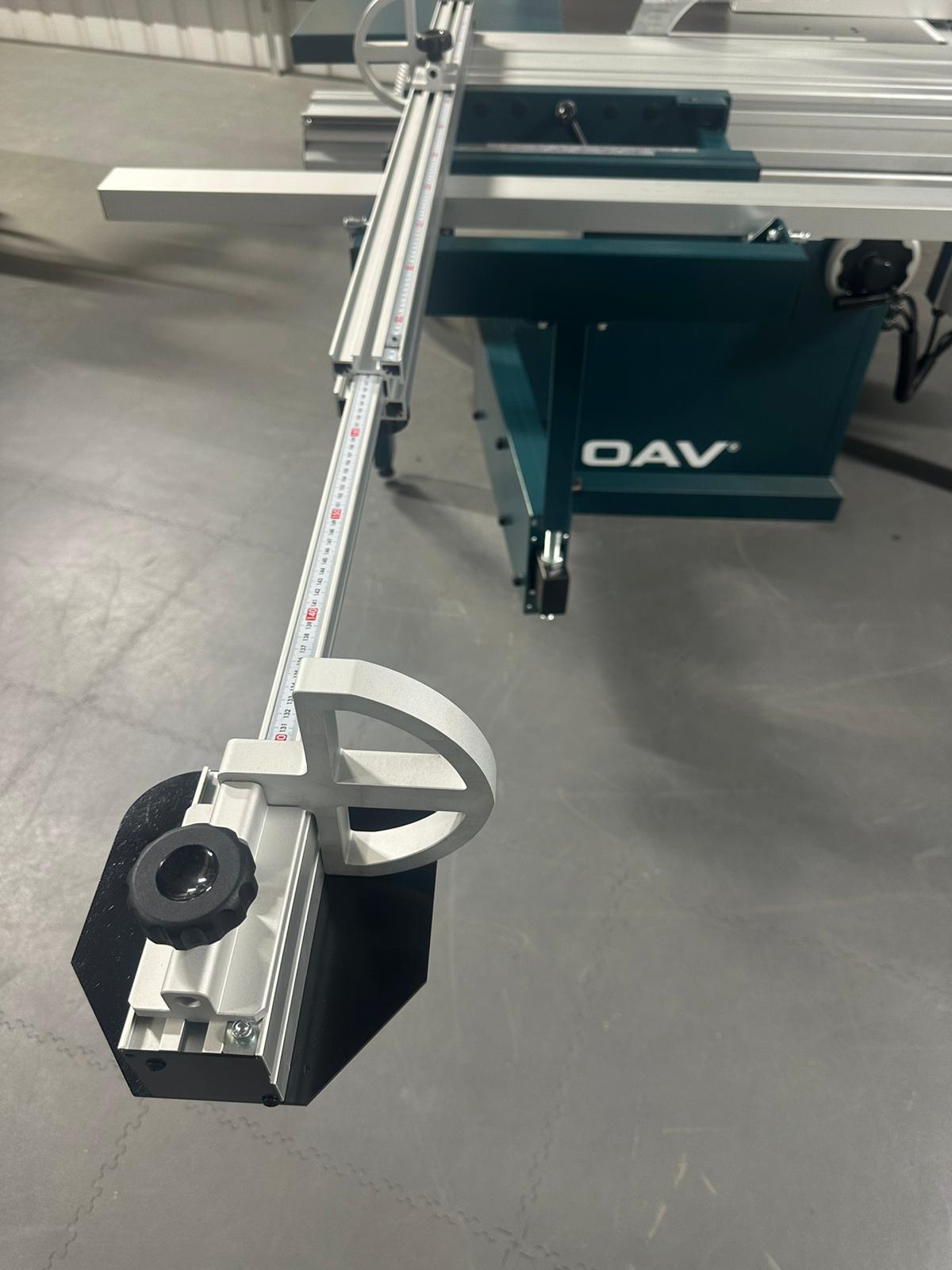

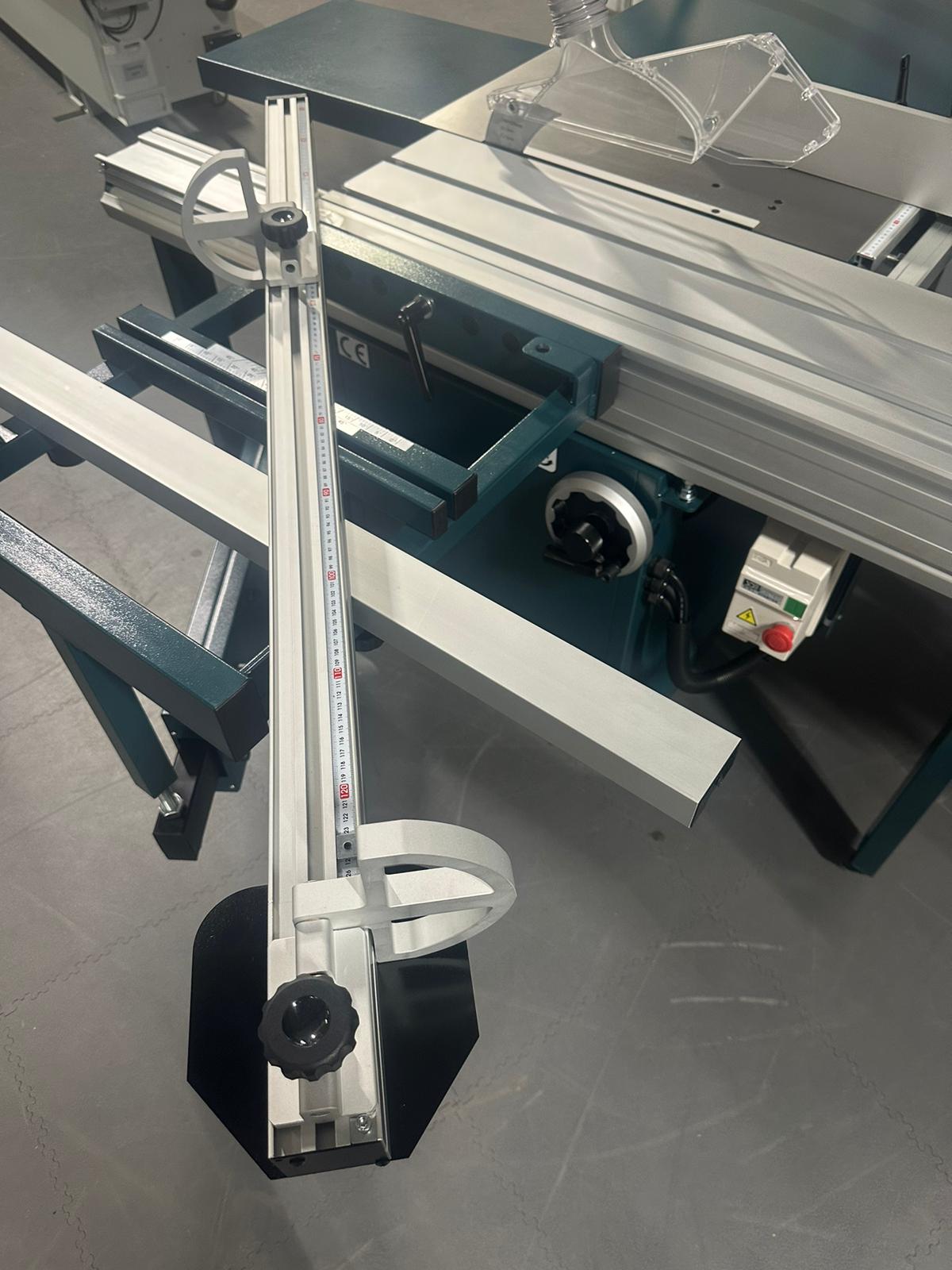

Extendable crosscut fence

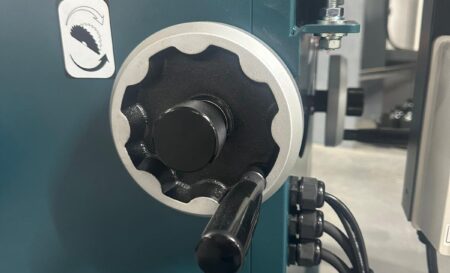

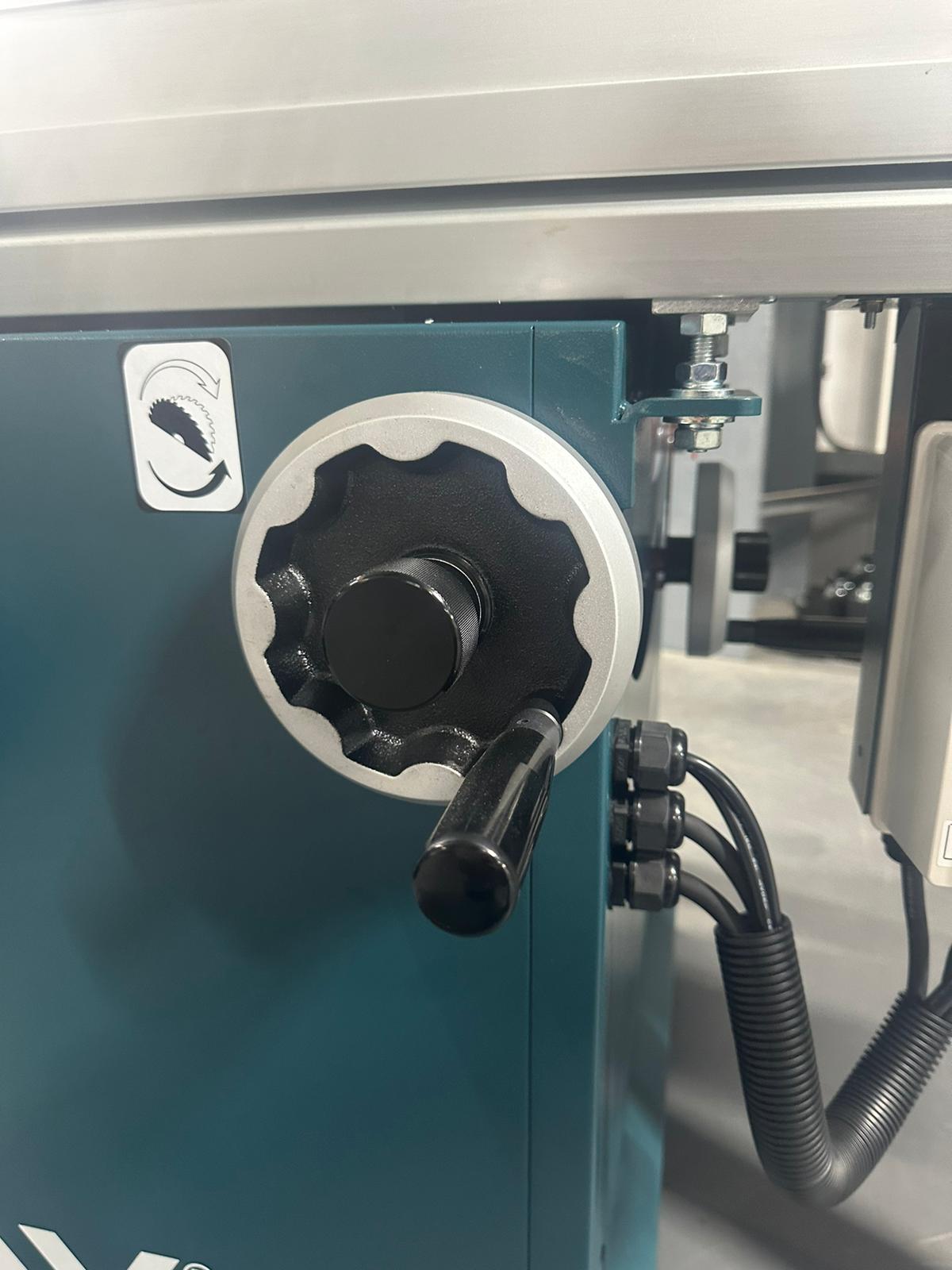

Handwheel adjustment for blade angle

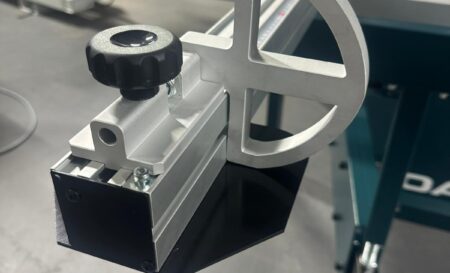

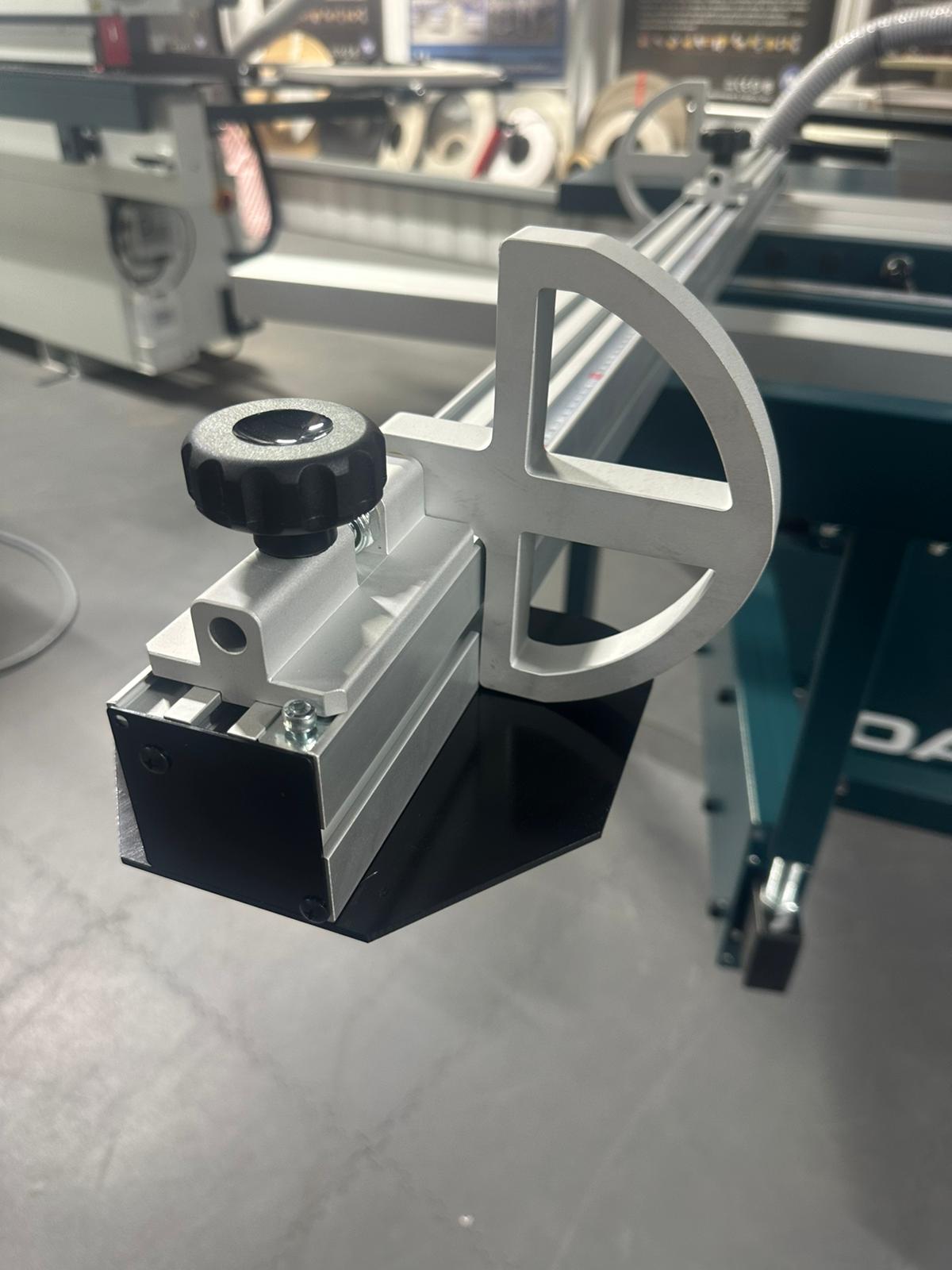

2x Manual crosscut stops
830mm cutting width

Similar Products

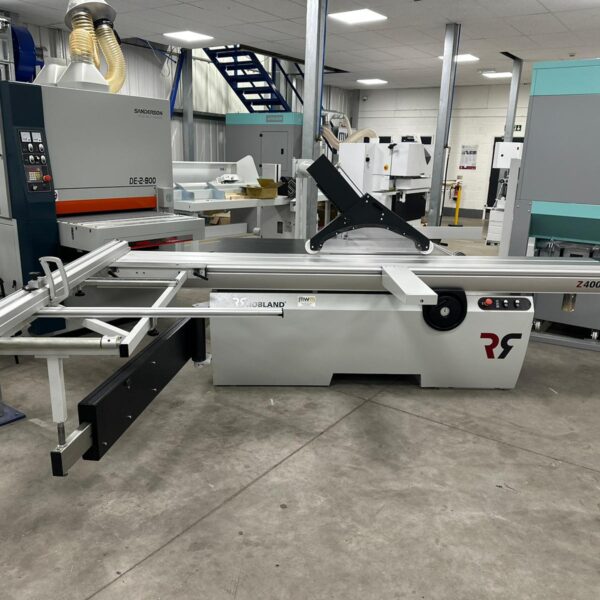

Used Robland Z400M 3.2M Panel Saw
