Technical Specifications

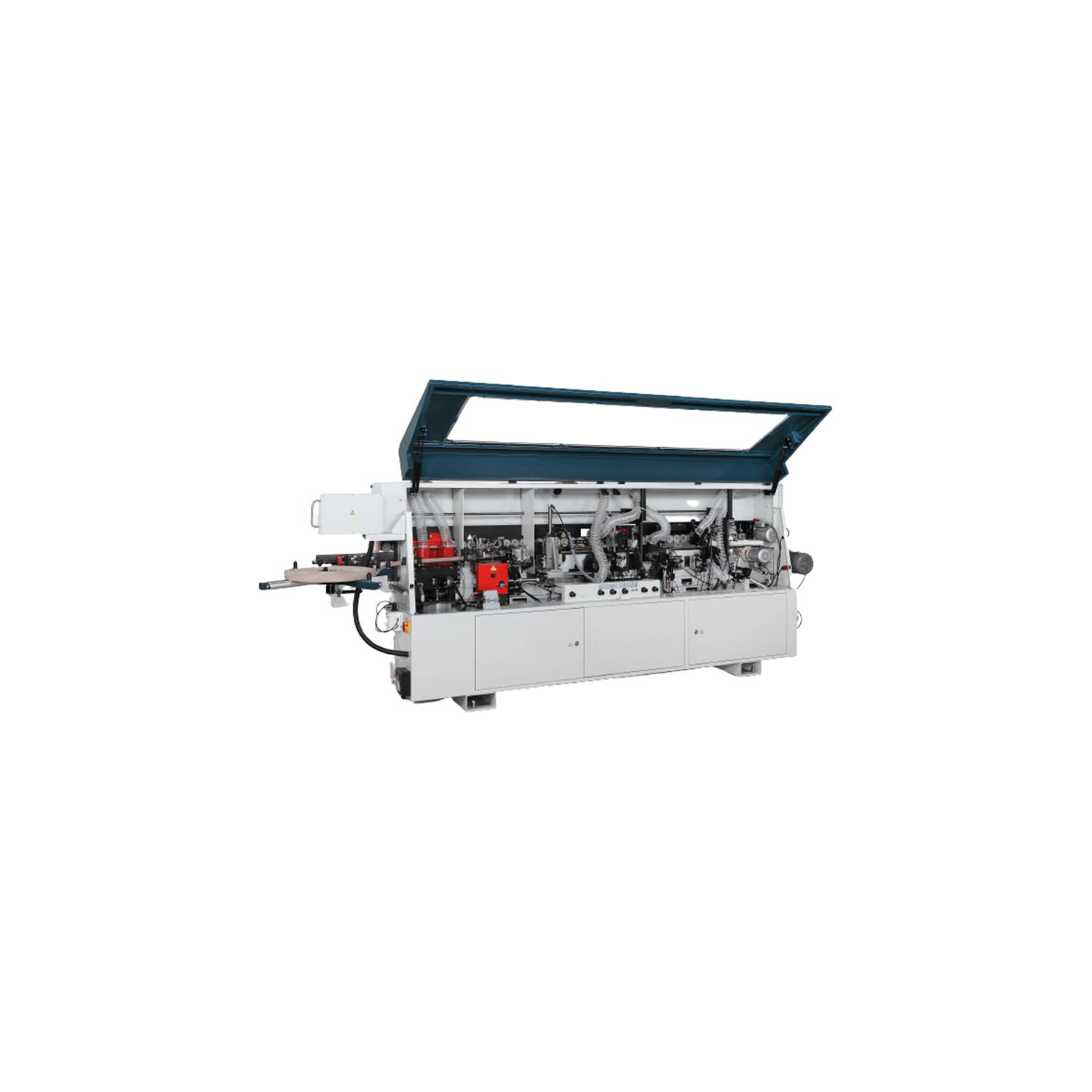

OAV Rapid Edge Pro Edgebander
Look no further than the RapidEdge Pro edge bander! Our top-of-the-line solution is designed to make edge banding a breeze. With its advanced technology and user-friendly interface, the RapidEdge Pro can apply edge banding to your projects in record time, without sacrificing quality or accuracy. Its compact size and easy-to-manoeuvre design makes it the ideal edge banding solution for use in any workshop or manufacturing setting.
- Rapid application: The RapidEdge Pro can apply different thickness of edge band from 0.5 mm, 1 mm to 2 mm to your projects with rapid changeover speed allowing for optimal production output.
- Precision accuracy: With its advanced trimming system, the OAV RapidEdge Pro Edgebander ensures that your edge banding is perfectly aligned and trimmed every time.
- Easy operation: The RapidEdge Pro’s intuitive interface makes it easy for anyone to operate, regardless of skill level or experience.
- Durable construction: Our machine is built to last, with sturdy components that can withstand the rigors of daily use.
Floor Plan
Features
- Rapid change of edge thickness via touch screen
- Nesting rollers function
- Release agent spray
- Pre-milling radius trim unit
- Pre heat fence
- Top bottom trim
- Radius scraping
- Flat scraping
- Cleaning agent spray
- Buffing unit

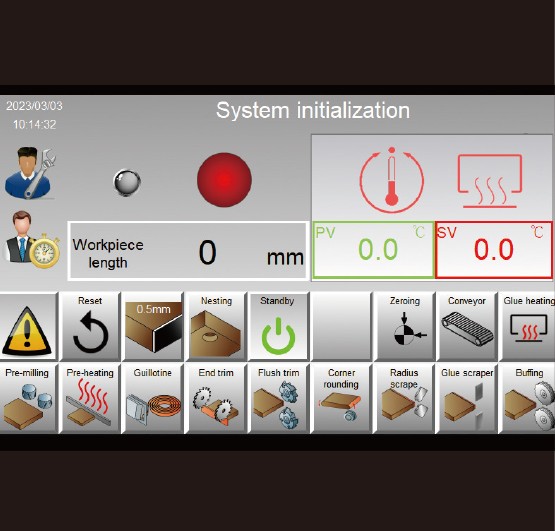

Touch Screen
HMI control system reduces manual settings to a minimum and enables a quick, easy and intuitive selection and control of the aggregate as well as the complete monitoring of all machine functions from the screen

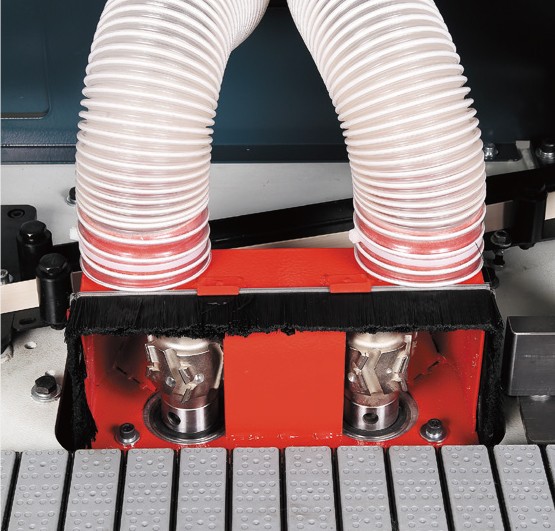

Pre-Milling Unit
Two counter rotating activation controlled and individually adjustable units with spiral cutters that ensure first class edge processing before the workpiece is glued to the edge

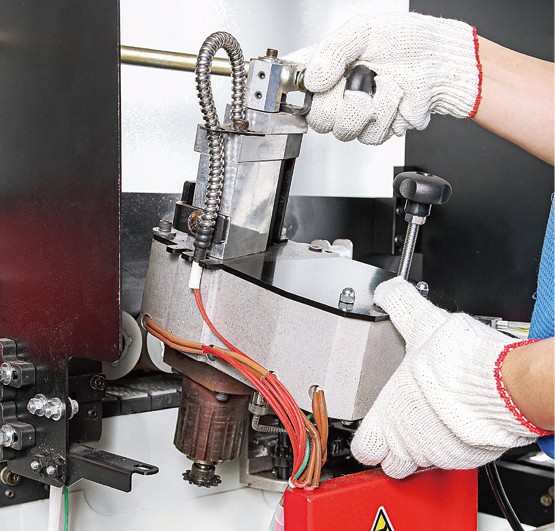

Quick change glue pot
The Teflon coating glue pot has 1.2 kgs capacity, short warm-up time is quick operational readiness. The quickly change system of the glue pot guarantees shortest cleaning and changeover time when changing glue.
End cutting unit
Two blades with fence plate against workpiece to cut excessive edge on the front and rear sides.

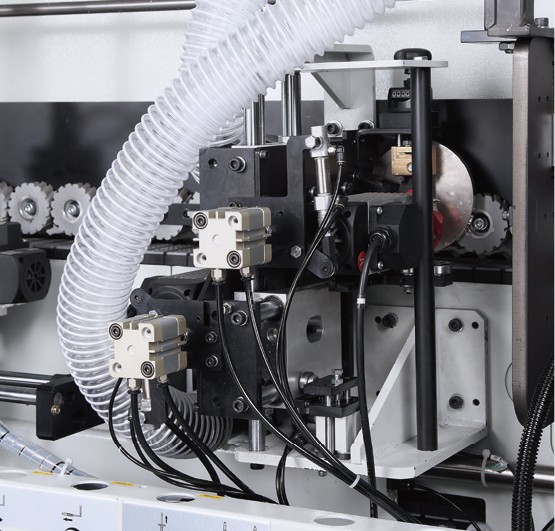

Flush trimming
Two counter rotating activation controlled and individually adjustable units with replaceable knifes that cutting excessive on the top and bottom sides.

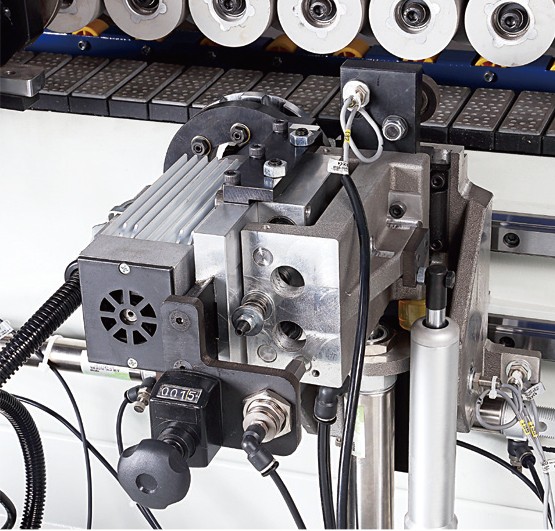

Corner rounding
The corner rounding unit is controlled from the control panel, naturally with the option of choosing which corners need to be rounded.

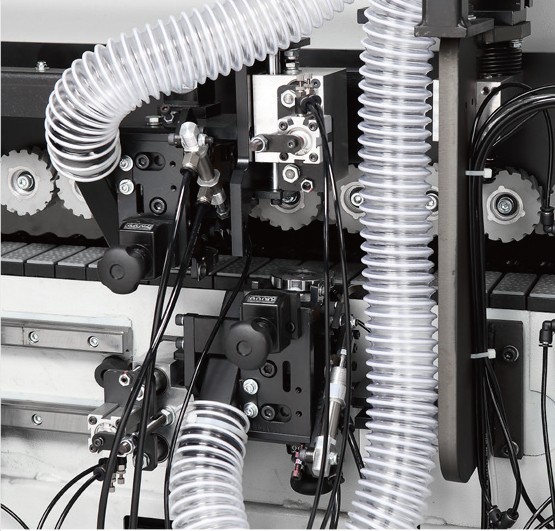

Radius scraping
The radius surface receives a light scraping, removing any remaining from the trimming process and ensuring a smooth finish. The fine adjustment is manual.
Flat scraping unit
Slightly remove residual glue on the workpiece caused by squeeze-out.

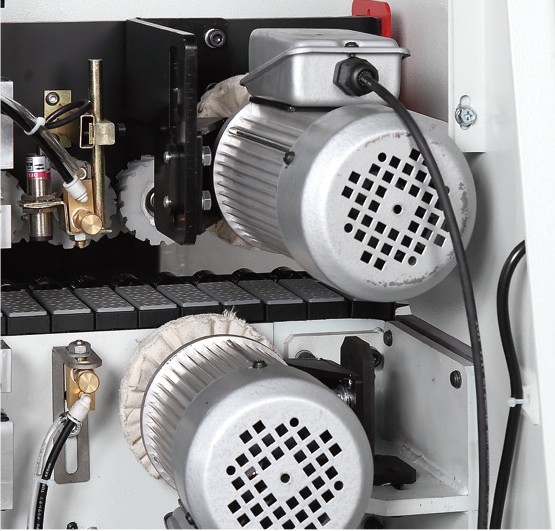

Buffing unit
The unit is made up of two independent electric motors, which are equipped with cotton brushes.
The task of the buffing unit is to clean and polish the top and bottom part of the edge.

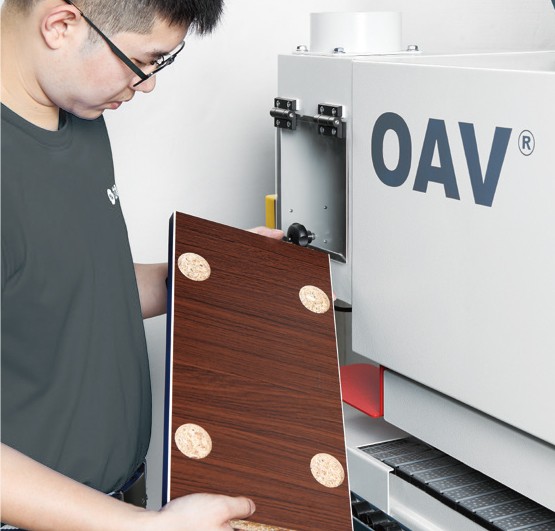

Nesting function
Nesting kits is good for the workpieces will be already drilled before edge processing.
Release agent spray (optional)
Applying release agent from the top and bottom to prevent leaked adhesive residual glue sticking on the workpiece.
Cleaning spray unit (optional)
Cleaning agent system sprays solvent firm top and bottom of workpieces. Cleaning agent is installed in front of buffing unit and is loose adhesive residue on the panel.
